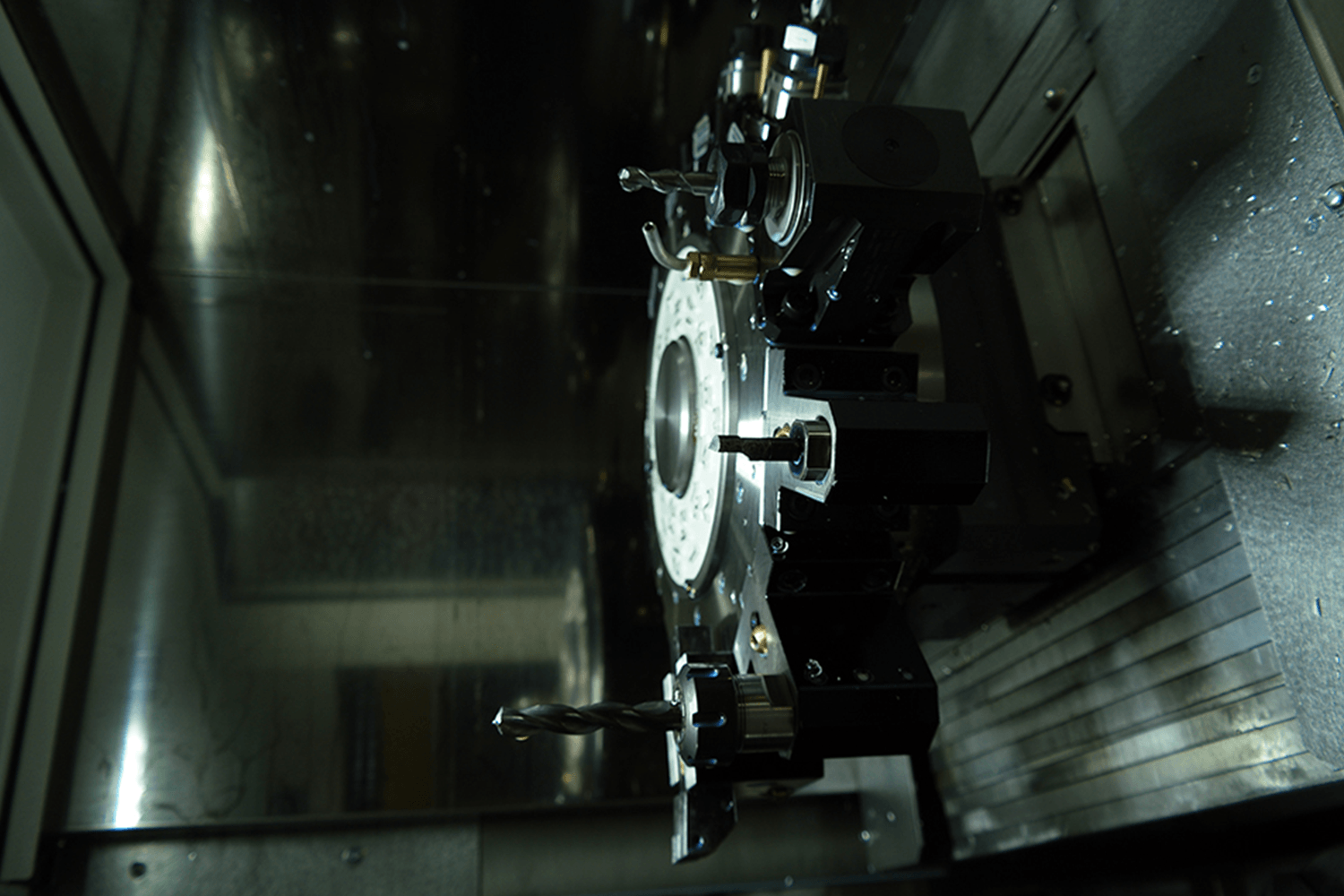

turret inside the Nakamura-Tome WY-100Ⅱ twin spindle multitasking machine as it manufactures a part

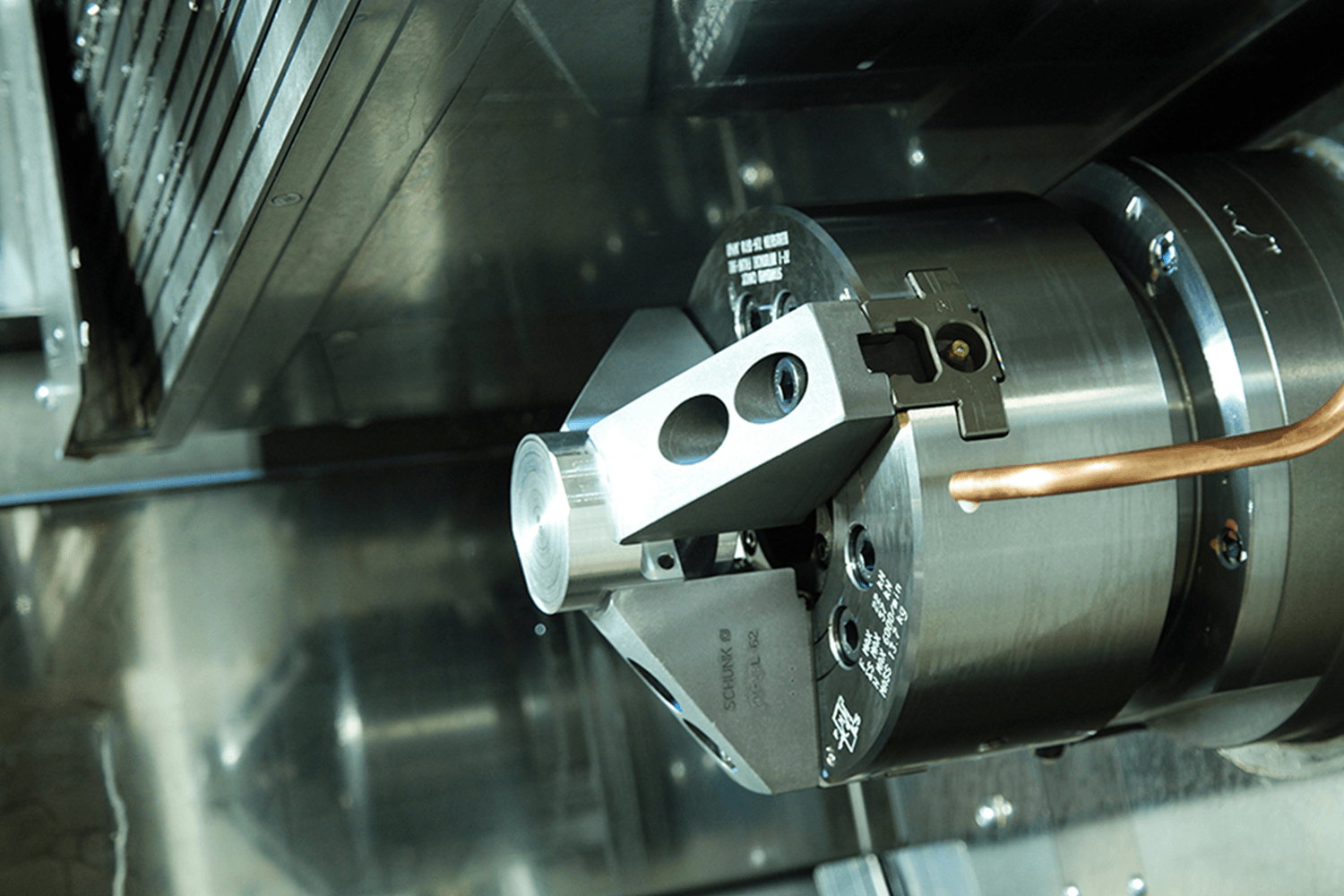

lathe inside the Nakamura-Tome WY-100Ⅱ twin spindle multitasking machine as it manufactures a part

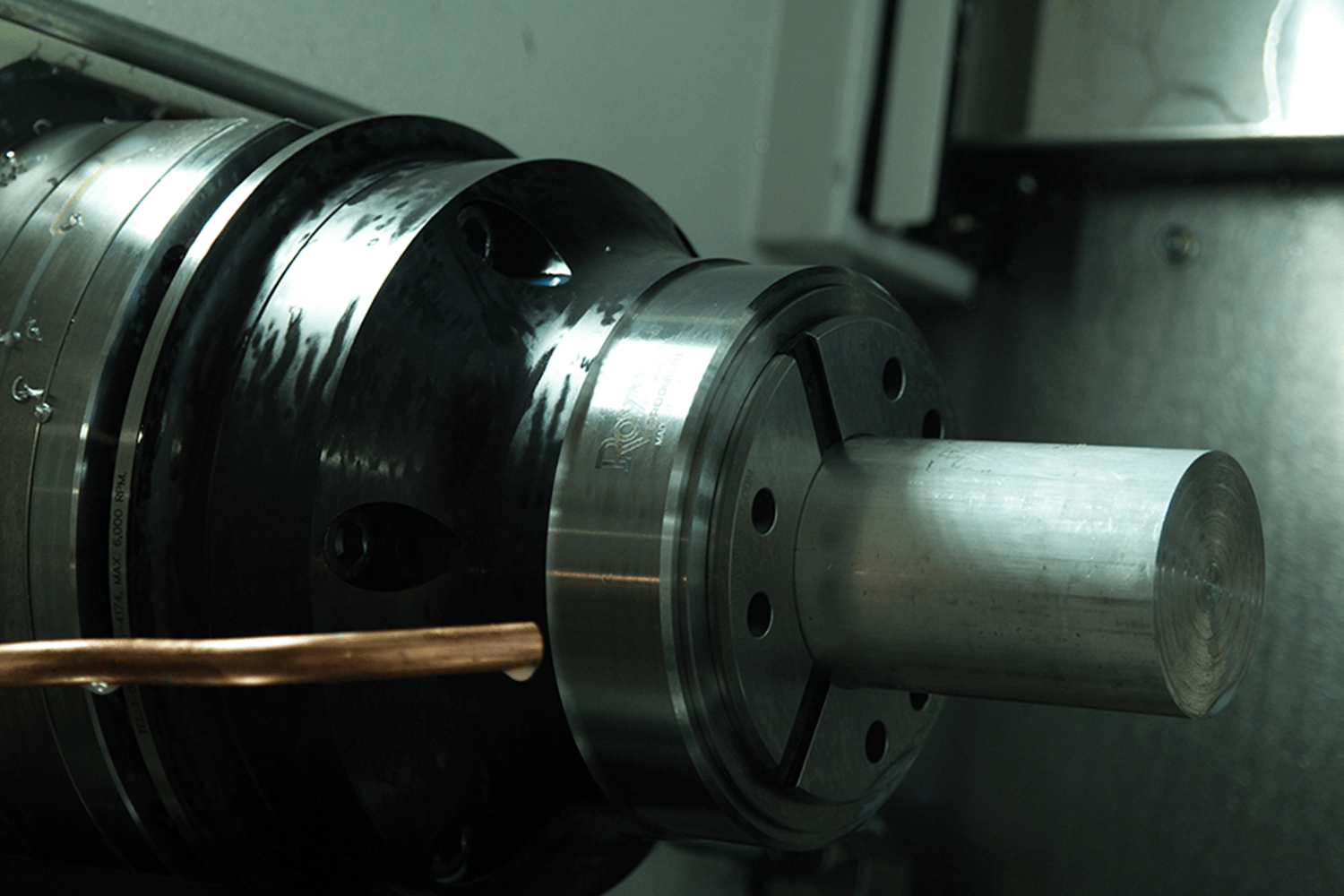

spindle inside the Nakamura-Tome WY-100Ⅱ twin spindle multitasking machine as it manufactures a part
Nakamura-Tome WY-100Ⅱ | Methods Machine Tools Nakamura-Tome WY-100Ⅱ - Internal Photo | Methods Machine Tools Nakamura-Tome WY-100Ⅱ - Internal Photo | Methods Machine Tools Nakamura-Tome WY-100Ⅱ - Internal Photo | Methods Machine Tools

Nakamura-Tome
WY-100II

The WY-100II from Nakamura-Tome is a twin spindle multi-tasking machine with two turrets, upper and lower, both with Y-axis. With this configuration, the opportunity exists to drastically reduce cycle times by offering highly capable features like pinch milling, drilling and turning, as well as unique “off center” interpolative functions that can be performed on both spindles.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Download Brochure

Features & Benefits

  • Opposing Two-Spindle, Two-Turret Construction
  • 48 Tool Stations
  • 24 Driven-tool Stations
  • 3.3 in Y-axis travel on Upper Turret
  • 2.55 in Y-axis travel on Lower Turret
  • 8,000 min-1 Driven-tool Speed (Upper / Lower)
  • 15/10 HP Left and Right Spindle Motor
  • 7.5 HP x2 Driven-tool Motor (Upper / Lower)
  • 2 in Bar Capacity

Technical Data

Capacity
2.0 In ( 51) in (mm)
Max Turning Diameter
7.9 (200) in (mm)
Max Turning Length
23.2 (588) in (mm)
Bar Capacity
1.7 (42) in (mm)
Bar Capacity L-Spindle
2.0 ( 51) in (mm)
Bar Capacity R-Spindle
1.7 ( 42) in (mm)
Chuck size
6 (165) in (mm)

Axis Travel

Slide Travel (B)
24.5 (620) in (mm)
Rapid feed (B)
1575 (40) in/min (m/min)
Slide Travel (X1/X2)
5.3 (135) in (mm)
Slide Travel (Z1/Z2)
23.2 (588) / 22.8 (578) in (mm)
Slide Travel (Y1/Y2)
±1.2 (31) in (mm)
Rapid Feed (X1/X2)
630 (16) in/min (m/min)
Rapid Feed (Z1/Z2)
1575 (40) in/min (m/min)
Rapid Feed (Y1/Y2)
236 (6) in/min (m/min)

Left and Right Spindle

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
1.7 (43) in (mm)

Left Spindle

Spindle Speed
8000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
2.0 in ( 51) in (mm)

Right Spindle

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
1.7 ( 42) in (mm)

C-Axis

Least Input Increment
1E-3 degree

Turret

Number of Tool Stations
24
Number of Indexing Positions
24

Rotating Tool

Rotary System
Individual rotation
Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12x2

Drive motor power

Main Spindle
15 HP
Right Spindle
15
Driven Tool Spindle
9.5/3 HP

General

Machine Weight
16314 (7400) lbs (kg)
