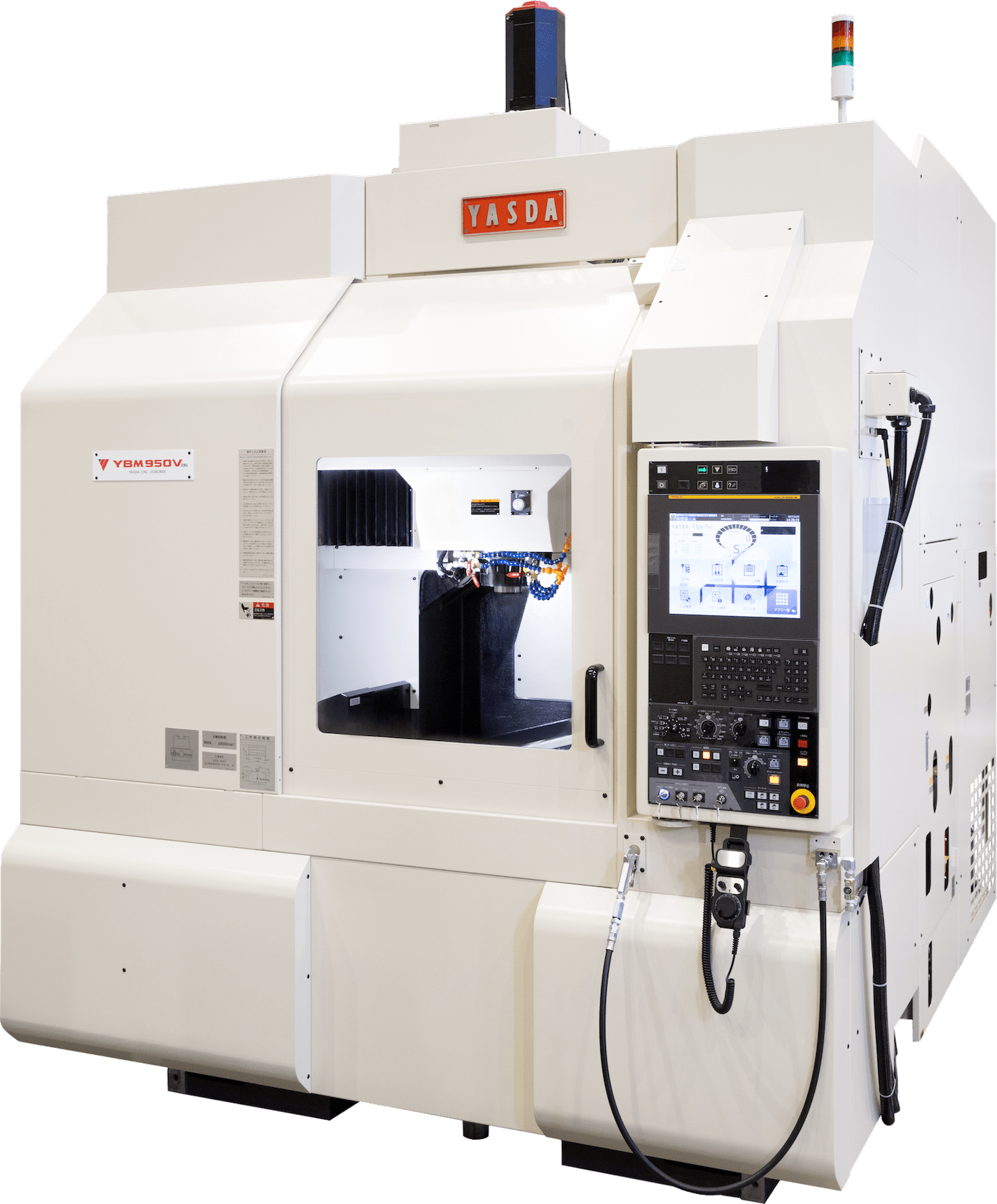

the Yasda YBM 950V Jig Borer used for cnc machining and sold by Methods Machine Tools

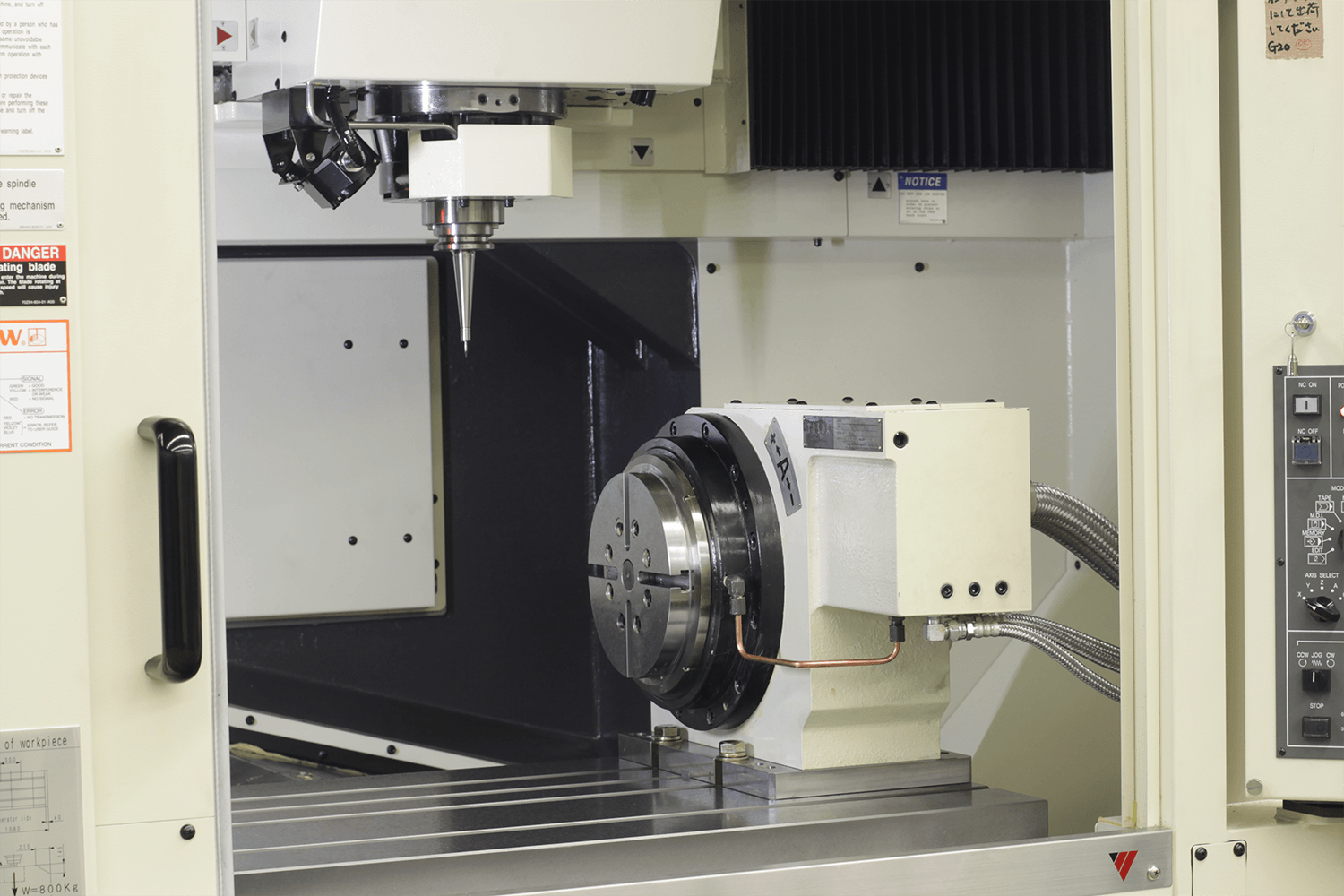

inside view of the Yasda YBM 950V Jig Borer used for cnc machining

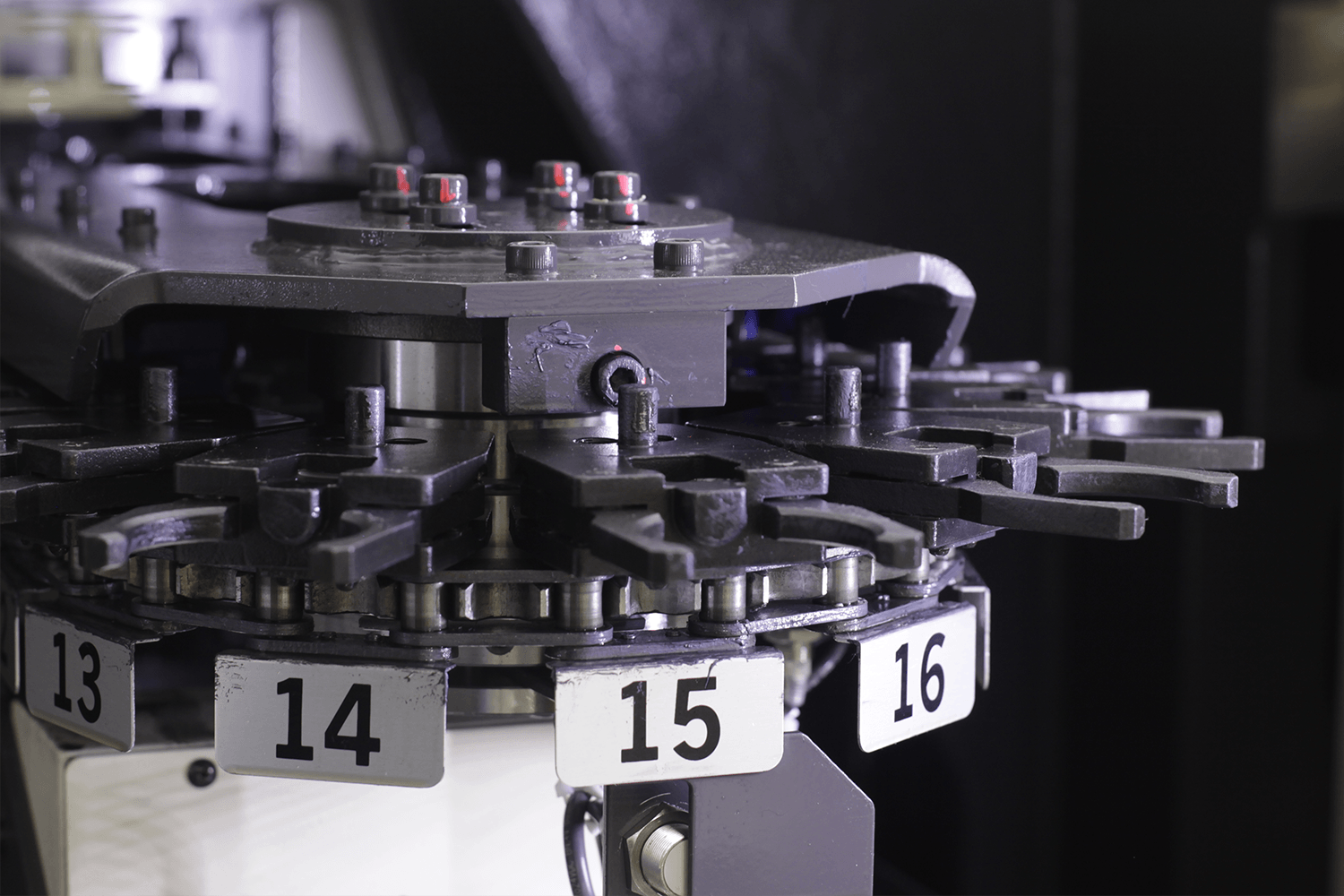

inside look at the Yasda YBM 950V Jig Borer used for cnc machining

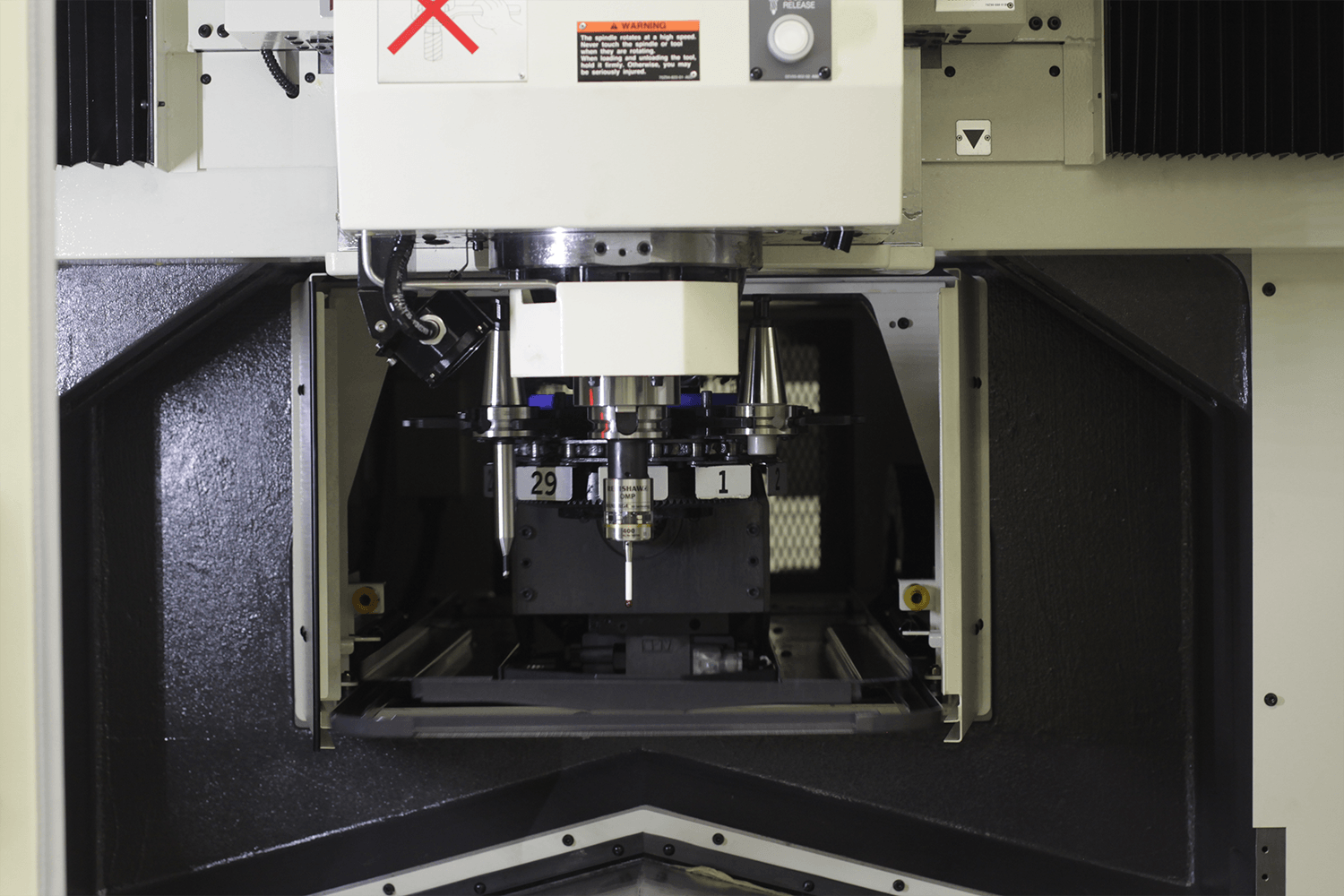

open inside photo of the Yasda YBM 950V Jig Borer used for cnc machining
Yasda YBM 950V Jig Borer | Methods Machine Tools Yasda YBM 950V Jig Borer - Internal | Methods Machine Tools Yasda YBM 950V Jig Borer - Internal 2 | Methods Machine Tools Yasda YBM 950V Jig Borer - Internal 3 | Methods Machine Tools

Yasda
YBM-950V

The YASDA YBM-950V CNC Jig Borer is known for its high-speed/high-accuracy machining of small parts including mold and die parts requiring high-precision contour machining.

Yasda‘s YBM-950V takes the next step with its compact and high-efficient design, developed to dominate the high-precision CNC machining field.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • Direct Drive Spindle W/ Self-Adjusting Preload System
  • Through Hardened (HR60) Box Guide Ways
  • Optical Scale Feedback for Precise Positioning
  • Symmetrical Bridge Structure
  • 3 Point Machine Base
  • Thermal Distortion Stabilization
  • Space Saving Footprint
  • Rigid Machine Structure for Machining Various Material Types
  • Probing Systems

Technical Data

Travel

X-Axis Travel
35.4 (900) in (mm)
Y-Axis Travel
19.7 (500) in (mm)
Z-Axis Travel
13.8 (350) in (mm)
Distance from Table Surface to Spindle
7.9-2.7 (200-550) in (mm)

Feed Rate

Rapid Traverse
787 (20) in/min (m/min)
Feedrate
196 (5000) in/min (mm/min)

Table

Table Working Surface
39.4x19.7 (1000x500) in (mm)

Spindle

Spindle Type
Self-adjusting Preload
Spindle Speed Range
100-24000 (150-30000) rpm (opt)
Spindle Taper
7/24 taper No. 40

Tooling

Number of Tools
30 (40/60/90) std (opt)
Maximum Tool Weight
15.5 (7) lbs (kg)
Maximum Tool Length
9.8 (250) in (mm)
Maximum Tool Diameter
ø 3.9 (100) in (mm)

General

Machine Weight
24250 (11000) lbs (kg)
Machine Control
Fanuc 31I-B5-15" Color LCD
