YMC650

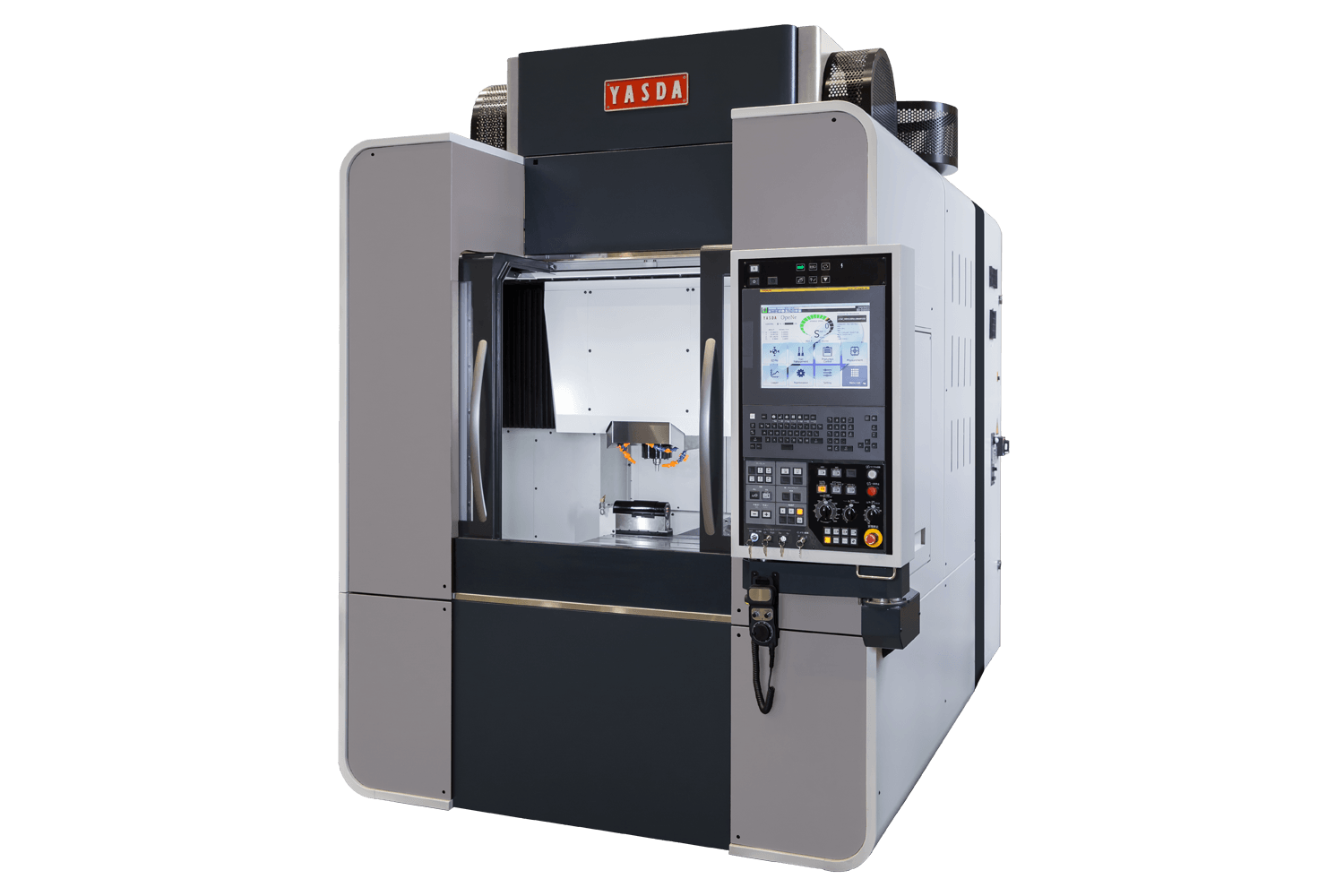

YASDA’s YMC650 Micro Center is a state-of-the-art, high-end machine designed to support the industry’s rapidly increasing demands for ultra-precision and high quality surface milling.

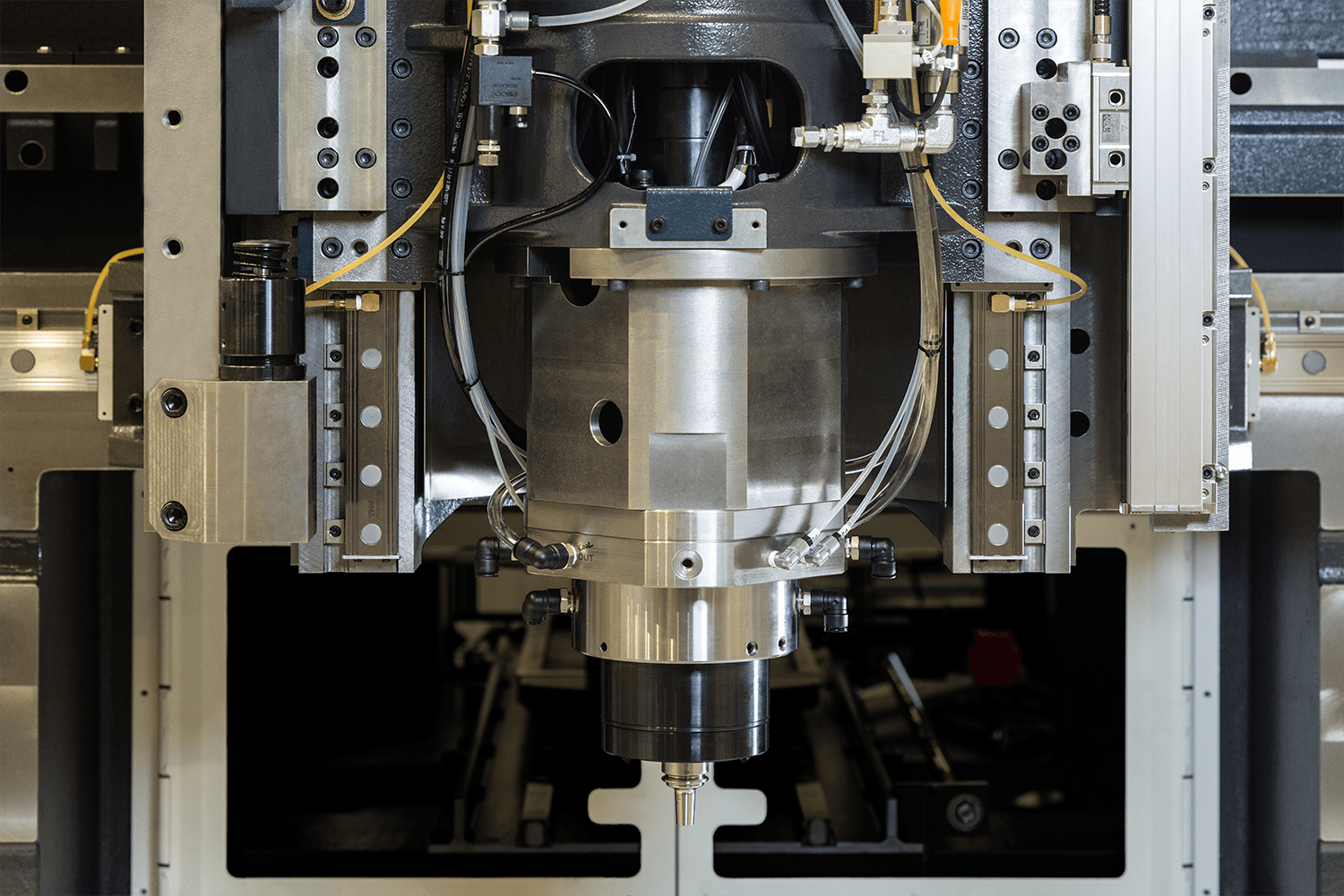

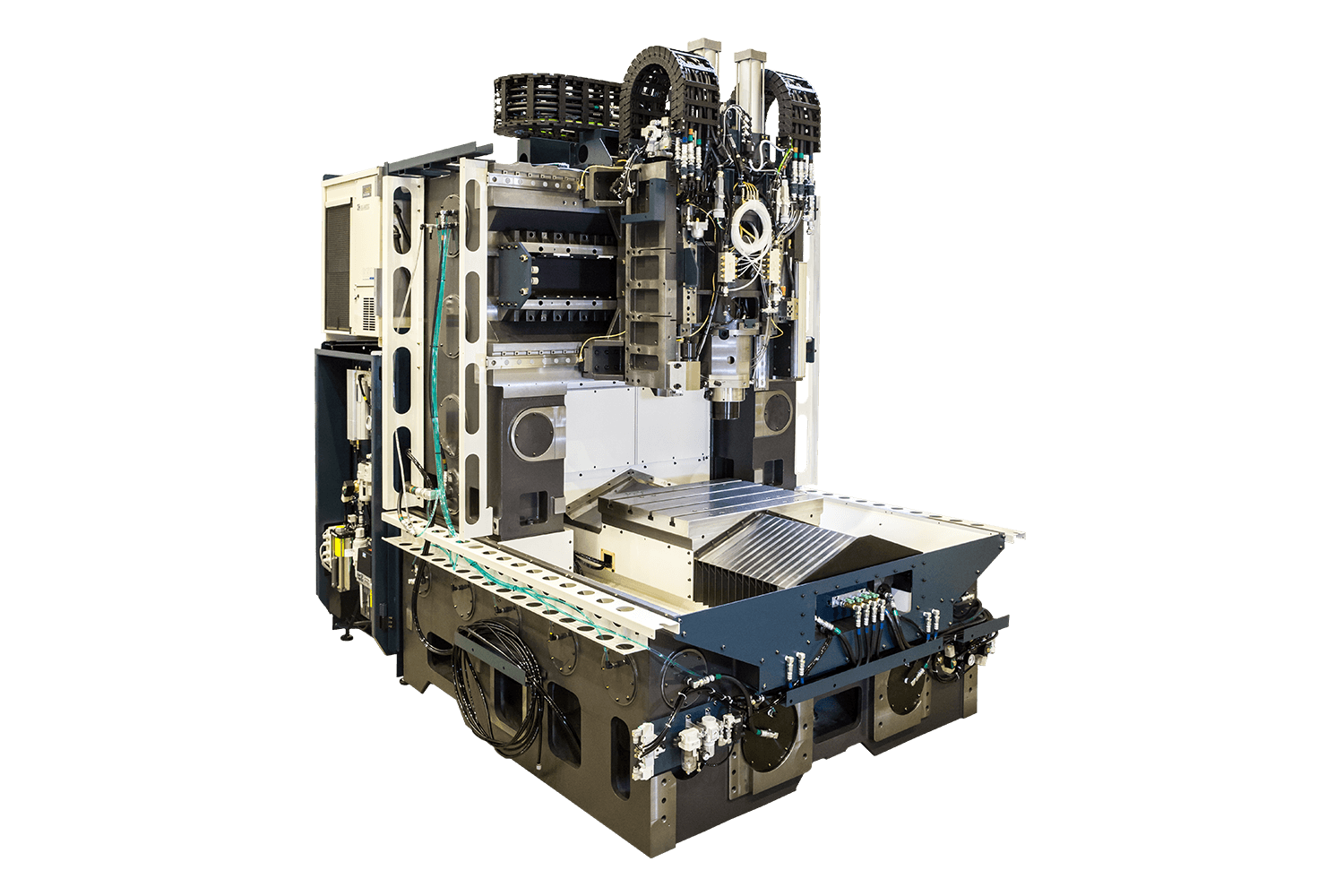

All controlled axes (X, Y, and Z) are driven by high-speed linear motors, a highly rigid symmetric frame design, and a unique thermal distortion stabilizing system which sustains machining accuracy in long cycle time operation, delivering unsurpassed high accuracy and excellent motion performance in various applications.

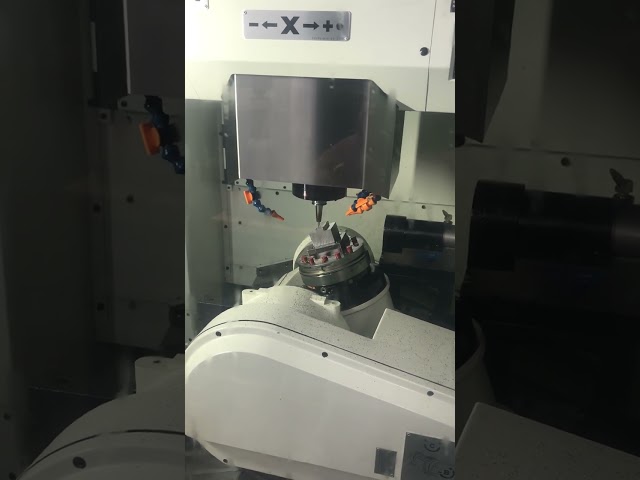

The YMC650 provides the best solution for future demands for ultra-precision and high surface quality machining. The 5-axis version is integrated with a high precision rotary tilting table with direct drive motors.
Travel
| X-Axis | 23.6 (600) in (mm) |
|---|---|
| Y-Axis | 19.7 (500) in (mm) |
| Z-Axis | 11.1 (280) in (mm) |
Feed Rate
| X, Y, and Z Rapid Traverse | 20,000 mm/min (787ipm) |
|---|---|
| B-Axis (tilt) Rapid Traverse | 100 rpm with DD motors |
| C-Axis (rotary) Rapid Traverse | 200 rpm with DD motors |
| X, Y and Z Axes Cutting Feed Rate | Max. 12,000 mm/min (472ipm) with HAS |
| B-Axis (tilt) Cutting Feed Rate | 40 rpm with HAS |
| C-Axis (rotary) Cutting Feed Rate | 40 rpm with HAS |
Table
| Table Working Surface | 27.6 x 21.6 (700 x 500) in (mm) |
|---|---|
| Table Loading Capacity | 441 (200) lbs (kg) |
Spindle
| Spindle Type | Self adjusting pre-load |
|---|---|
| Spindle Speed Range | 200-40000 rpm |
| Spindle Taper | HSK-E32 |
Tooling
| Number of Tools | 32 (90) |
|---|---|
| Maximum Tool Weight | 1.1 lbs (500g) |
| Maximum Tool Length | 4.7 (120) in (mm) |
| Maximum Tool Diameter | ø 1.9 (50) in (mm) |
General
| Machine Weight | 19842 (9000) lbs (kg) |
|---|---|

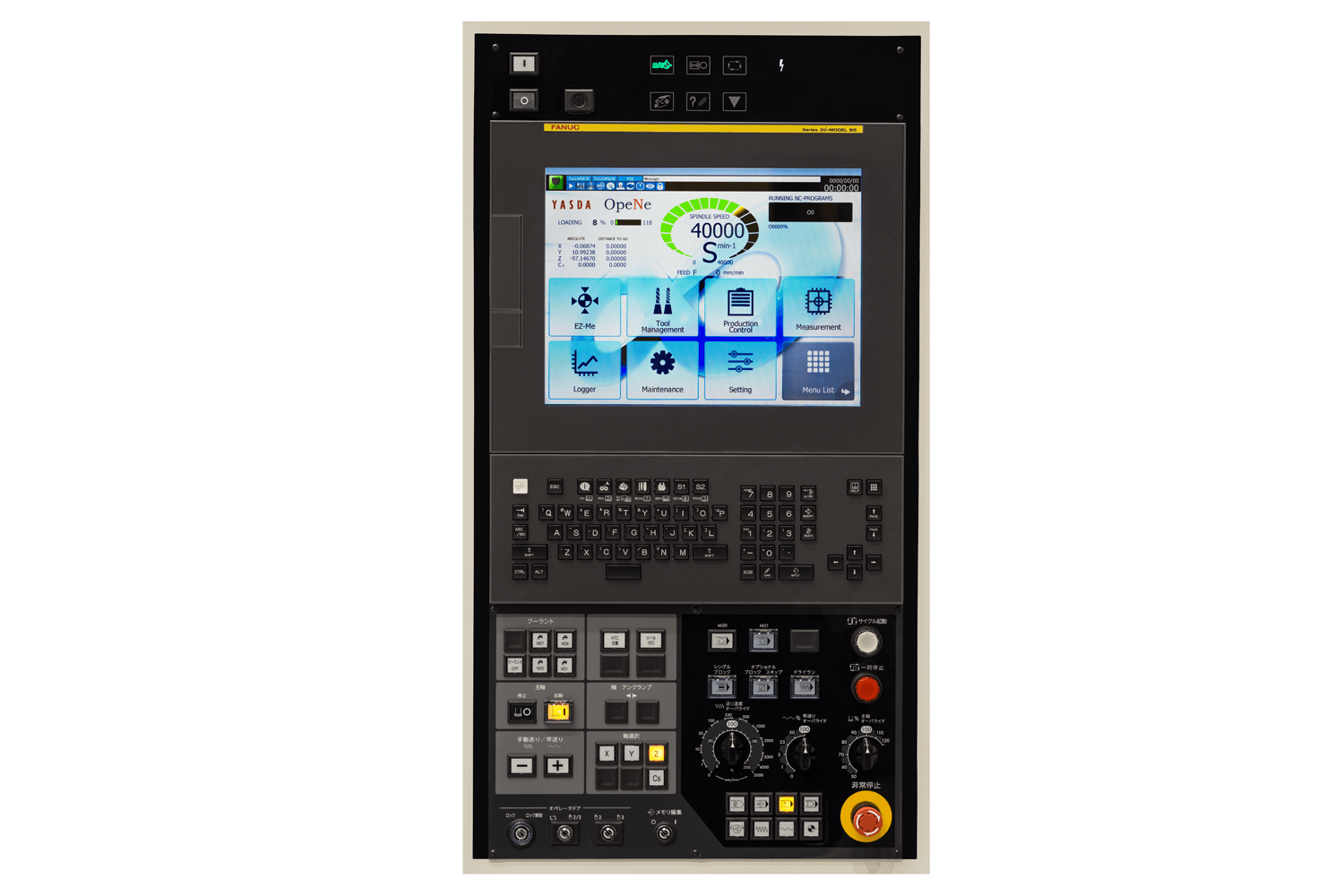

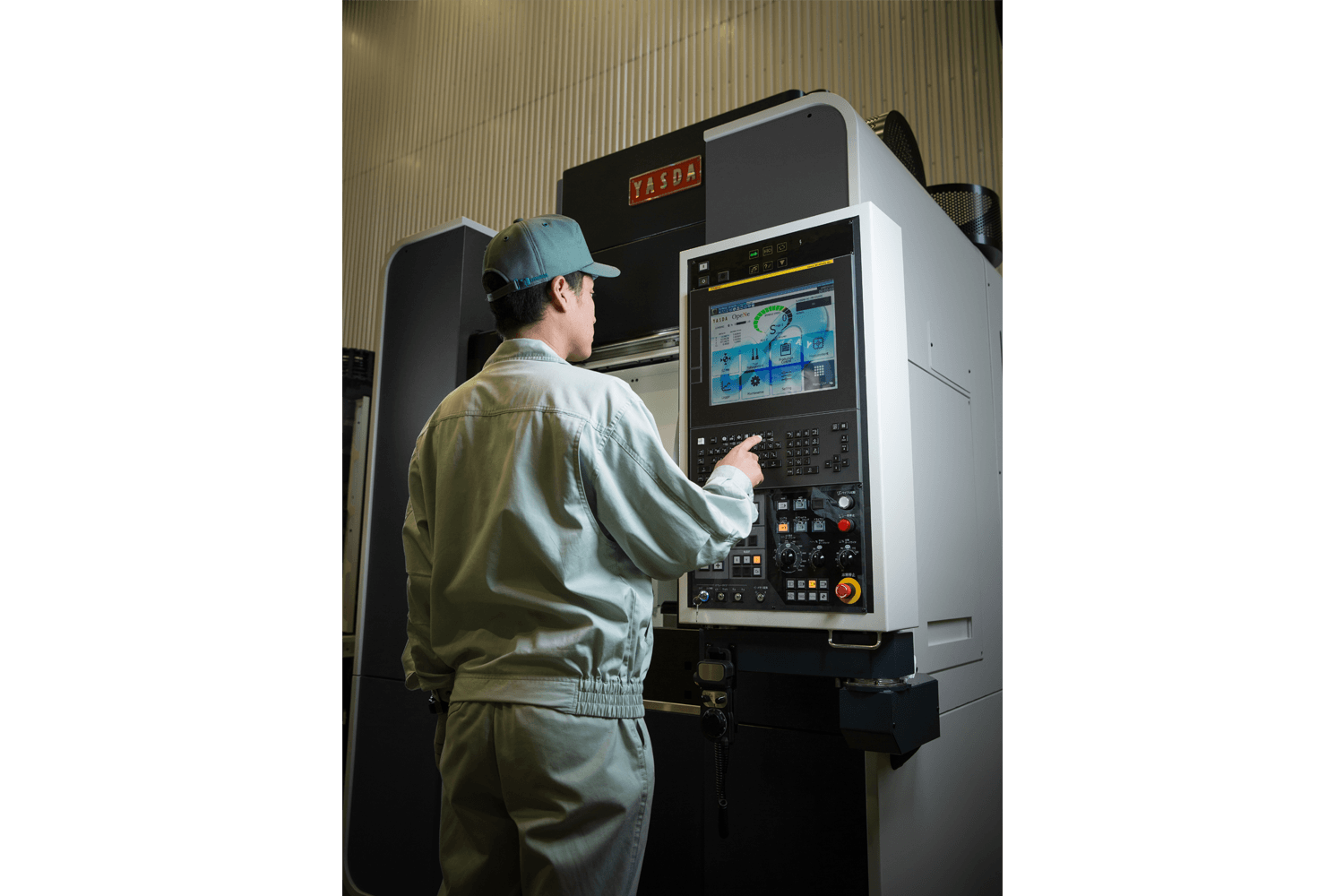

| Machine Control | FANUC 31i-B5 iHMI |
