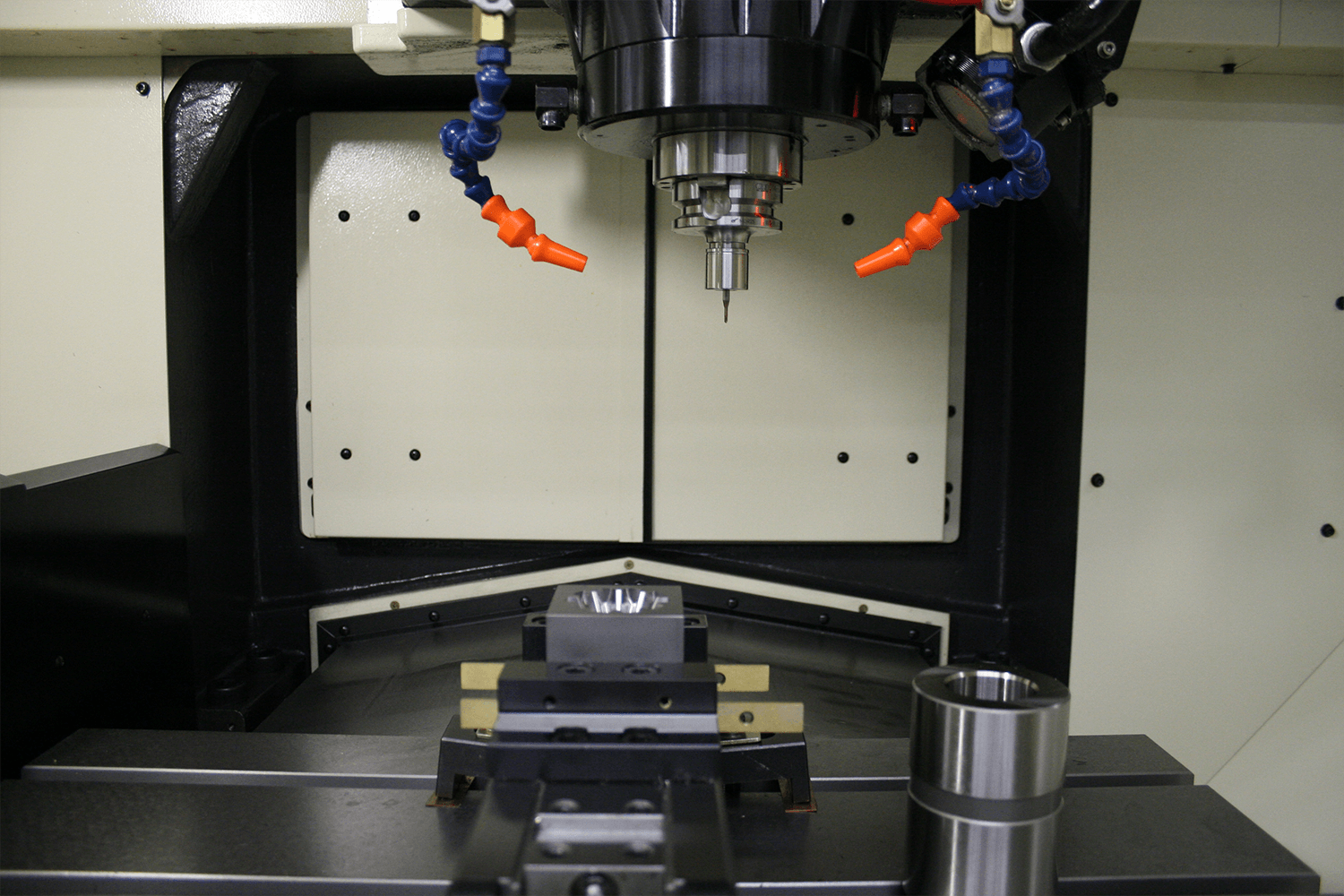

inside view of the Yasda YBM 640V3 Jig Borer offered by Methods Machine Tools

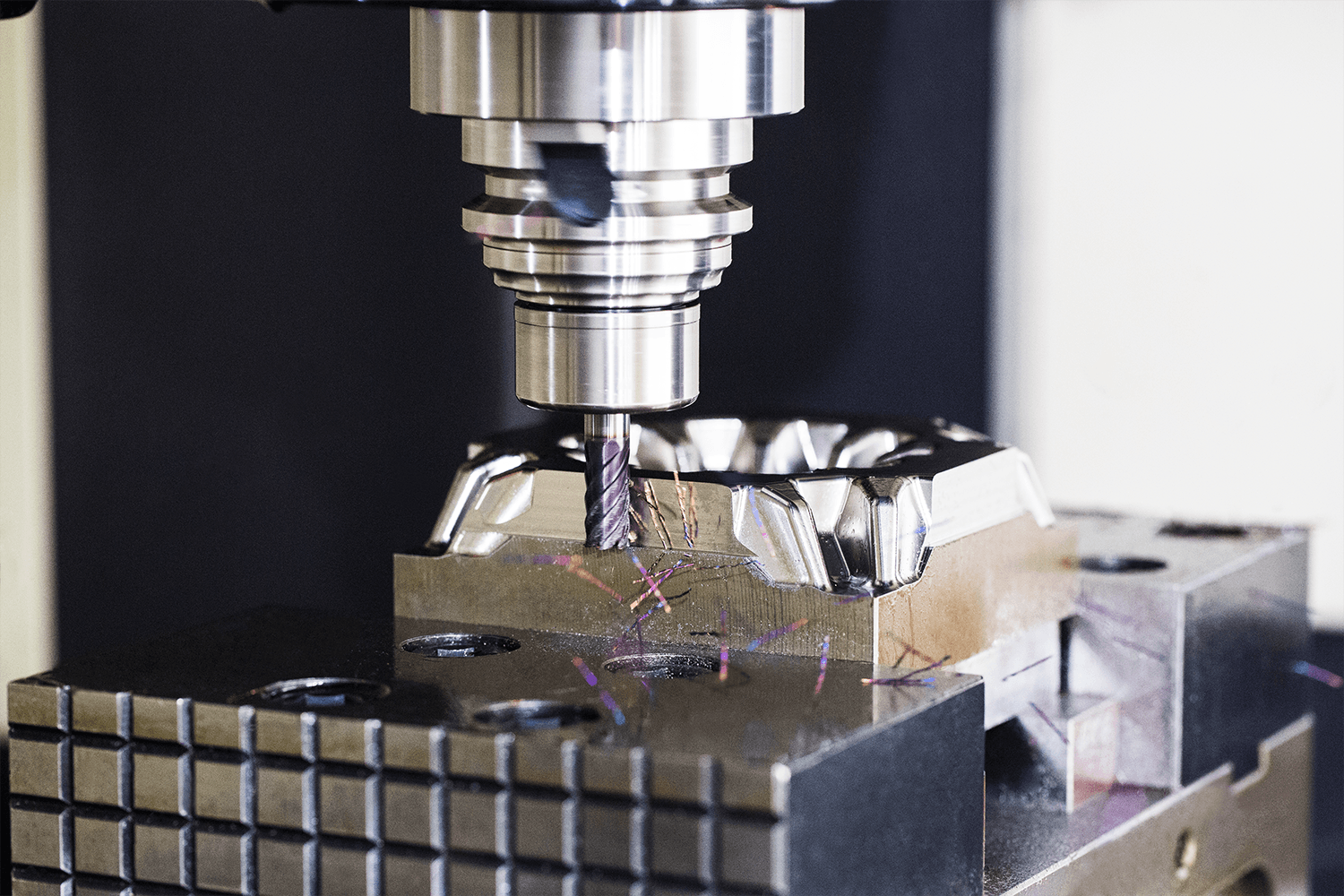

inside look at the Yasda YBM 640V3 Jig Borer offered by Methods Machine Tools

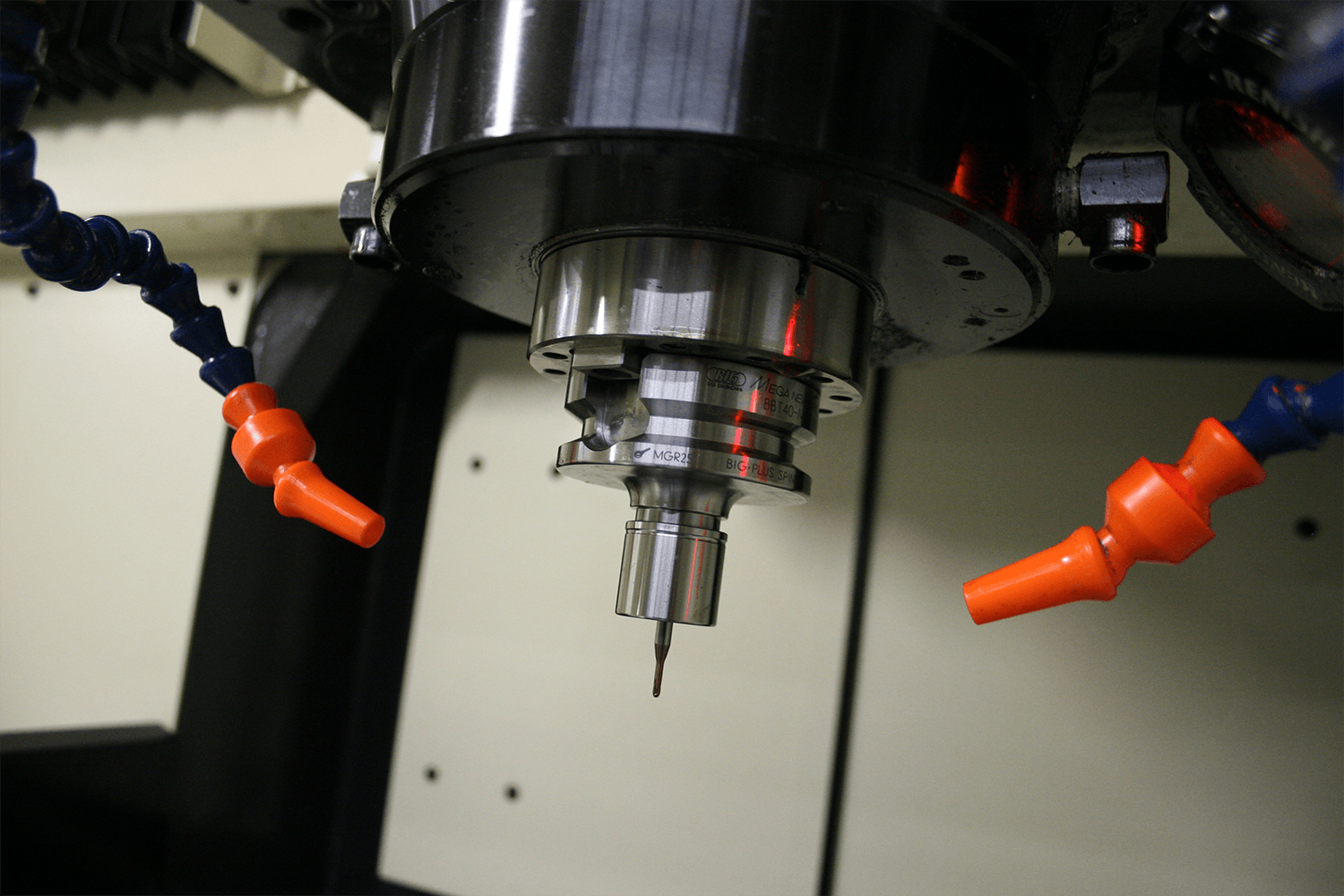

another photo of the inside of the Yasda YBM 640V3 Jig Borer offered by Methods Machine Tools

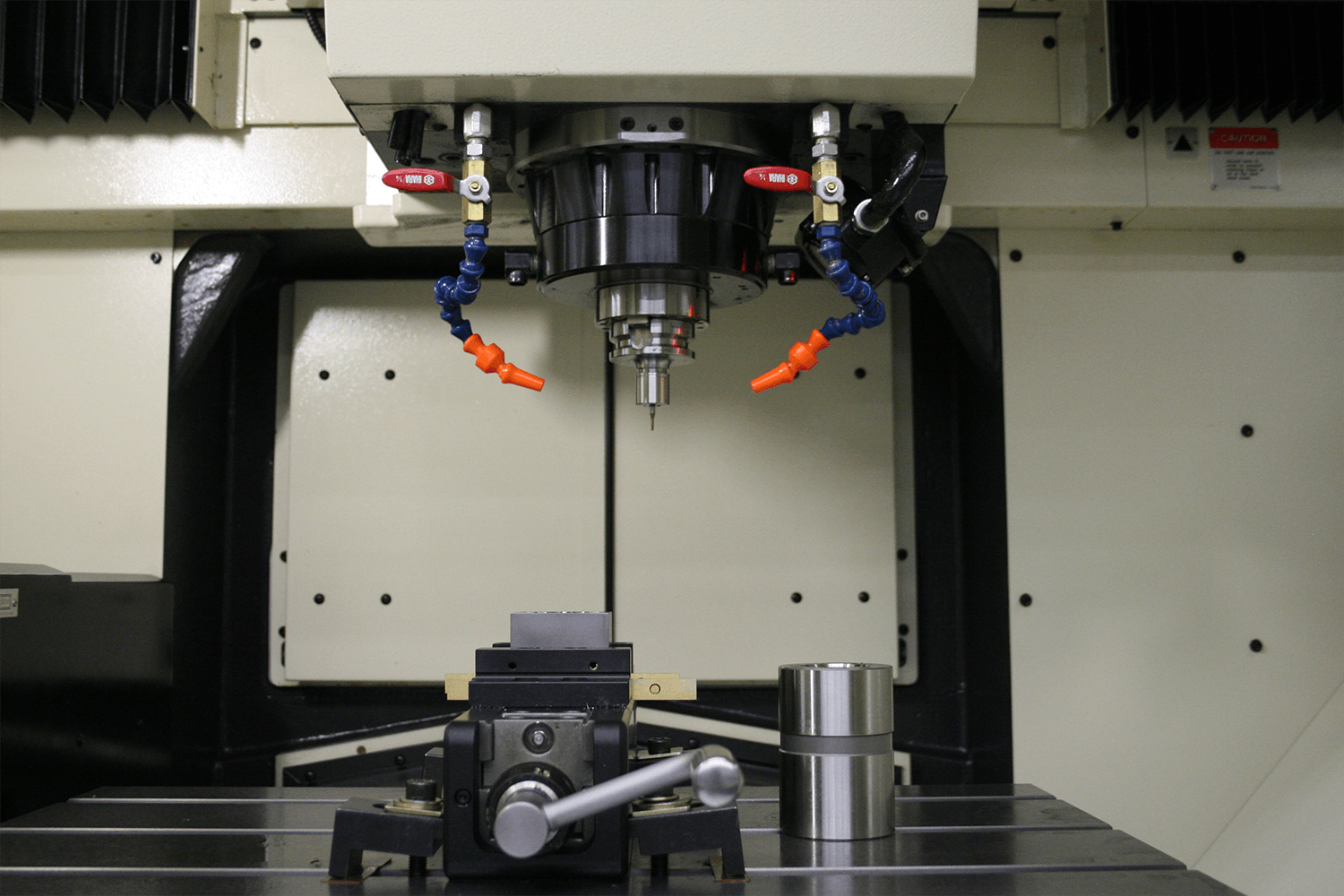

the inside of the Yasda YBM 640V3 Jig Borer offered by Methods Machine Tools
Yasda YBM 640V3 Jig Borer | Methods Machine Tools Yasda YBM 640V3 Jig Borer - interior photo | Methods Machine Tools Yasda YBM 640V3 Jig Borer - interior photo 3 | Methods Machine Tools Yasda YBM 640V3 Jig Borer - interior photo 4 | Methods Machine Tools Yasda YBM 640V3 Jig Borer - interior photo 5 | Methods Machine Tools

Yasda
YBM-640V

The YASDA YBM-640V CNC Jig Borer offers ultimate accuracy in boring and milling. With Yasda’s high speed, high accuracy machining capabilities, high precision mold and die making is now a much simpler task.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • Direct Drive Spindle w/ Self-Adjusting Preload System
  • Through Hardened (HR60) Box Guide Ways
  • Optical Scale Feedback for Precise Positioning
  • Symmetrical Bridge Structure
  • 3 Point Machine Base
  • Thermal Distortion Stabilization
  • Space Saving Footprint
  • Rigid Machine Structure for Machining Various Material Types
  • Probing Systems

Technical Data

Travel

X-Axis Travel
23.6 (600) in (mm)
Y-Axis Travel
15.7 (400) in (mm)
Z-Axis Travel
13.8 (350) in (mm)
Distance from Table Surface to Spindle
5.9-19.7 (150-500) in (mm)

Feed Rate

Rapid Traverse
787 (20) in/min (m/min)
Feed Rate
196 (5000) in/min (mm/min)

Table

Table Working Surface
27.5x17.7 (700x450) in (mm)

Spindle

Spindle Type
Self-adjusting Pre-load
Spindle Speed Range
100-24000 (150-30000) rpm (opt)
Spindle Taper
7/24 taper No. 40

Tooling

Number of Tools
30 (40/60/90) std (opt)
Maximum Tool Weight
15.5 (7) lbs (kg)
Maximum Tool Length
9.8 (250) in (mm)
Maximum Tool Diameter
ø 3.9 (100) in (mm)

General

Machine Weight
17637 (8000) lbs (kg)
Machine Control
Fanuc 31I-B5-15" Color LCD
