YMC430

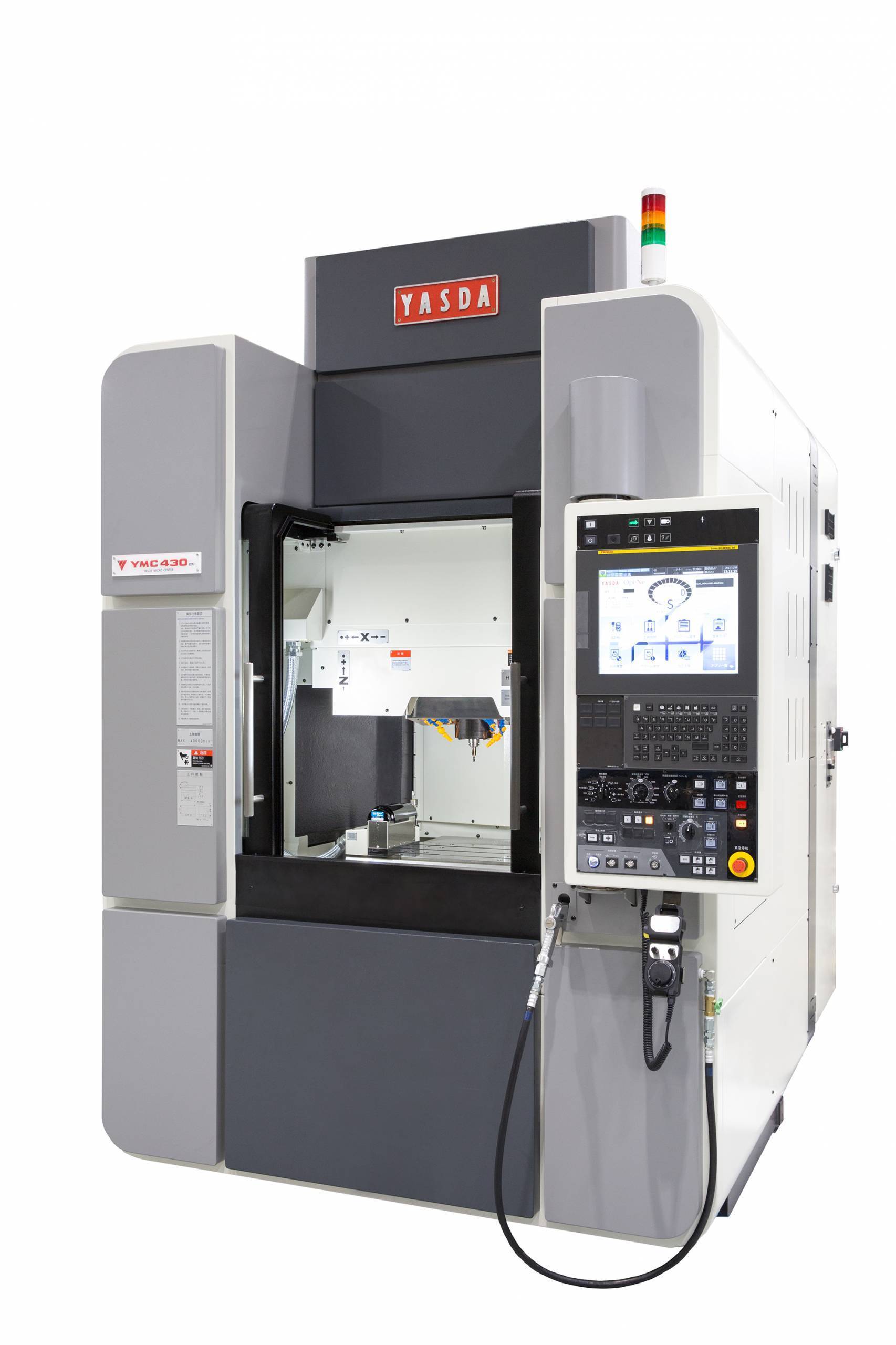

The YASDA YMC430 Micro Center is available in 3-axis or 5-axis versions.

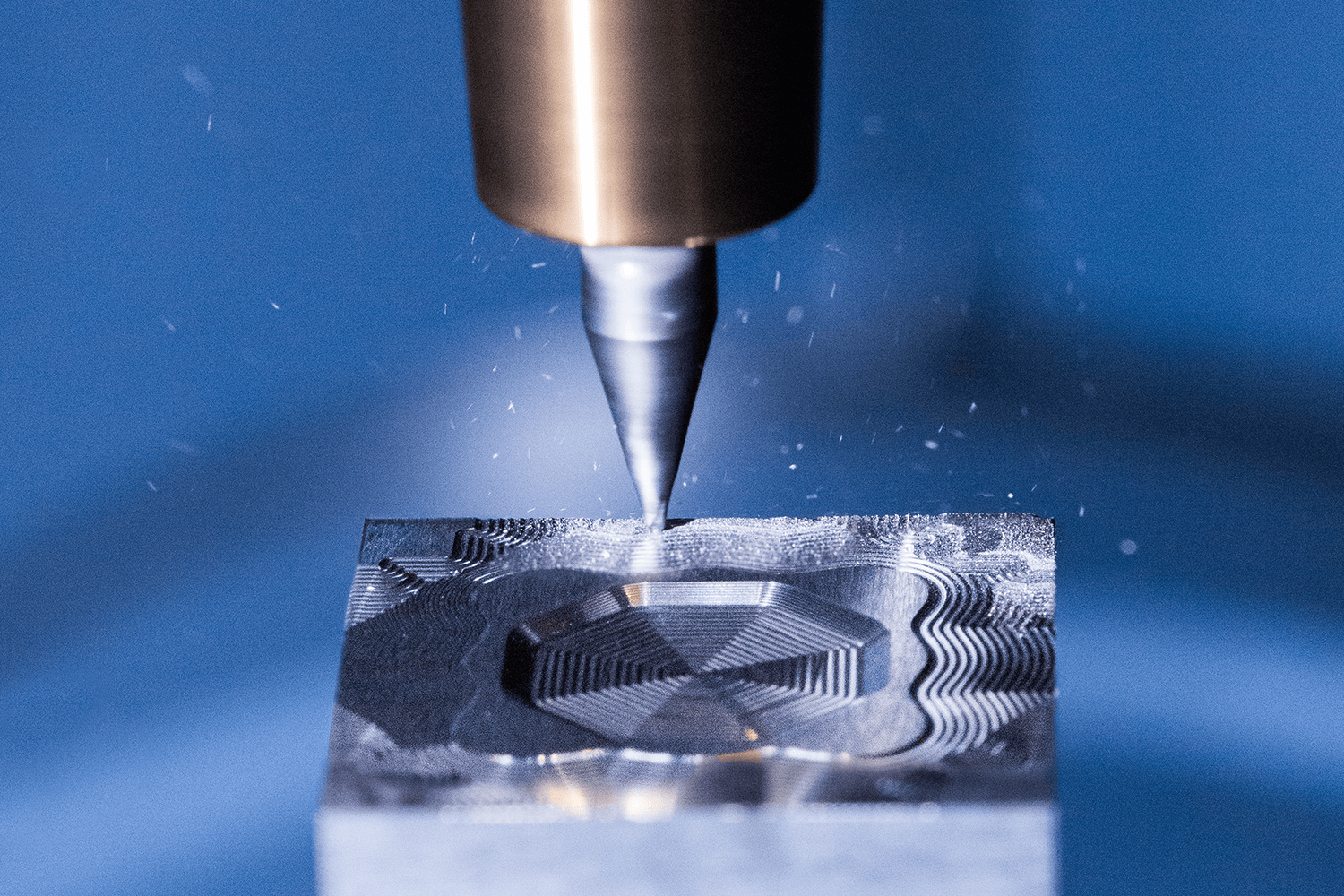

The YMC430 offers ultra-precision and high surface quality milling in the fields of medical equipment parts, IT-related parts, high precision miniature die, and mold, and other industries where the technologies are constantly advancing.
All controlled axes (X, Y, and Z) driven by high-speed linear motors, highly rigid symmetric frame design, and a unique thermal distortion stabilizing system that sustains machining accuracy in long cycle time operation, will assure unsurpassed high accuracy and excellent motion performance in various applications.
The YASDA 5-axis version is integrated with a high-precision rotary tilting table with direct drive motors.
-
X/Y/Z Axes Controlled by High Speed Linear Motors
-
Symmetrical H-shaped Column
-

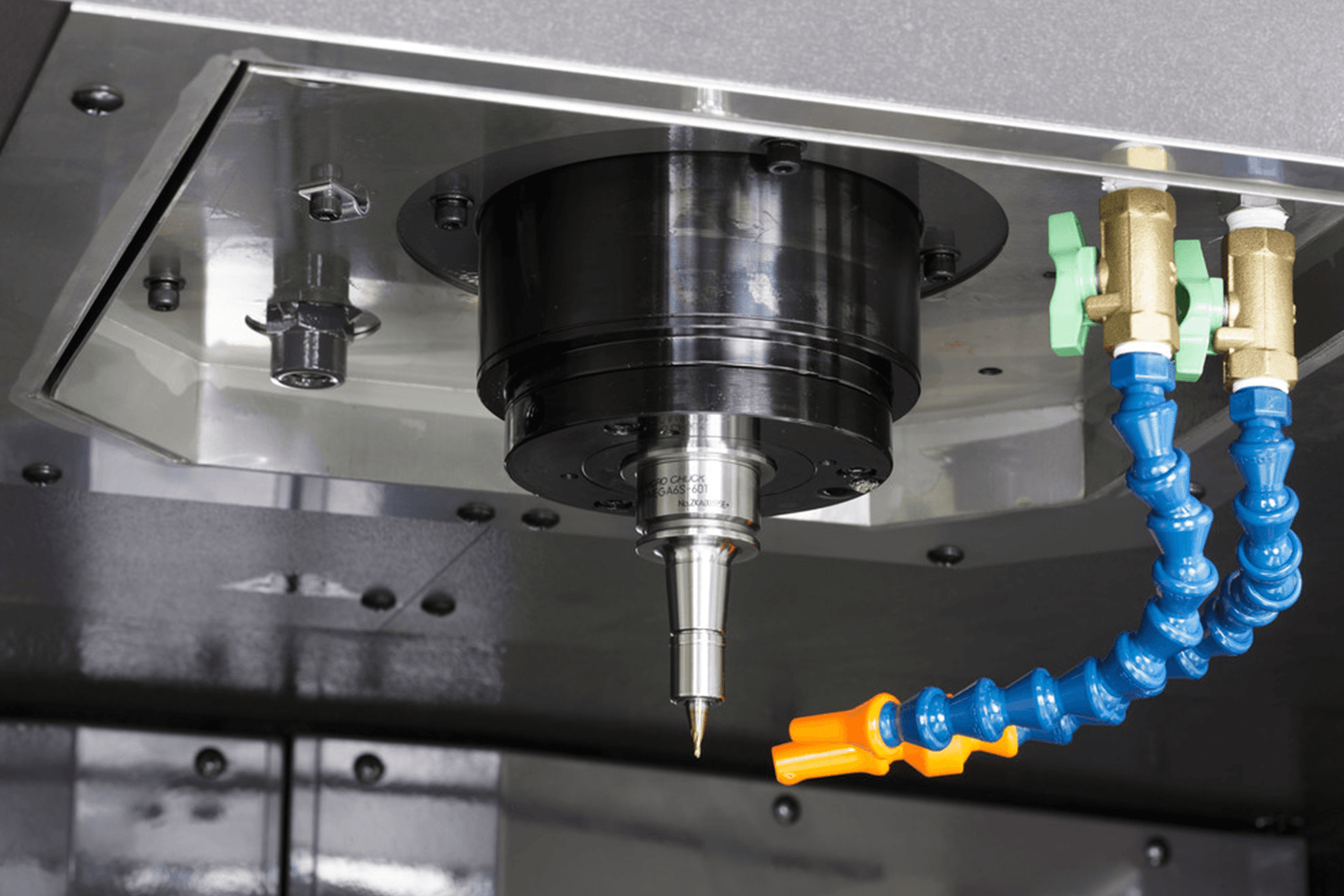

Spindle Head Symmetrical Longitudinally and Horizontally
-
Raised Bed Sides for Increased Rigidity
-
Low Centroid X-Y Table
-
Ultra Precision Linear Guides
-
High Precision Positioning
-
Large Capacity HSKE32 Spindle Taper
-
High Quality Surface Finishes
-
Positioning Accuracy < 1μm
-
Thermal Distortion Stabilizing System for Sustaining High-precision Machining
-
High Speed Positioning
-
Large Cutting Tool Capacity
-
Optional RT10 5-Axis Rotary Table
Travel
| X-Axis Travel | 16.5 (420) in (mm) |
|---|---|
| Y-Axis Travel | 11.8 (300) in (mm) |
| Z-Axis Travel | 9.8 (250) in (mm) |
| B-Axis (tilt table) | +100 to -10 degrees |
| C-Axis (rotary table) | 360º (0.0001º) |
| Distance from Table Surface to Spindle | 5.9-15.8 (150-400) in (mm) |
Feed Rate
| X, Y, and Z Rapid Traverse | 20,000 mm/min (787ipm) |
|---|---|
| B-Axis (tilt) Rapid Traverse | 100 rpm with DD motors |
| C-Axis (rotary) Rapid Traverse | 200 rpm with DD motors |
| X, Y and Z Axes Cutting Feed Rate | Max. 12,000 mm/min (472ipm) with HAS |
| B-Axis (tilt) Cutting Feed Rate | 40 rpm with HAS |
| C-Axis (rotary) Cutting Feed Rate | 40 rpm with HAS |
Table
| Table Working Surface | 23.6×13.8 (600×350) in (mm) |
|---|---|
| Table Loading Capacity | 221 (100) lbs (kg) |
Spindle
| Spindle Speed Range | 200-40000 rpm (opt) |
|---|---|
| Spindle Taper | E-32 |
Tooling
| Number of Tools | 32 (90) std (opt) |
|---|
General
| Machine Control | FANUC 31i-B5 – 15" Color LCD |
|---|
