YBM Vi40

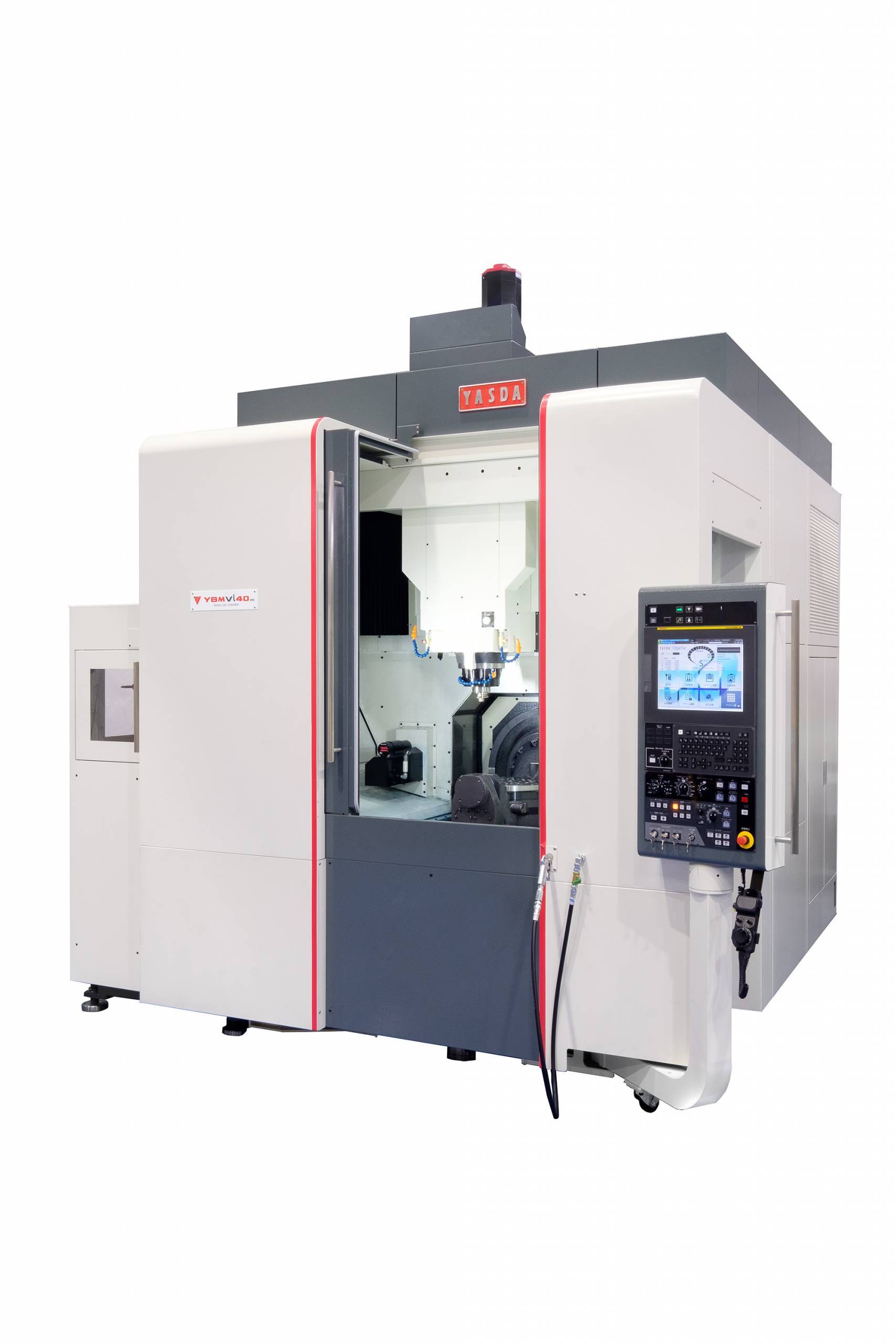

YASDA’s YBM Vi40 structure is based on YMB series known for highly accurate and rigid machines. The YBM Vi40 is a reliable solution for 5-axis dies and mold making. By adopting the basic structure of a 3-axis machine from YMB V series, YBM Vi40 has comparable cutting ability. In combination with 5-axis machining, this machine can exert high performance for high-precision machining of highly hard materials in complicated shapes which are difficult for a 3-axis machine.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Download Brochure

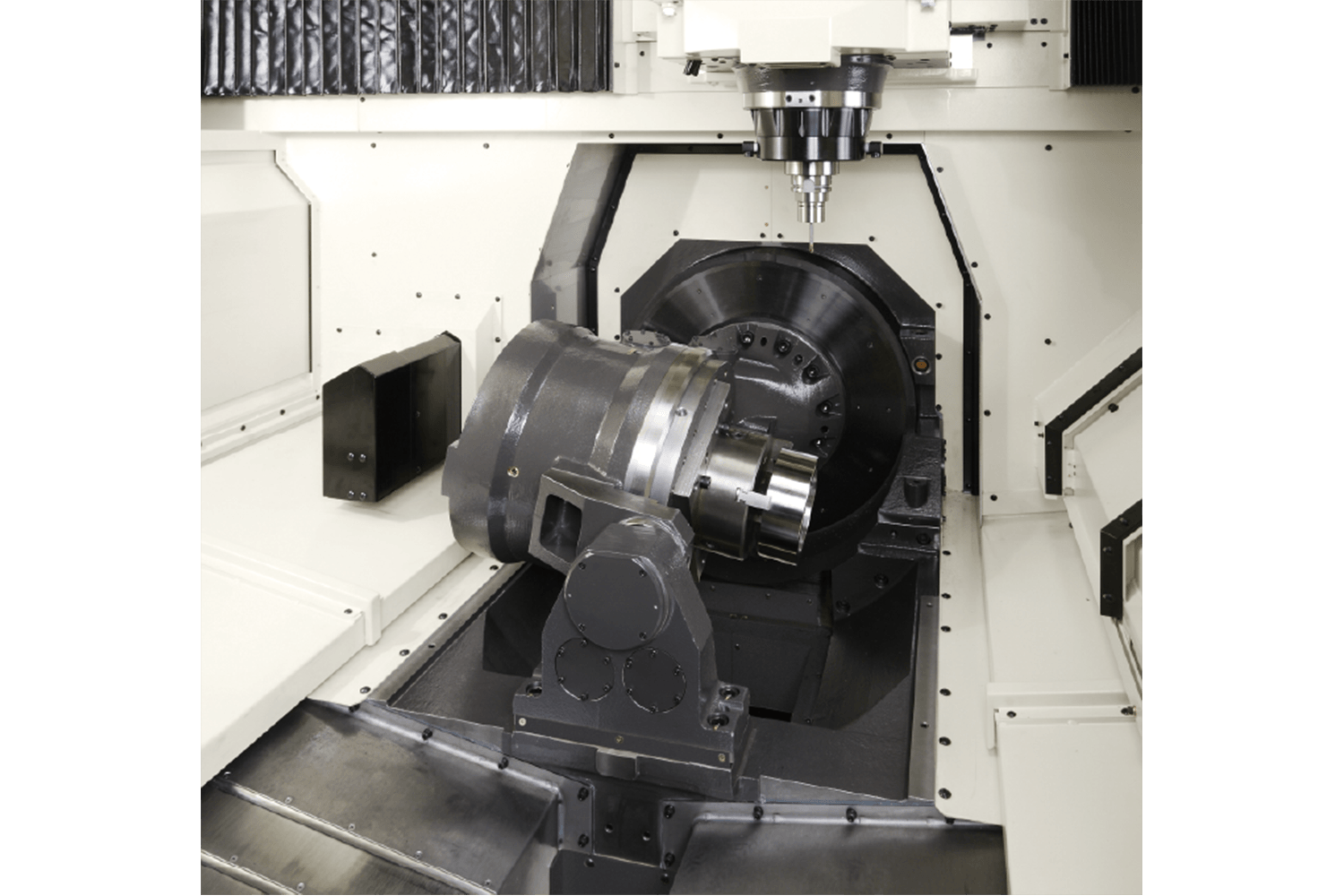

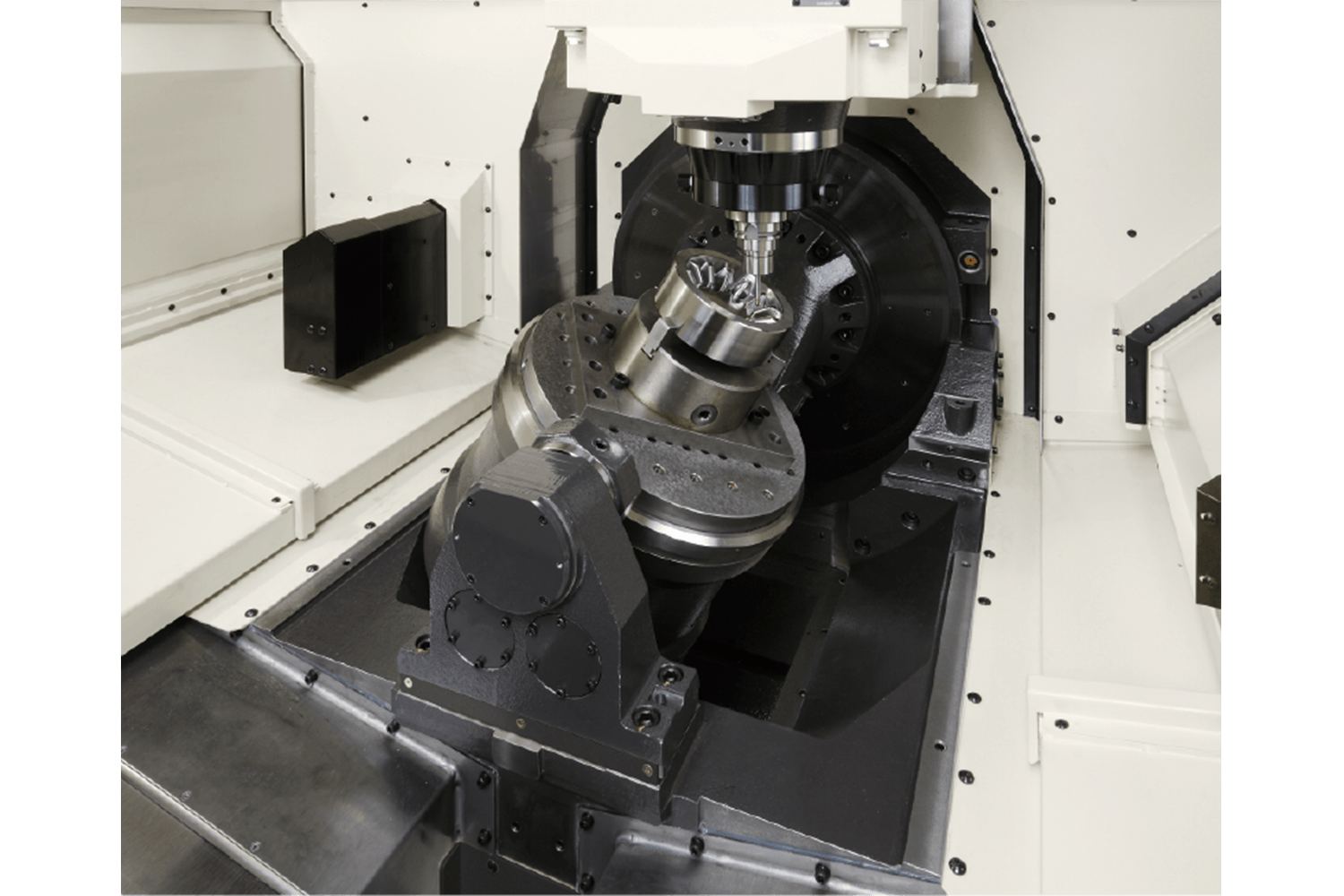

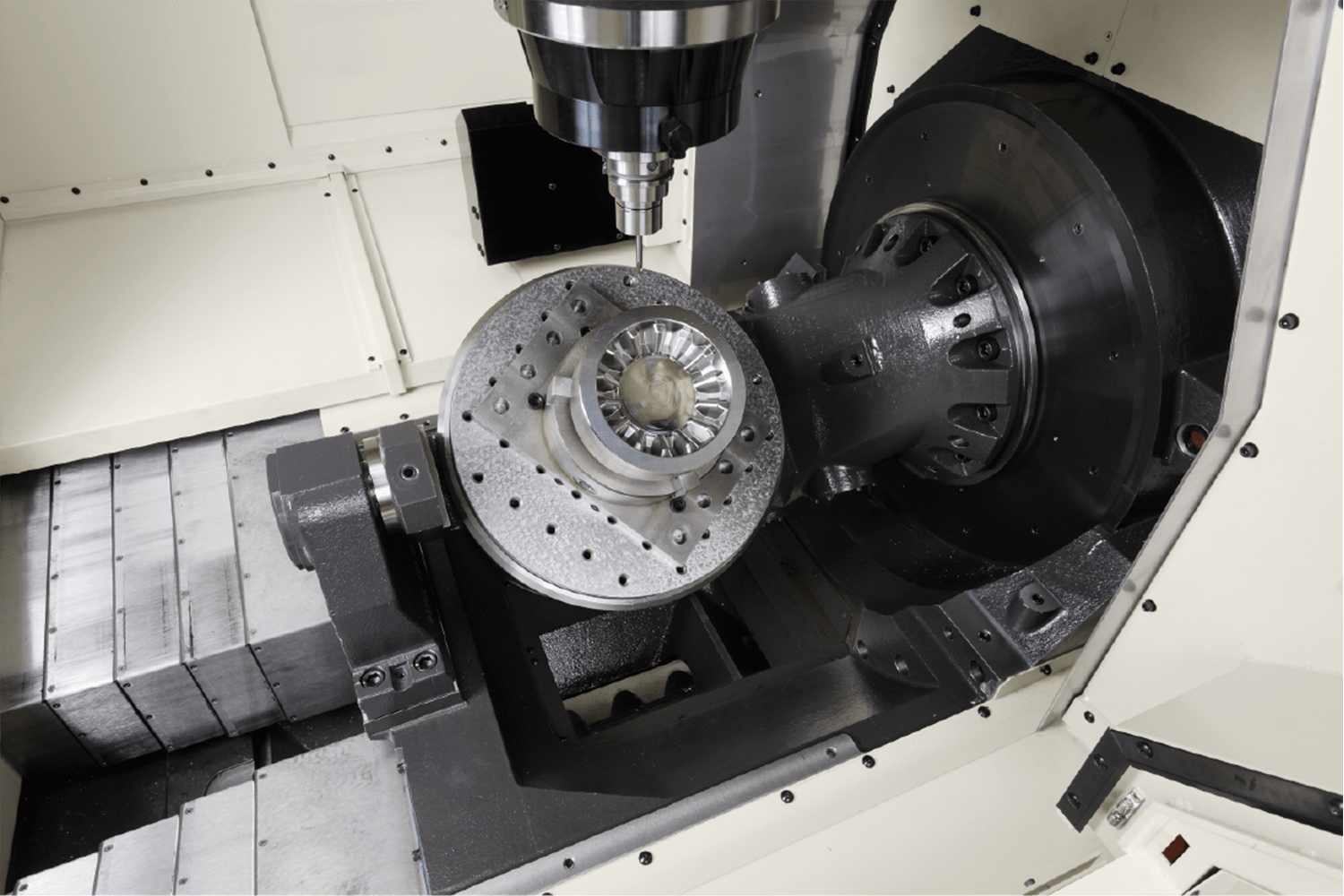

  • B/C Axis Tilt Rotary Table

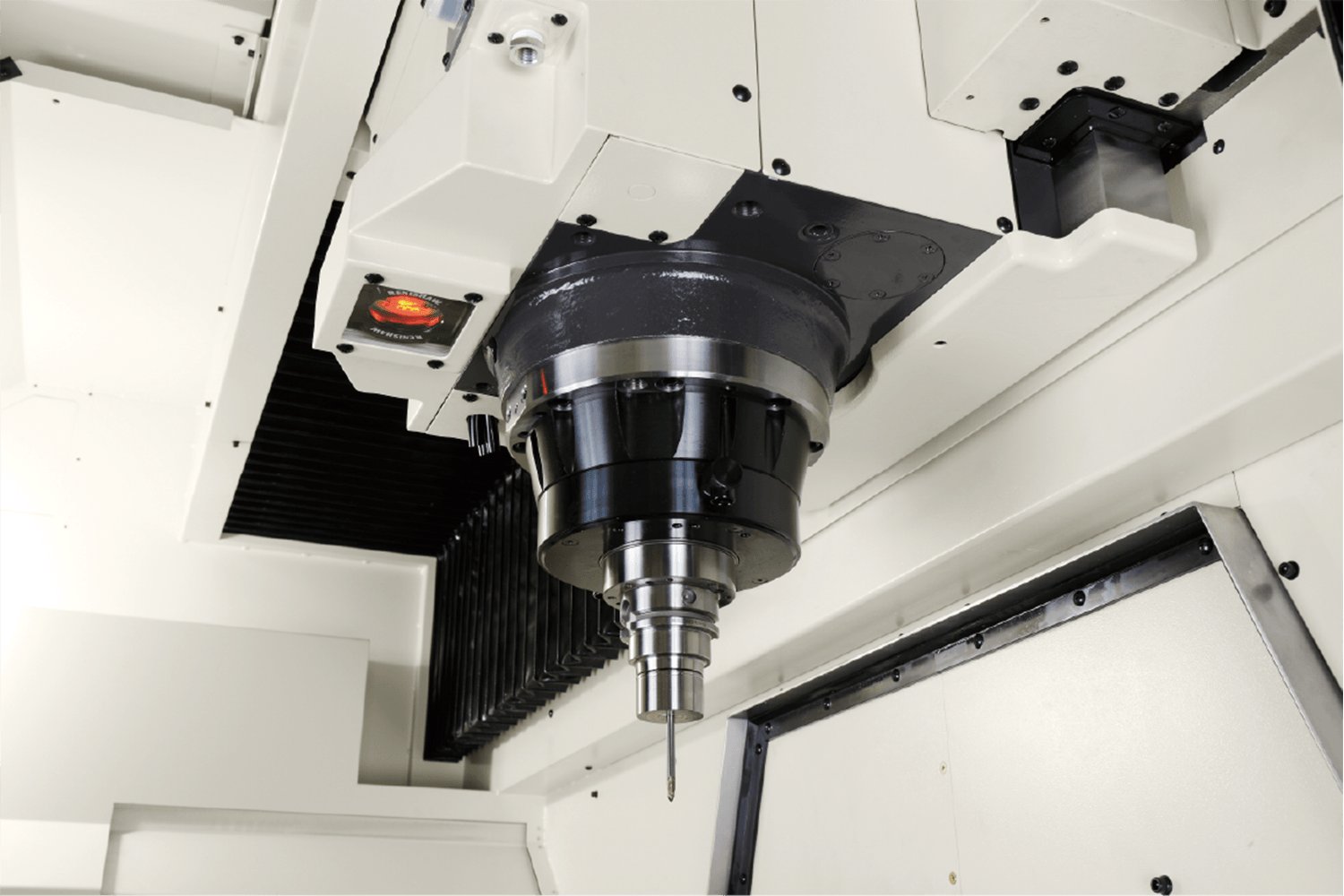

  • Direct Drive Self-adjusting Spindle Preload
  • Hybrid Box Guide way with Roller Pack
  • Optical Scale Feedback
  • Symmetrical Bridge Structure
  • DD Direct Drive C Axis Motor
  • Worm Gear Driven B Axis
  • Advanced Thermal Displacement

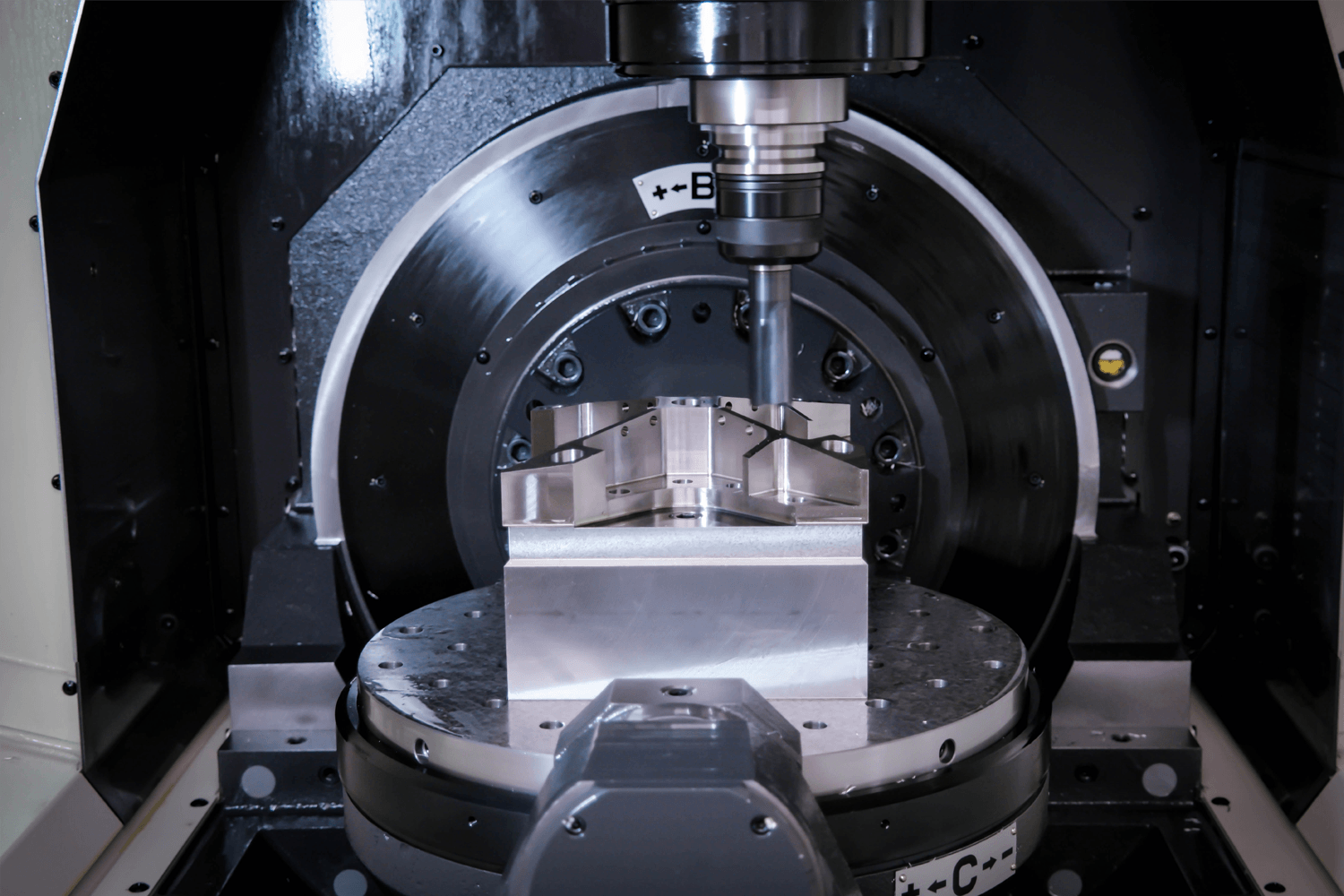

  • 5 Sided Machining with a Single Set-up
  • Rigid Structure Designed for Hard Milling Die Mold Applications
  • Dramatically Reduces the Number of Process Steps and Time
  • Machine Structure is Designed for High-precision and High Surface Part Quality
  • Probing Systems
  • Shorter Tool Length Allows for Higher Feed Rates

Travel

X-Axis Travel
35.4 (900) in (mm)
Y-Axis Travel
19.7 (500) in (mm)
Z-Axis Travel
17.7 (450) in (mm)
Distance from Table Surface to Spindle
3.9-21.7 (100-550) in (mm)
B-Axis (tilt table)
+110 to -110 degrees
C-Axis (rotary table)
360º (0.0001º)

Feed Rate

X, Y, and Z Axes Rapid Traverse
788 (20) in/min (m/min)
B-Axis (titl) Rapid Traverse
20 rpm with Worm Gear
C-Axis (rotary) Rapid Traverse
100 rpm with DD motor
X, Y, and Z Axes Cutting Feed Rate
12,000 mm/min (472ipm) with HAS
B-Axis (tilt) Cutting Feed Rate
20 rpm with HAS
C-Axis (rotary) Cutting Feedrate
100 rpm with HAS

Table

Table Working Surface
15.8x15.8 (400x400) in (mm)
Table Loading Capacity
440 (200) lbs (kg)

Spindle

Spindle Speed Range
100-24000 rpm (opt)
Spindle Taper
7/24 taper No. 40 (Big Plus)

Tooling

Number of Tools
60/100 std (opt)
Maximum Tool Weight
14.4 (7) lbs (kg)
Maximum Tool Length
9.8 (250) in (mm)
Maximum Tool Diameter
ø 2.8 (70) in (mm)

General

Machine Weight
33070 (15000) lbs (kg)
Machine Control
FANUC 31i-B5 -
