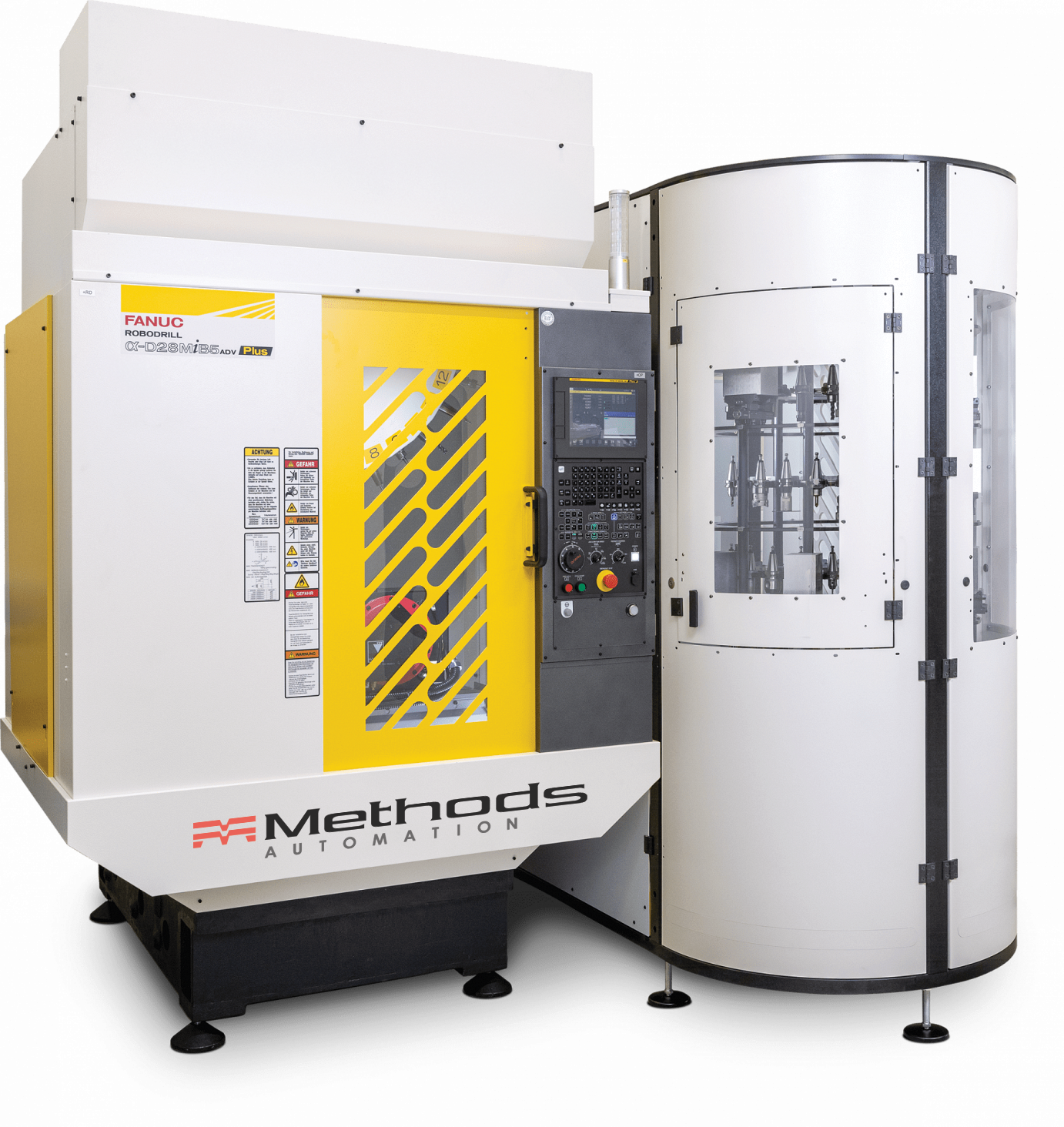

Methods Automation RoboDrill Plus K900
The Methods Automation RoboDrill Plus K900 delivers high-speed machining with automated pallet handling that is added to a medium-bed FANUC RoboDrill. The carousel system exchanges part carriers and tools to further enhance the operation of the RoboDrill.
The result is a complete automation package with minimal setup and training required. Compact dimensions despite the increased capacity from other integrated RoboDrill solutions, the K900 enables an even broader mix of operations.
Click and Grab 3D Model
The Plus K900 is part of the Methods Night Crew of fully integrated FANUC RoboDrill automation.
-
FANUC LR-10 iA/10 robot
-
Robot fully integrated into the CNC control
-

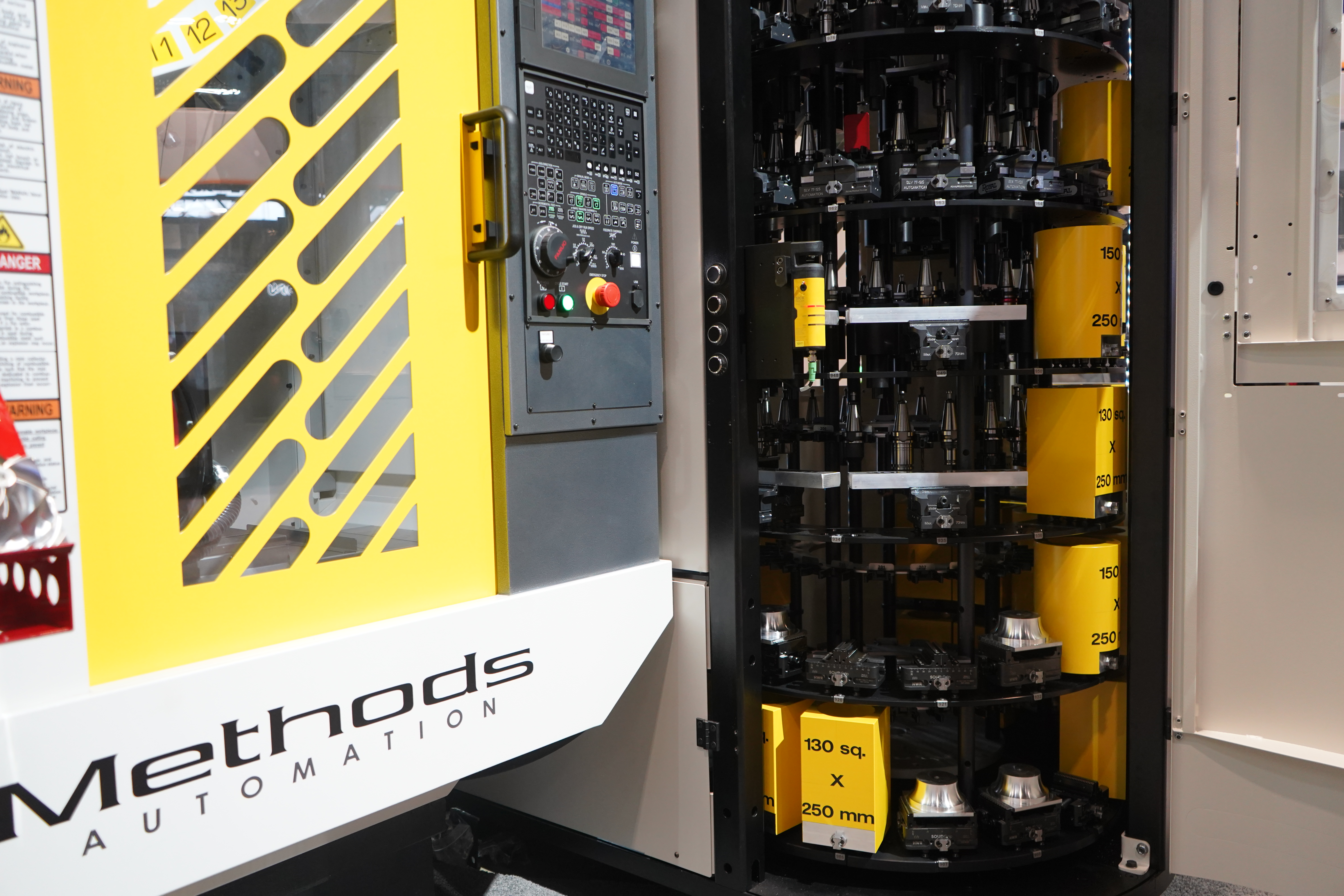

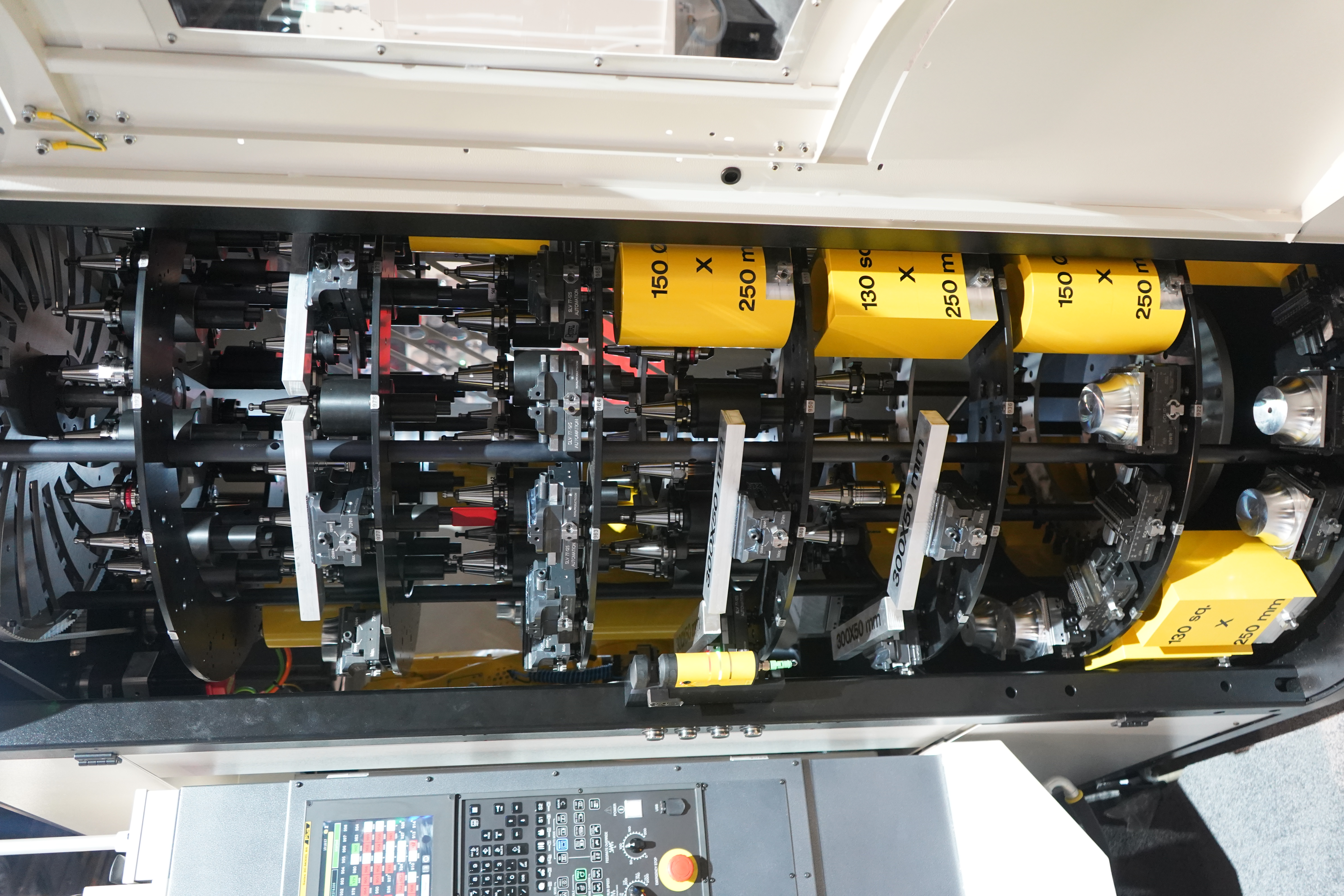

Capacity for 98 pallets and 168 tools (including 28 in the turret)
-
5-axis high-speed software package
-
Operator access doors for part/tool loading and maintenance
-
Ergonomic setup station
Pallet
| Pallet Storage | 98 |
|---|---|
| Max. Pallet Size (Diameter x Height) | Ø 5.90 in. (150mm) / 5.11 in. x 5.11 in. (130mm) X 9.84 in. (250mm) |
Work Piece
| Max Weight of Park | 26.4 lbs. (12 kg) |
|---|
Robot
| FANUC | LR-10iA/10 |
|---|---|
| Robot Reach | 43.34 in. (1,101mm) |
General
| Floor Space (L x W) | 63.6 in. X 80.7 in. |
|---|---|
| Unit Weight | 1,763.7 lbs. (800 kg) |
| Tools | Up to 140 additional tool pot locations |
