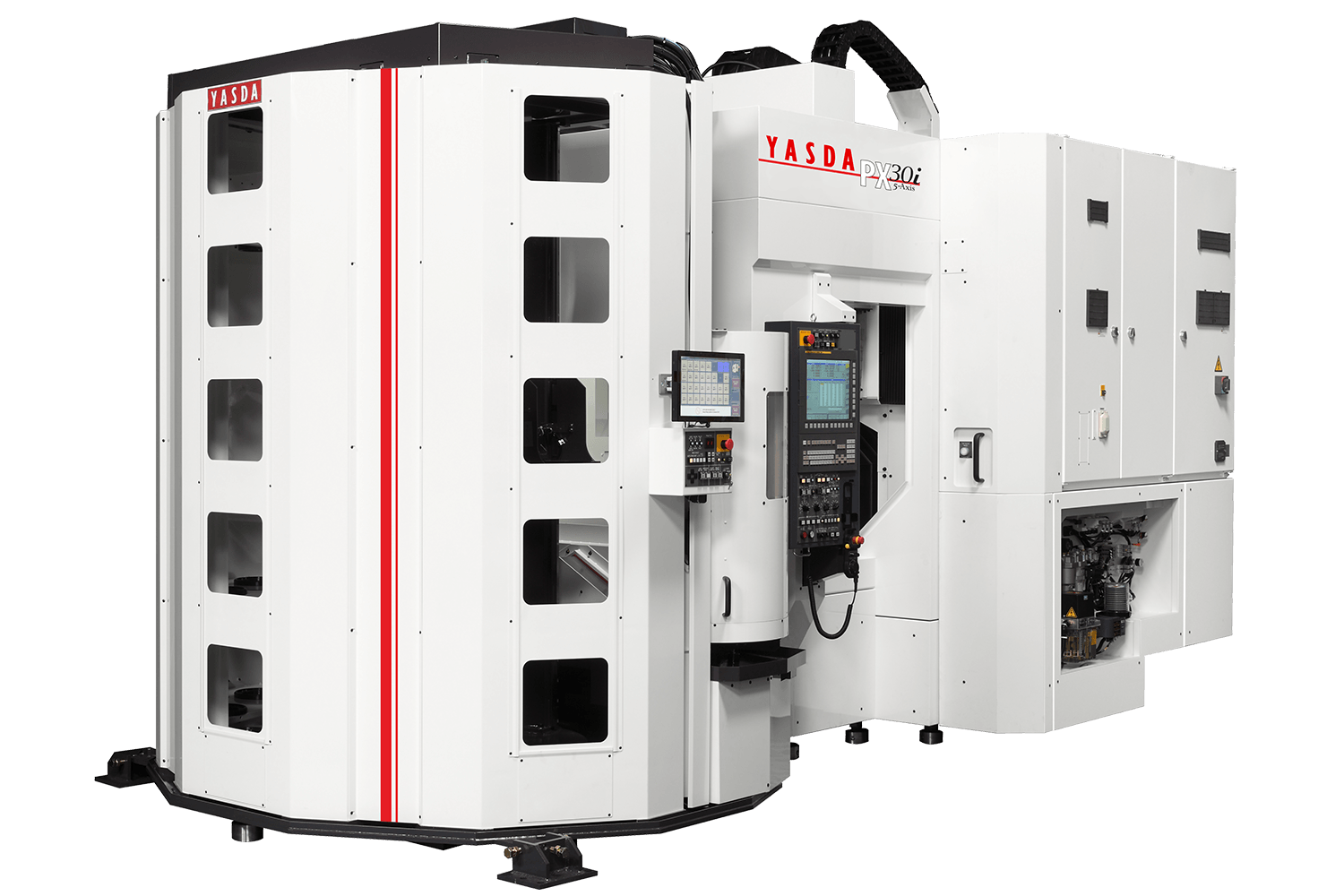

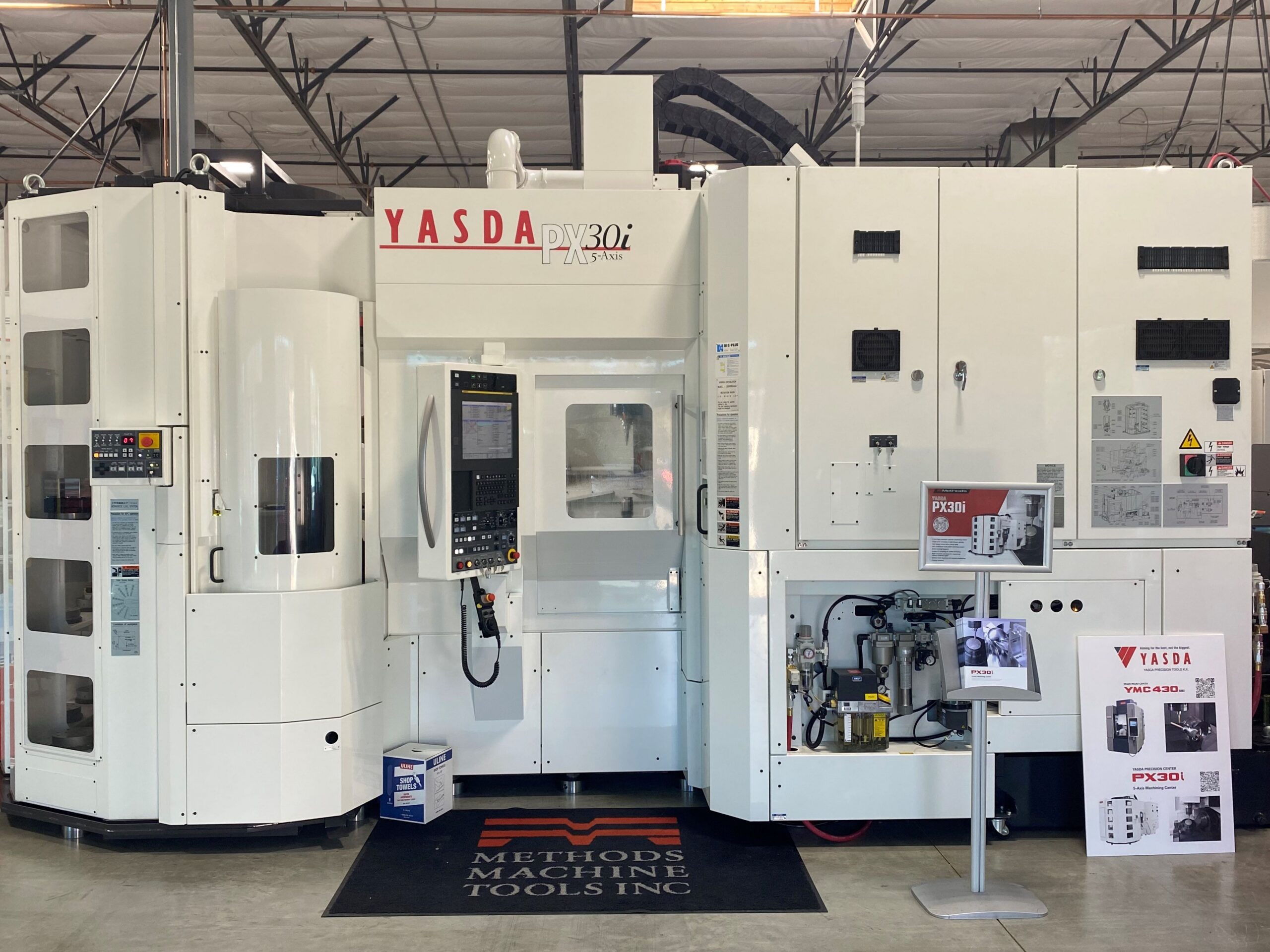

the Yasda PX30i 5-axis vertical machining center sold by Methods Machine Tools

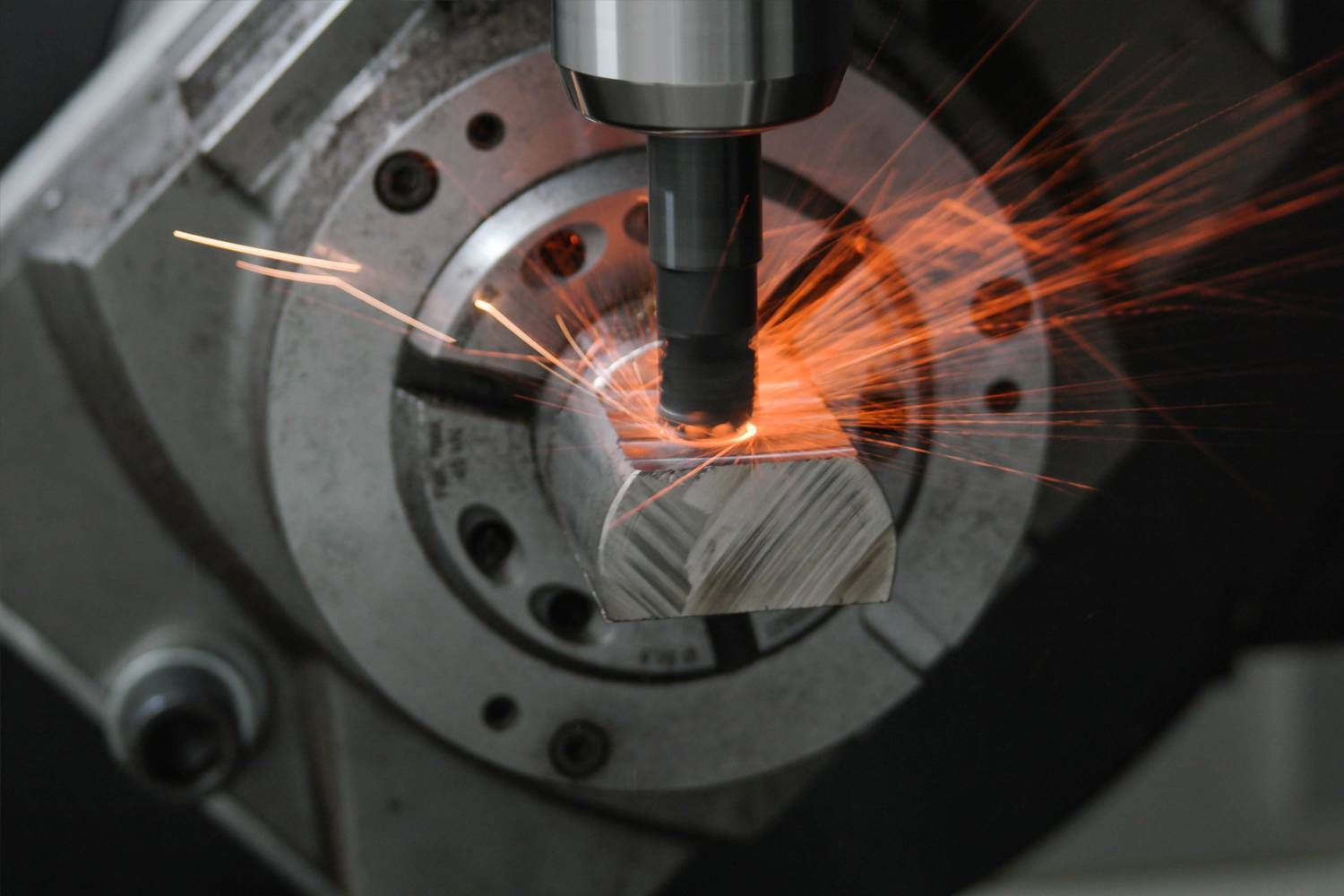

the Yasda PX30i 5-axis vertical machining center sold by Methods Machine Tools as it mills a hard metal piece

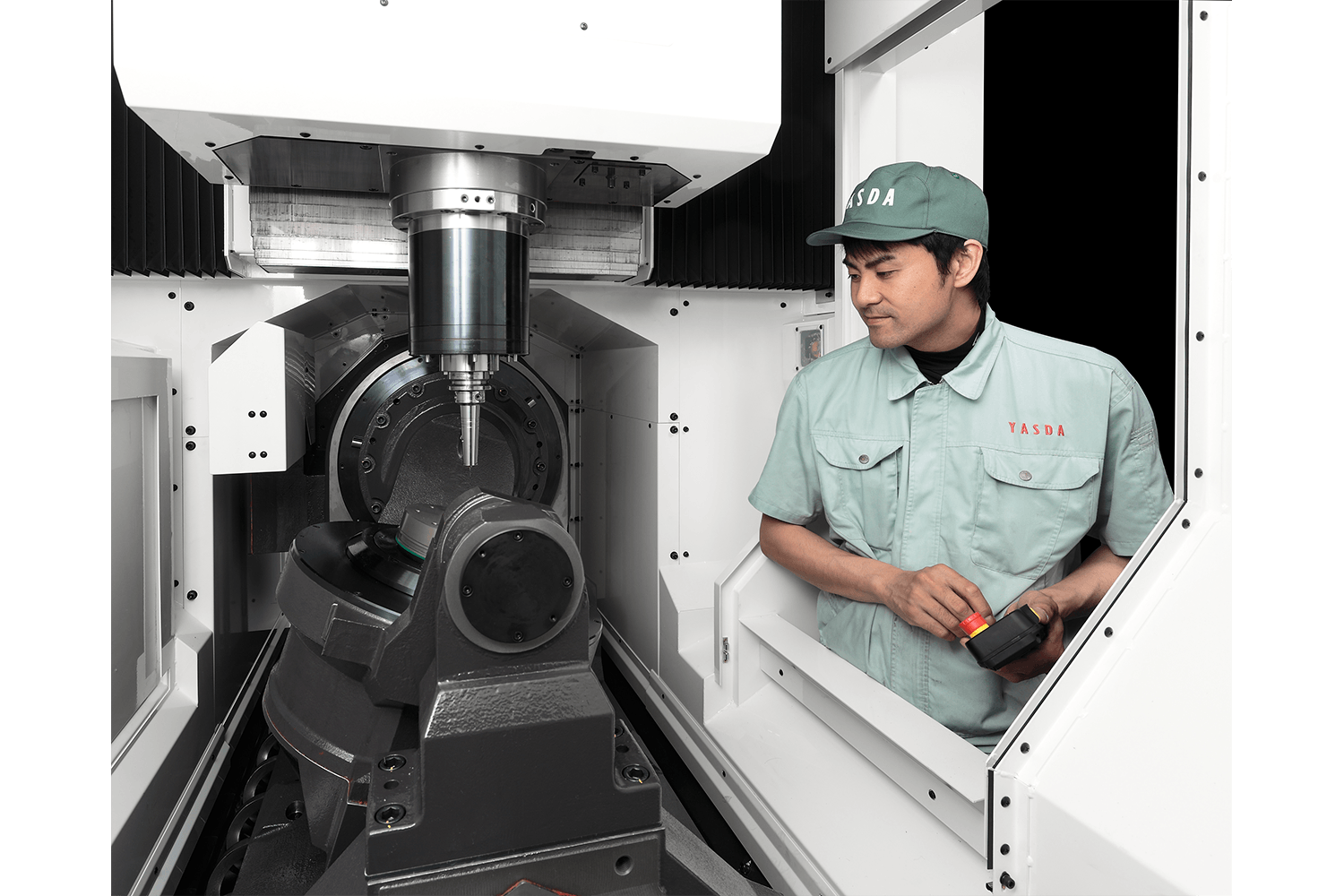

engineer standing near the Yasda PX30i 5-axis vertical machining center sold by Methods Machine Tools
inside view of the Yasda PX30i 5-axis vertical machining center sold by Methods Machine Tools

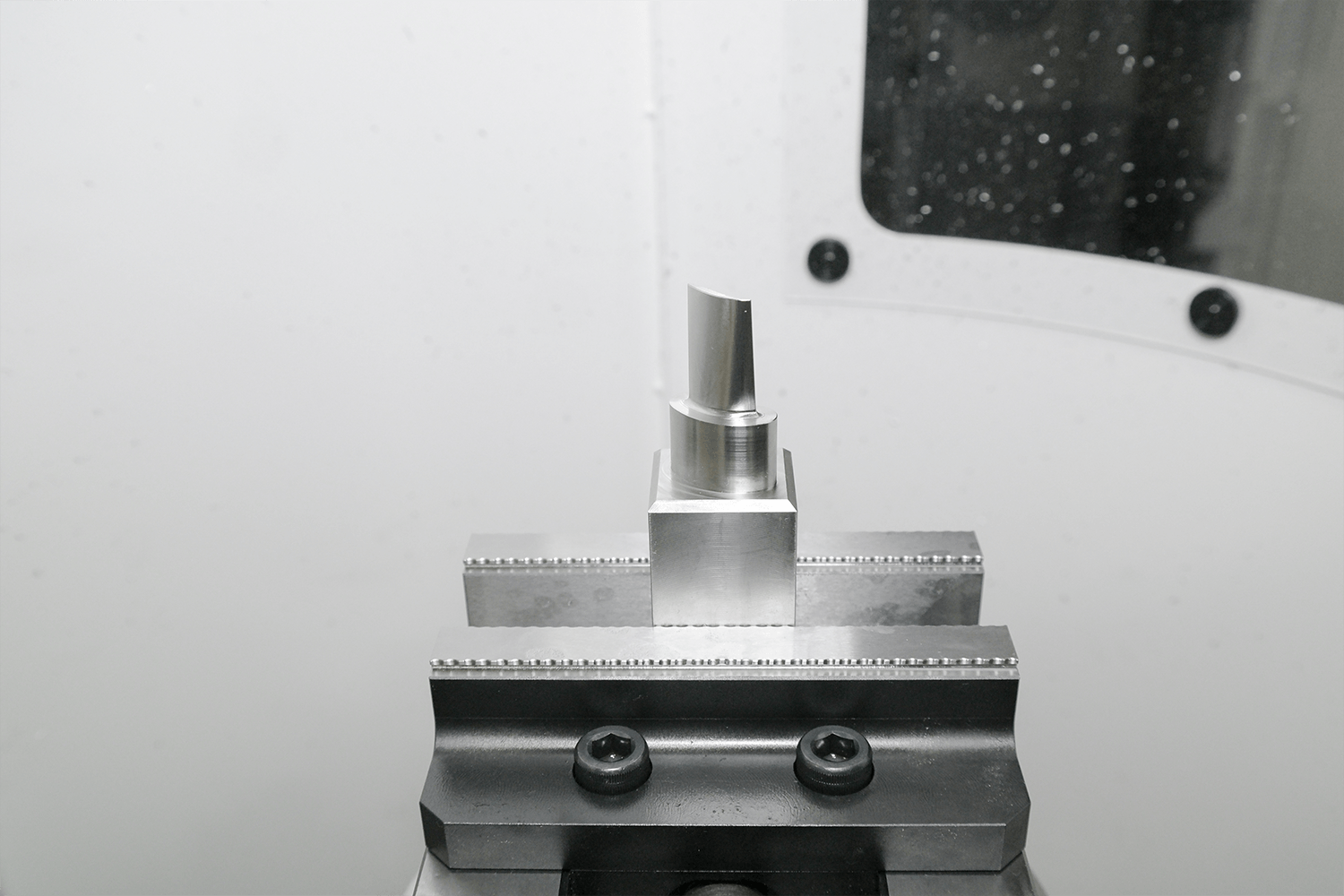

part being manufactured inside the Yasda PX30i machining center sold by Methods Machine Tools

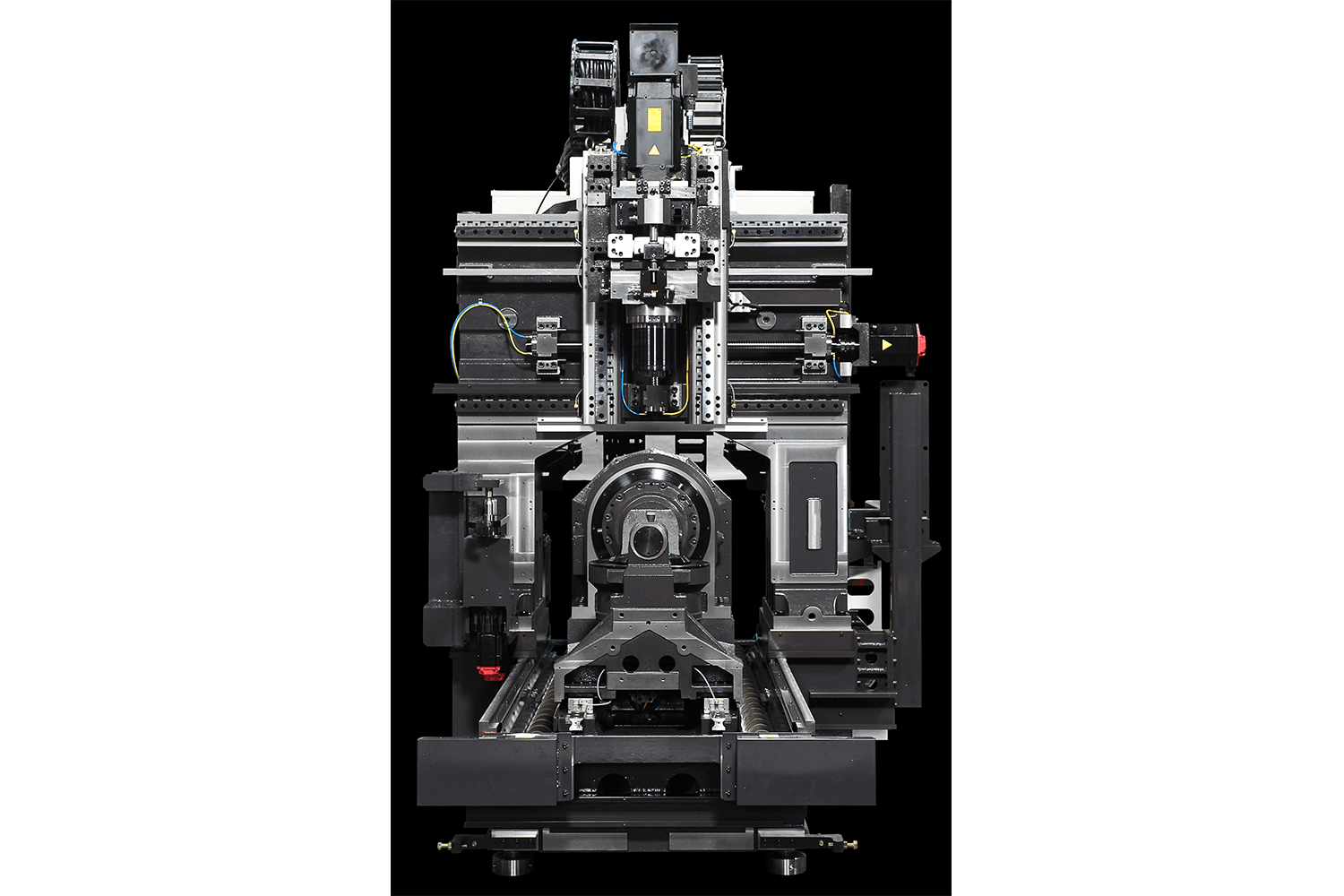

the machinery inside the Yasda PX30i vertical machining center
Yasda PX30i VMC | Methods Machine Tools Yasda PX30i - Hard Milling | Methods Machine Tools Yasda PX30i - Engineer | Methods Machine Tools Yasda PX30i - Internal Photo | Methods Machine Tools Yasda PX30i - Internal Photo | Methods Machine Tools Yasda PX30i - Internal Photo | Methods Machine Tools

Yasda
PX30i

YASDA developed the 5-axis PX30i machine to supply customers with a top quality, highly reliable machine tool for the machine shop market and OEM users. The PX30i is outstanding in versatile 5-axis machining applications, precision parts, drilling, face milling, boring, and milling. The PX30i also excels in hardened steel and other tough materials like titanium and inconel. The PX30i has an excellent design for automation, usability and productivity.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • 5 Axis High Precision Vertical Machining Center
  • Large Work Envelope
  • High Torque Spindle
  • High Speed Direct Drive Rotary Axes

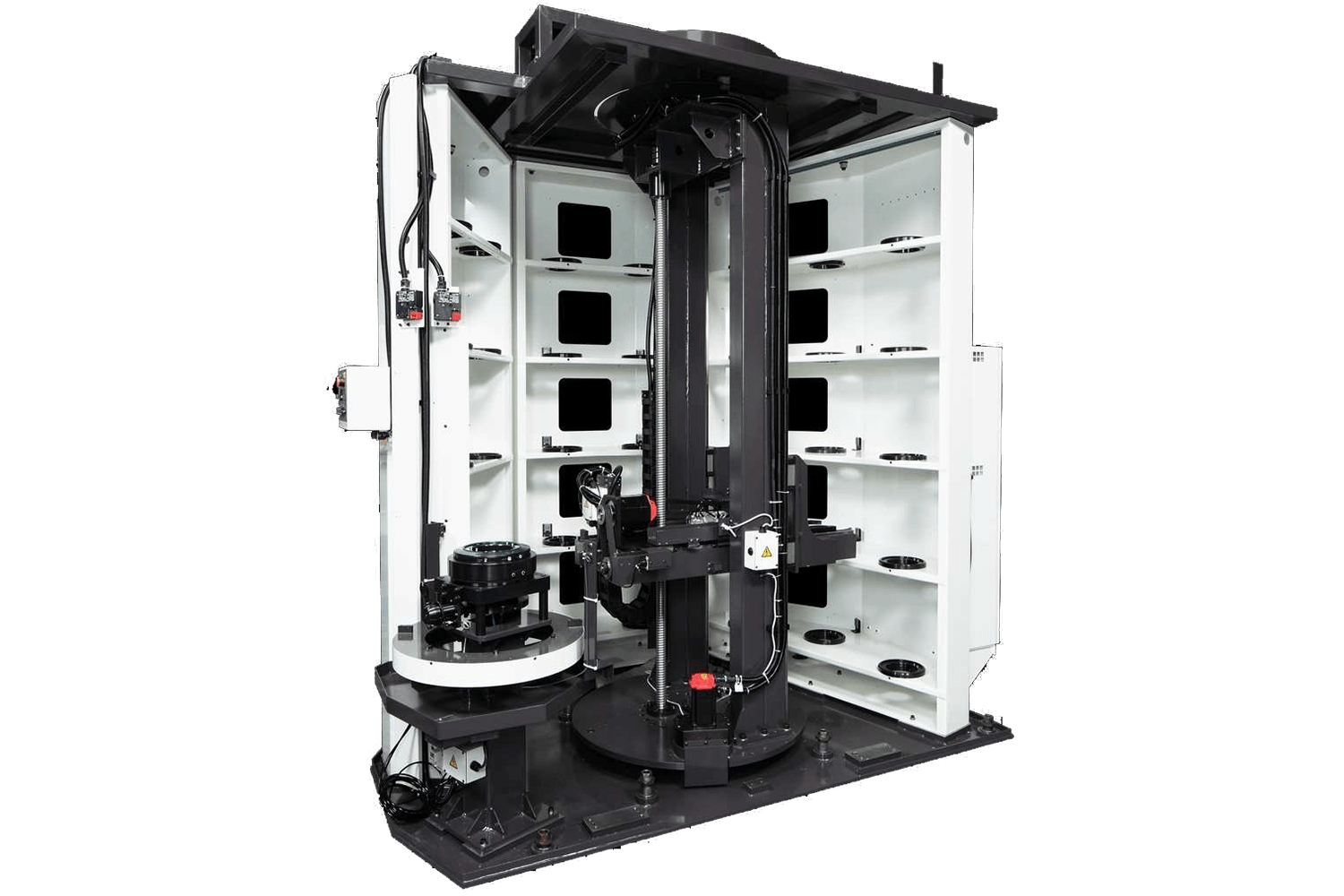

  • Self-contained Multi Pallet Stacking System
  • Space Saving Footprint
  • System 3R Coupling for Pallet Clamping
  • Rigid Machine Structure for Machining Various Material Types
  • Optical Scale Feedback for Precise Positioning
  • Probing Systems

Technical Data

Travel

X-Axis Travel
26.8 (680) in (mm)
Y-Axis Travel
15.8 (400) in (mm)
Z-Axis Travel
19.7 (500) in (mm)
Distance from Table Surface to Spindle
4.7-24.4 (120-620) in (mm)
B-Axis (tilt table)
+65 to -125 degrees
C-Axis (rotary table)
360º (0.0001º)

Feed Rate

X, Y, and Z Axes Rapid Traverse
2362 (60) in/min (m/min)
B-Axis (tilt) Rapid Traverse
75 rpm with DD motors
C-Axis (rotary) Rapid Traverse
125 rpm with DD motors
Feed Rate
788 (20000) in/min (mm/min)

Table

Table Working Surface
7.3x7.3 (185x185) in (mm)
Table Loading Capacity
177 (80) lbs (kg)
Max Diameter of Workpiece
ø 15.8 (400) in (mm)
Min. Table Indexing Angle
-125 + 65 degree

Spindle

Spindle Type
Self adjusting pre-load
Spindle Speed Range
100-20000 rpm
Spindle Taper
7/24 taper No. 40 (Big Plus)

Tooling

Number of Tools
323 std (513 opt)
Maximum Tool Weight
22 (10) lbs (kg)
Maximum Tool Length
12 (300) in (mm)
Maximum Tool Diameter
ø 3.2 (80) in (mm)

General

Machine Weight
41227 (18700) lbs (kg)
Machine Control
FANUC 31i-B5-15" Color LCD
