PX50i

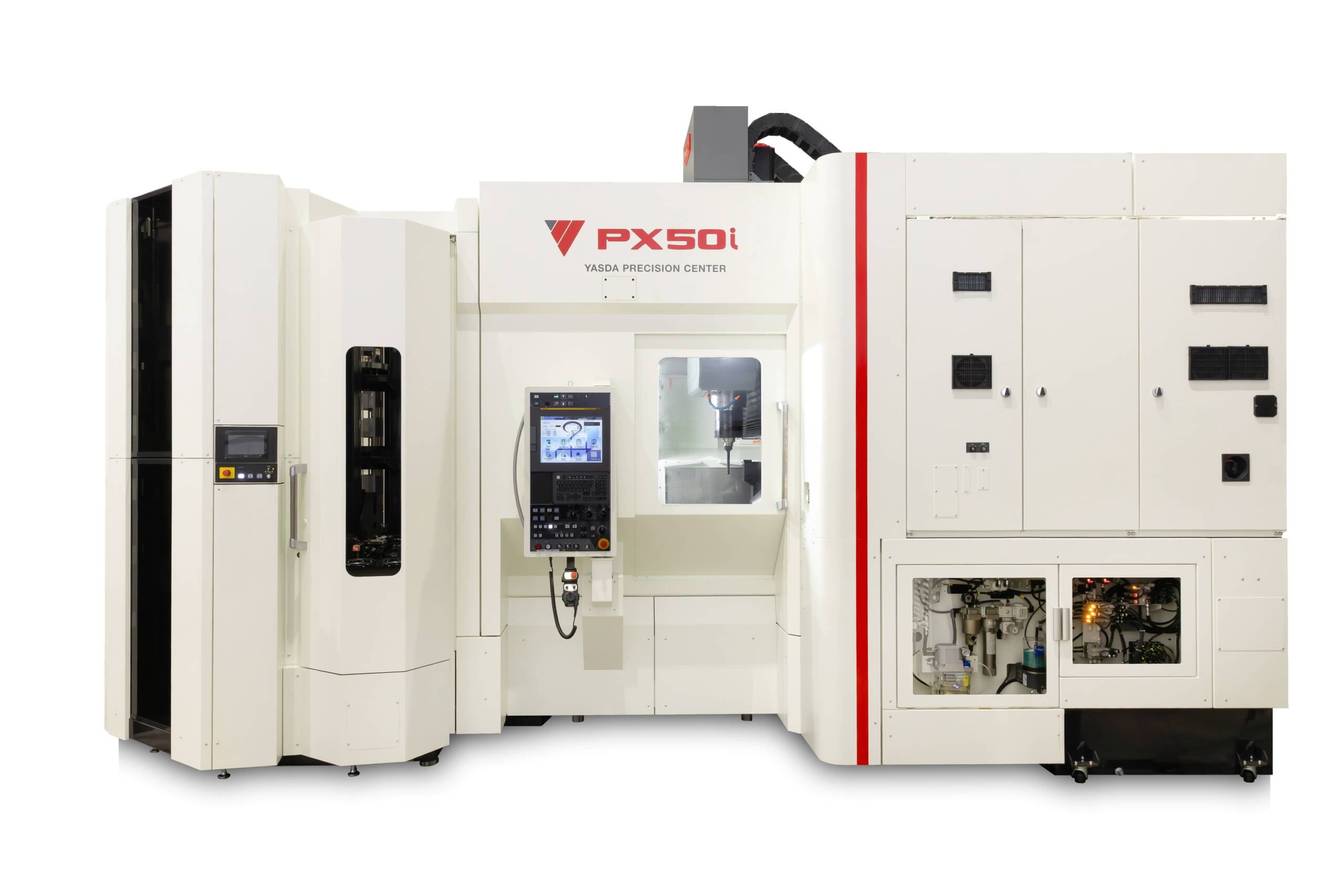

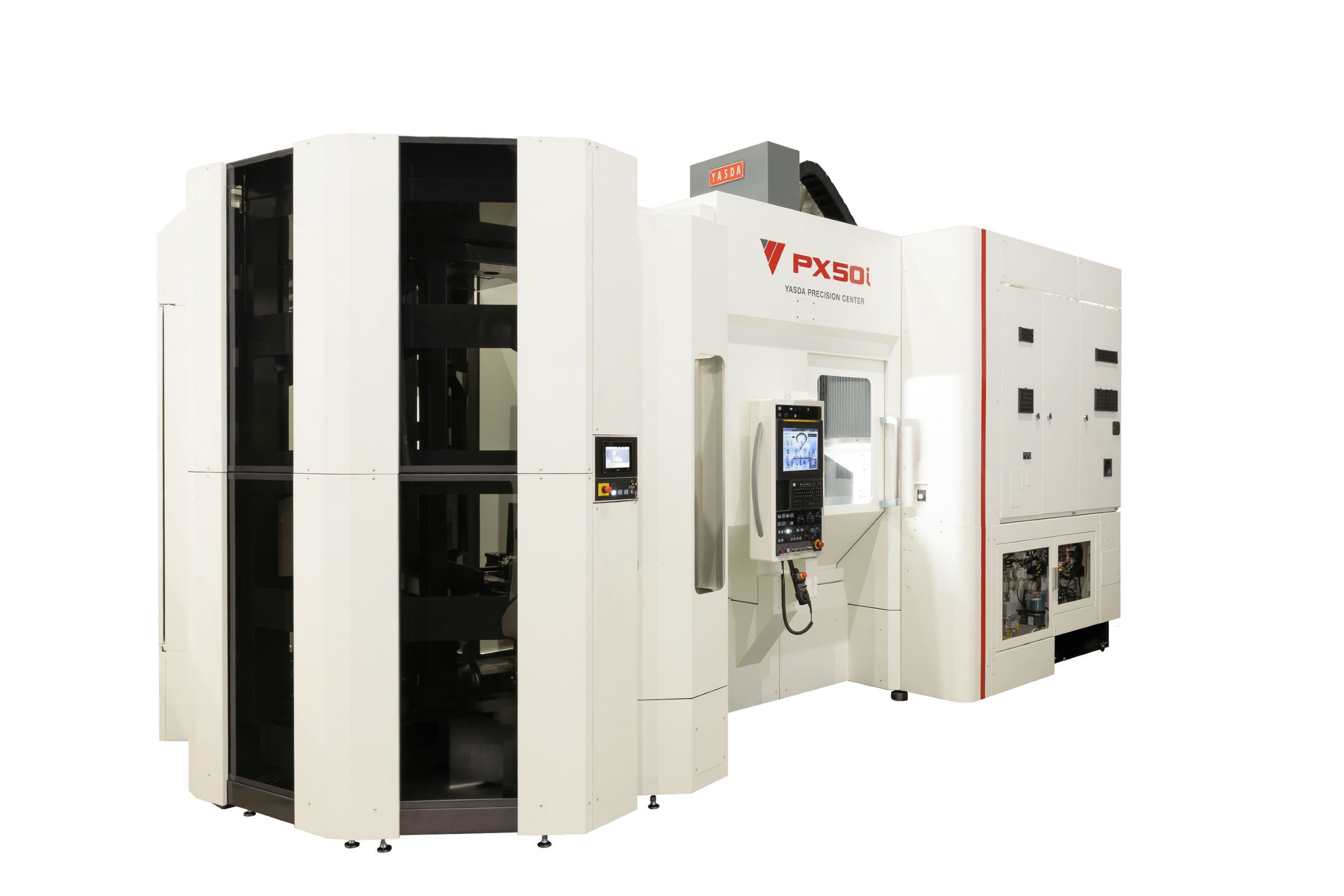

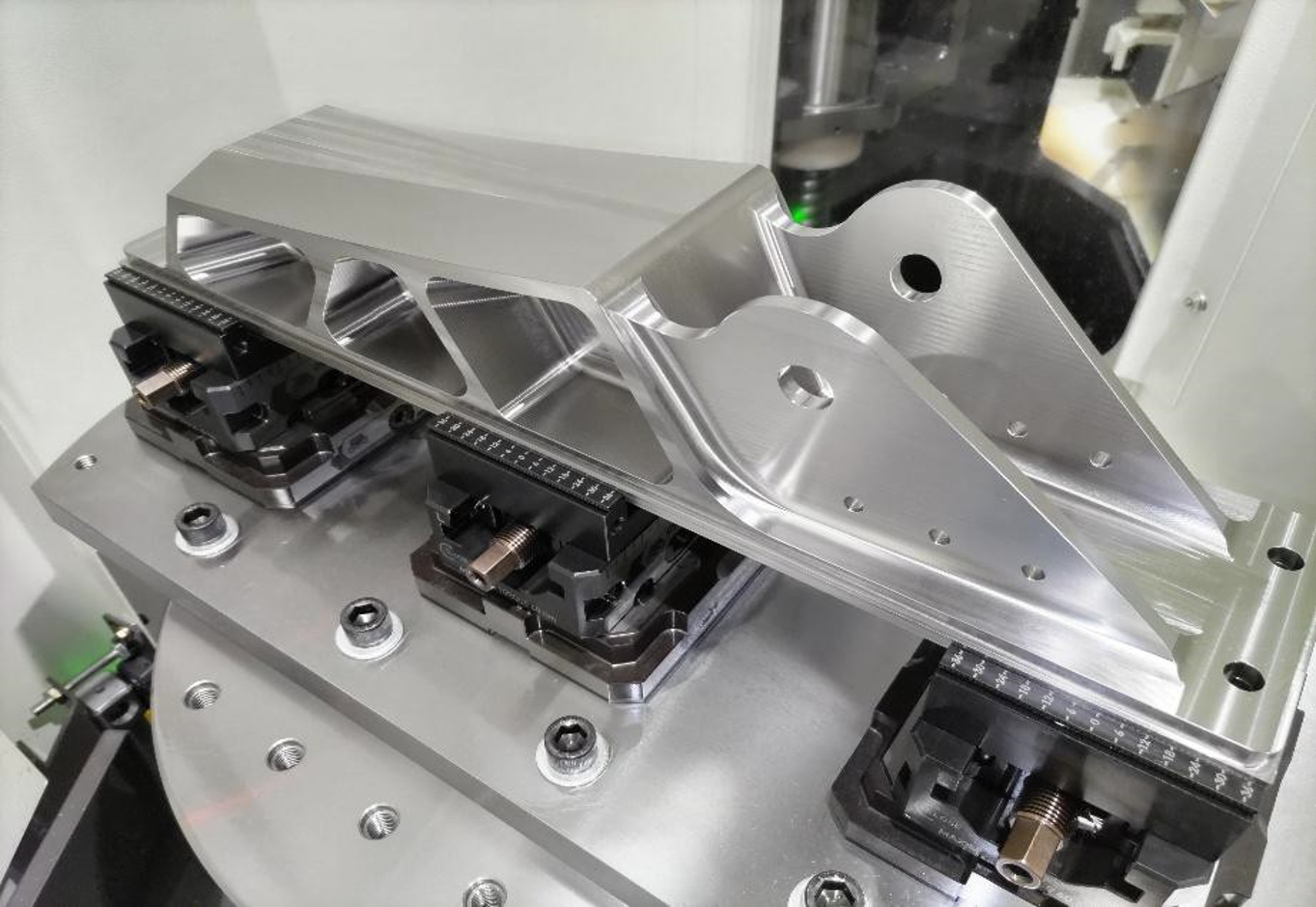

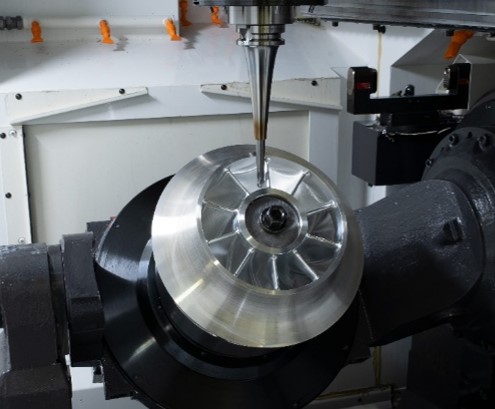

The YASDA PX50i is a vertical 5-axis machining center and the pinnacle of YASDA’s precision and expertise in automation. The PX50i achieves both productivity and stability in high-accuracy machining. When you need exceptional performance where precision is non-negotiable such as aerospace/defense, semiconductor equipment, and medical devices, the Px50i ensures highly-efficient machining of difficult-to-cut materials including titanium, Inconel, and stainless steel.
The PX50i’s high-rigidity structure and optimized thermal displacement control maintains stable dimensional accuracy during long hours of continuous and unattended operation.
As a next-generation machining center that combines high precision, high efficiency, and high reliability, the PX50i is the ideal solution for industries on the cutting edge.
-
High-Rigidity Integrated Gantry Structure
-
Automatic Workpiece Weight Estimation and Compensation
-

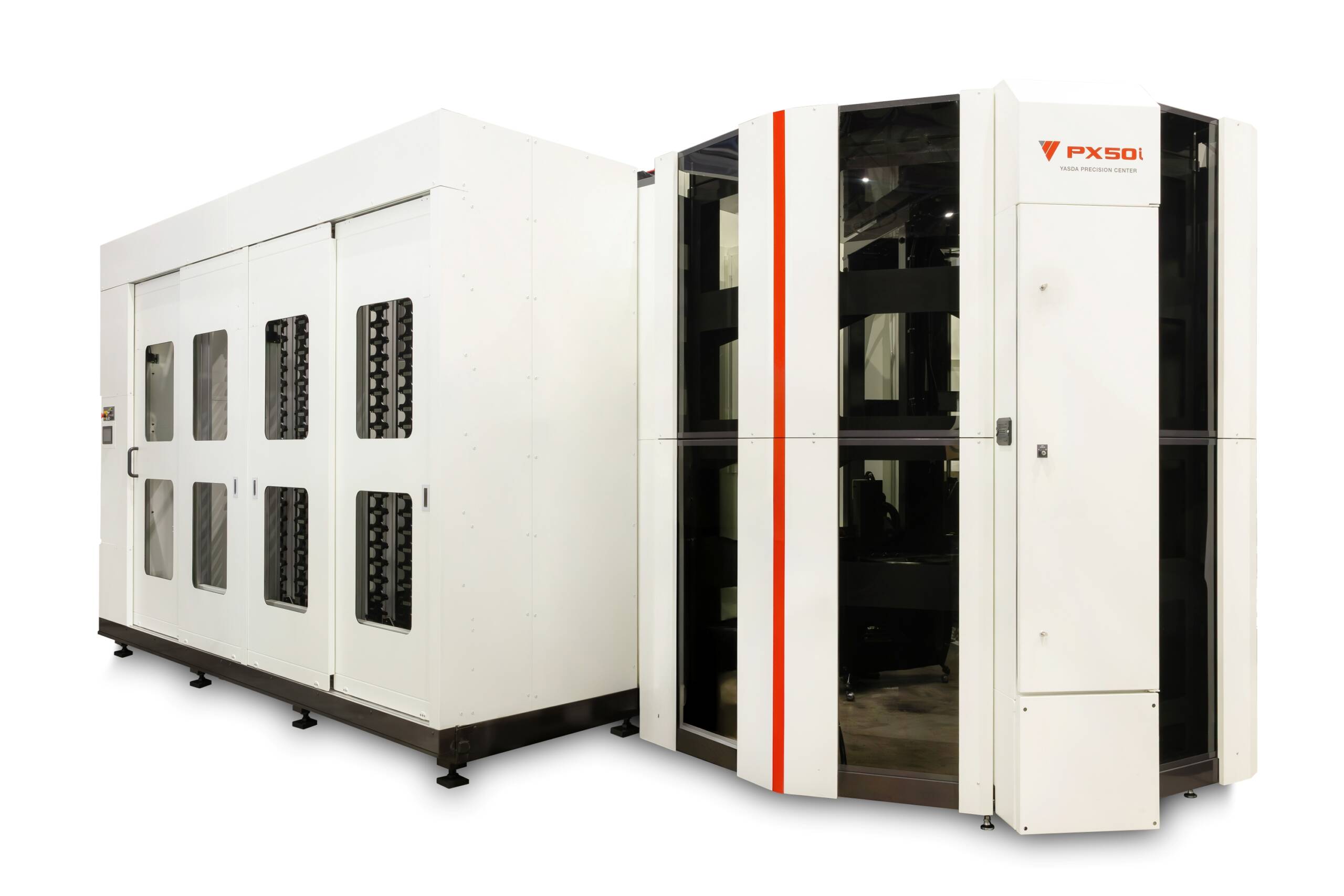

323-tool ATC standard (Op. 513)
-

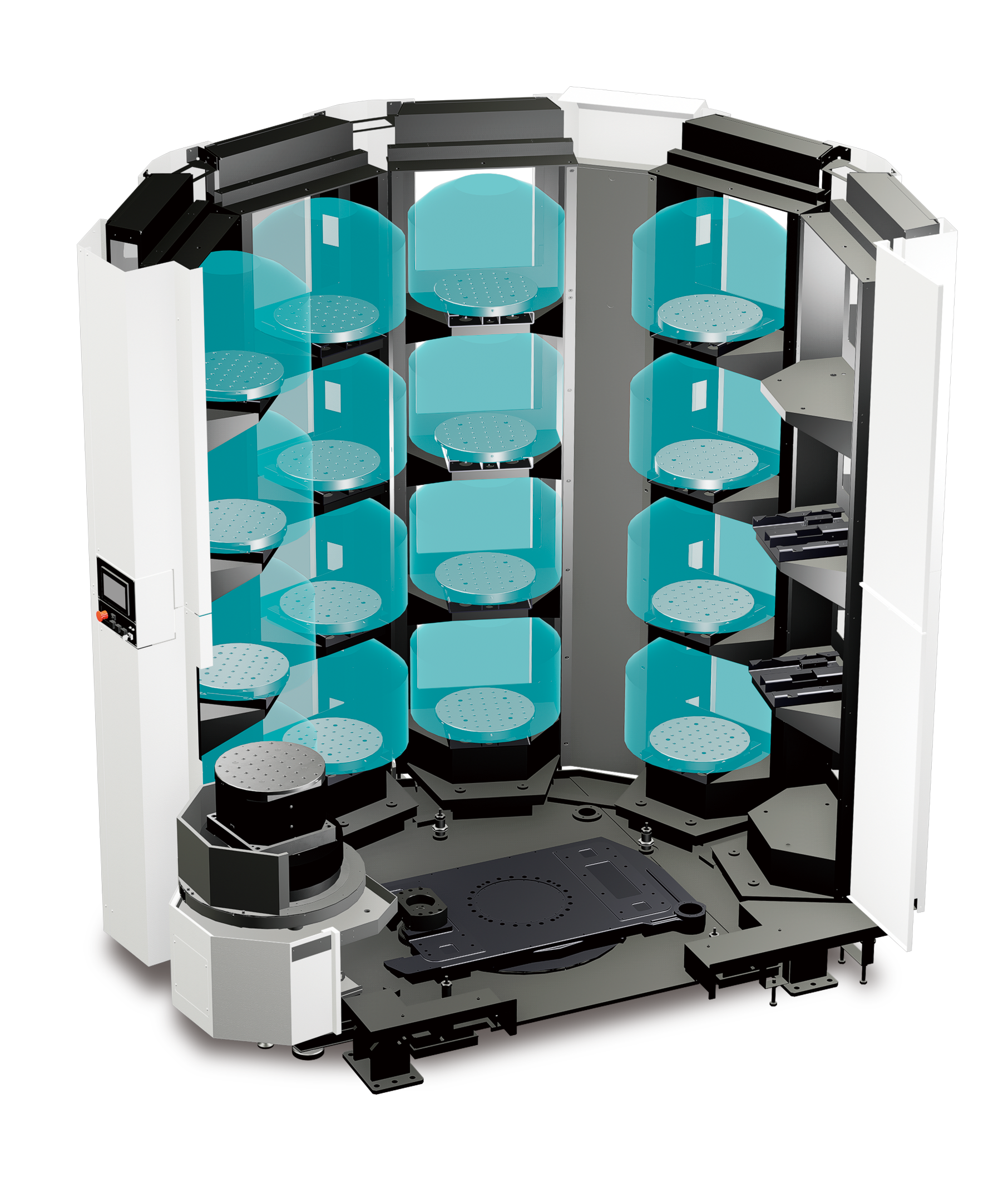

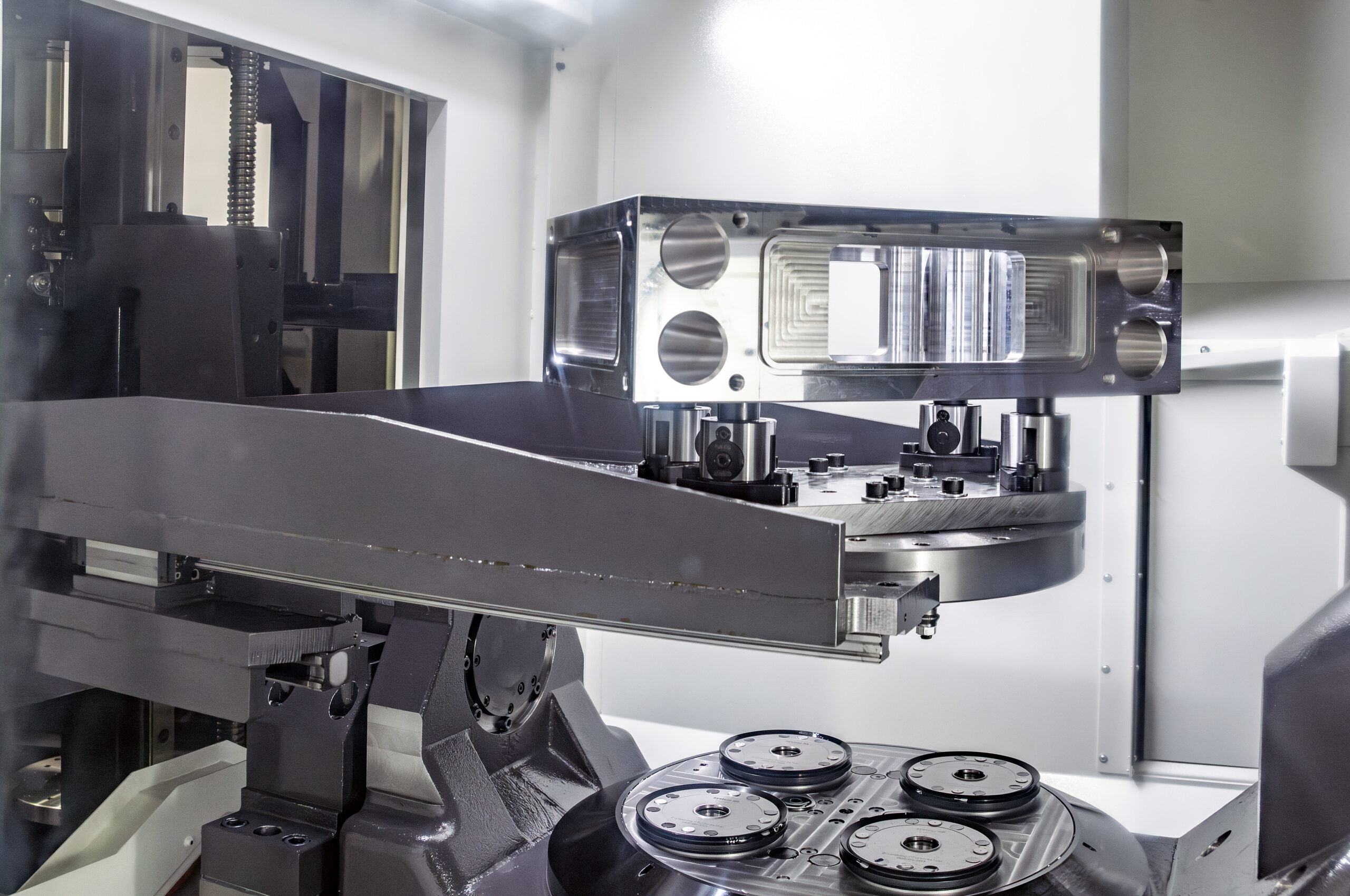

High-performance 18-pallet APC
-
Enhanced Chip Evacuation System
-

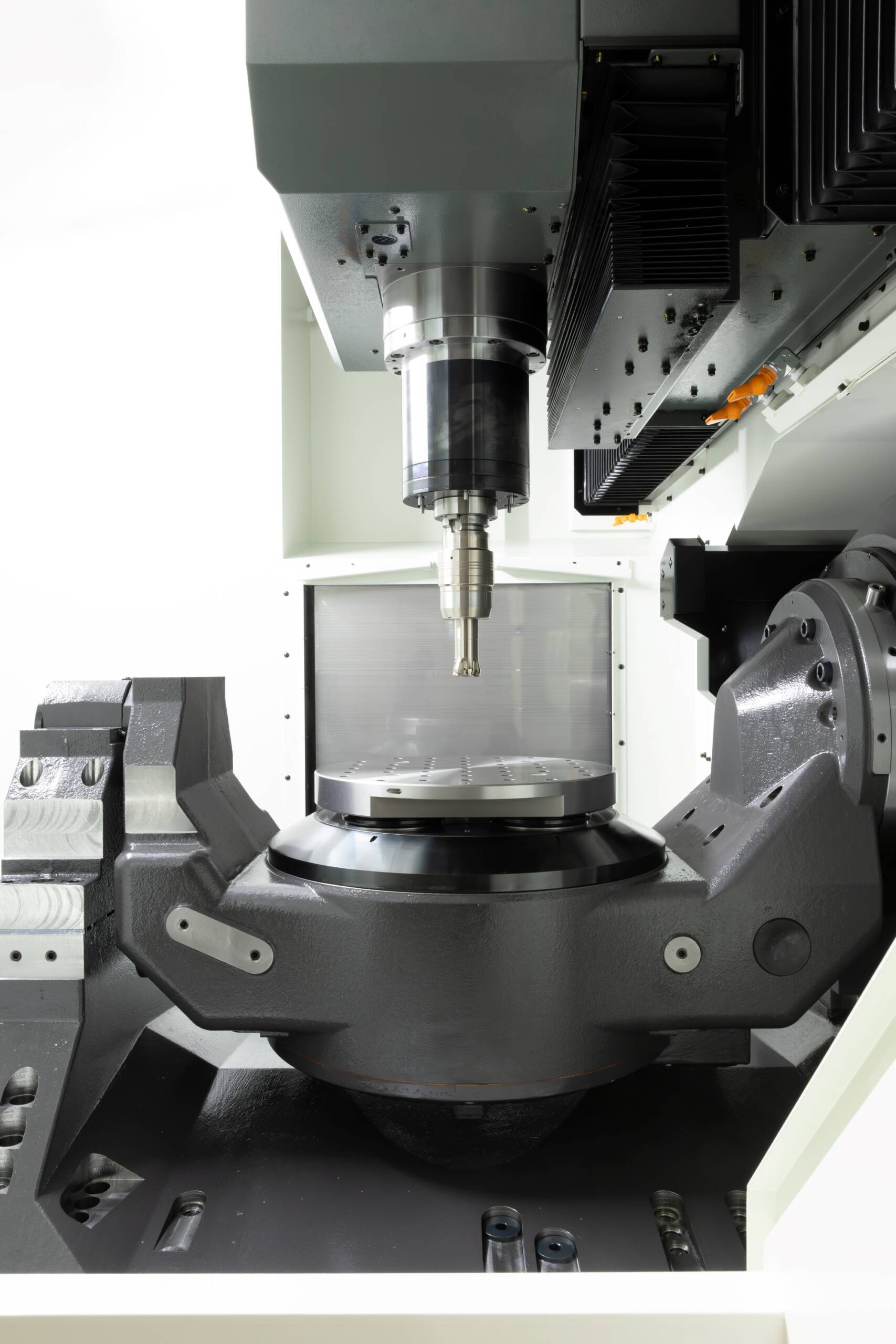

High-Torque Spindle
-

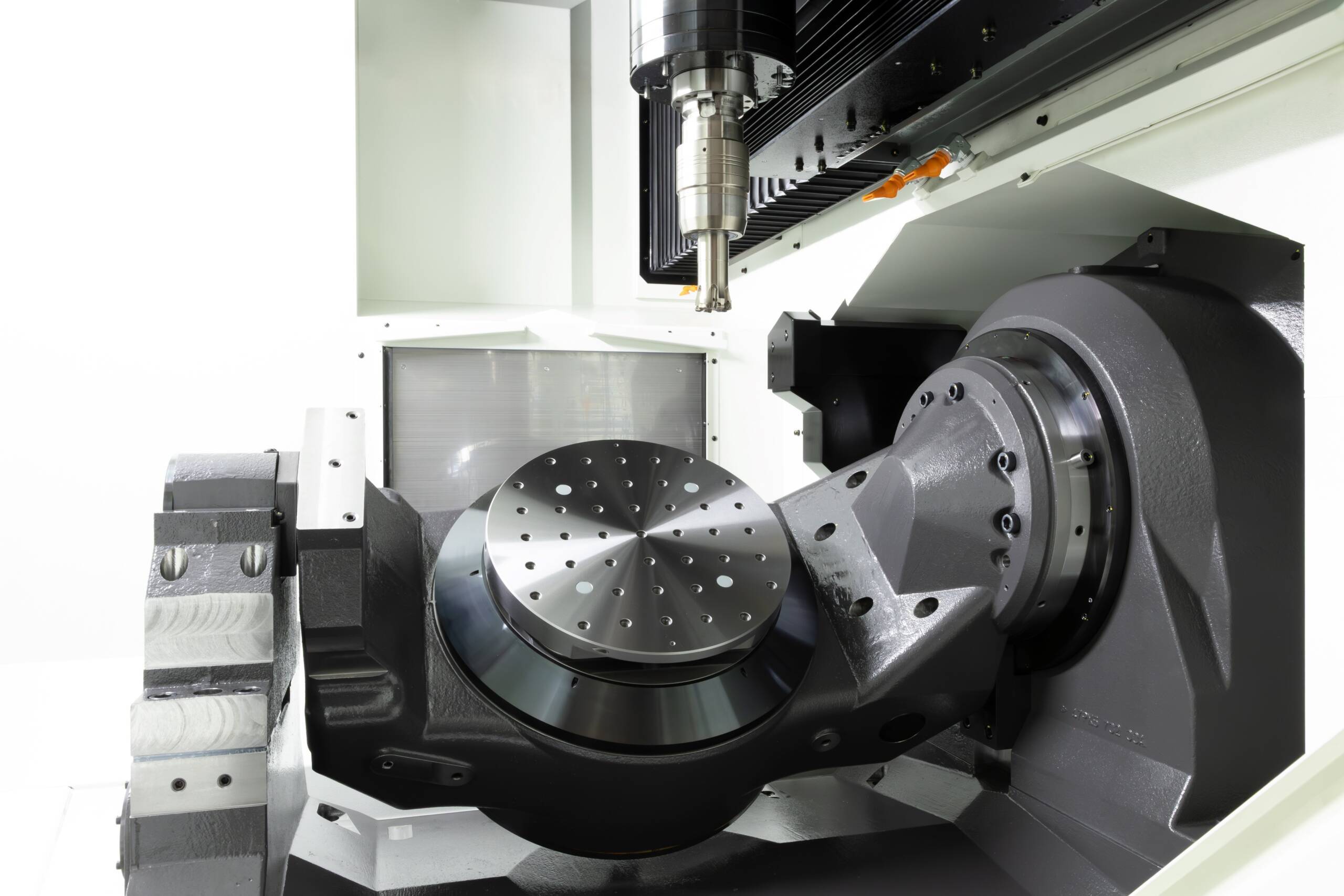

High-Speed Direct Drive Rotary Axes
Travel
| X-Axis Travel | 33.07 in. (840 mm) |
|---|---|
| Y-Axis Travel | 23.62 in. (600 mm) |
| Z-Axis Travel | 23.62 in. (600 mm) |
| Distance from Table Surface to Spindle Nose | 7.87 in – 31.49 in. (200-800 mm) |
| B-axis (tilt table) | +35 to -125 degrees |
| C-Axis (rotary table) | 360° |
Spindle
| RPM | 100 – 20,0000 |
|---|---|
| Drive Motor | AC 15/18.5 kW (Continuous / 60%) |
| Taper Hole | MAS BT40 |
| Spindle Nose Surface | BT40 BIG Plus |
Feed Rate
| X, Y, and Z Axes Rapid Traverse | 2362 (60) in/min (m/min) |
|---|---|
| B-Axis (tilt) Rapid Traverse | 75 rpm with DD motors |
| C-Axis (rotary) Rapid Traverse | 100 rpm with DD motors |
| Feed Rate (X,Y,Z) | 788 in/min (20,000 mm/min) |
| Feed Rate (B,C) | 30 rpm (B) | 50 rpm (C) |
| Minimum Input Increment | 0.0001mm |

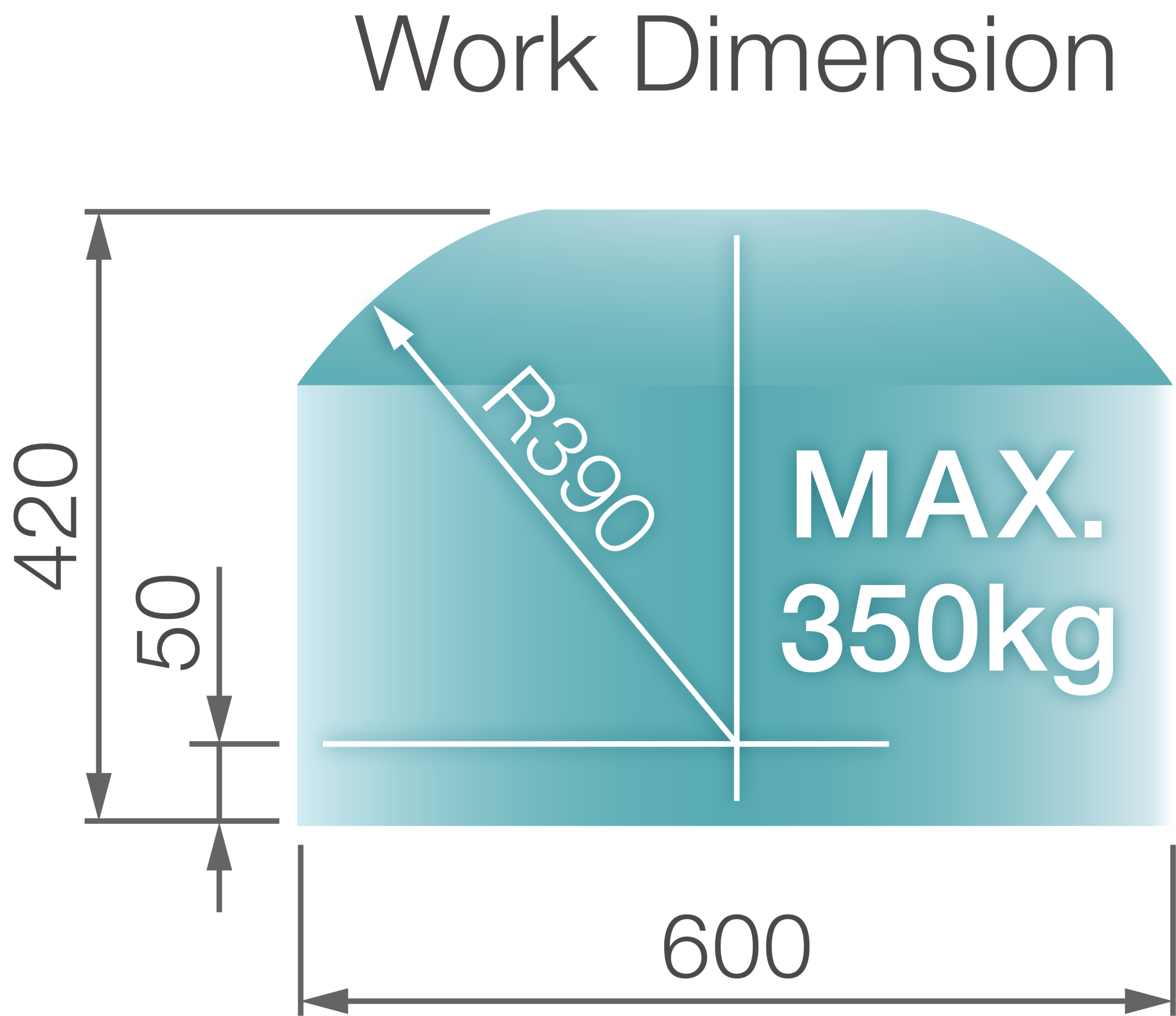

Table
| Pallet Working Size | Ø 400mm (15.75 in.) |
|---|---|
| Load Capacity | 771.61 lbs (350 kg) |
Automatic Tool Changer
| Tool Shank Type | MAS BT40 |
|---|---|
| Pull Stud Type | JIS B6339-40P |
| Tool Storage Capacity | 323 tools (Op. 513) |
| Max. Tool Ø | Ø 80mm (Ø 150mm no tool adjacent) |
| Max. Tool Length | 11.8 in. (300mm) |
| Max. Tool Weight | 22 lbs. (10 kg) |
General
| Control | FANUC 31i-B5 PLUS |
|---|---|
| Machine Weight | 50,706 lbs. (23,000 kg) |
| Power Capacity | 61kVA max. |
-
STANDARD EQUIPMENT PACKAGE:
- 6 flood nozzles
- 1,000-liter capacity for standard tank
- Ceiling shower
- ATC Door and slant cover
- Tool measurement and tool breakage detection system
- Automatic workpiece measuring system
- Signal tower (Red, yellow, green)
- YASDA Til-Com
