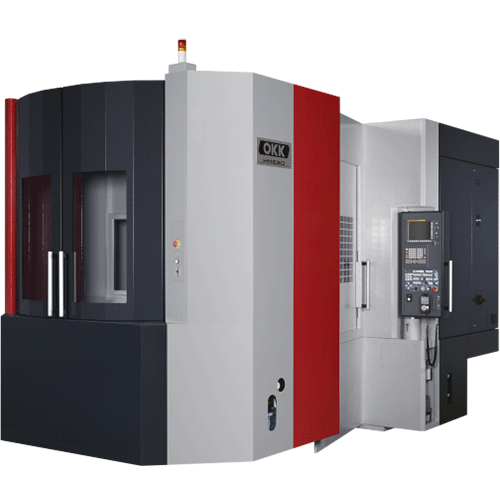

the OKK HM800S Horizontal CNC Machining Center
tooling in the HM1000S horizontal machining center built by OKK
control panel for the OKK HM800S Horizontal Machining Center
a look at the inner workings of the HM1000S horizontal machining center built by OKK
OKK HM800S Horizontal Machining Center | Methods Machine Tools OKK HM1000S - Internal 1 | Methods Machine Tools OKK HM800S Horizontal Machining Center - CNC Control | Methods Machine Tools OKK HM1000S - Shell Removed | Methods Machine Tools

OKK
HM800S

*Availability of machines is based on region. Contact your local Methods office to learn more.

OKK‘s new concepts in high-speed machining offer drastic improvements in speed, rigidity and durability over competing machines. The HM series of OKK machines offers the fastest and most powerful machines in their class, while providing easy access, maintenance and operation.

Heavy duty cutting performance is delivered by incorporating a rigid frame of thick box-shaped structure to foundation the large linear roller guides designed for very heavy loads. High-speed rotation APC and ATC by synchronization cam (OKK patented) delivers smooth performance and production efficiency.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • Direct-turn APC
  • Heavy load capacity linear roller guides
  • Core chilled pre-tensioned and double-anchored ball screws
  • High load capacity feed motors
  • Space saving design for economical use of floor space

Technical Data

Travel

X-Axis Travel
41.3" (1050mm)
Y-Axis Travel
35.3" (900mm)
Z-Axis Travel
34.6" (880mm)

Table

Table Top to Spindle Nose
2.4" – 37.8" (60mm - 960mm)
Table Size
31.5" x 31.5" (800mm x 800mm)
Table Load Capacity
2645 lbs (1200 kg)
Max. Workpiece Size
ø 43.7" (1110mm)
Table Change Time: Cut to Cut
15.0 sec

Feed Rate

Rapid Traverse Rate (X/Y/Z)
2953 in/min (75 m/min)
Cutting Feed (X/Y/Z)
1574 in/min (40 m/min)

Spindle

Spindle Power
60/35 HP
Spindle Speed
12,000 rpm (OP: 8,000 rpm Three Geared Head 923ft-lbs)
Spindle Taper
CAT50

Tools

Standard Number of Tools
60 (OP: 116/176/236)
Maximum Tool Weight
55 lbs (25 kg)
Maximum Tool Length
19.7" (500 mm)
Maximum Tool Diameter
ø 4.5" (115 mm) / ø 10.6" (270 mm) without tool in adjacent pots
Tool Changing Time: Cut to Cut
4.2 sec (Speed is changeable for heavy-weight tools)

General

Machine Weight
40,800 lbs (18,500 kg)
Machine Control
FANUC F31i-B5
