The E-50 Lathe Toole from WEILER
WEILER E-50 Lathe Tool

Weiler
E-50

WEILER invented the first cycle-controlled lathe. Our experience, quality consciousness and software expertise translates to increased productivity and profitability for your business.

The WEILER E-50 and all E-Series machines are masters of efficiency. The unsurpassed and easy-to-use WEILER developed conversational control makes them unique. This control allows the intuitive creation of a number of cycles that are then stored in the controller to be called at the touch of a button. These can then be run either individually or as part of an automated sequence. The benefit to the user is shorter programming times and extremely efficient one-off and small batch production.



Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • State-of-the-art control and drive technology
  • Straight-forward operating and programming
  • Extreme accuracy
  • Durability
  • User-friendly ergonomics
  • Extensive range of accessories
  • Ergonomically tilting display unit with 15” TFT screen
  • Ingenious, user-friendly WEILER graphical user interface
  • Operating panel with handwheels moves with the bed slide to enable precise manual machining
  • “e-TIM” energy conservation system minimizes power consumption

Technical Data

Working Range

Distance between centers
39.4" / 78.7" (1,000 mm / 2,000 mm)
Swing over bed
22.4" (570 mm)
swing over cross slide
13.4" (340 mm)
cross slide travel
13.4" (340 mm)
width of bed
13.8" (350 mm)

Main Spindle

Spindle nose according to DIN 55027 (26) (DIN ISO 702-3)
8
Spindle bore
3.3" / 5" / 6.5" (83 mm / 128 mm / 165 mm)
Spindle diameter in front bearing
4.7" / 7.1" / 9.4" (120 mm / 180 mm / 240 mm)

Motor

Drive Power (100%)
17 kW
Max Torque
1,300 Nm / 900 Nm
RPM
2,500 / 2,000

Feed

Feed force longitudinal
12,000 N
Rapid Traverse (Z/X)
10/5 m/min
Feed Range
0.001 - 50 mm/rev

Thread Cutting Range

Metric threads
0.1 - 2,000 mm
Inch threads
112 - 1/64 TPI

Tailstock

Tailstock quill diameter
3.1" (80 mm)
Tailstock quill taper
5 MT

General

Floor Space (W x H) Length is variable
94.68" x 71.34" (2405 x 1812 mm)
Weight
3,800 - 4,700 kg
Acceptance accuracy
8605 DIN

Videos

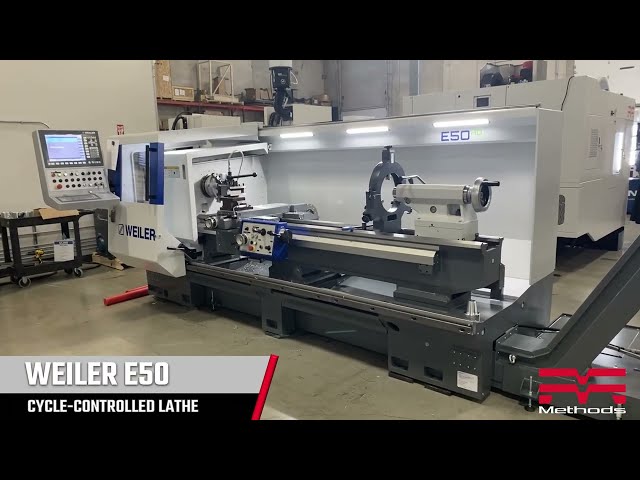

Click to watch video
