KH-4100kai

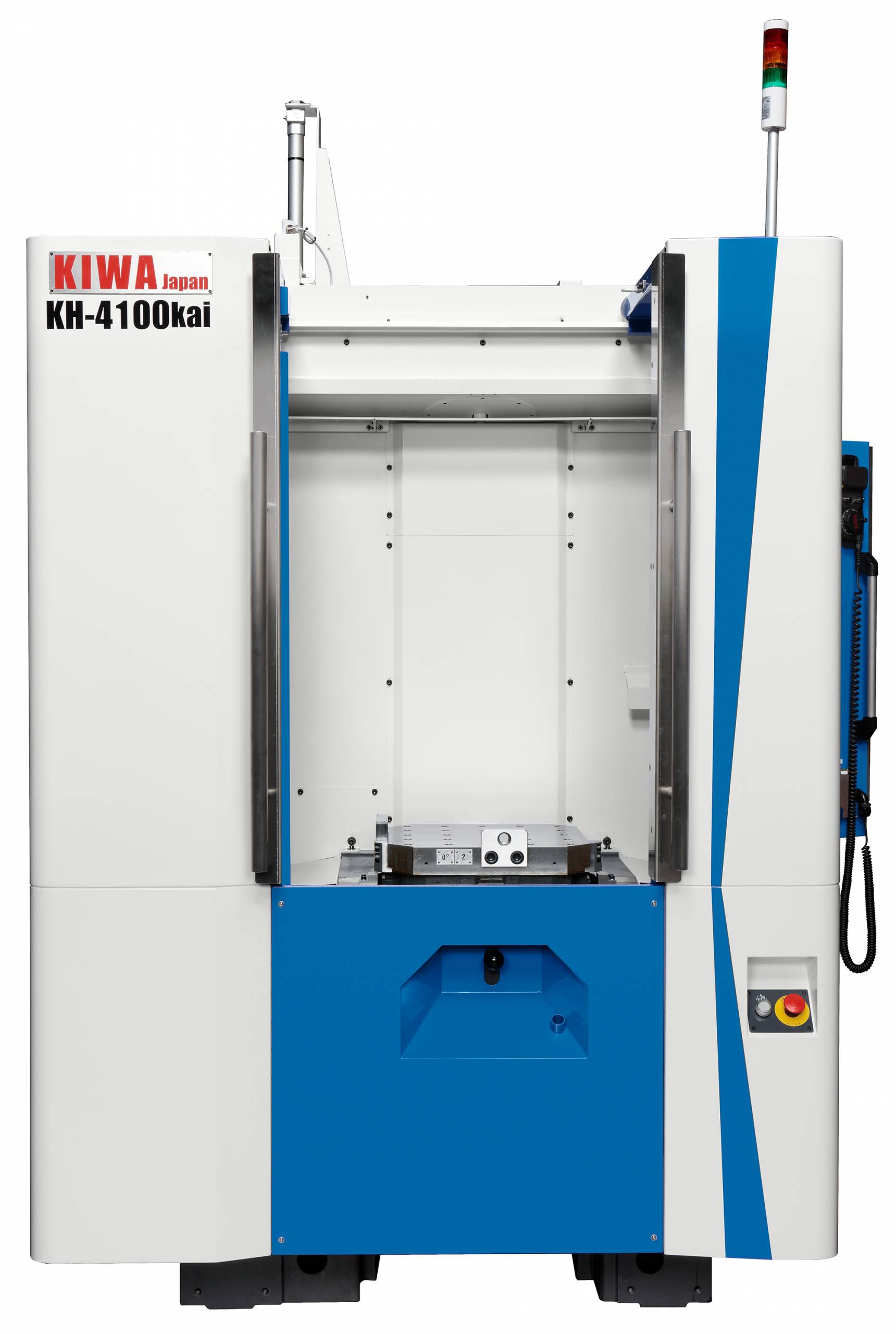

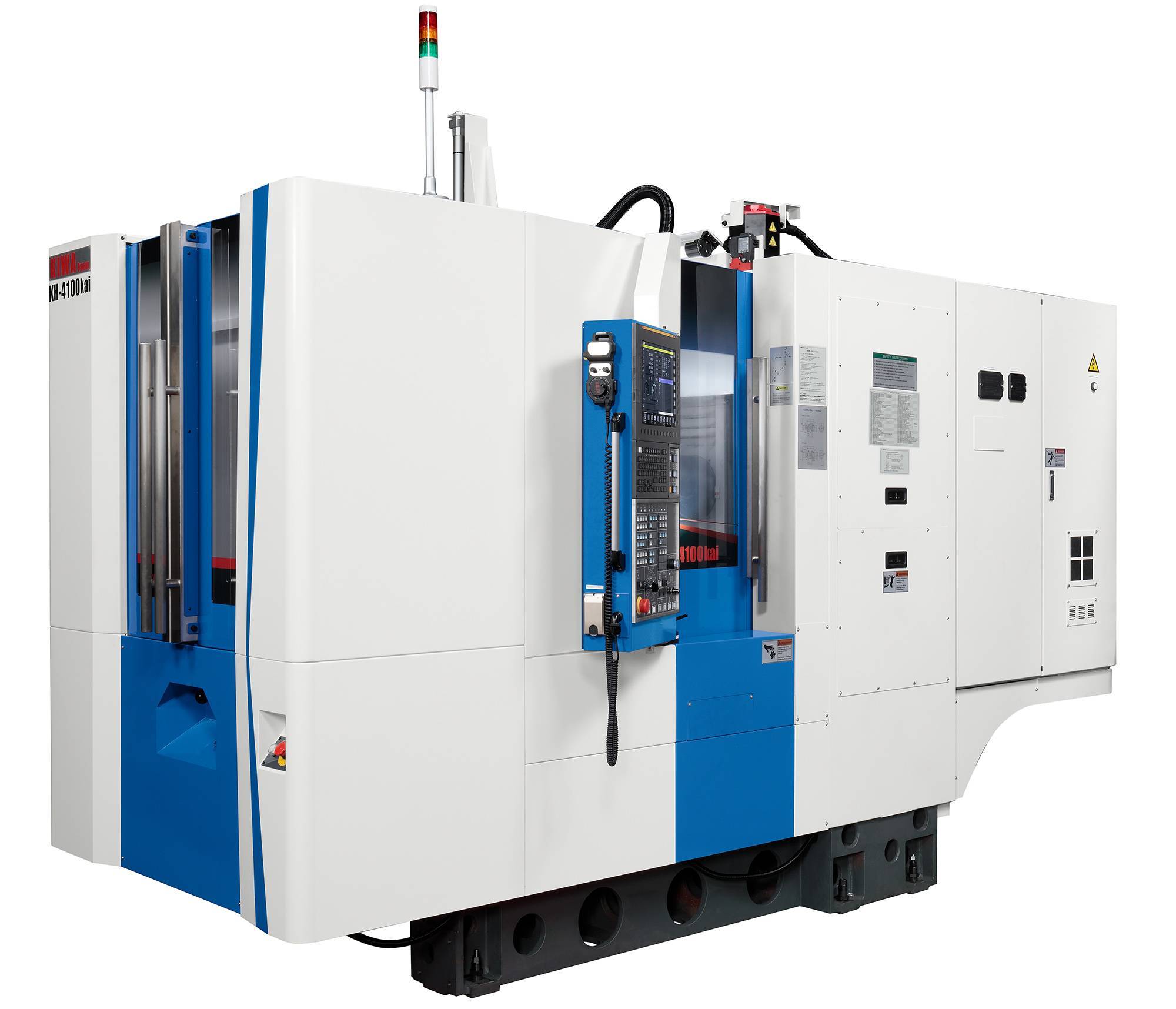

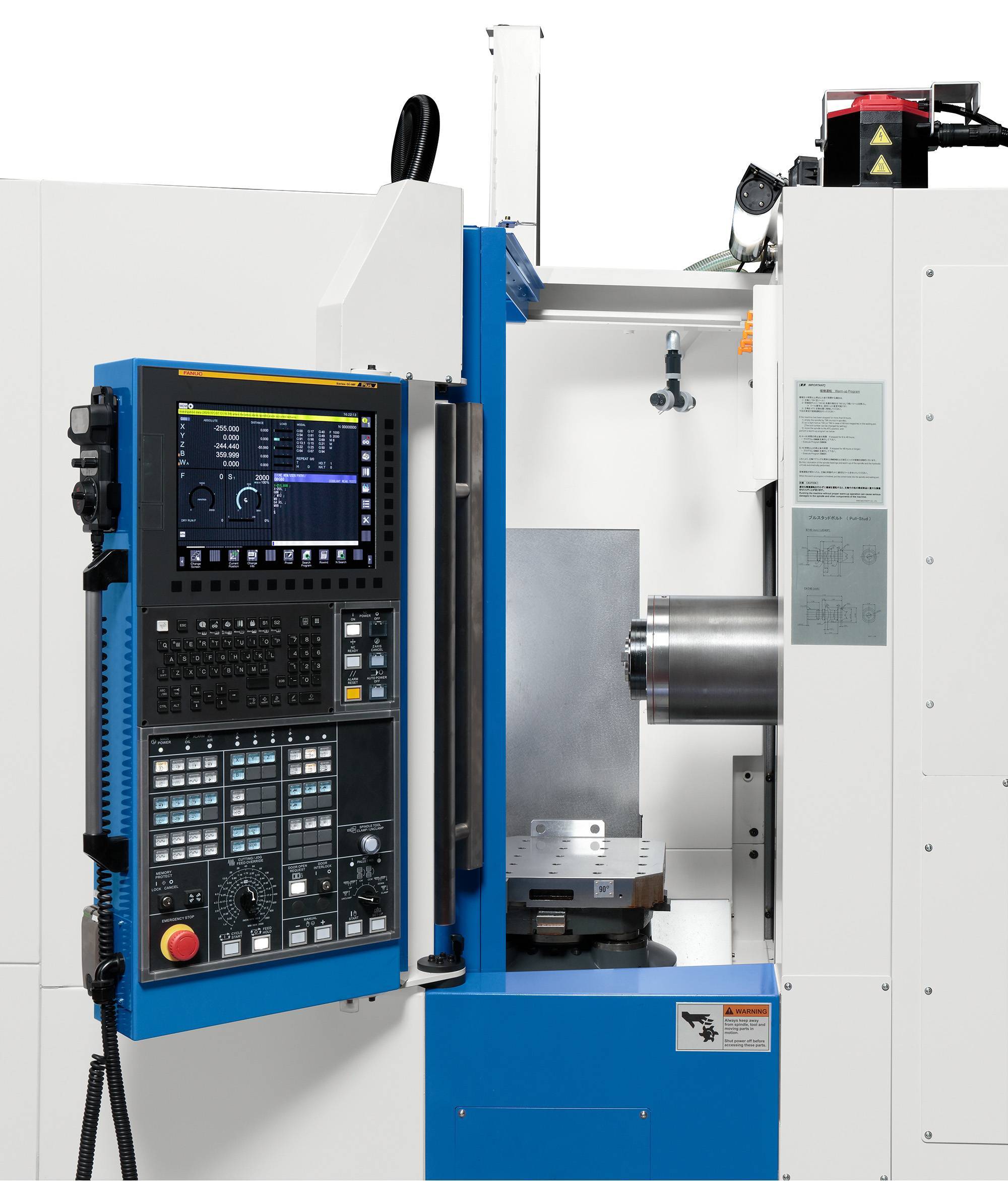

The KIWA KH-4100kai is a high-performance horizontal machining center with full rotary B-axis installable in a space equal to a vertical machining center.
The KH-4100kai is designed as slim as possible. The KH-4100kai saves floor space by 45%Â compared to its sibling machine the KH-4500kai,
In its compact frame, the KH-4100kai is equipped with full specs for a wide range of workpieces and arrives standard with factory pallet automation.

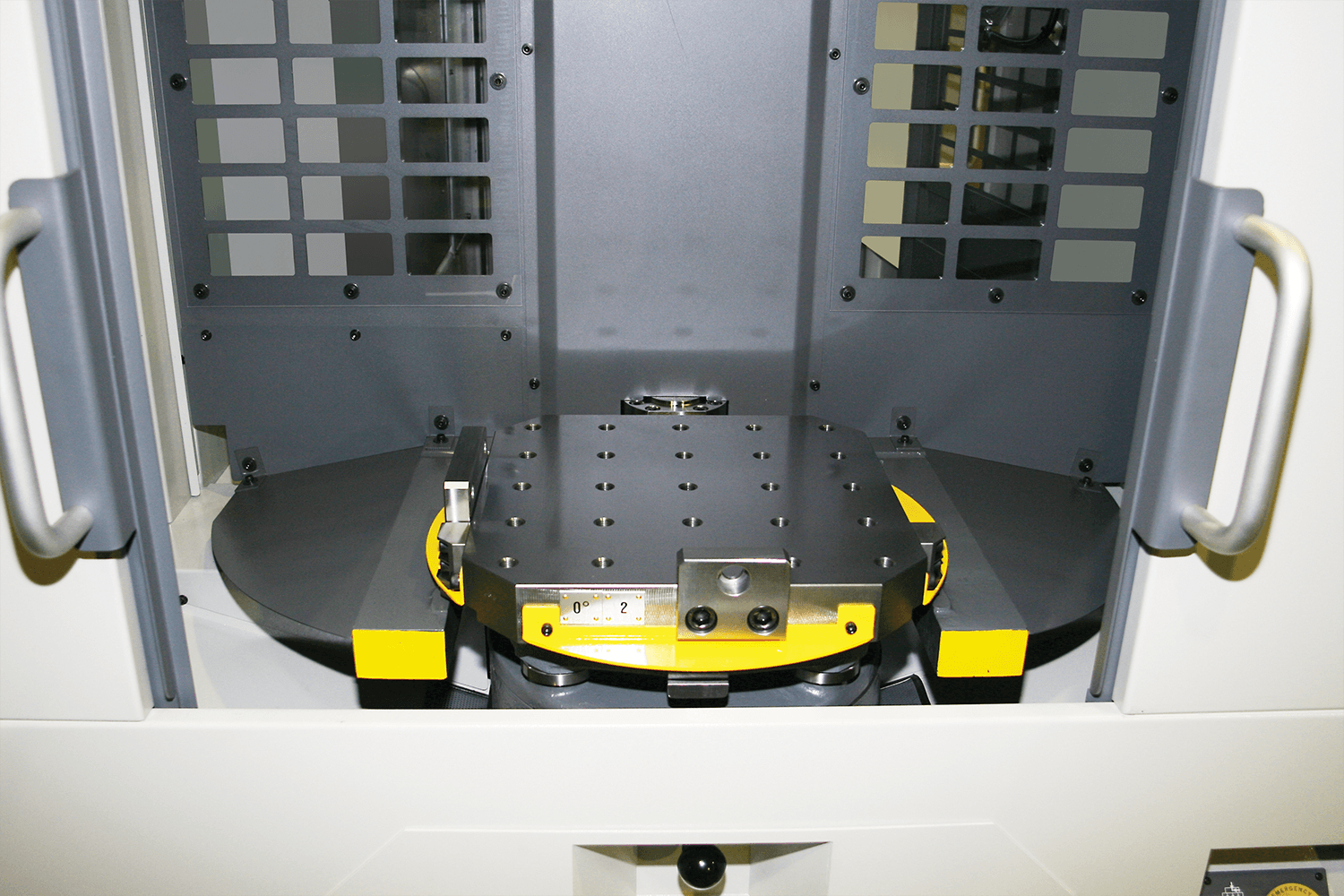

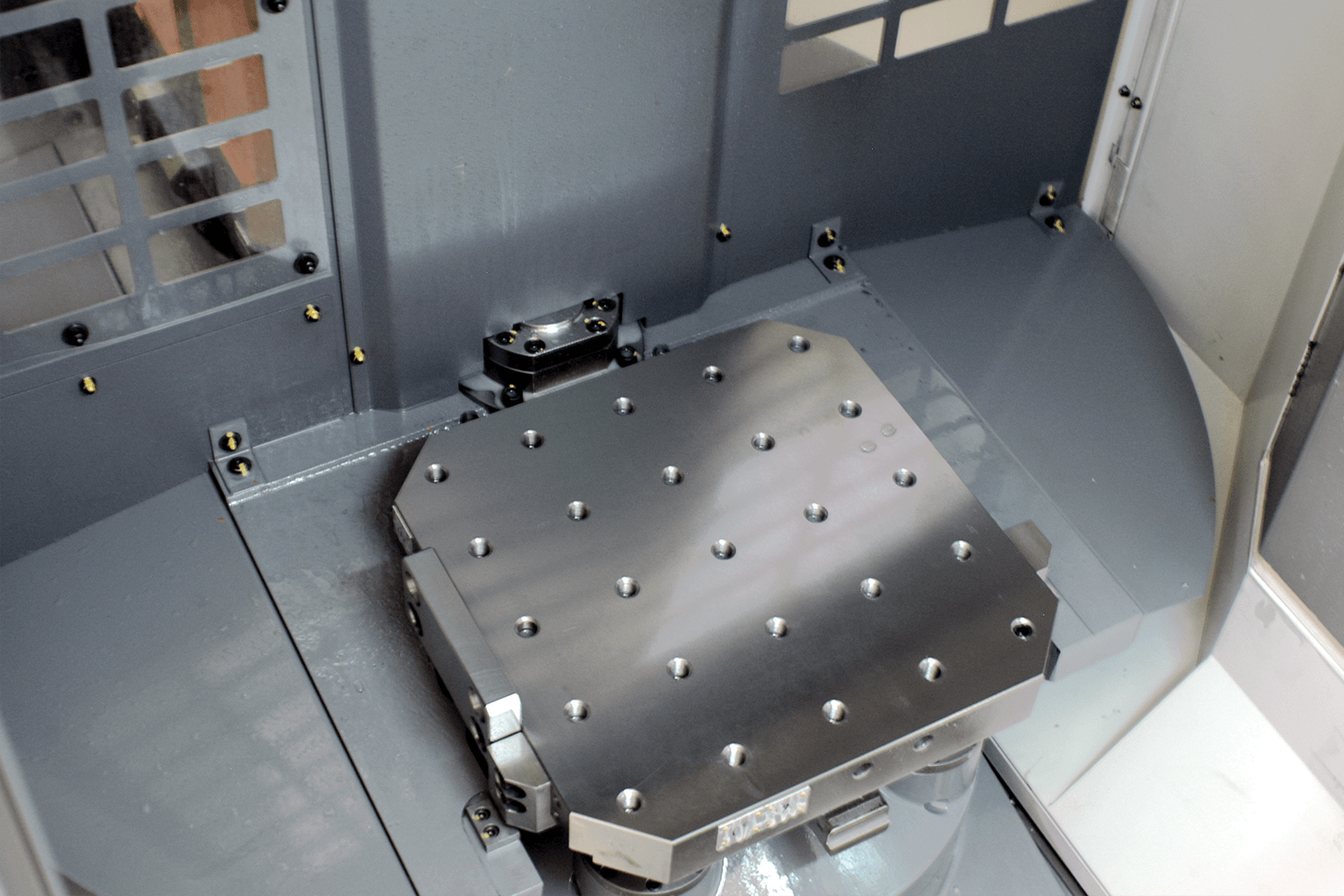

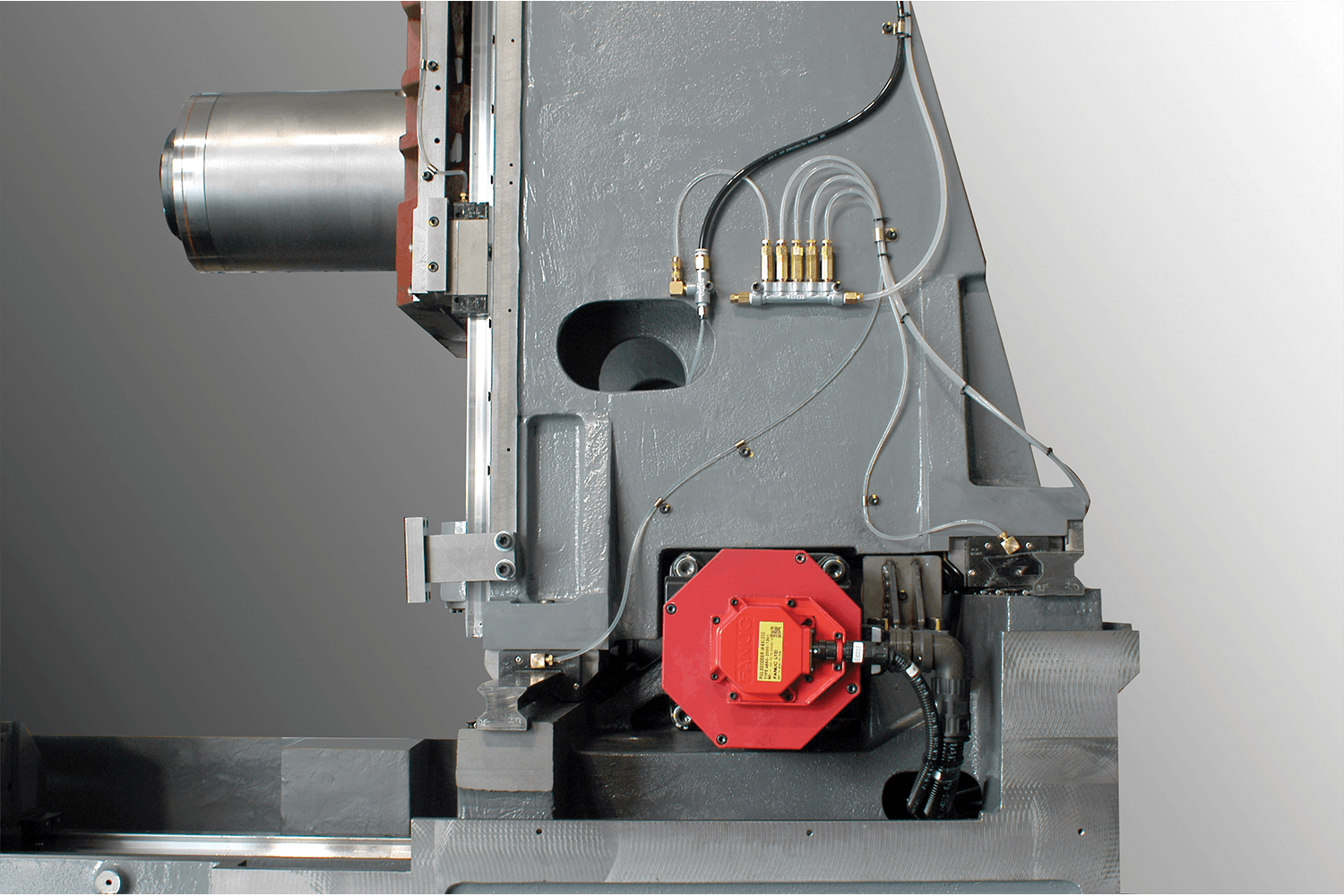

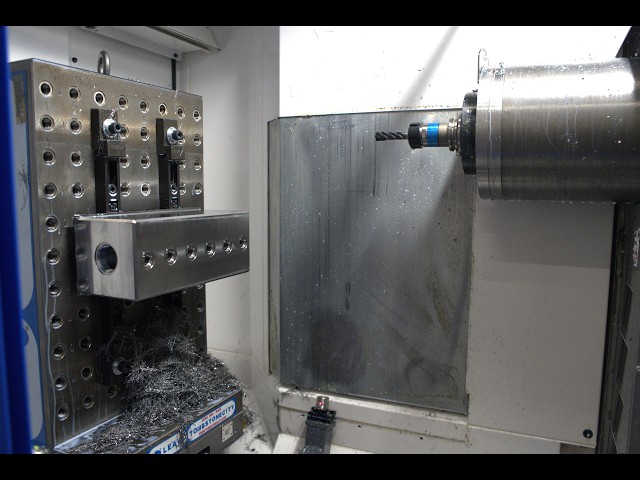

The KH-4100kai has a wide center trough in the machining area and a strong bed coolant wash. Chips go directly trough the center trough for disposal at the rear of the machine. Sheet metal covers on both sides are steeply slanted to guide chips to the trough.
-
(4) Simultaneously Controlled Axes
-
Provision for Coolant Through Spindle
-
Coolant Chip flow System
-
Spindle Oil Cooler
-
Pallet and Chip Wash
-
Chip Conveyor – LNS-Turbo MH500
-
Tool Life Management
-
AICC2 400 block look ahead
-
1280 Meter / 512 kB Memory
-
Helical Interpolation
-
200 Tool Off Sets
-
Macro Programming
Travel
| X-Axis Travel | 20.1 (510) in (mm) |
|---|---|
| Y-Axis Travel | 20.1 (510) in (mm) |
| Z-Axis Travel | 20.1 (510) in (mm) |
| 4th Axis Travel (Rotary Table) | 0 to 360 degrees |
Pallet
| Pallet Surface to Spindle Center | 2APC: 2.0-22.0 (50-560) (single pallet: 6.9-27.0 (175-685)) in (mm) |
|---|---|
| Pallet Center to Spindle Nose | 3.9-24 (100-610) in (mm) |
| Pallet Size | 15.7×15.7 (400×400) in (mm) |
| Pallet Load Capacity | 1100 (500) lbs (kg) |
| Max. Workpiece Size | 21.7×33.5 (550×850) in (mm) |
| Pallet change Time | 12.5 sec |
Feed Rate
| X-Axis Rapid Traverse | 3149 (80) in/min (m/min) |
|---|---|
| Y-Axis Rapid Traverse | 3149 (80) in/min (m/min) |
| Z-Axis Rapid Traverse | 3149 (80) in/min (m/min) |
| 4Th Axis | 37 rpm |
| Cutting Feed (X/Y/Z) | 1181 (30) in/min (m/min) |
Spindle
| Spindle Power | 20 (15) HP |
|---|---|
| Spindle Speed | 15000 |
| Spindle Taper | Cat 40 |
Tools
| Standard Number of Tools | 60 |
|---|---|
| Maximum Tool Weight | 17.6 (8) lbs (kg) |
| Maximum Tool Length | 15.7 (400) in (mm) |
| Maximum Tool Diameter | 3.3/5.5 (85/140) in (mm) |
| Tool Changing Time- Tool to Tool | 0.9 sec |
General
| Coolant Tank Capacity | 79.3 (300) gal (L) |
|---|---|
| Machine Weight | 2APC+60ATC: 16940 (7700) |
| Machine Control | FANUC 0i-MF |
