Wire EDM for Industrial Manufacturing: Everything You Need to Know
When tolerances are measured in microns and a surface finish can determine whether a part passes inspection, manufacturers turn to wire EDM. A wire EDM machine is a critical process for many industrial manufacturers who need extreme precision where failure isn’t an option.
What Is Wire EDM?
A wire EDM machine, also called a wire electrical discharge machining system, uses a thin electrically charged wire to cut conductive materials with extraordinary accuracy. The process doesn’t rely on mechanical force. Instead, controlled sparks erode the workpiece, making it possible to achieve shapes and contours that traditional machining can’t.
What is a wire EDM machine used for? In practice, it’s the go-to method for manufacturing turbine components, medical implants, and precision automotive parts. These are applications where a flawless finish and uncompromising dimensional accuracy are mandatory.
How Does a Wire EDM Machine Work?
An EDM wire cut machine works by creating a series of controlled electrical discharges between a fine wire and the workpiece. A dielectric fluid flushes away microscopic material as the CNC system guides the wire through the cut. The result: clean, precise edges without burrs or stress on the material.
Because the cutting process is non-contact, there’s no tool pressure to deflect delicate parts. Modern EDM wire cut machines also excel at unattended operation—program them, set up automation, and let them run overnight with consistent repeatability.
Types of Wire EDM Machines for Professionals
Not all wire EDM systems are created equal. For industrial environments, CNC wire cut EDM machines fall into several categories:
- High-precision models for aerospace and medical device work where accuracy down to microns is essential.
- Large-format systems designed for mold and die manufacturing, where work envelopes need to accommodate bigger components.
- Automation-ready machines built for 24/7 production with robotic part loading and monitoring.
Read more about Sinker vs. Wire EDM

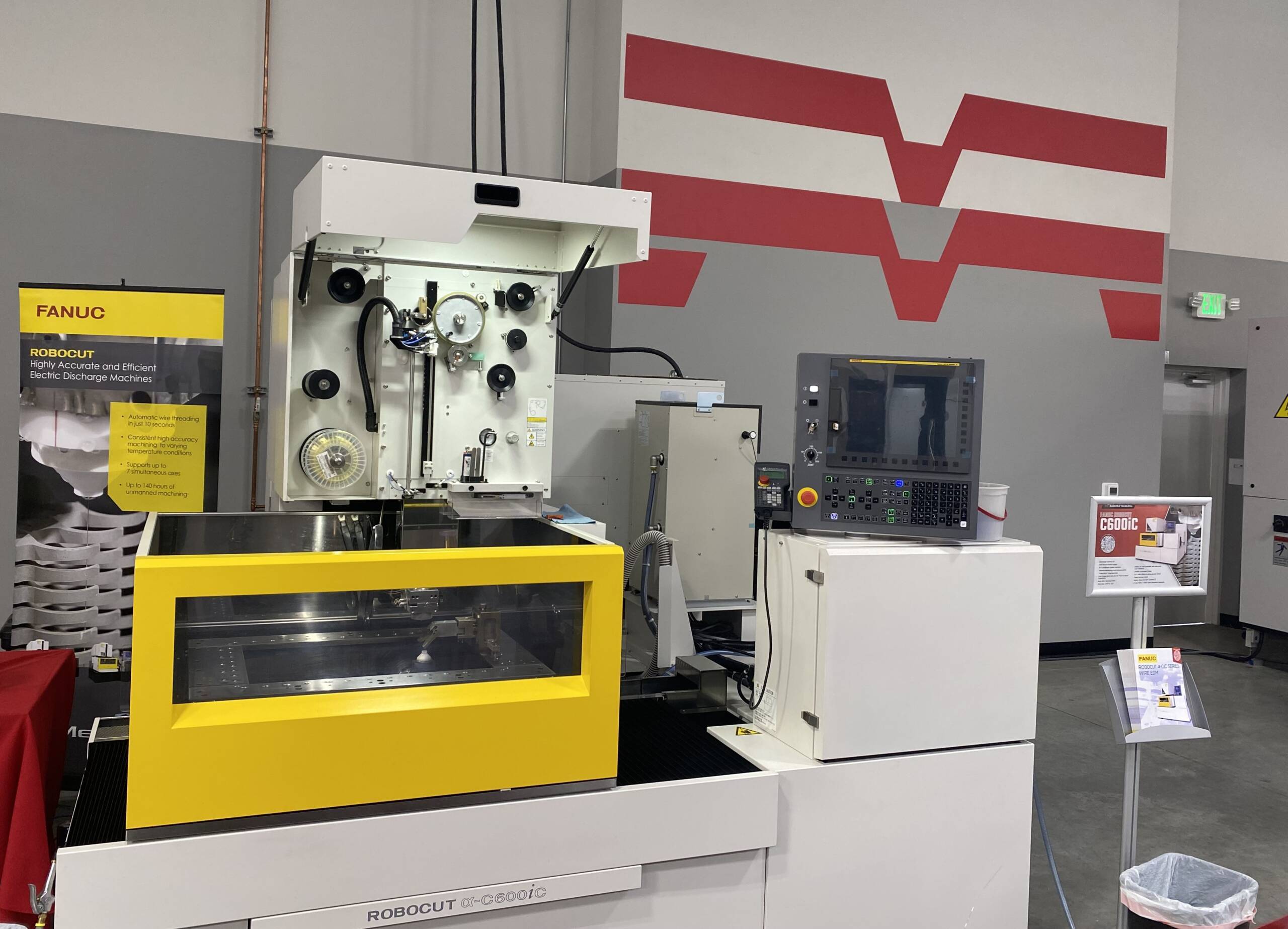

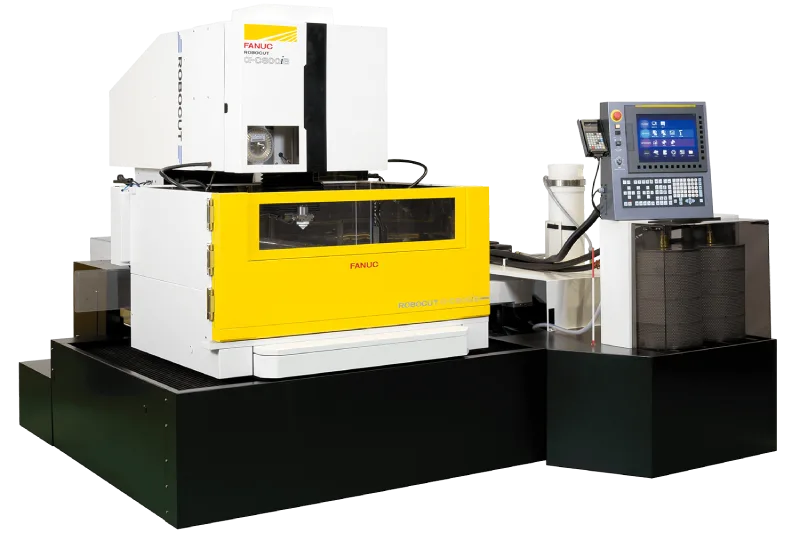

Methods Machine Tools offers the full range of FANUC Robocut wire EDM machines to fit these needs. Check out our powerful lineup.
Advantages and Limitations of Wire EDM in Industrial Settings
As a powerful and precise technology, wire EDM stands out for several reasons:
- It cuts complex profiles without distortion.
- There’s no mechanical stress on parts.
- Burr-free finishes eliminate costly secondary operations.
- Surface quality is exceptionally high.
But limitations exist. A wire EDM machine only cuts conductive materials, and its cutting speed is slower than CNC milling or laser cutting. In addition, operational costs may be higher.
Wire EDM vs Other Machining Processes
Not every machining process is built for the same job. While a wire EDM machine delivers incredible accuracy and finish, other methods have their own strengths depending on the part and material. Understanding how wire EDM stacks up against sinker EDM, CNC milling, and laser cutting helps manufacturers decide when it’s the best tool and when another option may be more efficient. Here’s a simple table to showcase ideal use cases.
| Process | Strengths | Ideal Use Cases |
| Wire EDM | Extreme precision, no burrs, no tool pressure | Aerospace blades, surgical tools, mold inserts |
| Sinker EDM | Deep cavities, complex 3D shapes | Mold cores, dies |
| CNC Milling | High speed, versatile materials | General machining, structural parts |
| Laser Cutting | Fast, non-contact | Thin sheet metals, rapid prototyping |
Key Wire EDM Industrial Applications
Wire EDM is invaluable where defects or downtime carry huge costs. Conductive materials that are difficult to work with using traditional methods benefit from the extreme precision offered by wire EDM. The most common industries and applications include:
- Aerospace – Cutting turbine blades with repeatable precision to avoid catastrophic engine failures.
- Medical – Producing implants where surface finish impacts patient safety.
- Mold and Die – Creating inserts with sharp corners and exact detail.
- Automotive – Crafting transmission components and tooling with strict dimensional controls.
Cost Factors & ROI for Wire EDM Machines
Professional-grade wire EDM machines represent a significant investment, with purchase prices often starting in the six-figure range. Ongoing costs include consumable wire, dielectric fluid, and regular maintenance.
Where EDM shines is in lowering per-part costs. Automation and advanced programming reduce labor per unit, while burr-free finishes save hours in post-processing. ROI is measured not only in machine uptime but also in reduced scrap rates and predictable quality.
Selecting the Right Wire EDM Machine for Your Facility
Choosing the right machine goes beyond crunching budgetary numbers. Manufacturers should evaluate:
- Required accuracy and tolerance range
- Cutting speed vs. throughput demands
- Work envelope size to match part dimensions
- Material compatibility (titanium, Inconel, hardened steels)
- Software, training, and support availability
The right wire EDM machine pays for itself when backed by proper training, warranty, and expert local service from Methods Machine.
Why Choose Methods Machine Tools for Wire EDM
Methods Machine Tools has spent decades supplying precision machine tools and CNC automation solutions to North American manufacturers. With FANUC Robocut wire EDM machines, extensive training programs, and responsive service teams, Methods delivers more than equipment, we provide a complete solution.
FAQs About Wire EDM
What is the difference between EDM and Wire EDM?
EDM, or electrical discharge machining, is a broad category that includes different techniques for shaping conductive materials with electrical sparks. Wire EDM is a specific type that uses a continuously fed wire as the electrode. While sinker EDM forms cavities by plunging an electrode into the workpiece, wire EDM is used to cut intricate profiles with extreme precision.
How expensive is Wire EDM?
A professional wire EDM machine typically starts in the low six figures and can increase in price depending on size, automation features, and software. Beyond the upfront purchase, there are ongoing costs such as consumable wire, dielectric fluid, and preventive maintenance. For many manufacturers, the long-term savings from reduced scrap, labor efficiency, and burr-free parts offset the investment.
What are the three types of EDM?
The three main types of EDM are sinker EDM, wire EDM, and hole-drilling EDM. Sinker EDM is used to create deep cavities with shaped electrodes, wire EDM is ideal for cutting detailed profiles, and hole-drilling EDM produces precise starter holes or cooling channels in turbine components.
How deep can Wire EDM cut?
The depth of cut in wire EDM is limited primarily by the machine’s work envelope and the length of wire travel. Many industrial wire EDM machines can cut several inches thick, with some models capable of handling parts over a foot in height. Accuracy remains consistent even at greater depths.
Does EDM use AC or DC?
EDM processes use direct current (DC). The controlled spark erosion relies on a DC power supply to generate the discharge between the wire electrode and the workpiece. This allows the system to regulate pulse duration and intensity with high precision.
What is a Wire EDM machine used for in manufacturing?
A wire EDM machine is used to cut complex shapes and profiles in conductive materials where precision is critical. Common applications include aerospace turbine blades, medical implants, injection mold inserts, and high-performance automotive components. It excels in parts that require tight tolerances and flawless surface finishes.
How does Wire EDM compare to CNC milling for precision parts?
Wire EDM can achieve higher levels of accuracy and surface finish than CNC milling in many cases. Unlike milling, it does not create mechanical stress on the workpiece, which eliminates distortion and burrs. CNC milling is faster for bulk material removal, but wire EDM is the preferred choice when tolerances are extremely tight or when cutting hardened materials.
Can Wire EDM run unattended?
Yes. Many modern wire EDM machines are designed for unattended operation. With automation features such as wire threading, job monitoring, and robotic part handling, manufacturers can run machines overnight or across shifts with consistent results. This capability improves throughput and lowers per-part cost.
What industries use Wire EDM most?
Wire EDM is used heavily in aerospace, medical device manufacturing, automotive, and the mold and die industry. These sectors demand precision, repeatability, and high-quality finishes where errors can be extremely costly.
What is the lifespan of a Wire EDM machine?
With proper maintenance, a wire EDM machine can last well over a decade in industrial use. Regular servicing, replacement of consumables, and software updates extend the productive life. Many manufacturers continue to run machines reliably for 15 years or more before considering a replacement or major upgrade.
