Fanuc
RoboCut C600iC Wire EDM

The all-new RoboCut C600iC Wire EDM features a new FANUC 31i-WB control with new iHMI User Interface, AWF3 and a new economy mode for energy and wire usage savings. The CiC-Series machines burn with virtually no re-cast and the AWF3 has been enhanced to thread thicknesses of up to 16 inches.

The FANUC RoboCut’s automatic wire tension meter and servo motor adjustment ensures that you get accurate, straight parts. Above all, the RoboCut CiC-Series EDMs, built 100% in Japan, offer exceptional reliability for which FANUC is known worldwide.

the FANUC RoboCut C600iC Wire EDM machine

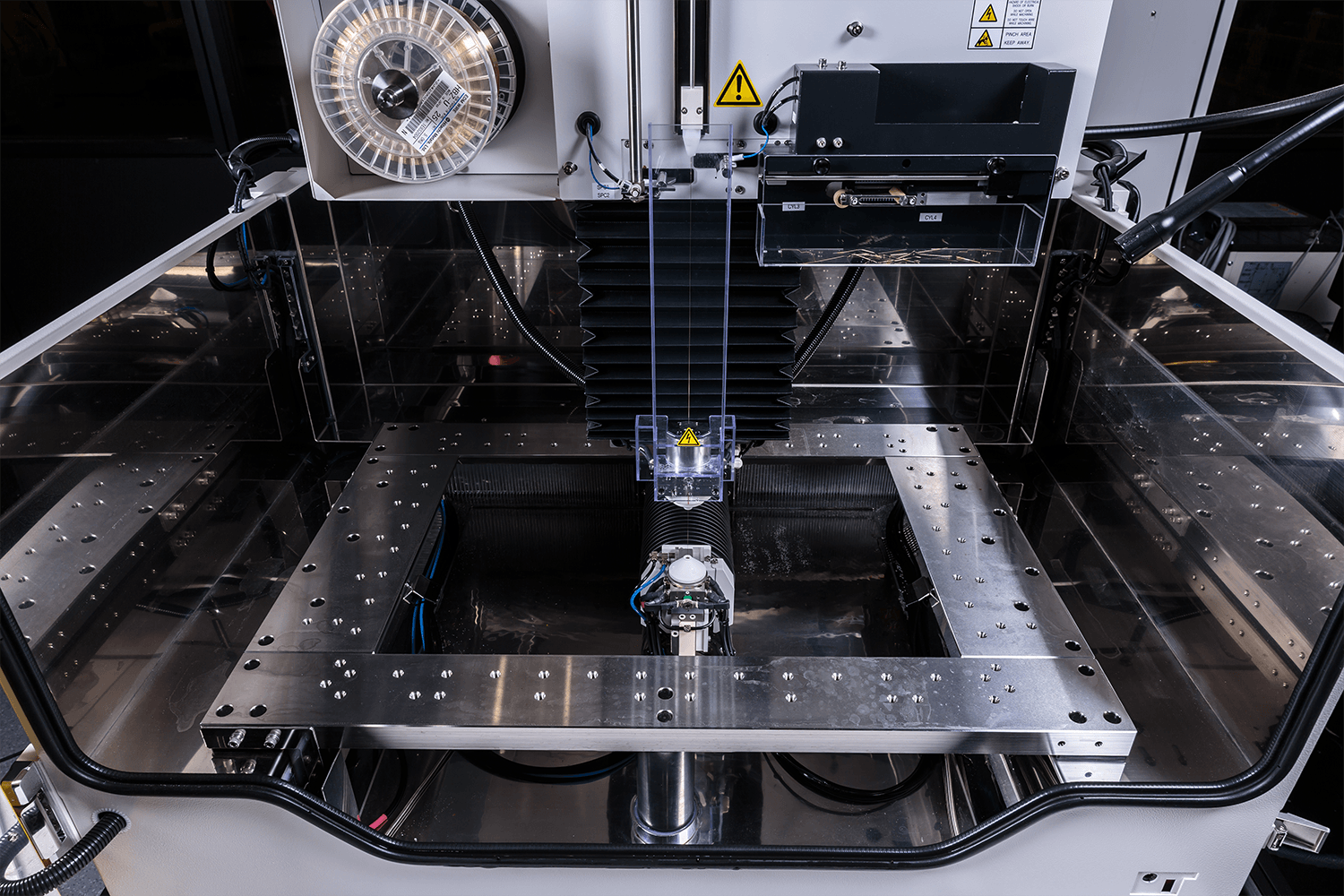

the inside of the FANUC RoboCut C600iC Wire EDM machine

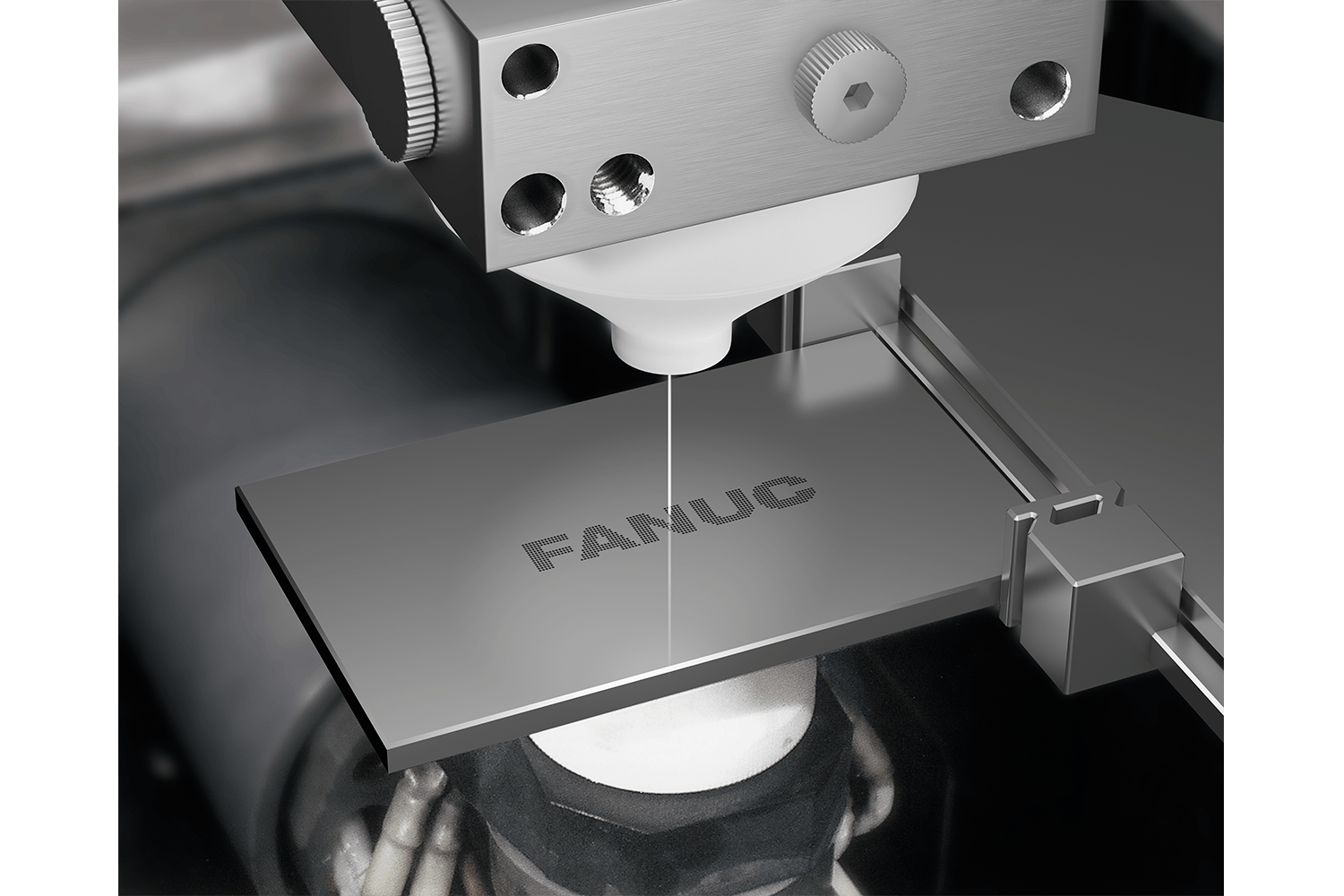

the inside of the FANUC RoboCut C600iC Wire EDM machine as it threads a part

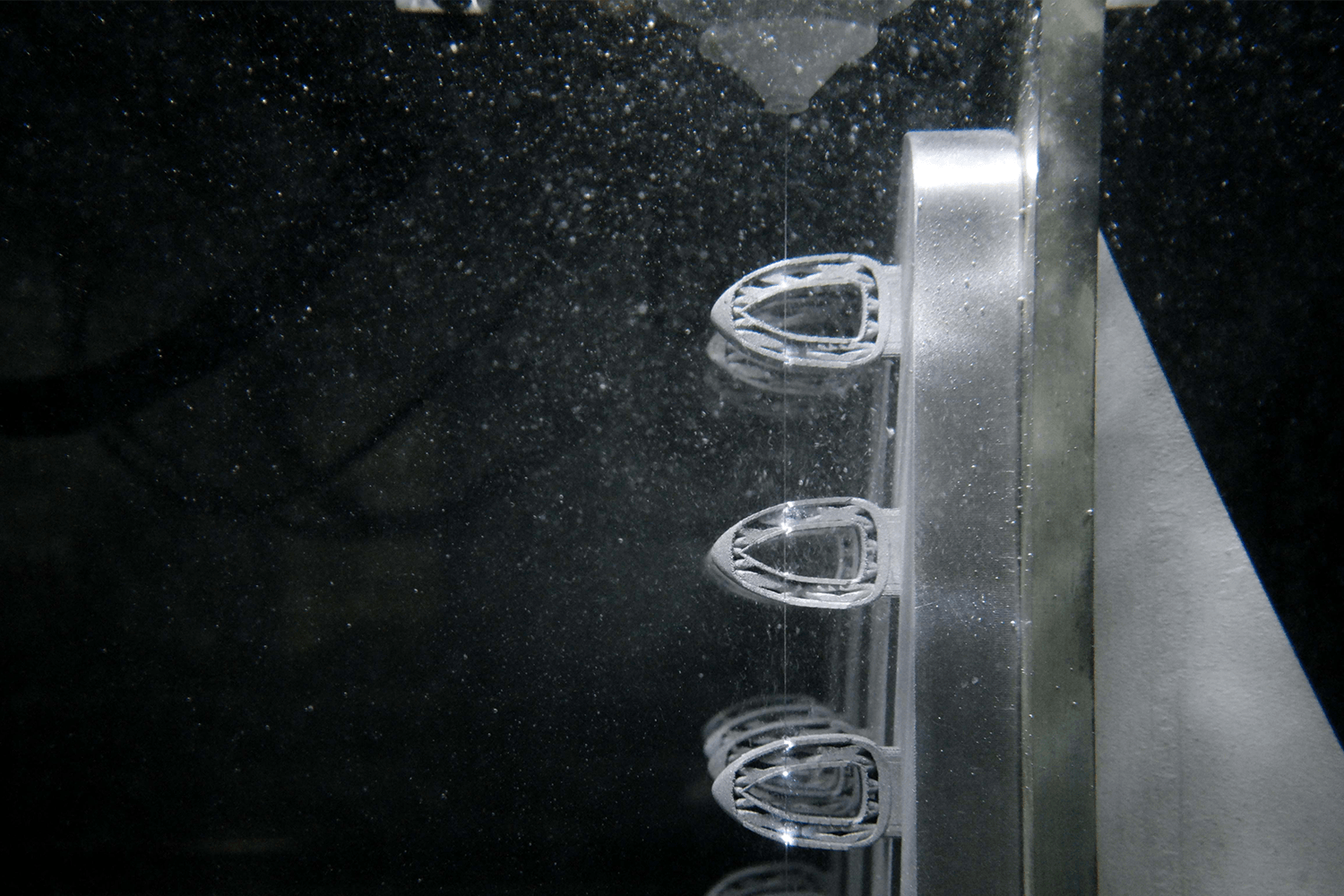

the inside of the FANUC RoboCut C600iC Wire EDM machine tool as it machines a part

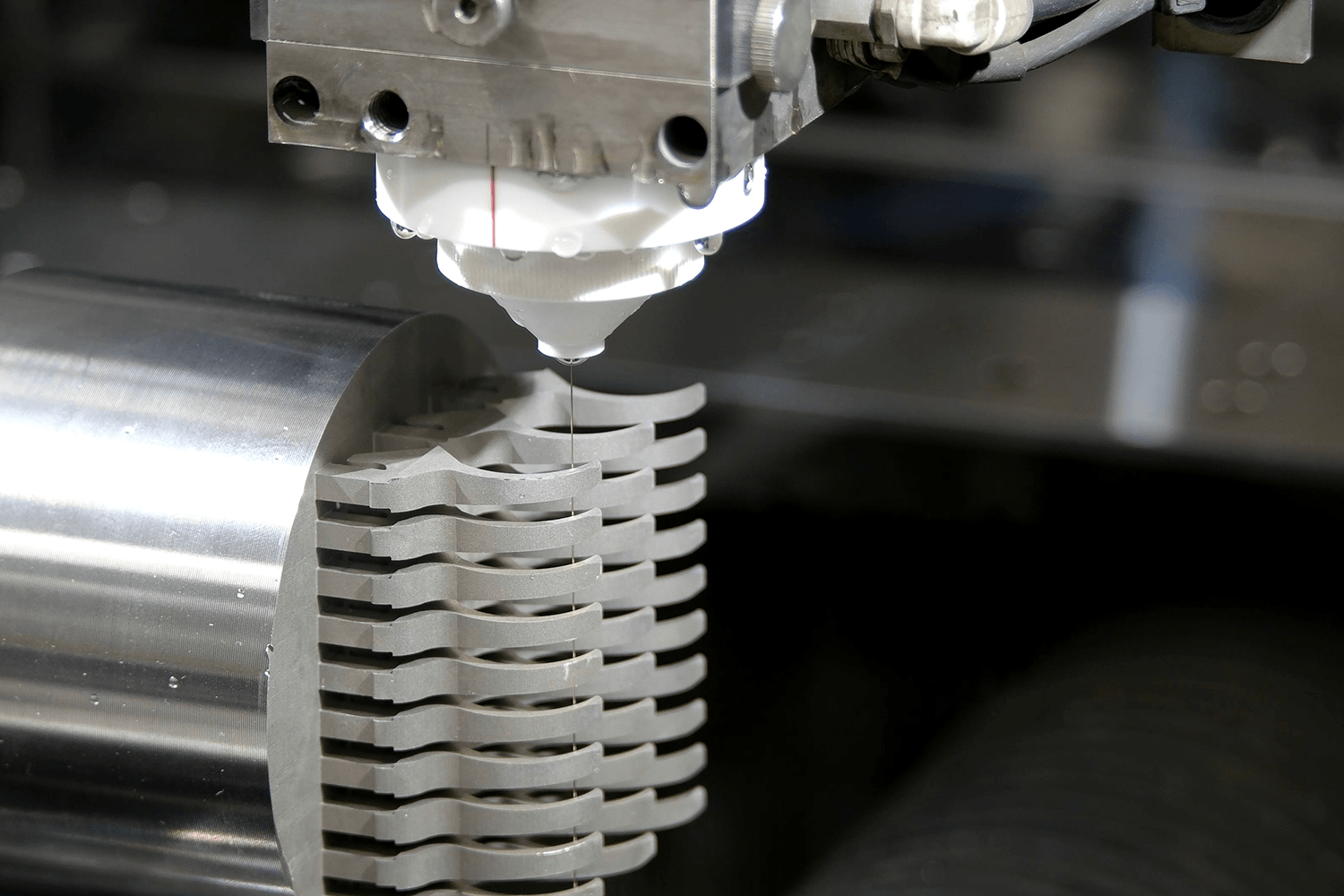

the FANUC RoboCut C600iC Wire EDM machine as it machines a part with the Fanuc logo
FANUC RoboCut C600iC Wire EDM | Methods Machine Tools FANUC RoboCut C600iC Wire EDM - Internal | Methods Machine Tools FANUC RoboCut C600iC Wire EDM - Internal 2 | Methods Machine Tools FANUC RoboCut C600iC Wire EDM - CCR2 | Methods Machine Tools FANUC RoboCut C600iC Wire EDM - CCR2 | Methods Machine Tools

Product Details

Features & Benefits

  • Discharge Control Ai3
  • Anti-Recast Power Supply
  • 3D Coordinate System Rotation
  • Thermal Monitoring and Compensation
  • “Core Stitch” Slug Retention
  • Fully Integrated A/B axis for “Turn & Burn” Capability
  • Auto Wire Feeding AWF3
  • FANUC 31i-WB Controller with New iHMI User Interface
  • Wire Size: .004” to .012”
  • Inverter Controlled Chiller
  • CUT-LINKi Offline Cutting Monitor (STD)
  • Power Savings Mode
  • Rotary Glass Encoder (.000002”)
  • 2 Year Parts / 1 Year Labor Standard Warranty

Technical Data

Weight

Machine Weight
6700 (3040) lbs (kg)

Robocut Specifications

Maximum Workpiece Size
41 x 32 x 12.2 (1050 x 820 x 310) in (mm)
Maximum Workpiece Weight
2200 (1000) lbs (kg)
U/V Travels
±3.937 (100) in (mm)
X/Y Travels
23.6 x 15.7 (600 x 400) in (mm)
Z-Axis Travel
16.2 (412) in (mm)
Maximum Cutting Speed (Brass)
31 (788)
Auto Wire Feed (AWF3)
Standard
Wire Diameter
ø 0.004 - 0.012 (0.21-0.31) in (mm)
Maximum Wire Spool Weight
66 (30) lbs (kg)
Positioning Accuracy
±.0001 in (mm)

Dielectric Tank

Tank Capacity
301 (1140) gal (L)
Paper Filter (Cartridge Type)
2 quantity
Inverter Chiller
Standard

Power Supply

Digital Power Supply
Standard

Videos

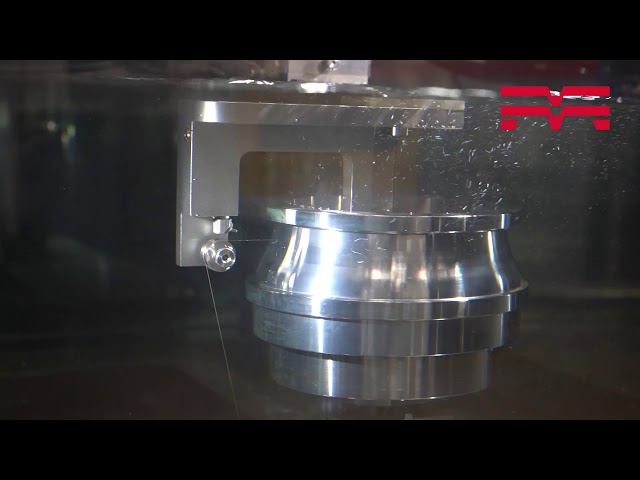

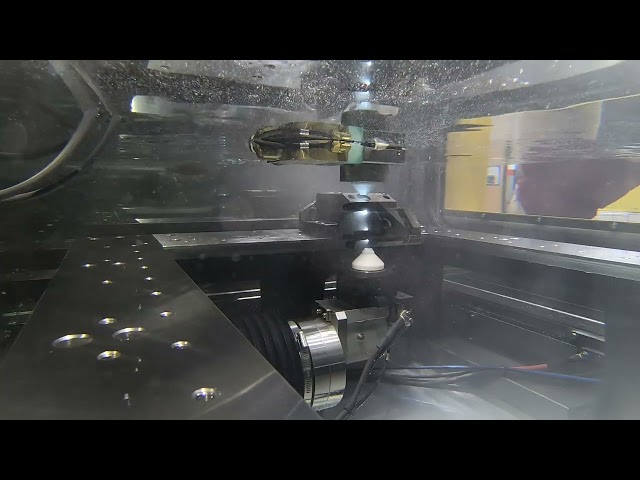

Click to watch video
