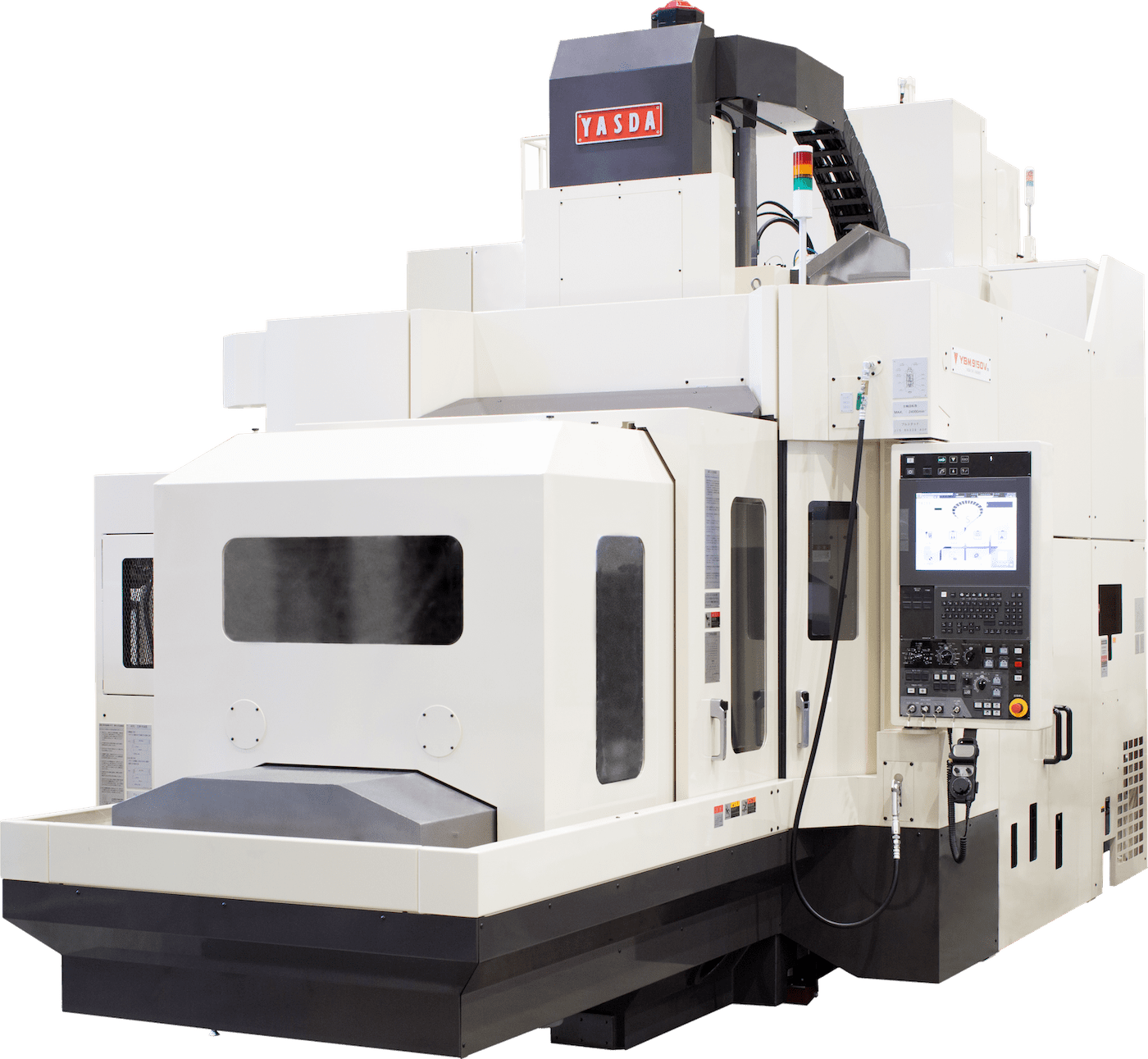

the Yasda YBM 9150V Jig Borer used for cnc machining in die and mold industry applications

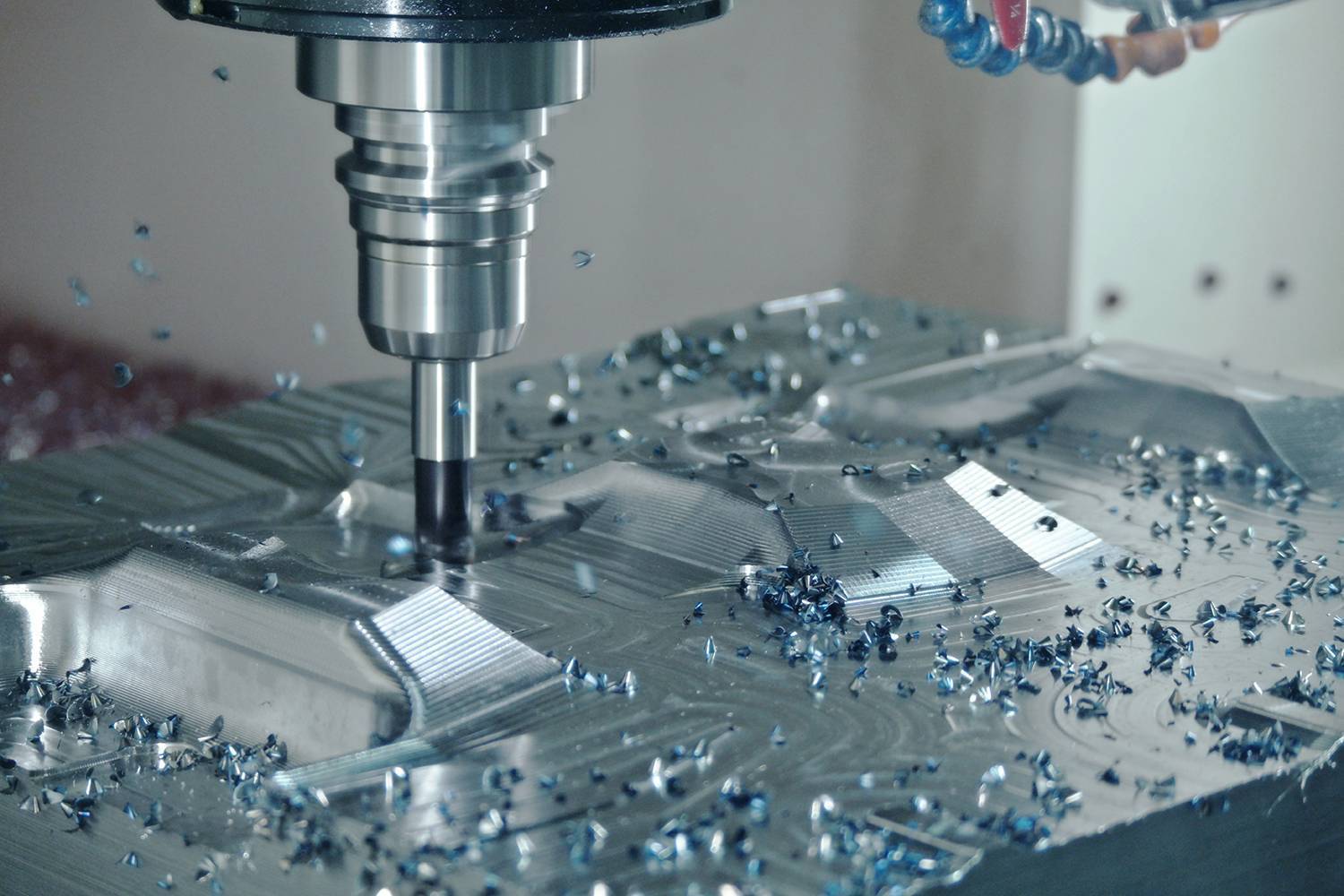

photo of the Yasda YBM 9150V Jig Borer in operation

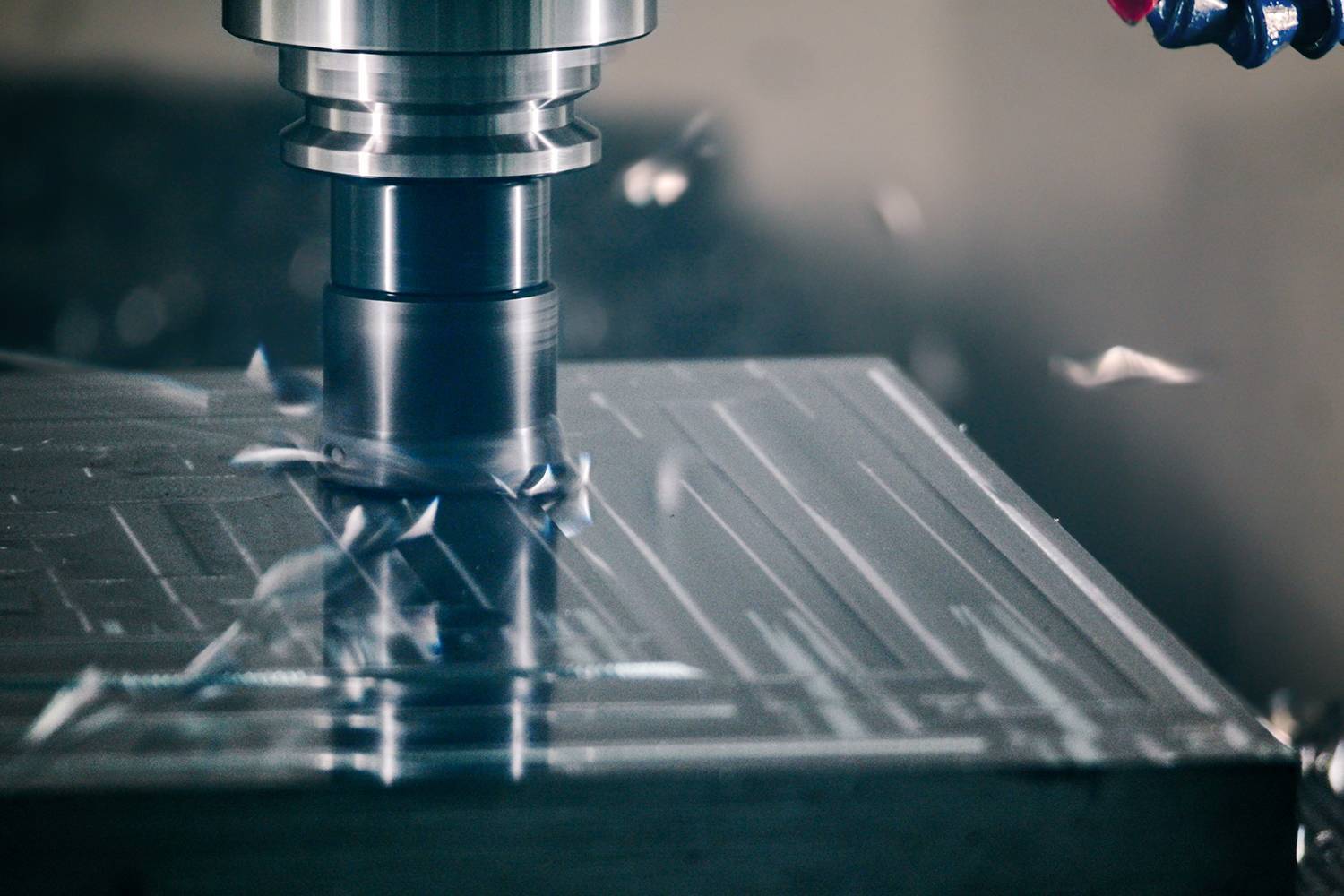

photo of the drill bit in a Yasda YBM 9150V Jig Borer machining a part

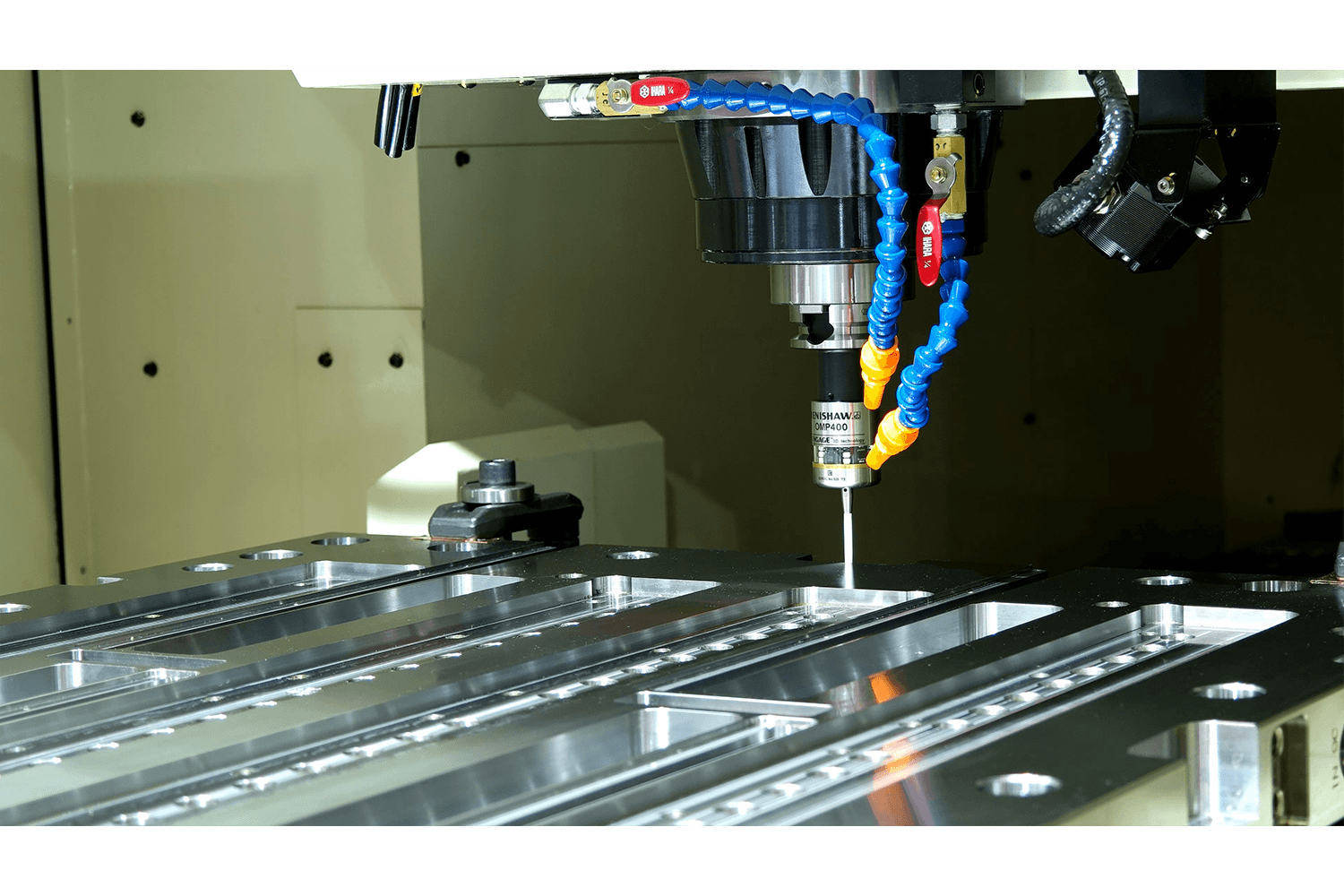

inside look at the Yasda YBM 9150V Jig Borer as it machines a part
Yasda YBM 9150V Jig Borer | Methods Machine Tools Yasda YBM 9150V Jig Borer - In Operation | Methods Machine Tools Yasda YBM 9150V Jig Borer - Milling in Action | Methods Machine Tools Yasda YBM 9150V Jig Borer - Milling | Methods Machine Tools

Yasda
YBM 9150V

The YASDA YBM-9150V CNC Jig Borer and Vertical Machining Center was developed with the purpose of machining large-sized mold bases and die sets.

The YBM-9150V attains high speed and high accuracy through the lightweight movable bodies on the top beam. The Yasda machine also features increased rigidity due to the integration of the column and top beam.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • Direct Drive Spindle W/Self-Adjusting Preload
  • Through Hardened (HR60) Box Guide Ways
  • Optical Scale Feedback for Precise Positioning
  • Symmetrical Bridge Structure
  • Thermal Distortion Stabilization
  • Space Saving Footprint
  • Rigid Machine Structure for Machining Various Material Types
  • Probing Systems

Technical Data

Travel

X-Axis Travel
59 (1500) in (mm)
Y-Axis Travel
35.4 (900) in (mm)
Z-Axis Travel
17.7 (450) in (mm)
Distance from Table Surface to Spindle
5.9-23.6 (150-600) in (mm)

Feed Rate

Rapid Traverse
787 (20) in/min (m/min)
Feed Rate
196 (5000) in/min (mm/min)

Table

Table Working Surface
59x35.4 (1500x900) in (mm)
Table Loading Capacity
6615 (3000) lbs (kg)

Spindle

Spindle Type
Self adjusting Pre-load
Spindle Speed Range
100-24000 (150-30000) rpm (opt)
Spindle Taper
7/24 taper No. 40 (HS Opt)

Tooling

Number of Tools
60 (100) std (opt)
Maximum Tool Weight
15.5 (7) lbs (kg)
Maximum Tool Length
9.8 (250) in (mm)
Maximum Tool Diameter
ø 3.9 (100) in (mm)

General

Machine Weight
35274 (16000) lbs (kg)
Machine Control
Fanuc 31I-B5-15" Color LCD
