Nakamura-Tome
WY-150

The Nakamura-Tome WY-150 is a twin spindle multitasking machine with two turrets, upper and lower, both with Y-axis. With this configuration, the opportunity exists to drastically reduce cycle times by offering highly capable features like pinch milling, drilling and turning, as well as unique “off-center” interpolative functions that can be performed on both spindles.

Request Information

Or call 1-877-668-4262

Download Brochure
the Nakamura-Tome WY-150 multitasking CNC machine sold by Methods Machine Tools
inside of the Nakamura-Tome multitasking CNC machine sold by Methods Machine Tools

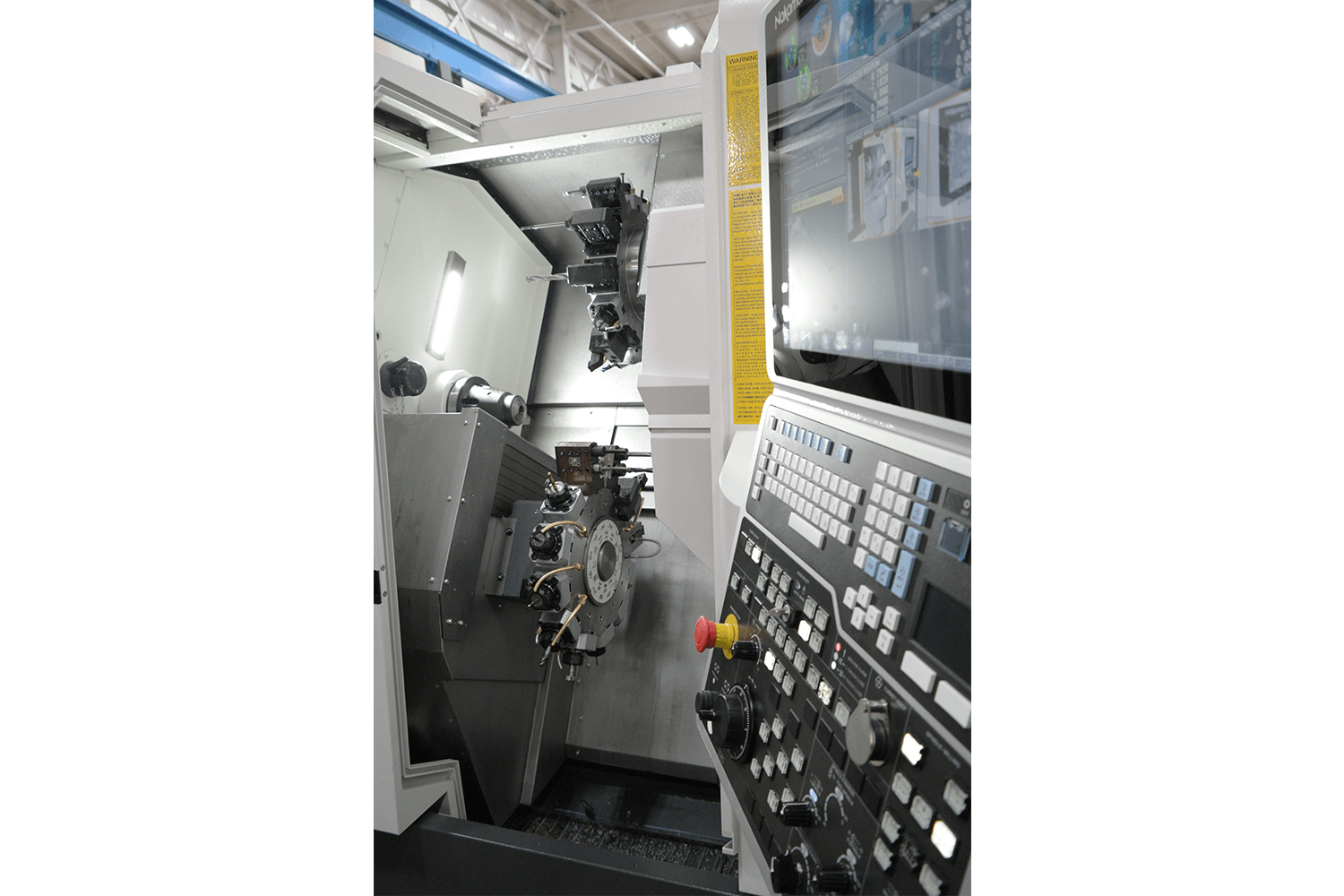

the Nakamura-Tome WY-150 multitasking machine sold by Methods Machine Tools

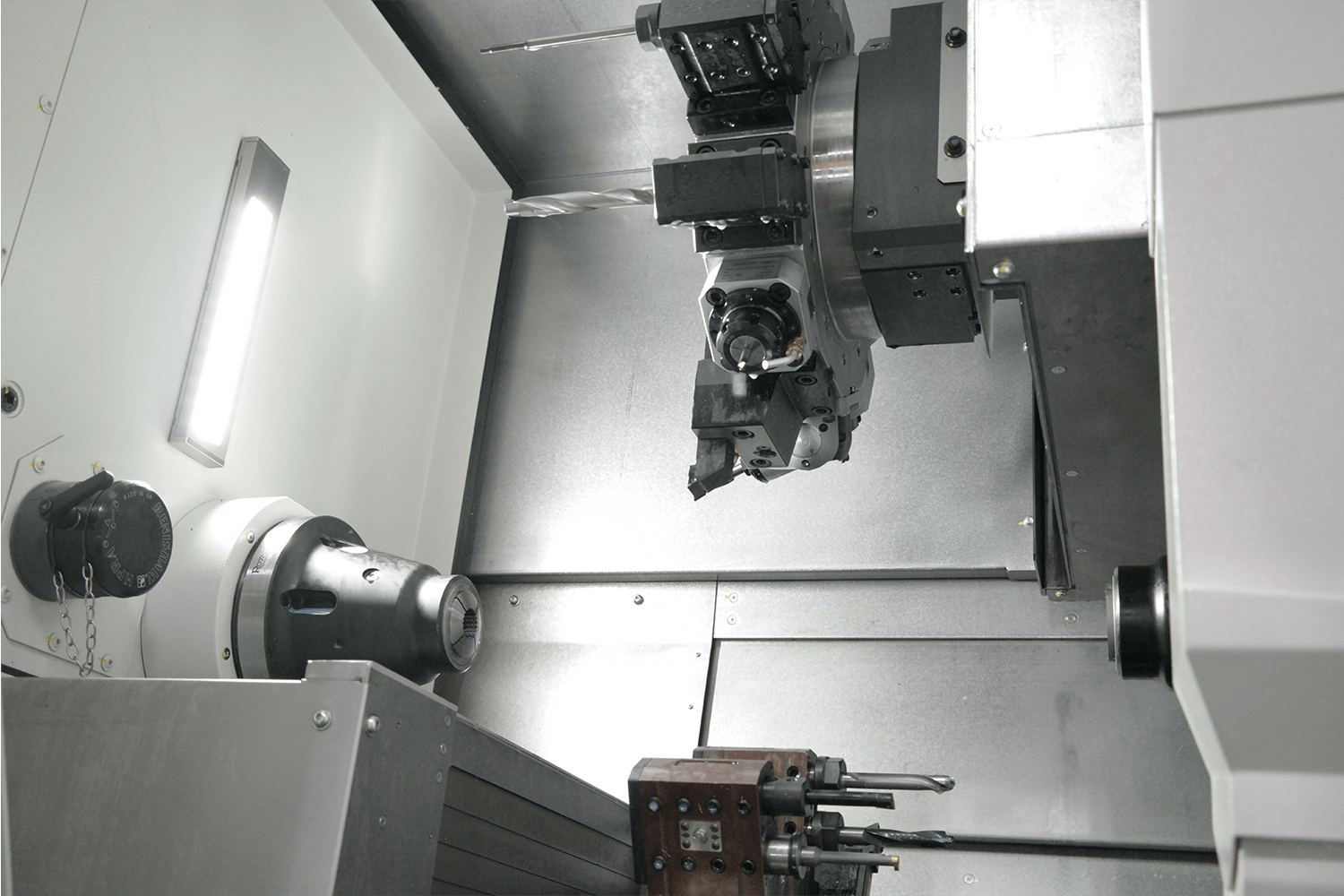

the Nakamura-Tome multitasking machining center sold by Methods Machine Tools

Product Details

Features & Benefits

  • Opposing Two-Spindle, 2-Turret Construction
  • 48 Tool Stations
  • 24 Driven-tool Stations
  • 3.54 in Y-axis travel on Upper Turret
  • 2.75 in Y-axis travel on Lower Turret
  • 6,000 min-1 Driven-tool Speed (Upper / Lower)
  • 20/15 HP Left and Right Spindle Motor
  • 7.5 HP x2 Driven-tool Motor (Upper / Lower)
  • 2.5 in Bar Capacity

Technical Data

CAPACITY

Max Turning Diameter
8.8 (225) in (mm)
Max Turning Length
22.24 (565) in (mm)
Slide travel (X)
6.31 (160) in (mm)
Slide travel (Y)
2.74 (70) in (mm)
Slide travel (Z)
22.2 (564) in (mm)

LEFT SPINDLE

Spindle Speed
4500 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6
Hole Through Draw Tube
2.5

RIGHT SPINDLE

Spindle Speed
5000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
2.0

TURRET

Number of Tool Stations
24
Number of Indexing Positions
24

DRIVE MOTOR POWER

Main Spindle
20 H/P
Right Spindle
20 H/P
Driven Tool Spindle
7.5 H/P

GENERAL

Machine Weight
23153 (10502) lbs (kg)
