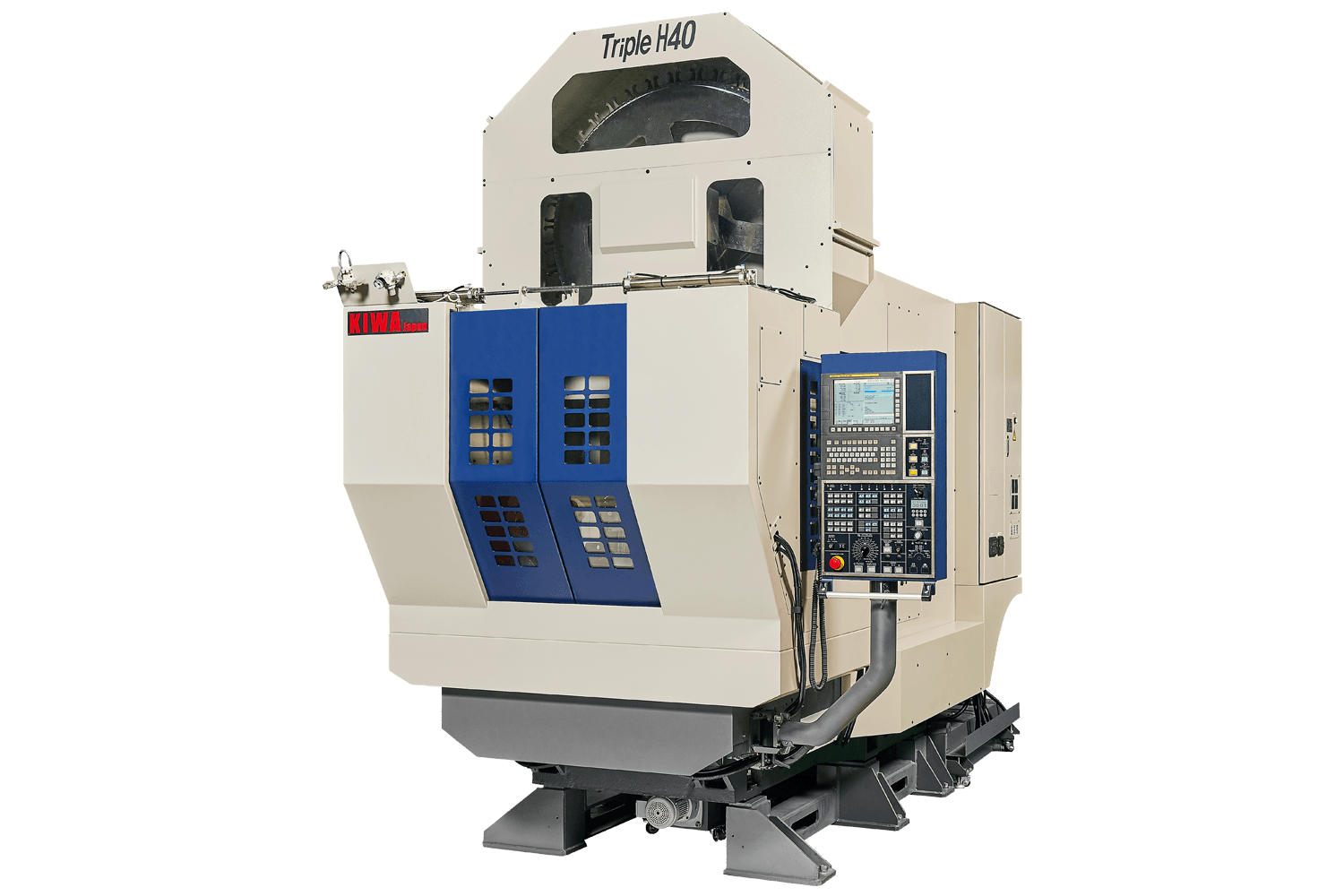

Triple H40 5-Axis

KIWA Triple H40 series, is a high-performance horizontal machining center with a Column Traverse Design. This allows for heavy parts to be machined in a compact space. The machine design will accommodate a variety of workpieces and factory automation equipment. The machine is equipped with a wide center trough in the machining area and a chip auger to carry chips directly down the center trough for disposal at the rear of the machine.  The 5 axis version allows for heavy parts to be machined on five sides.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Download Brochure

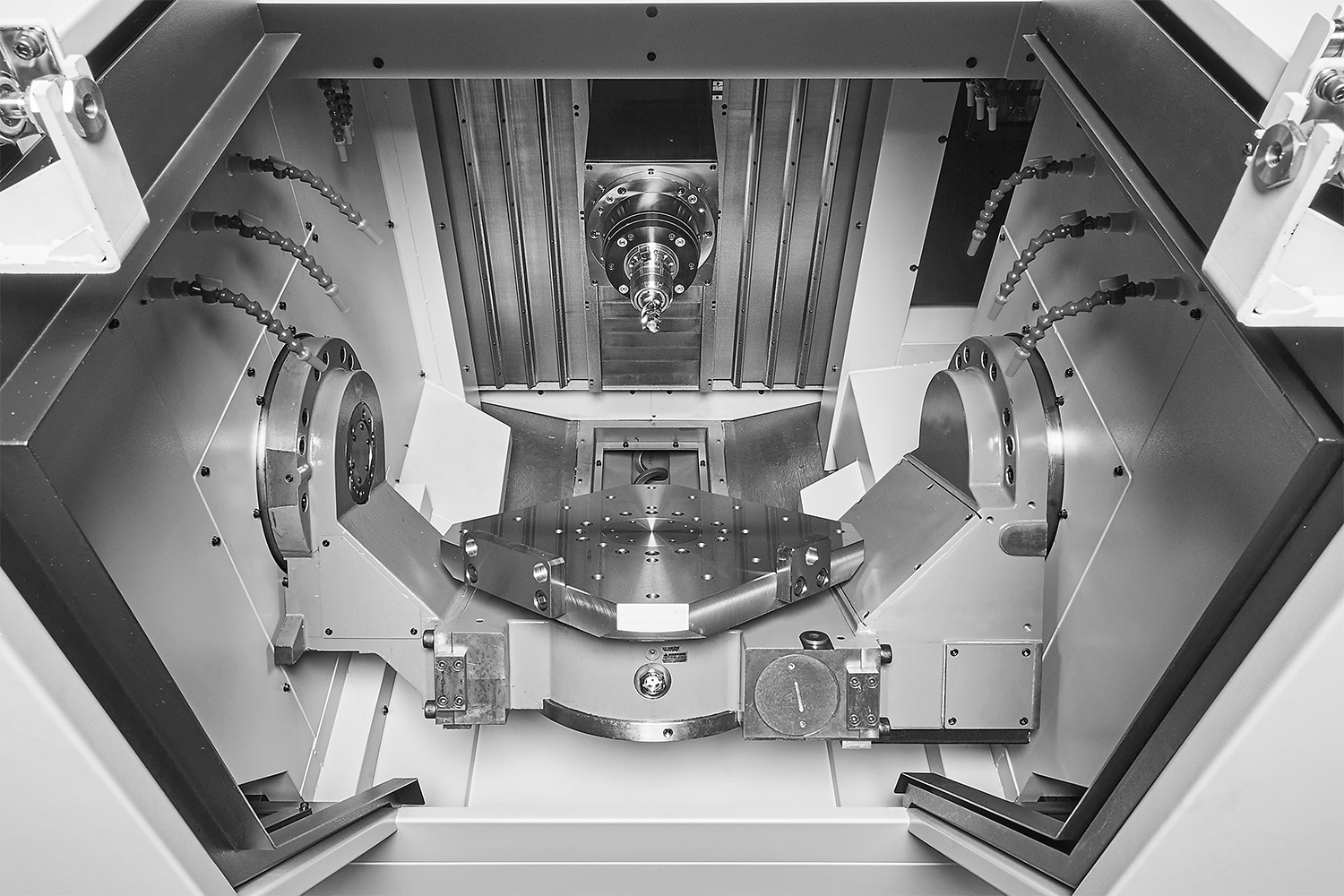

  • (4) Simultaneously controlled axes (4+1)

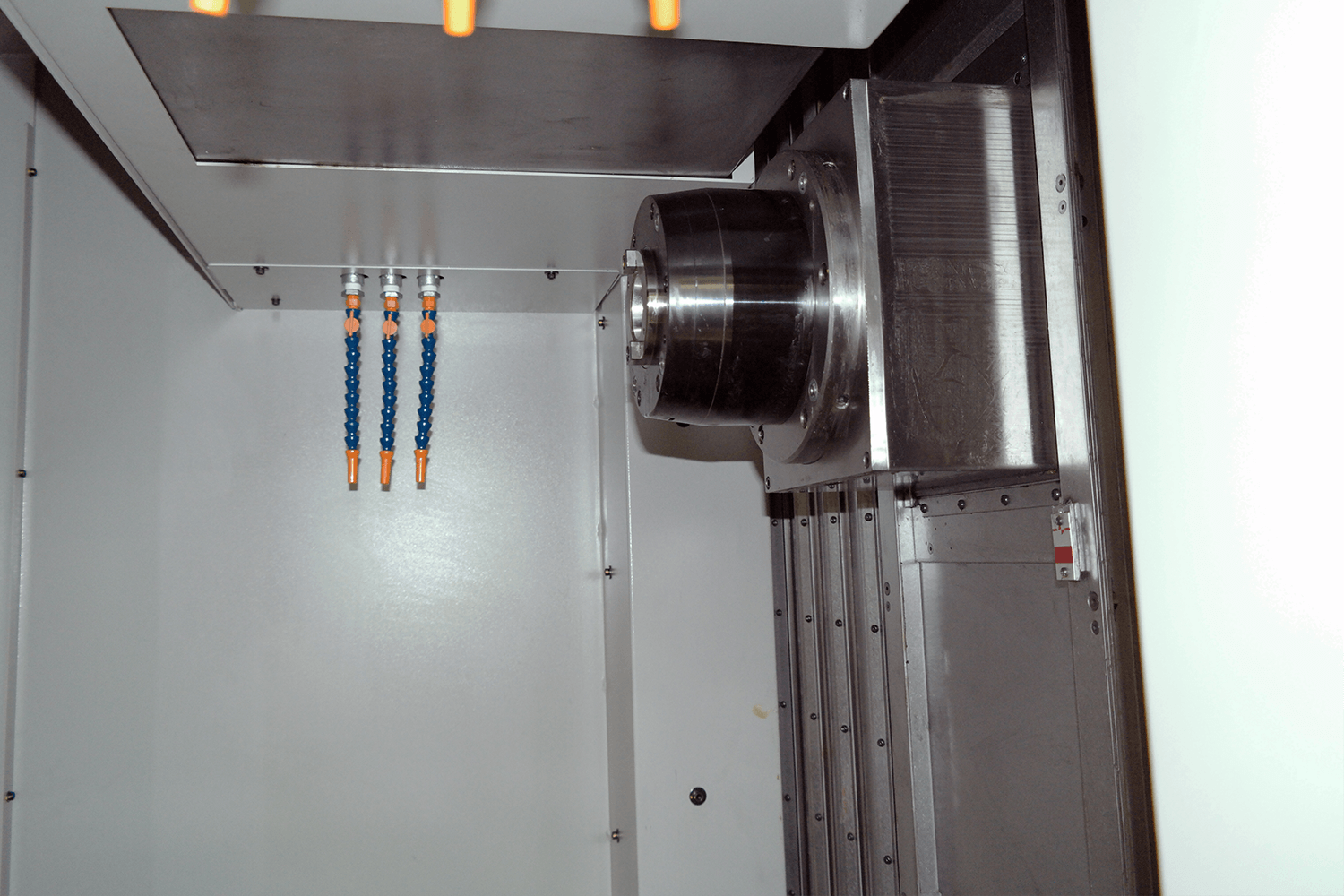

  • Provision for coolant through spindle
  • Overhead Coolant chip flow system
  • Spindle oil cooler
  • Chip Auger and Chip conveyor std
  • Tool life management
  • AICC1
  • 1280 meter / 512 kB memory
  • Helical interpolation
  • 200 tool off sets
  • Macro programming

Travel

X-Axis Travel
510mm 20.1 in (mm)
Y-Axis Travel
510mm 20.1 in (mm)
Z-Axis Travel
15.7 (400) in (mm)
4th Axis Travel (Tilt Axis)
-30 and + 120 degrees
5th Axis Travel (Rotary Axis)
360 degrees

Pallet

Pallet Size
19.68 x 19.68 (500 x 500) in (mm)
Pallet Load Capacity
880 (400) lbs (kg)
Max. Workpiece Size
27.55 (700) in (mm)

Feed Rate

X-Axis Rapid Traverse
2362 (60) in (m)
Y-Axis Rapid Traverse
2362 (60) in (m)
Z-Axis Rapid Traverse
2362 (60) in (m)
4th Axis Rapid Traverse (Tilt Axis)
11 rpm
5th Axis Rapid Traverse (Rotary Axis)
33 rpm
Cutting Feed (X/Y/Z)
1,181 (30) in (m)

Spindle

Spindle Power
20 HP
Spindle Speed
12000 rpm (opt)
Spindle Taper
Cat 40

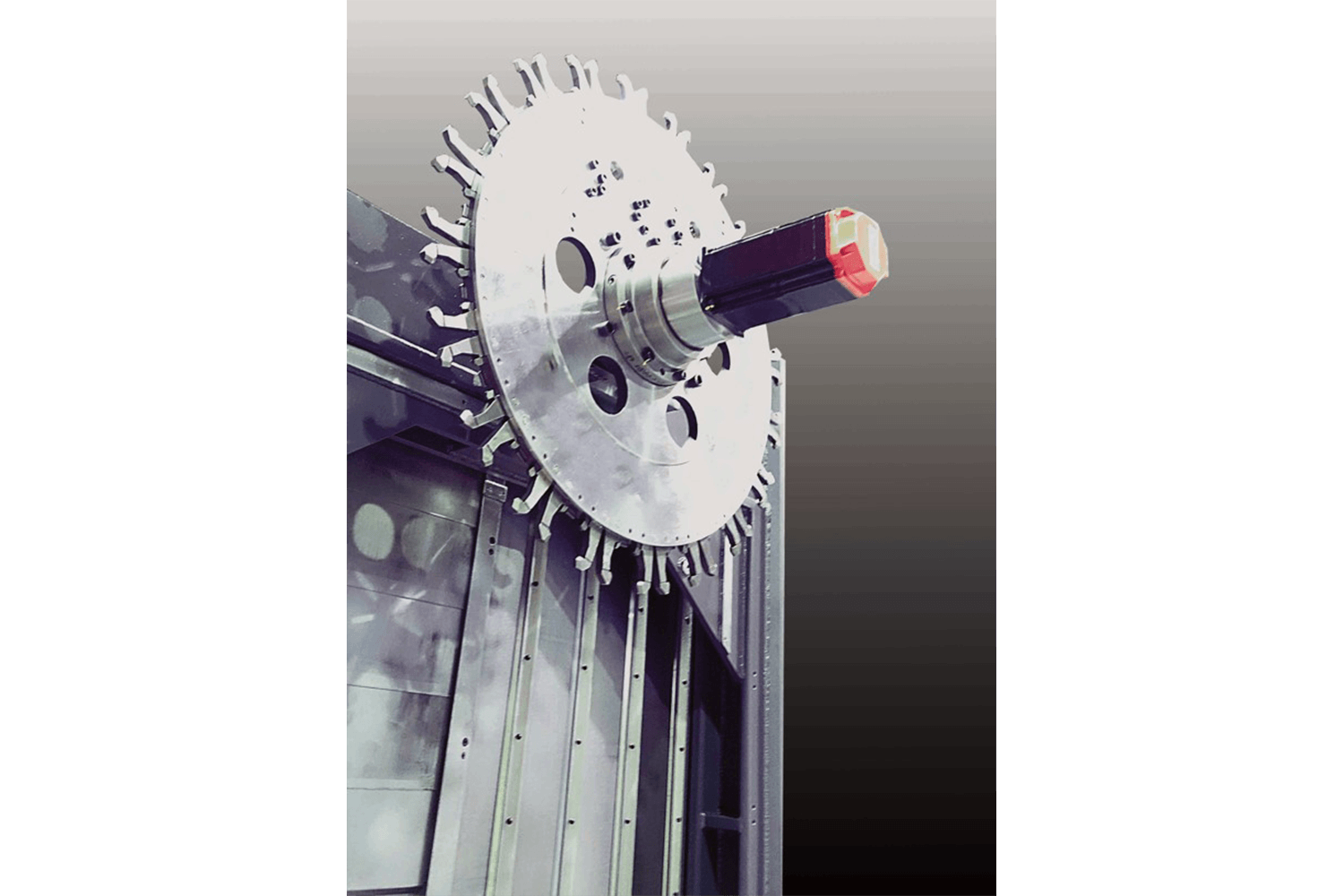

Tools

Standard Number of Tools
40 std (opt)
Maximum Tool Weight
17.6 (8) lbs (kg)
Maximum Tool Length
11.8 (300) in (mm)
Maximum Tool Diameter
3.5 (90) in (mm)
Maximum Tool Diameter- No Adjacent Tool
7.1 (180) in (mm)
Tool Changing Time- Tool to Tool
4.5 sec

General

Coolant Tank Capacity
119 (450) gal (L)
Machine Weight
12,600 (5,700) lbs (kg)
Machine Control
0iMF
