Nakamura-Tome

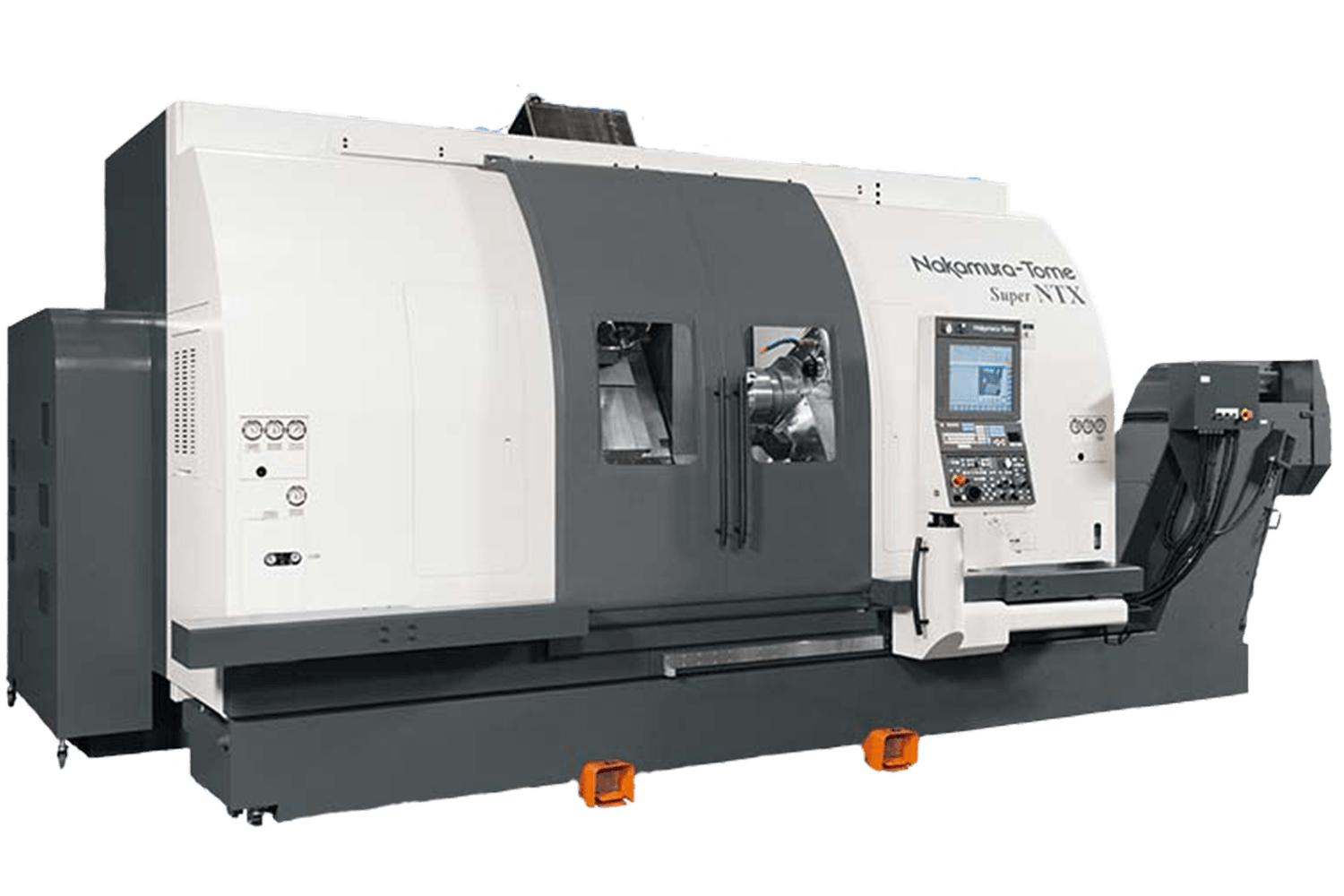

Super NTX (W)

The Super NTX with its tool spindle on the upper side, and two turrets on the lower side, is a machine featuring the ultimate in multi-tasking technology. By featuring two opposite chucks on the left and right hand sides, coupled with high precision part transfer from the left to right hand chuck, all-face simultaneous complete machining in one single chucking becomes a reality.

In addition to the high-rigidity turrets featuring the latest servo technology and having a tool-to-tool time of 1.5 seconds, the ATC unit is exhibiting a superior tool changing speed. By using the two lower turrets during the ATC tool change, idle time is reduced even further. The Super NTX provides the latest in high-speed and multi-tasking for production.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

  • Tool Magazines on the Left and Right Hand Sides
  • Distance Between Centers Max. 38.5 in
  • 8.0 in Y-axis Stroke (Tool Spindle)
  • 12,000min-1 Milling Speed (Tool Spindle)
  • 10 / 5 HP Built-in Tool Spindle Motor
  • 9.5 / 3 HP Lower Turrets Driven-tool Motor
  • 230 degree B-axis Positioning Range (±115 degree)
Capacity
! in (mm)
Swing Over Slide Cover
ø 17.4 (440) in (mm)
Max Turning Diameter
15.4 (390) (lower turret) in (mm)
Max Turning Length
43.3 (1100) in (mm)
Bar Capacity
! in (mm)
Bar Capacity L-Spindle
3.6 in ( 90) in (mm)
Bar Capacity R-Spindle
2.5 (65 ) in (mm)
Chuck size
10 in / 8 in in (mm)

Axis Travel

Slide travel (Y)
6.3 (160) (±3.2 (80)) in (mm)
Rapid feed (Y)
630 (16) in/min (m/min)
Slide Travel (B2-axis)
45.3 (1150) in (mm)
Rapid Feed (B2 Axis)
1063 (27) in/min (m/min)

Left Spindle

Spindle Speed
2500 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-8
Hole Through Draw Tube
3.5 in in (mm)

Right Spindle

Spindle Speed
4500 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6
Hole Through Draw Tube
2.5 in in (mm)

C-Axis

Least Input Increment
1E-3 degree

Turret

Number of Tool Stations
12 x 2
Number of Indexing Positions
12x 2

Tool Spindle

Tool Spindle Speed
8000 12000 (op.) rpm
Tool Shank Type
Capto C6
Number of Tool Stock
24 (op. 40, 80, 120)
Max Tool Diameter/without Adjacent Tool
3.6 (90) / 4.7 (120) in (mm)
Max Tool Length/ Max Tool Weight
11.8 (300) / 17.7 (8) in (mm)/ lbs (kg)
ATC Time (tool to tool)
1.5 sec

Tool Spindle B1-axis

Clamp Function
Curvic coupling (5 degree) Brake (0.001 degree

Rotating Tool

Rotary System
Individual rotation
Spindle Speed
3600 rpm
Number of Rotation Tool Station
12

Drive motor power

Main Spindle
30 HP
Right Spindle
30
Driven Tool Spindle
7.5 HP

General

Machine Weight
46298 (21000) lbs (kg)
