Fanuc
RoboDrill α-DiB5 ADV Series Long Bed

The Fanuc RoboDrill Long Bed is a high-performance machining center, known worldwide as the most reliable machine manufactured today.

RoboDrills make quick work out of any milling, drilling or tapping jobs. Reliability has also been addressed in all areas of the Fanuc machine design.

Coupled with the latest Fanuc 31i-B5 control, the RoboDrill is the preferred machine in any manufacturing facility large or small.

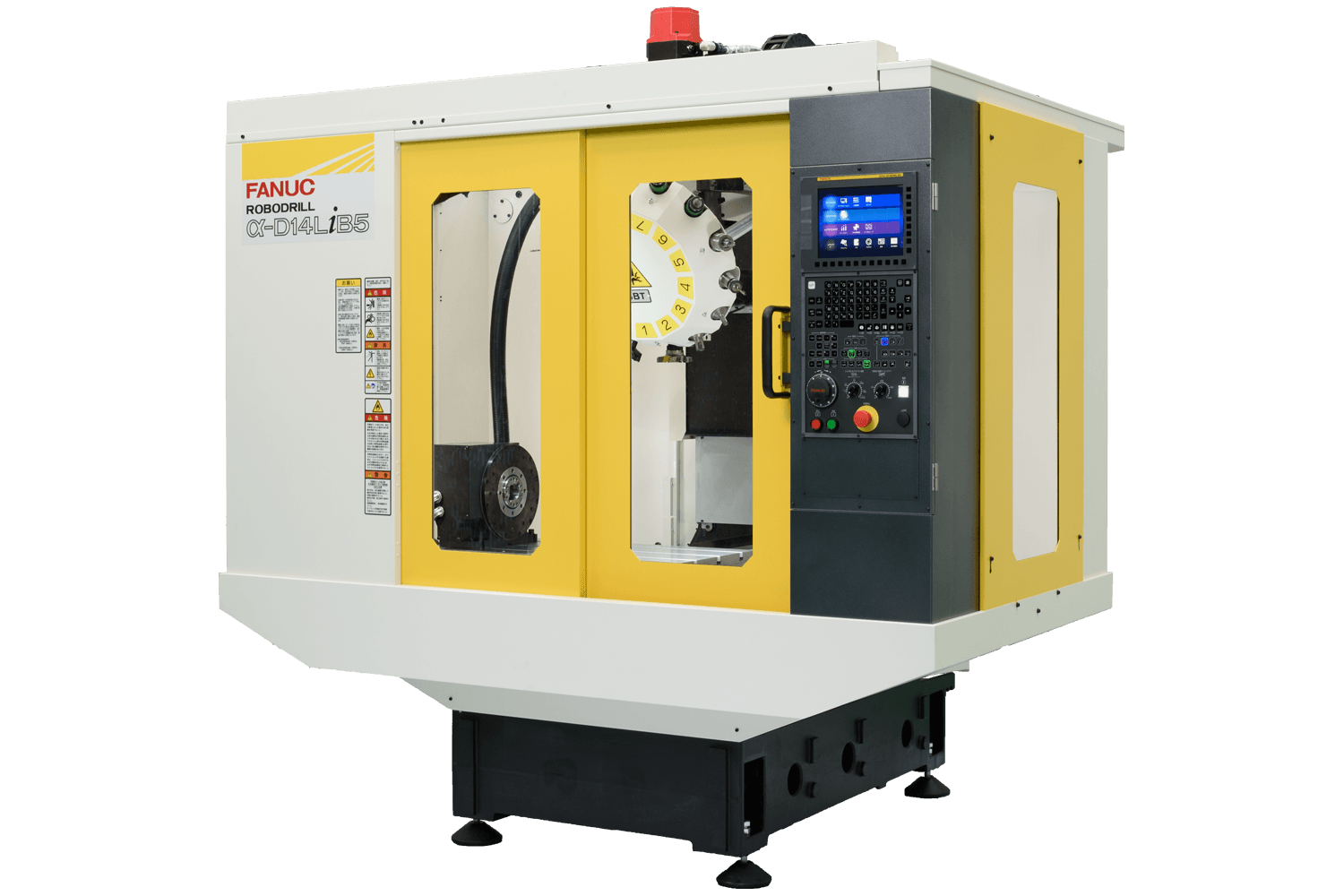

the FANUC RoboDrill D14 LiB5 machining center sold by Methods Machine Tools
a FANUC RoboDrill MiB5 machining center manufacturing a part for a job shop
a FANUC Robodrill machining a part
closeup of a FANUC RoboDrill DiB machining center tooling a part
closeup of a FANUC RoboDrill tool machining a part for a manufacturer
FANUC RoboDrill D14 LiB5 Long Bed Machining Center | Methods Machine Tools FANUC RoboDrill Short Bed - Internal | Methods Machine Tools FANUC RoboDrill - Internal view | Methods Machine Tools FANUC RoboDrill DiB Close up | Methods Machine Tools FANUC RoboDrill - Internal photo of working Robodrill | Methods Machine Tools

Product Details

Features & Benefits

  • Compact Design
  • Big Plus Spindle
  • Up to 5-Axis Simultaneous Machining
  • FANUC 31i-B5 Nano CNC System
  • Ultra Precise 32,000,000 Pulse/Rev Encoders
  • Ai Contour Control I
  • Thermal Growth Compensation
  • 1.3 sec Chip to Chip
  • 1.5G Accel/Decel
  • Helical Interpolation Program Storage
  • Rigid Tapping 5,000/8,000 RPM
  • Thread Milling
  • High Speed Reverse Tapping
  • “Quick” Tap Recovery System
  • Simultaneous ATC / Table Positioning
  • Easy to Automate with Methods
  • Built 100% in Japan

Technical Data

Travel

X-Axis Travel
27.6 (700) in (mm)
Y-Axis Travel
15.7 (400) in (mm)
Z-Axis Travel
15.7 (400) in (mm)
Spindle to Table
3.1-18.9 (80-480) in (mm)

Table Size

Table Size
33.5x16.1 (851x409) in (mm)
Table Capacity
881 lbs / 400 kg

Weight

Machine Weight
5070 (2300) lbs (kg)

Turret Style ATC Specifications

Tool to Tool Change Time
0.7 sec
Chip to Chip Change Time
1.3 sec
Max Tool Length
9.8 (249) in (mm)
Max Tool Diameter
3.14 (80) in (mm)

Spindles

Spindle Taper
BBT-30 Big Plus
Spindle Speed
10000/24000 rpm
10000rpm
18.7* / 7.5** HP
240000rpm
34.8* / 7.3** HP

Feedrate

X-Axis Rapid Traverse
2125 (54) in/min (m/min)
Y-Axis Rapid Traverse
2125 (54) in/min (m/min)
Z-Axis Rapid Traverse
2125 (54) in/min (m/min)

ATC

ATC Type
Turret Type
ATC Turret Capacity
21 tools
Tool to Tool Change Time
0.07 / 2 kg 0.09 / 3 kg 1.1 / 4 kg
Chip to Chip Change Time with Table Motion
0.07 / 0.07 sec 0.09 / 0.09 sec 1.1 / 1.1 sec
Control
Fanuc 31i-B5
Maximum Programming Memory
Up to 2gb optional
Total Simultaneous Axis
3 Standard (4/5 Optional)

* 1 min rating

** Continuous

Videos

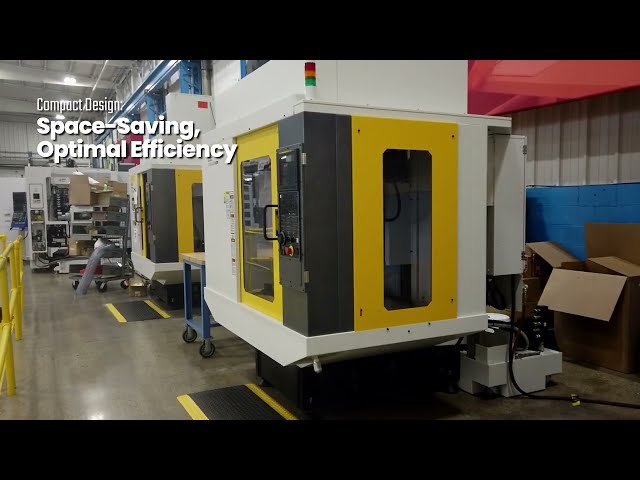

Click to watch video
