Fanuc

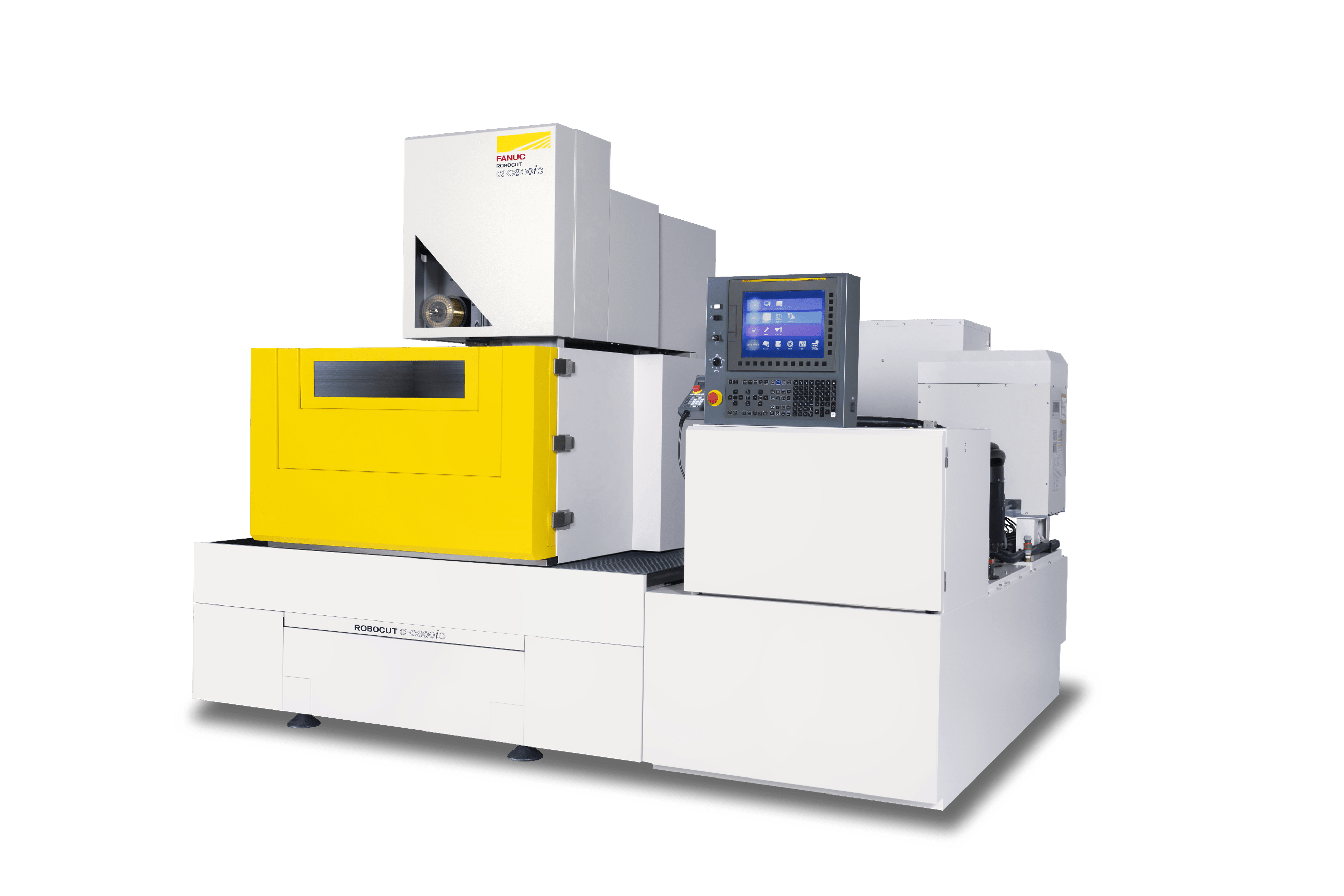

RoboCut C800iC Wire EDM – 20 in.
The ROBOCUT C800iC 20-inch Wire EDM, the latest addition to FANUC CiC series wire EDM product line, is designed for precision, reliability, and ease of use.
The ROBOCUT C800iC series looks and functions like its sibling machines in the CiC Series, but now features a smaller footprint coupled with the industry-leading FANUC 31i-WB control. Together, these attributes enable the C800iC easy-to-use, reliable threading at full Z-axis stroke even when fully submerged in open water.
High-Frequency Power Supply delivers the ultimate results with highly predictable results, with virtually no recast layer using additional skim passes. FANUC’s new AWF3 and AWR combined with the control-based maintenance assistance make the C800iC easy to use and a main staple for operators cutting difficult and exotic materials on simple or complex shapes.
The ROBOCUT C800iC features dual FANUC servo motors for accurate wire tension control. This innovative system ensures unparalleled accuracy and surface finish on your machined parts.
Like all FANUC ROBOCUT machines, the C800iC comes with a lifetime guarantee of parts support for as long as you own your machine. Crafted with precision and care, the ROBOCUT C800iC is 100% proudly built in Japan.
This RTS machine will be ready to ship to you within 5 days. Guaranteed.
Product Details
Features & Benefits
- Discharge Control Ai3
- Anti-Recast Power Supply
- 3D Coordinate System Rotation
- Thermal Monitoring and Compensation
- “Core Stitch” Slug Retention
- Fully Integrable A/B axis for “Turn & Burn” Capability
- Auto Wire Feeding AWF3
- FANUC 31i-WB Controller with New iHMI User Interface
- Wire Size: .004” to .012”
- Inverter Controlled Chiller
- ROBOCUT-LINKi Offline Cutting Monitor (Standard)
- Auto Drop Door
- Job Interruption Function
- 2 Year Parts / 1 Year Labor Standard Warranty
Technical Data
Weight
- Machine Weight
- 12,566 lbs (5699 kg)
RoboCut Specifications
- Maximum Workpiece Size
- 49.21 x 38.38 x 11.81 in (1250 x 975 x 300 mm)
- Maximum Workpiece Weight
- 6,614 lbs. (3000 kg)
- Machine Capacity
- 49.21” x 38.38” x 19.68”
- U/V Travels
- 7.87 in.
- X/Y Travels
- 31.50 x 23.62 in. (800 mm x 600 mm)
- Z-Axis Travel
- 20.08" (528.32 mm)
- Auto Wire Feed (AWF3)
- Standard
- Wire Diameter
- ø 0.004 - 0.012 in. (0.10 mm — 0.30 mm)
- Maximum Wire Spool Weight
- 35 lbs. (15.8 kg)
- Positioning Accuracy
- ±0.000004 in (.0001 mm)
Dielectric Tank
- Tank Capacity
- 417 gal (1578 L)
- Paper Filter (Cartridge Type)
- (3) quantity
- Inverter Chiller
- Standard (+/- 0.01 deg)
Power Supply
- Digital Power Supply
- Standard SF3
