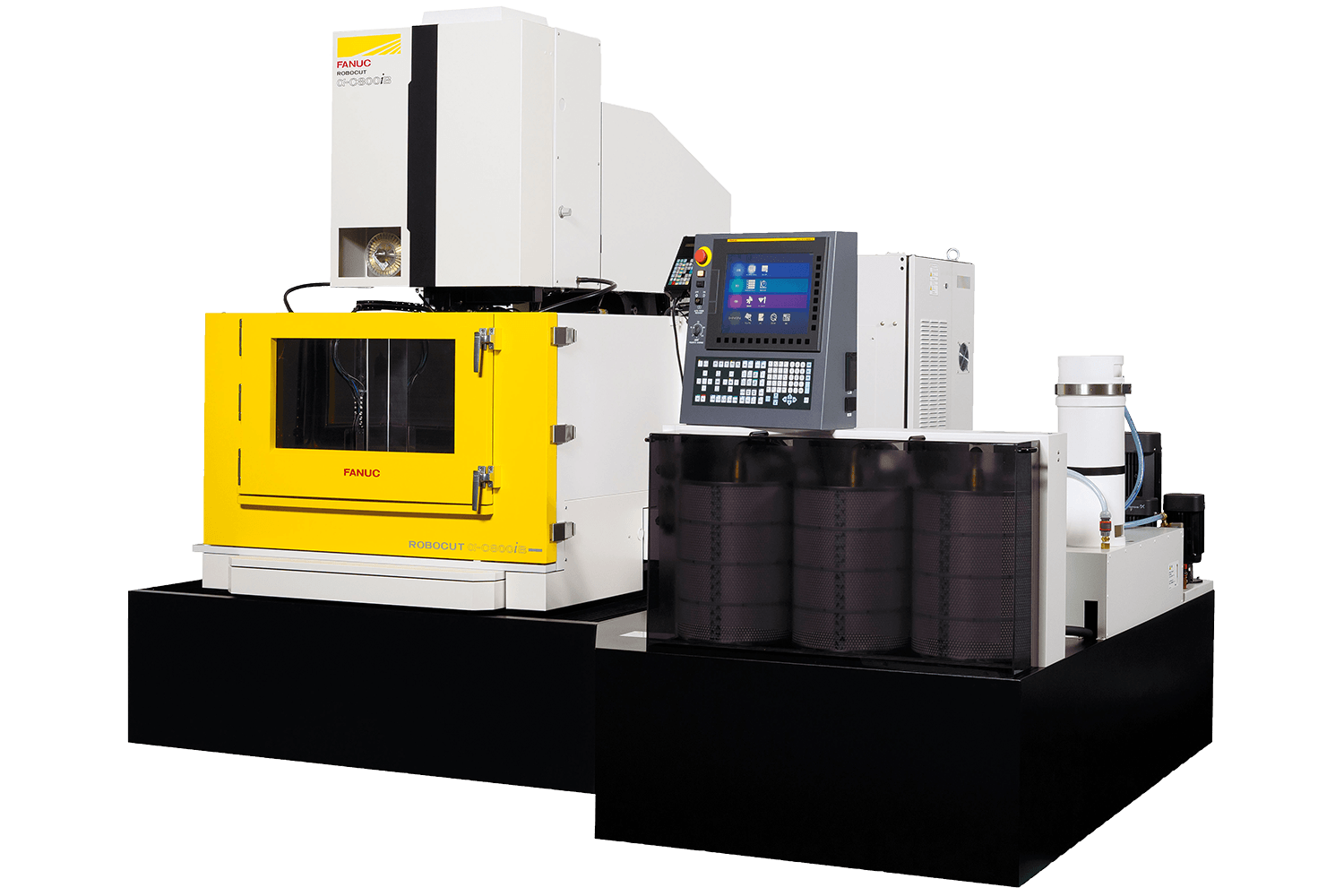

the FANUC RoboCut C800iB-20 Wire EDM used for cnc machining by industrial manufacturers
the wire thread of a FANUC RoboCut 400CiC Wire EDM machine sold by Methods Machine Tools as it manufactures a part
the FANUC RoboCut C600iC Wire EDM machine as it machines a part with the Fanuc logo

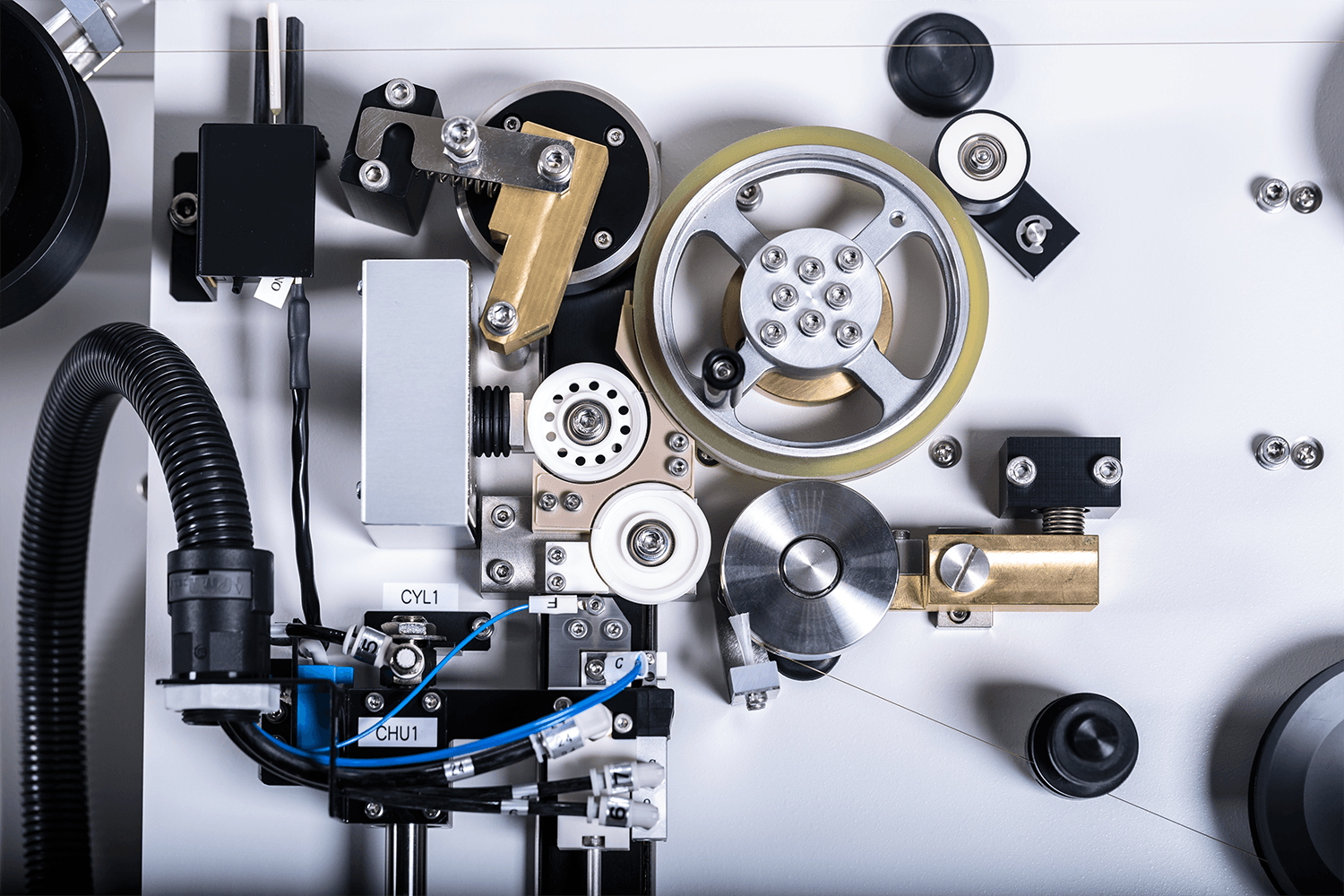

parts inside the FANUC RoboCut C800iB-12 wire EDM machine used for cnc machining

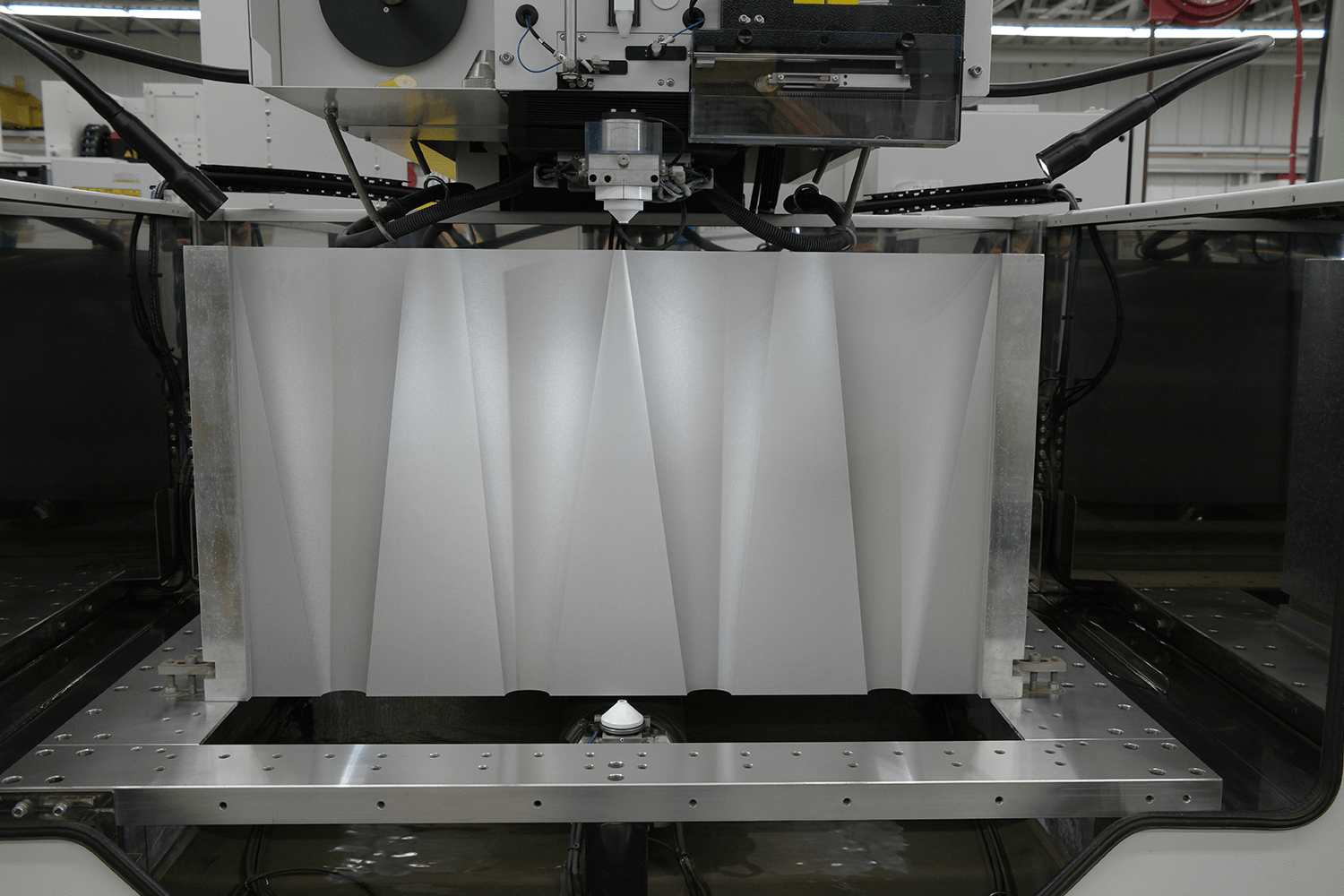

the inside of the FANUC RoboCut C600iC Wire EDM machine tool as it machines a part
FANUC RoboCut C800iB Wire EDM | Methods Machine Tools FANUC RoboCut C800iB-20 Wire EDM | Methods Machine Tools FANUC RoboCut 400CiC Wire EDM - Internal Operations CCR | Methods Machine Tools FANUC RoboCut C600iC Wire EDM - CCR2 | Methods Machine Tools FANUC RoboCut C800iB-12 - Internal 2 | Methods Machine Tools FANUC RoboCut C600iC Wire EDM - CCR2 | Methods Machine Tools

Fanuc
RoboCut C800iB-20

The RoboCut C800iB Wire EDM features a new FANUC 31i-WB control with new iHMI User Interface, AWF3 and a new economy mode for energy and wire usage savings. The CiB-Series machines burn with virtually no re-cast, and the AWF3 has been enhanced to thread thicknesses of up to 20 inches.

The FANUC RoboCut’s automatic wire tension meter and servo motor adjustment ensures that you get accurate, straight parts. Above all, the RoboCut CiB-Series EDMs are built 100% in Japan, offering you the exceptional reliability for which FANUC machines are known worldwide.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Download Brochure

Features & Benefits

  • Discharge Control Ai2
  • Anti-recast Power Supply
  • Automatic Door
  • 3D Coordinate System Rotation
  • Thermal Monitoring and Compensation
  • “Core Stitch” Slug Retention
  • Fully Integrated A/B axis for “Turn & Burn” Capability
  • Auto Wire Feeding AWF3 Measurement Function
  • FANUC 31i-WB Controller with New iHMI User Interface
  • Wire Size: .002” to .012”
  • Inverter Controlled Chiller
  • CUT-LINKi Offline Cutting Monitor (STD)
  • Remote PC Capability Wire
  • Power Savings Mode
  • Positioning Accuracy: ± .0001”
  • Rotary Glass Encoder (.000002”)
  • 2 Year Parts/1 Year Labor Standard Warranty

Technical Data

Weight

Machine Weight
9500 (4310) lbs (kg)

Robocut Specifications

Maximum Workpiece Size
49.2x38.3x20.2 (1250x975x510) in (mm)
Maximum Workpiece Weight
6613 (3000) lbs (kg)
U/V Travels
±3.937 (100) in (mm)
Z-Axis Travel
20.2 (510) in (mm)
Maximum Cutting Speed (Brass)
31 (788)
Auto Wire Feed (AWF3)
Standard
Wire Diameter
ø 0.002 - 0.012 (0.21-0.31) in (mm)
Maximum Wire Spool Weight
35 (16) lbs (kg)
Positioning Accuracy
±.0001 in (mm)

Dielectric Tank

Tank Capacity
265 (970) gal (L)
Paper Filter (Cartridge Type)
2 quantity
Inverter Chiller
Standard

Power Supply

Digital Power Supply
Standard
