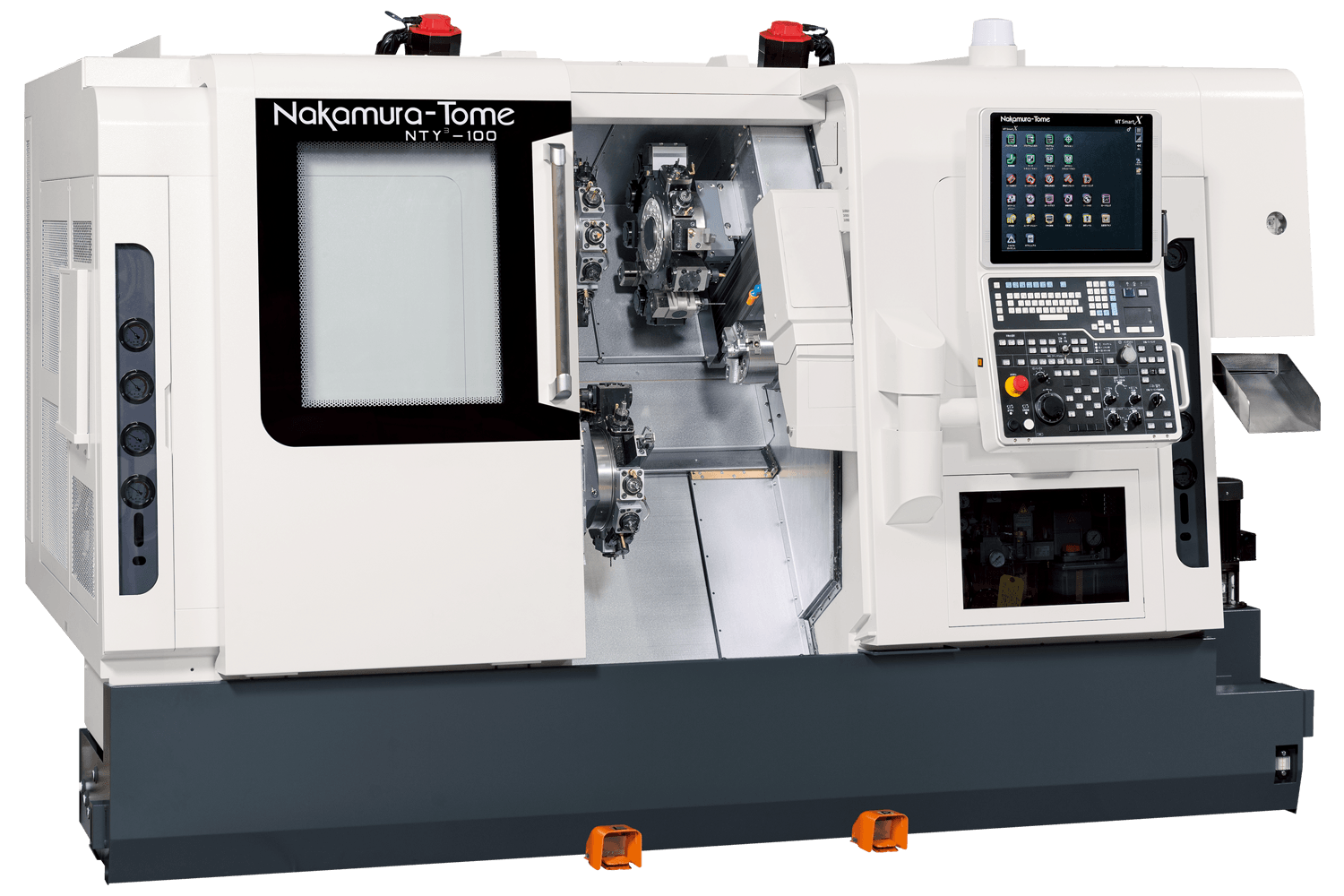

the Nakamura Tome NTY3-100 Multitasking CNC Machine

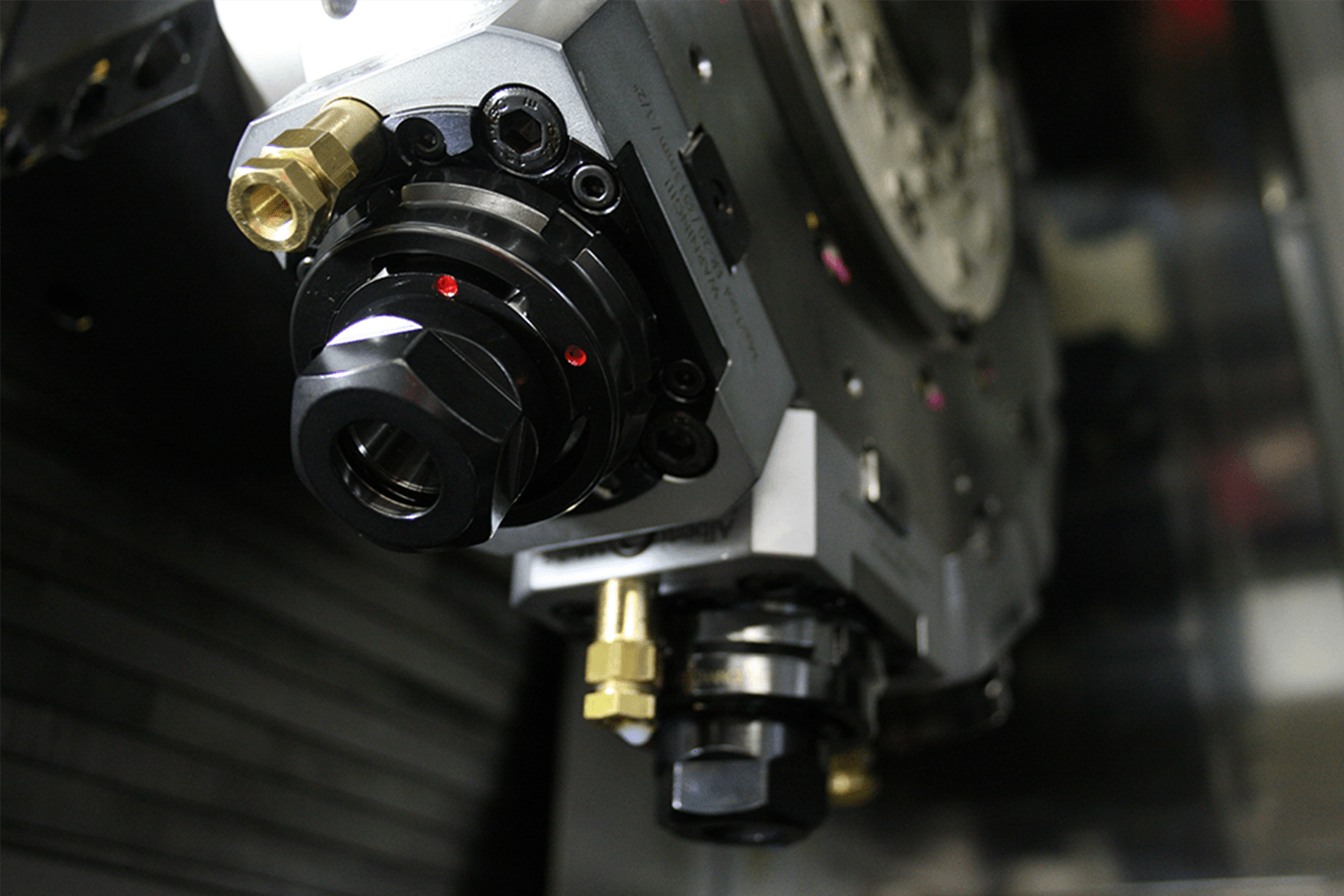

inside of the Nakamura Tome NTY3-100 Multitasking CNC Machine

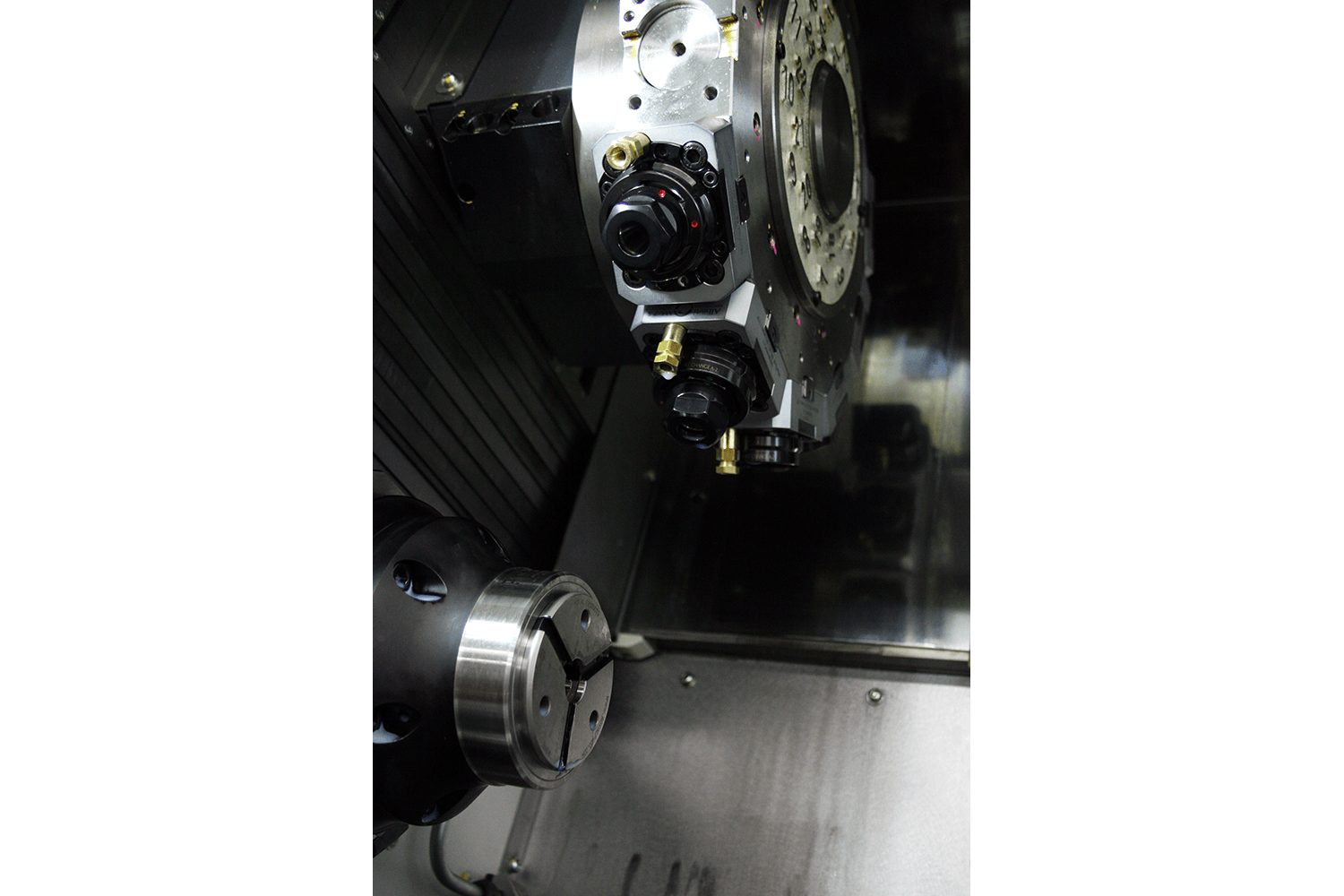

another inside view of the Nakamura Tome NTY3-100 Multitasking CNC Machine

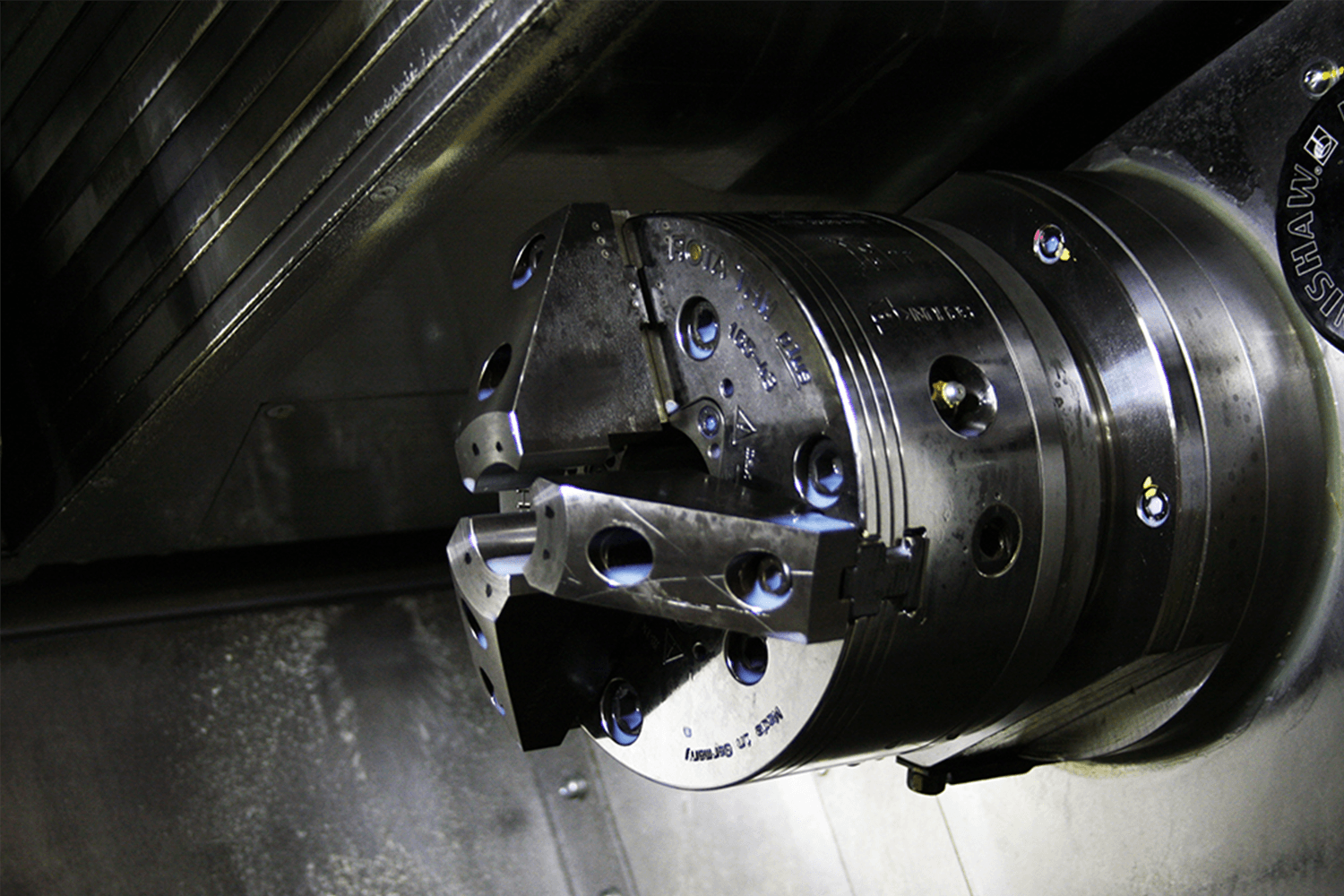

Nakamura Tome NTY3-100 Multitasking CNC Machine | Methods Machine Tools Nakamura Tome Super NTY3 - interior photo | Methods Machine Tools Nakamura Tome Super NTY3 - interior photo 2 | Methods Machine Tools Nakamura Tome Super NTY3 - interior photo 3 | Methods Machine Tools

Nakamura-Tome
NTY3-100

Nakamura-Tome has introduced the NTY3-100, a high-productivity multitasking turning center that is at the cutting edge of speed.

The NTY3-100 offers unique three-turret 3 Y-Axis multi-tasking capabilities in a compact footprint, with an ergonomic 60° slant bed, and features the new Smart X controller.

In addition to the advantages of simultaneous machining on the left and right hand spindles, this ultimate high precision, high performance multi-tasking machine introduces the Y-axis on all three turrets, contributing to increased productivity.

By using Y-axis for simultaneous machining with the upper and lower turrets, machining process layout optimization becomes a reality. Whether machining with multiple tools simultaneously on one side or on both the left- and right-hand sides, cycle time is dramatically reduced.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Download Brochure

Features & Benefits

  • Opposing Two-Spindle, 3-Turret Construction
  • 72 Tool Stations
  • 36 Driven-Tool Stations
  • 3.3 in Y-axis travel on Upper Turrets
  • 2.55 in Y-axis travel on Lower Turret
  • 8000 RPM Driven-Tool Speed (All 3 Turrets )
  • 15/10 HP Left and Right Spindle Motor
  • 7.5 HPx3 Driven-Tool Motor (Upper / Lower)
  • 2 in Bar Capacity

Technical Data

Capacity
! in (mm)
Max Turning Diameter
7.87 (200) in (mm)
Max Turning Length
22.44 (570) in (mm)
Bar Capacity
! in (mm)
Bar Capacity L-Spindle
2.0 ( 51) in (mm)
Bar Capacity R-Spindle
1.7 ( 42 ) in (mm)
Chuck size
6 (165) in (mm)

Axis Travel

Slide Travel (B)
24.4 (620) in (mm)
Rapid feed (B)
1575 (40) in/min (m/min)
Slide Travel (X1/X2/X3)
5.9 (150) / 5.9 (150) / 5.5 (141) in (mm)
Slide Travel (Z1/Z2/Z3)
8.9 (227) / 8.9 (227) / 22 (560) in (mm)
Slide Travel (Y1/Y2/Y3)
±1.65 (±42) / ±1.65 (±42) / ±1.28 (±32.5) in (mm)
Rapid Feed (X1, X2, X3)
787 (20) in/min (m/min)
Rapid Feed (Z1, Z2, Z3)
1575 (40) in/min (m/min)
Rapid Feed (Y1, Y2, Y3)
314 (8) in/min (m/min)

Left and Right Spindle

Spindle Speed
5000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
2.0 ( 51 ) in (mm)

Right Spindle

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
1.7 ( 42) in (mm)

C-Axis

Least Input Increment
1E-3 degree

Turret

Number of Tool Stations
12
Number of Indexing Positions
24

Rotating Tool

Rotary System
Individual Rotation
Spindle Speed
86000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12x3

Drive motor power

Main Spindle
15 HP
Right Spindle
15 HP
Driven Tool Spindle
9.5/3 HP

General

Machine Weight
17637 (8000) lbs (kg)
