Nakamura-Tome

AS-200LMY Sub Spindle

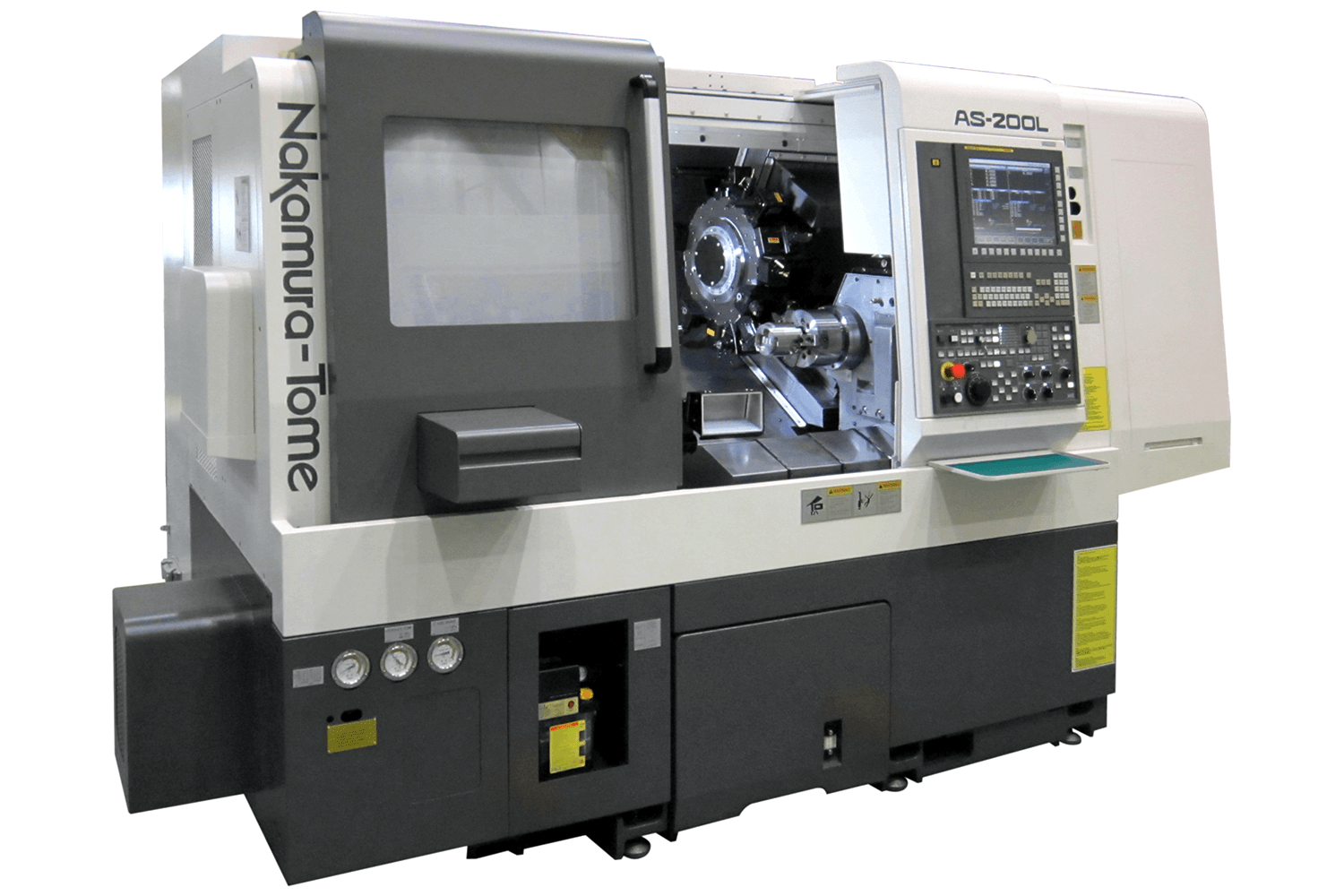

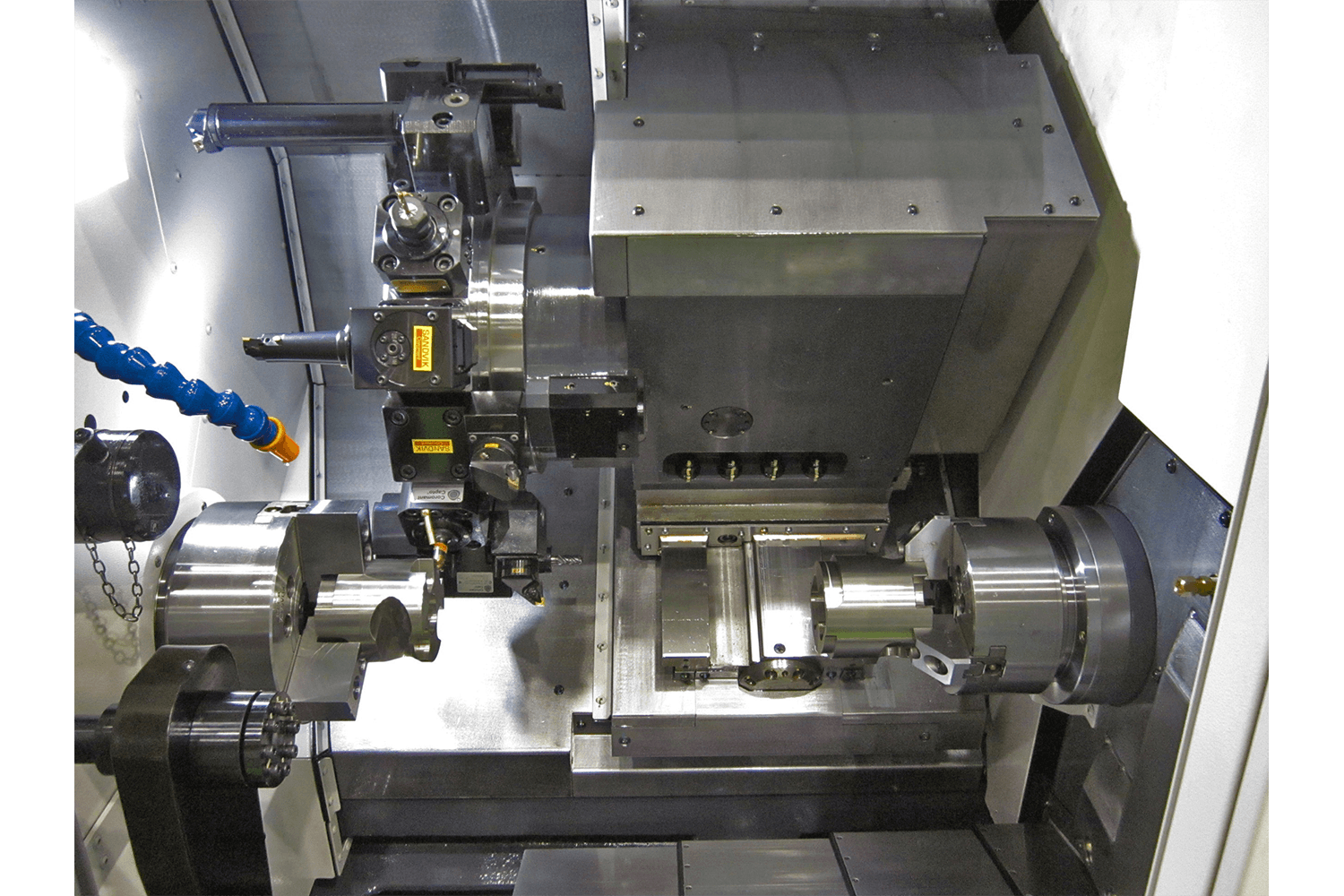

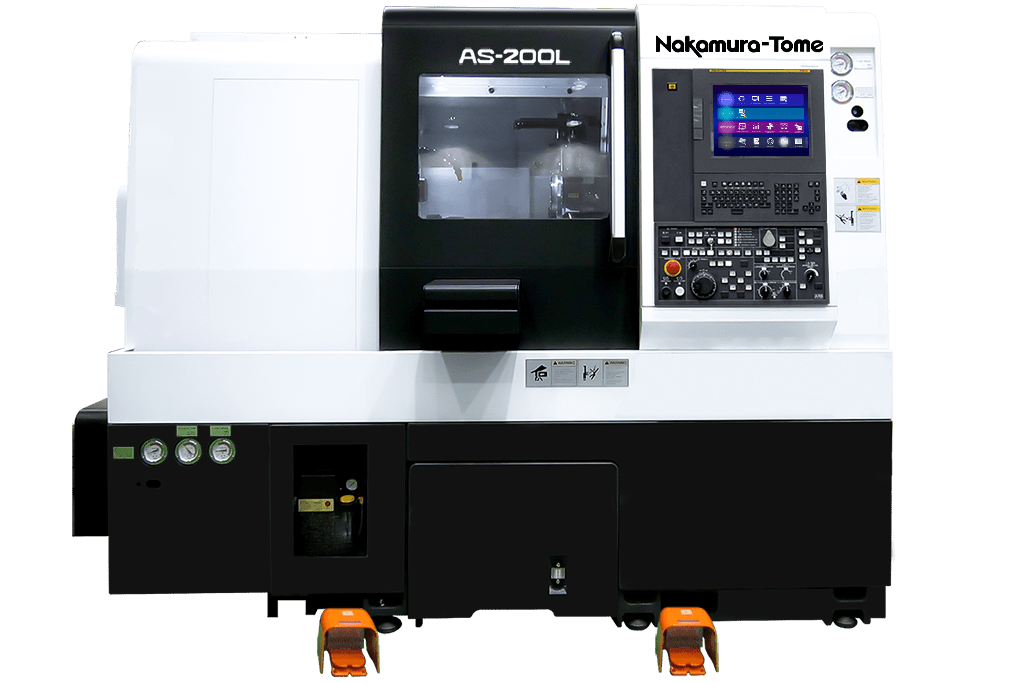

Nakamura-Tome AS-200LMY-S subspindle machine, a high-performance multitasking turning center.

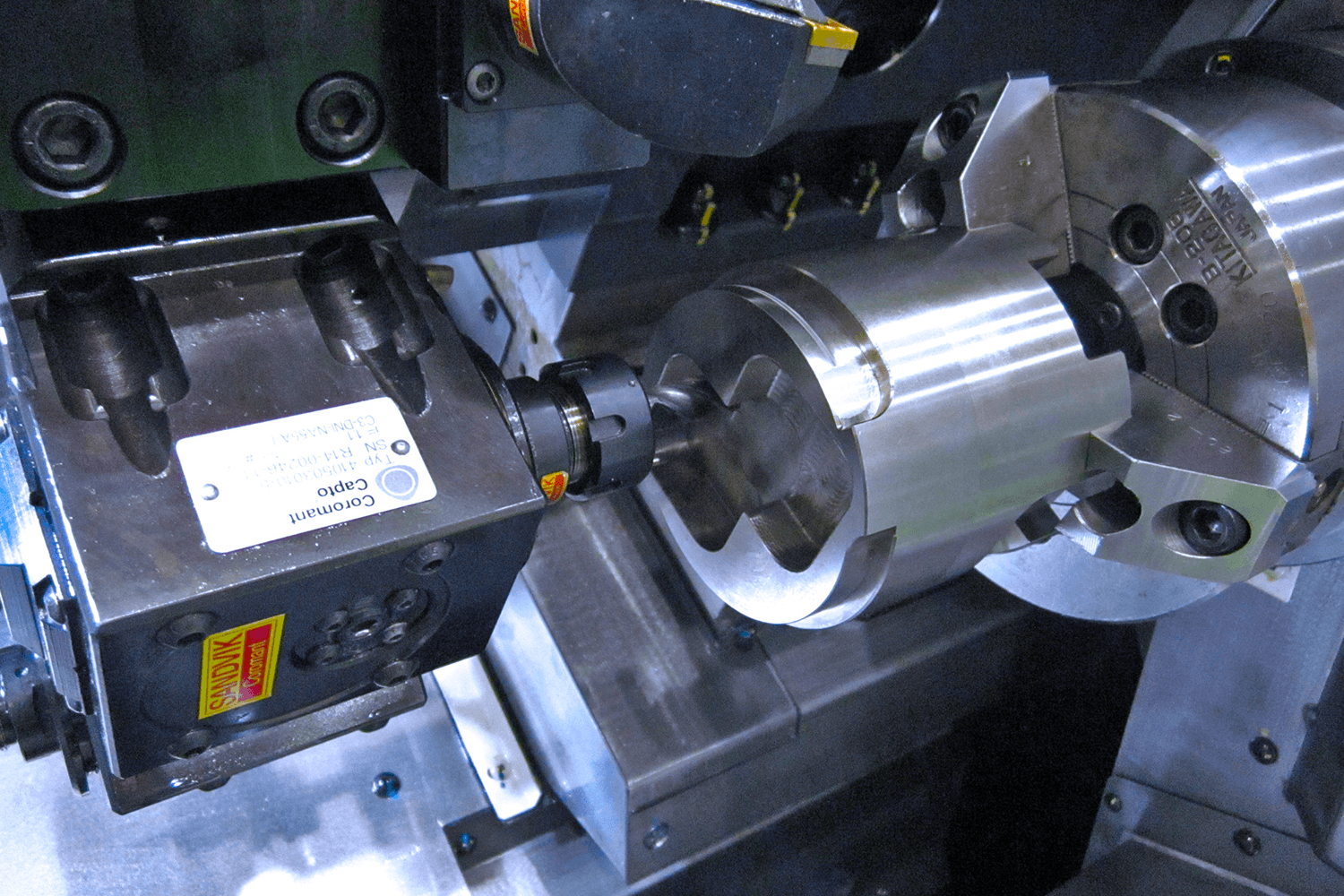

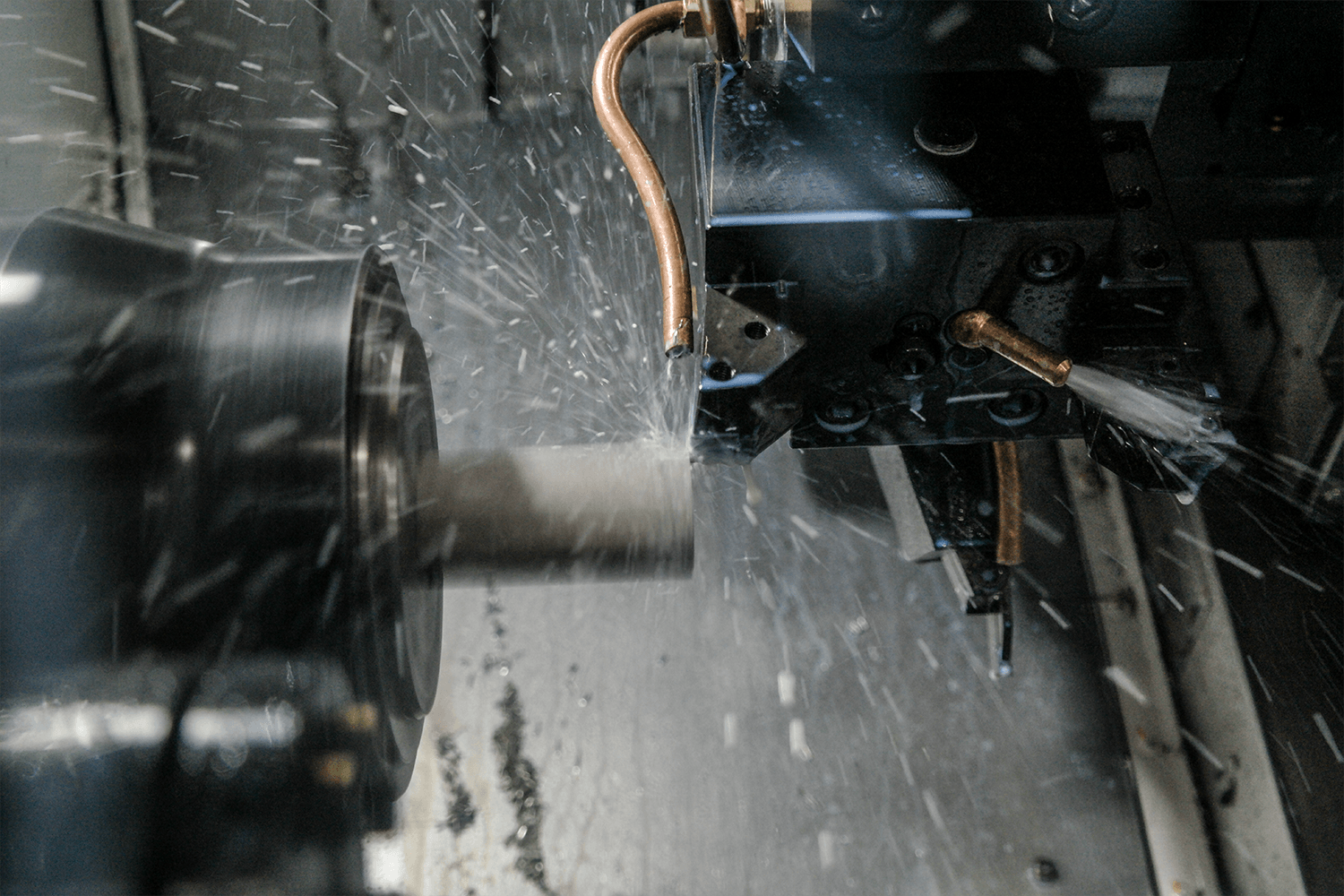

The new AS-200LMY-S offers an upgraded long bed with subspindle. The machine is equipped with a powerful milling drive, together with a high-speed, high-accuracy C-axis and 82mm stroke Y-Axis that ensures accurate, finished parts and eliminates deburring, milling, drilling and repositioning of fixtures.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

  • Space Saving Combined Machine Tool with Y-axis & Milling Function
  • With Milling Function: 7.5/5 HP, Spindle Speed – 6000rpm
  • Strong Spindle Motor: 20/15 HP – 4,500 RPM
  • Subspindle Motor: 10/7.5 HP – 6,000 RPM
  • C-axis synchronization
  • High Speed Index – X-axis: 24 m/min, Z-axis: 36 m/min, C-axis: 600 min-1.
  • Turret: Max Dodecagonal Drum Turret (Max. 24 station)
  • Number of Milling Tool (dodecagonal drum turret): 12
Capacity
12/24 station turret in (mm)
Swing Over Bed
15.8 (400) in (mm)
Max Workpiece Swing Diameter
12.6 (320) in (mm)
Max Turning Diameter
13.4 (340) in (mm)
Distance Between Spindle Noses
31.5 in (mm)
Max Turning Length
22.5 (570) in (mm)
Bar Capacity
2.6 (65) in (mm)
Bar Capacity Sub
1.7 (42) in (mm)
Chuck size
8 (203) in (mm)

Axis Travel

Slide travel (X)
9 (227.5) in (mm)
Slide travel (Z)
23 (585) in (mm)
Slide travel (Y)
±1.6 (41) in (mm)
Rapid feed (X)
945 (24) in/min (m/min)
Rapid feed (Z)
1418 (36) in/min (m/min)
Rapid feed (Y)
236 (6) in/min (m/min)

Spindle

Spindle Speed
0-4500 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6
Hole Through Draw Tube
2.5 (65mm) in (mm)

C-Axis

Least Input Increment
1E-3 degree

Turret

Number of Tool Stations
12
Number of Indexing Positions
24

Milling Tools

Spindle Speed
6000 rpm
Number of Milling-Tool Stations
12

Rotating Tool

Rotary System
Individual Rotation
Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12

Drive motor power

Main Spindle
20 HP
Sub Spindle (op.)
10 HP
Driven Tool Spindle
7.5 HP

General

Machine Weight
11023 (5000) lbs (kg)
