Nakamura-Tome

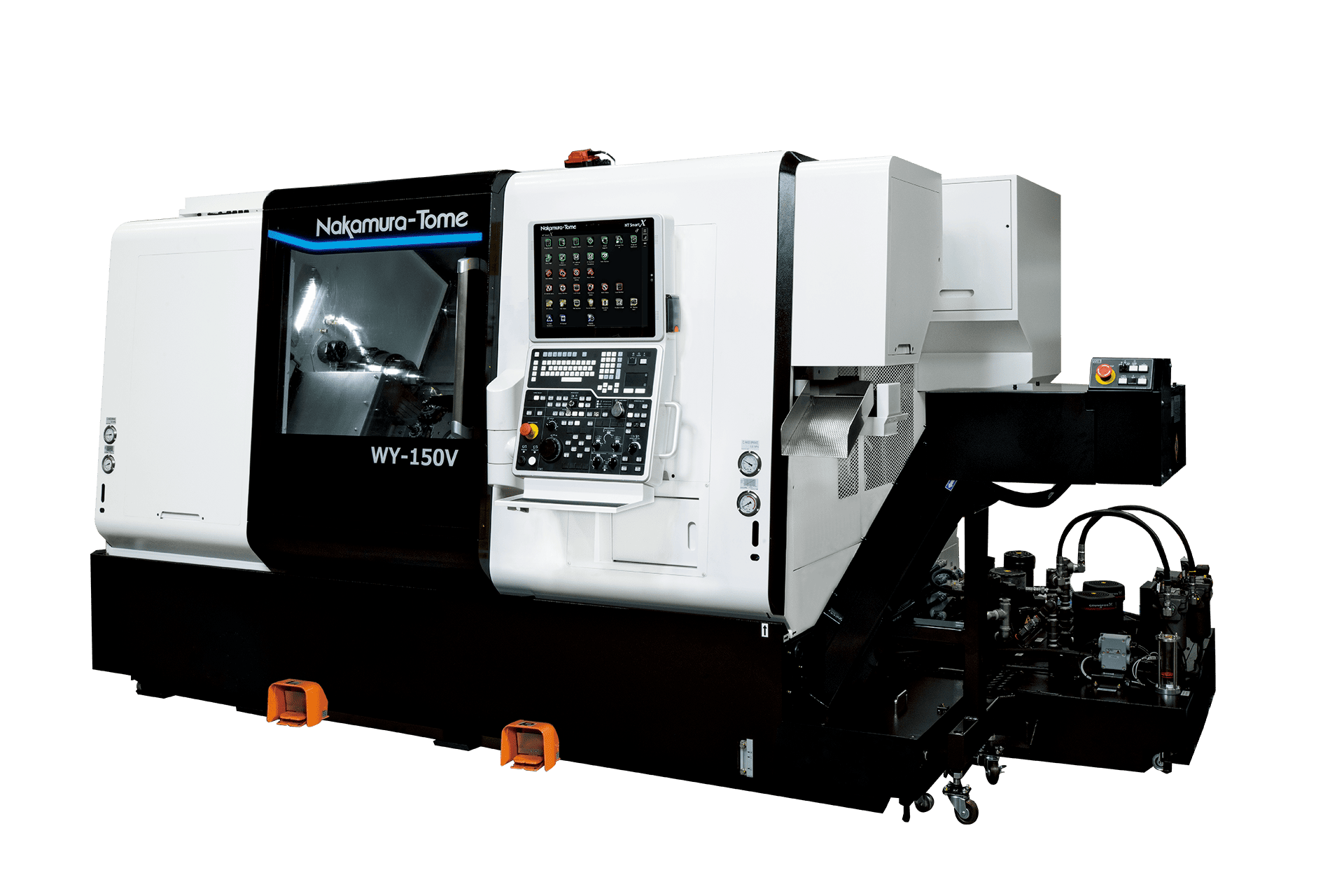

WY-150V

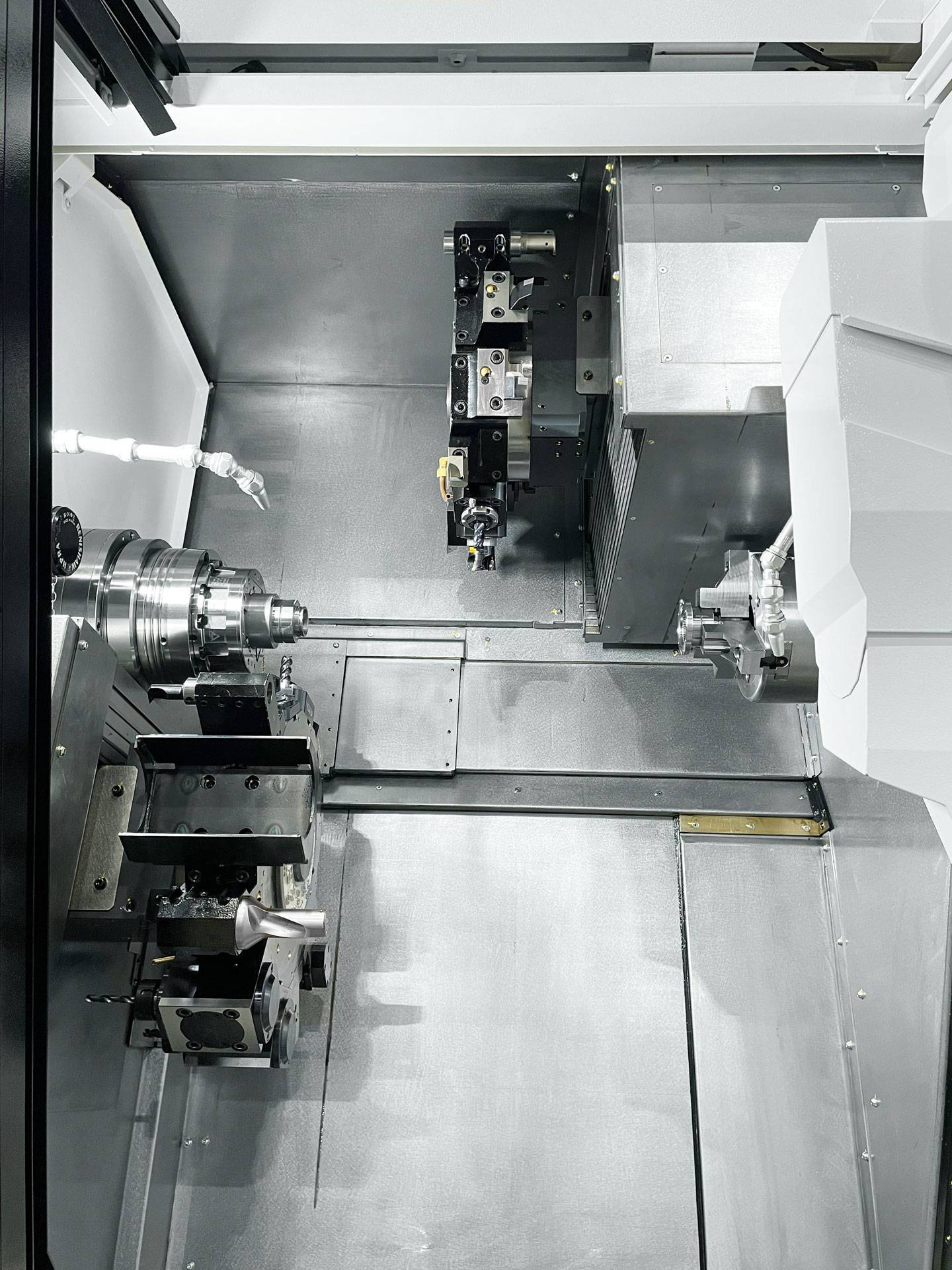

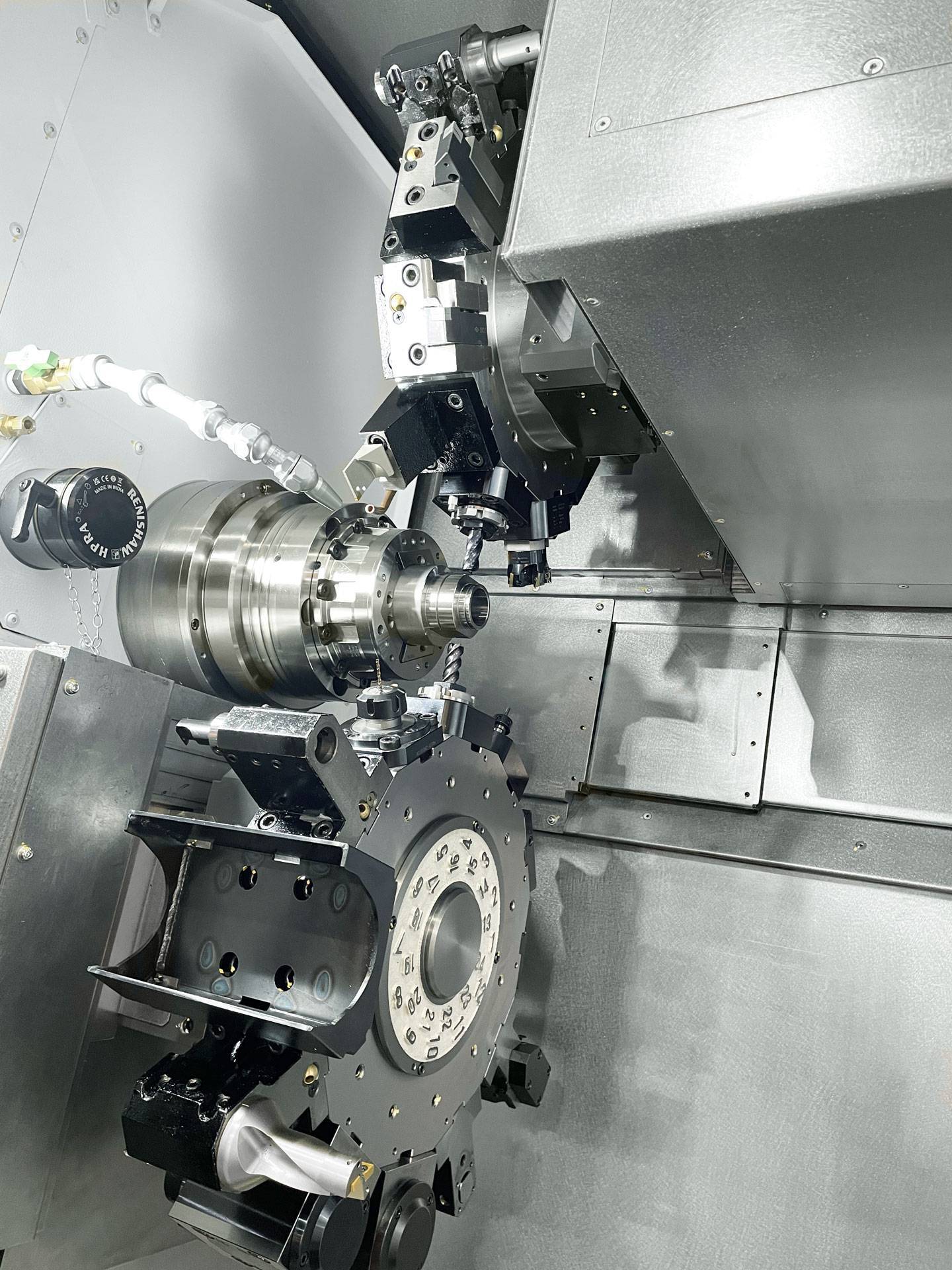

The Nakamura-Tome WY-150V is a twin spindle multitasking machine with two turrets, upper and lower, both with Y-axis. The third of the “V Series” multitasking machines, with speed as the design concept behind it. Thee is a Y-axis on the upper/lower turret and opposed twin spindles, all standard features of the WY-150V.

Enhanced processing capabilities and simultaneous left/right and upper/lower machining reinforce speed production. New software features further reduce idle time and increase time in the cut.

Request Information

Or call 1-877-668-4262

Download Brochure

Product Details

Features & Benefits

Technical Data

CAPACITY

Max Turning Diameter
8.8 in. (225 mm)
Max Turning Length
26.96 in. (685 mm)
Slide travel (X1)
6.31 in. (160.5 mm)
Slide travel (X2)
6.31 in. (160.5 mm)
Slide travel (Y1)
± 1.77 in. (± 45 mm)
Slide travel (Y2)
± 1.38 in. (± 35 mm)
Slide travel (Z1)
26.96 in. (685 mm)
Slide travel (Z)
26.96 in. (685 mm)

LEFT SPINDLE

Spindle Speed
5000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6
Hole Through Draw Tube
2.5 in.

RIGHT SPINDLE

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
2.0 in.

TURRET

Number of Tool Stations
24
Number of Indexing Positions
24

DRIVE MOTOR POWER

Main Spindle
25 HP
Right Spindle
20 HP
Driven Tool Spindle
10 HP

GENERAL

Machine Weight
24,250 (11,000) lbs (kg)
Footprint (H x W x W)
7.4 ft X 1.9 ft. X 7.8 ft.
