Nakamura-Tome

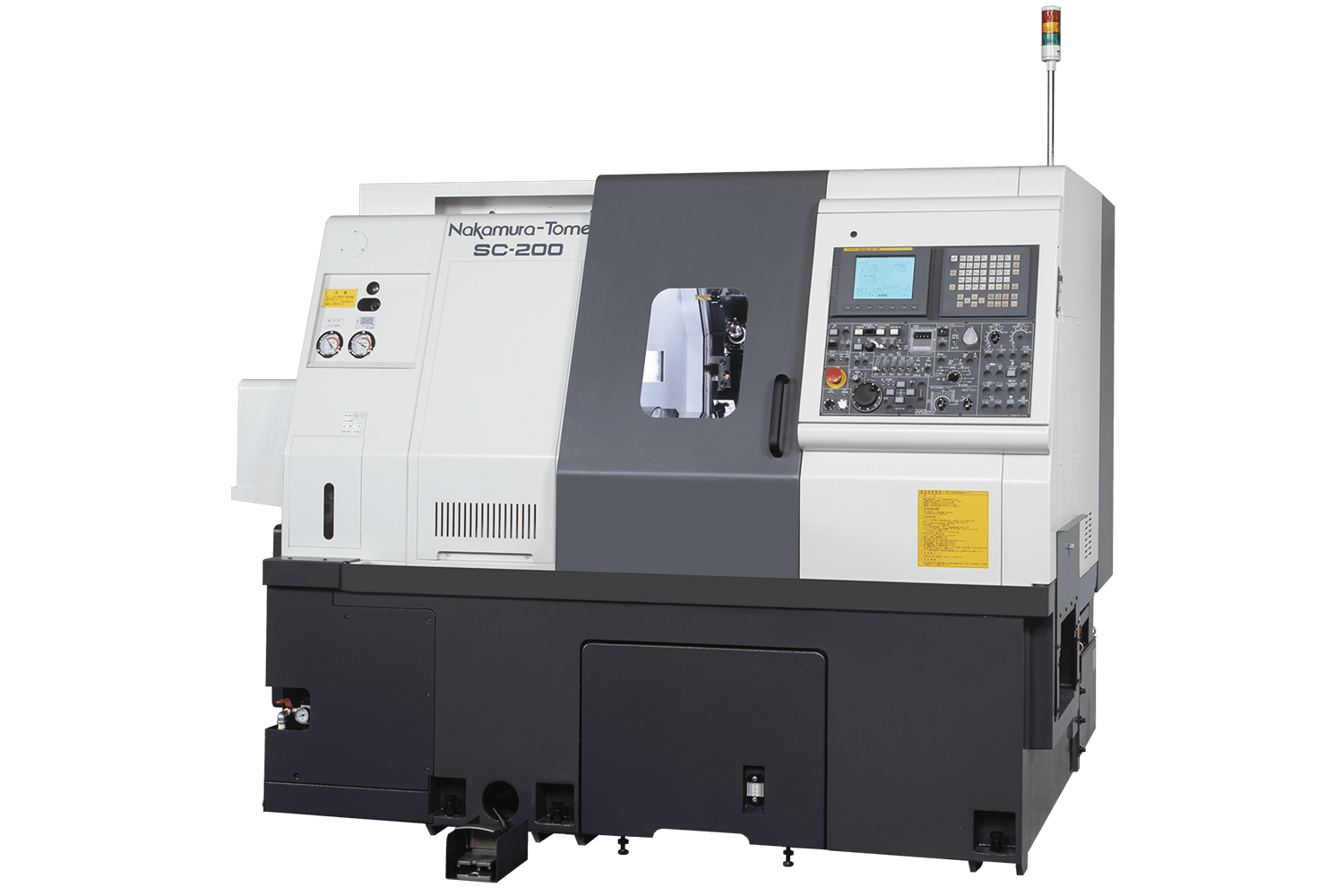

SC-200

Developed for companies that demand both compact turning centers with high turning and milling capabilities, the SC-200 delivers these solutions with a 15 HP main spindle which provides great accuracy and rigidity, as well as retaining box ways. Each machine is hand built in Japan, not mass-produced, giving it unmatched capabilities.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

  • Massive Box-way Slides on all Axes
  • 15/10 HP Spindle Motor
  • Spindle Speed 4500 min-1, Driven-tool Speed 6,000 min-1
  • Faster Rapid Traverse 24 m/min for the X-axis, and 36 m/min for the Z-axis
  • Bar Capacity 65 mm Standard
  • All FANUC, CNC Control and Servo Drives.
  • Dodecagonal 12 Station Turret
Capacity
! in (mm)
Max Turning Diameter
17 (432) in (mm)
Max Turning Length
14.6 (370) in (mm)
Bar Capacity
2.6 (65) in (mm)
Chuck size
8 (215) in (mm)

Axis Travel

Slide travel (X)
10.0 (261) in (mm)
Slide travel (Z)
14.4 (365) in (mm)
Slide travel (Y)
±1.6 (41)(op.) in (mm)
Slide Travel (B)
15.6 (395)(op.) in (mm)
Rapid feed (X)
945 (24) in/min (m/min)
Rapid feed (Z)
1418 (36) in/min (m/min)
Rapid feed (B)
945 (24)(op.) in/min (m/min)
Rapid feed (Y)
236 (6)(op.) in/min (m/min)

Spindle

Spindle Speed
4500 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6
Hole Through Draw Tube
2.5 (65mm) in (mm)

Sub Spindle (op.)

Spindle Speed
5000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
1.4 (35) in (mm)

C-Axis

Least Input Increment
1E-3 degree

Turret

Number of Tool Stations
12
Number of Indexing Positions
12

Milling Tools

Spindle Speed
6000 rpm
Number of Milling-Tool Stations
12

Rotating Tool

Rotary System
Individual Rotation
Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12

Drive motor power

Main Spindle
15 HP
Sub Spindle (op.)
7.5 HP
Driven Tool Spindle
7.5 HP

Tailstock (op.)

Quill Diameter
3.2 (80) in (mm)
Quill Taper
MT-4 Rotating Center
Quill Stroke
3.2 (80) in (mm)

General

Machine Weight
5952 (2700) lbs (kg)
