Nakamura-Tome
NTY3-150

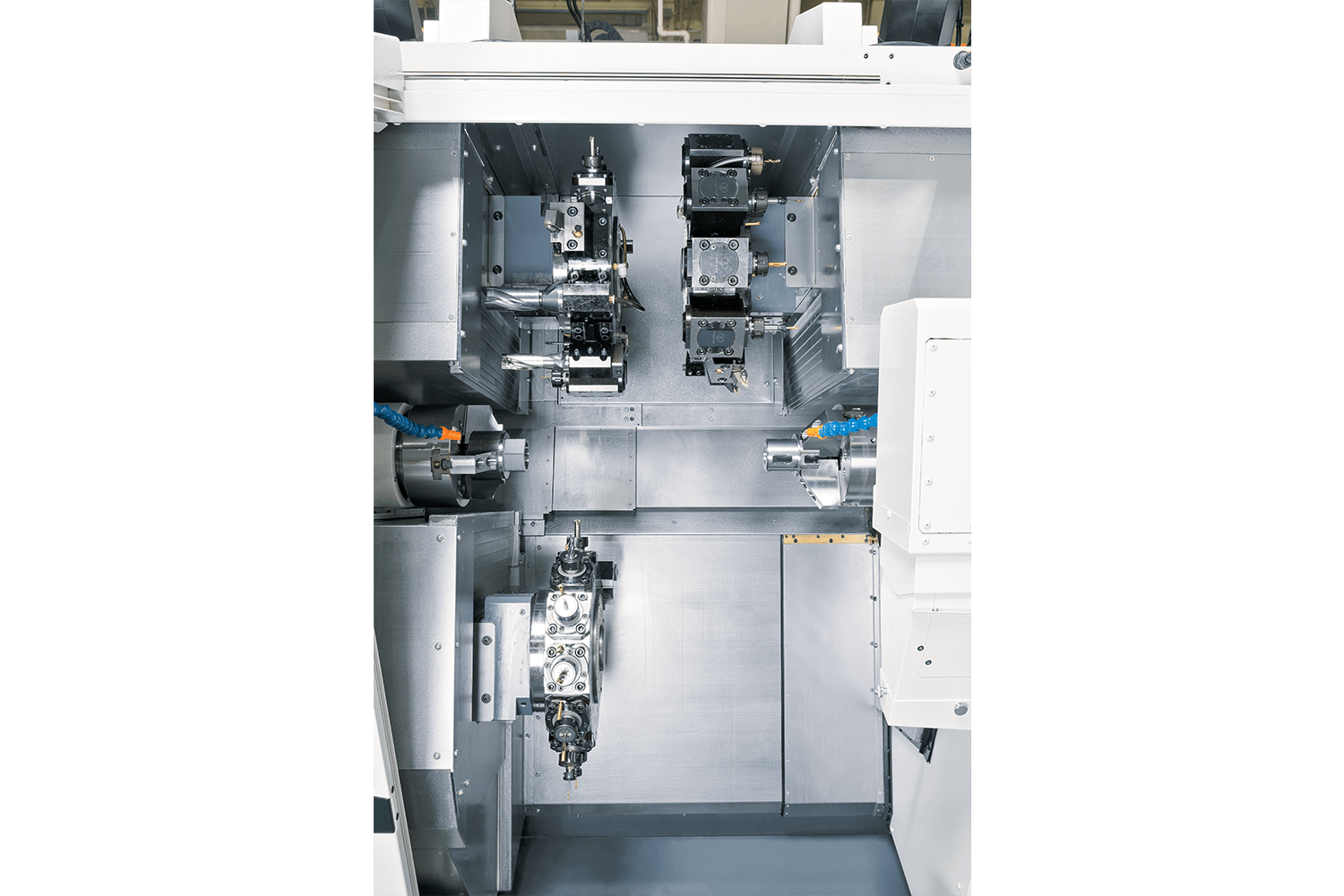

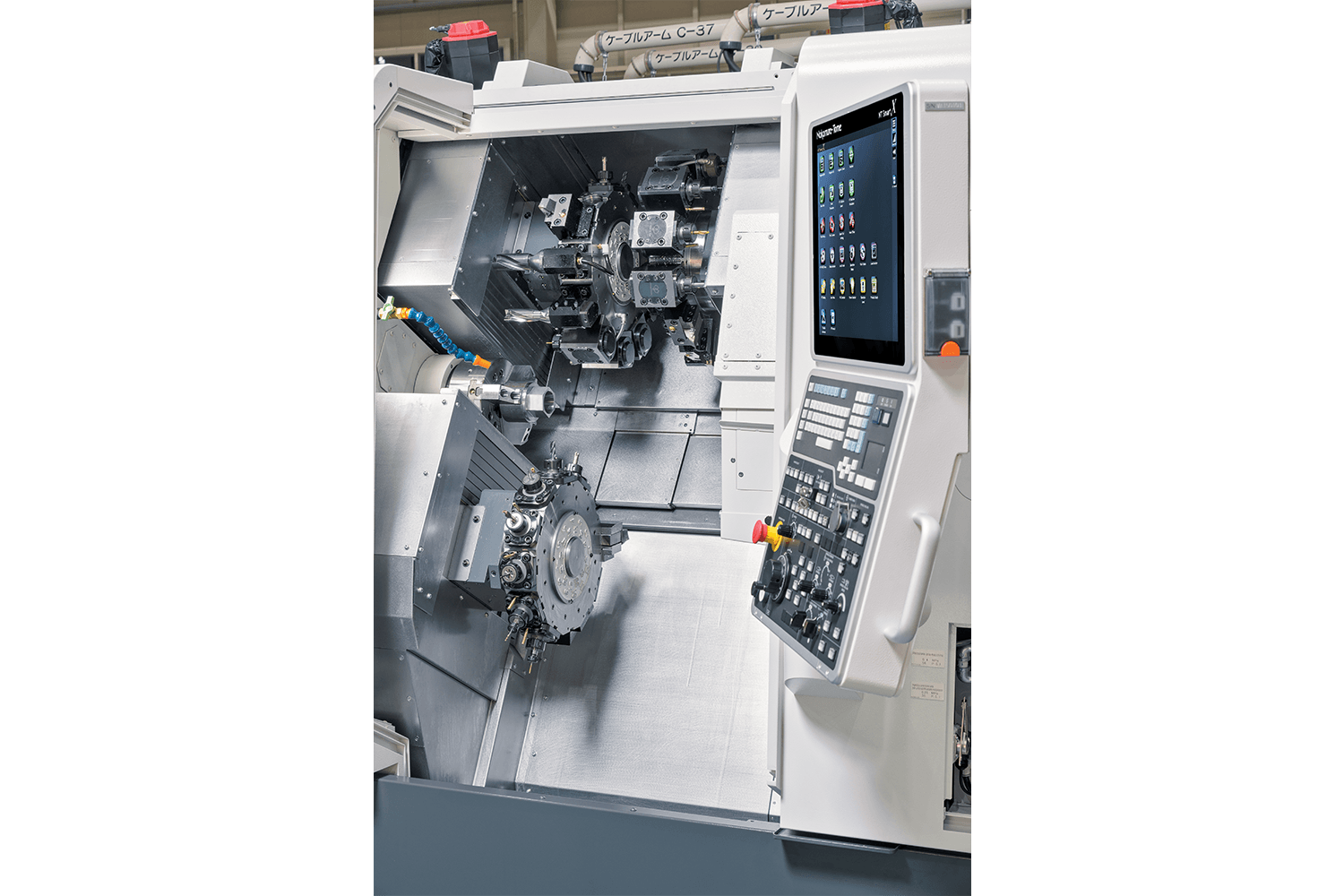

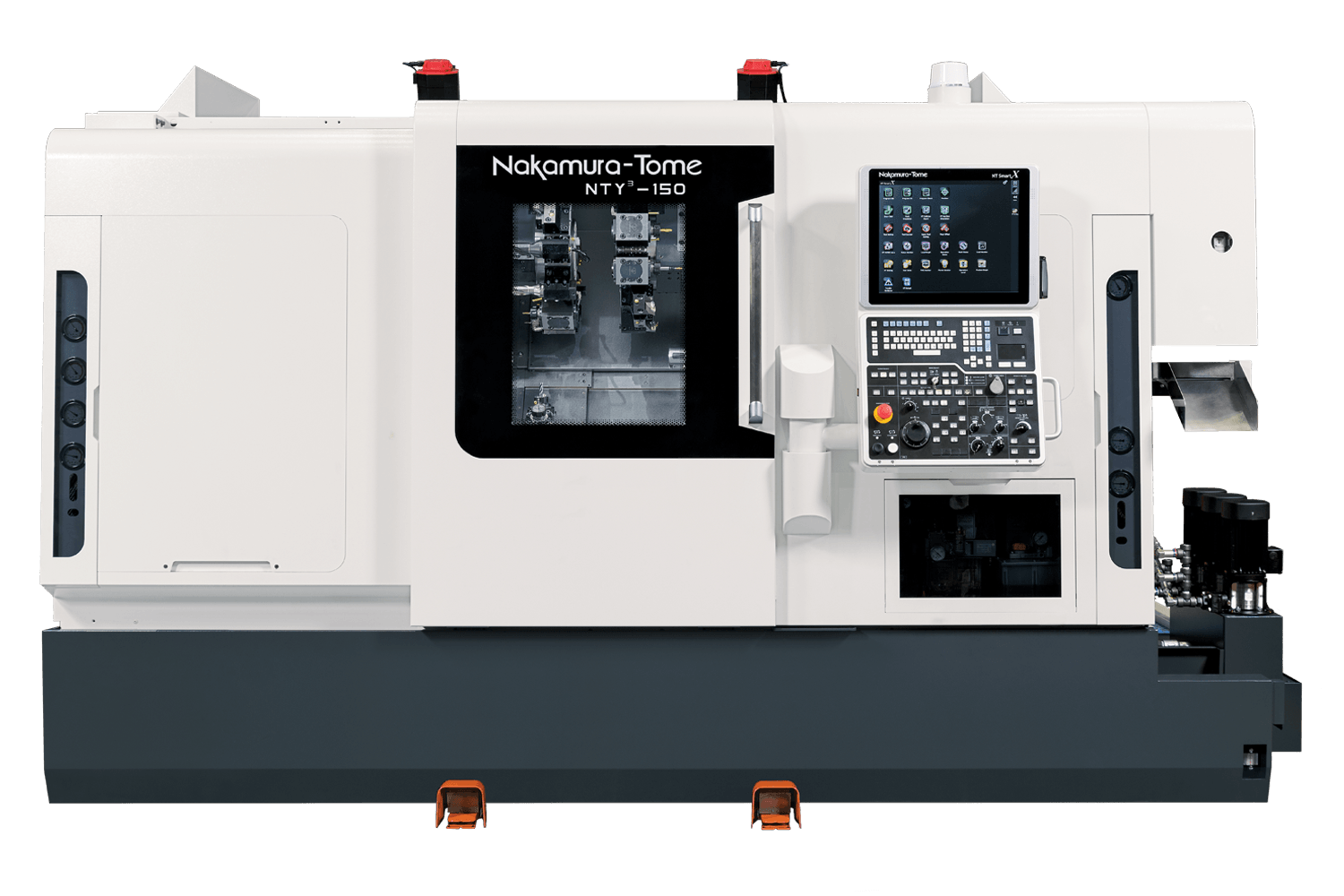

Nakamura-Tome has introduced the NTY3-150, a unique three-turret, 3 Y-Axis multi-tasking machine center offering a compact footprint with an ergonomic 60° slant bed. It’s the ultimate high precision, high-performance multi-tasking CNC machine.

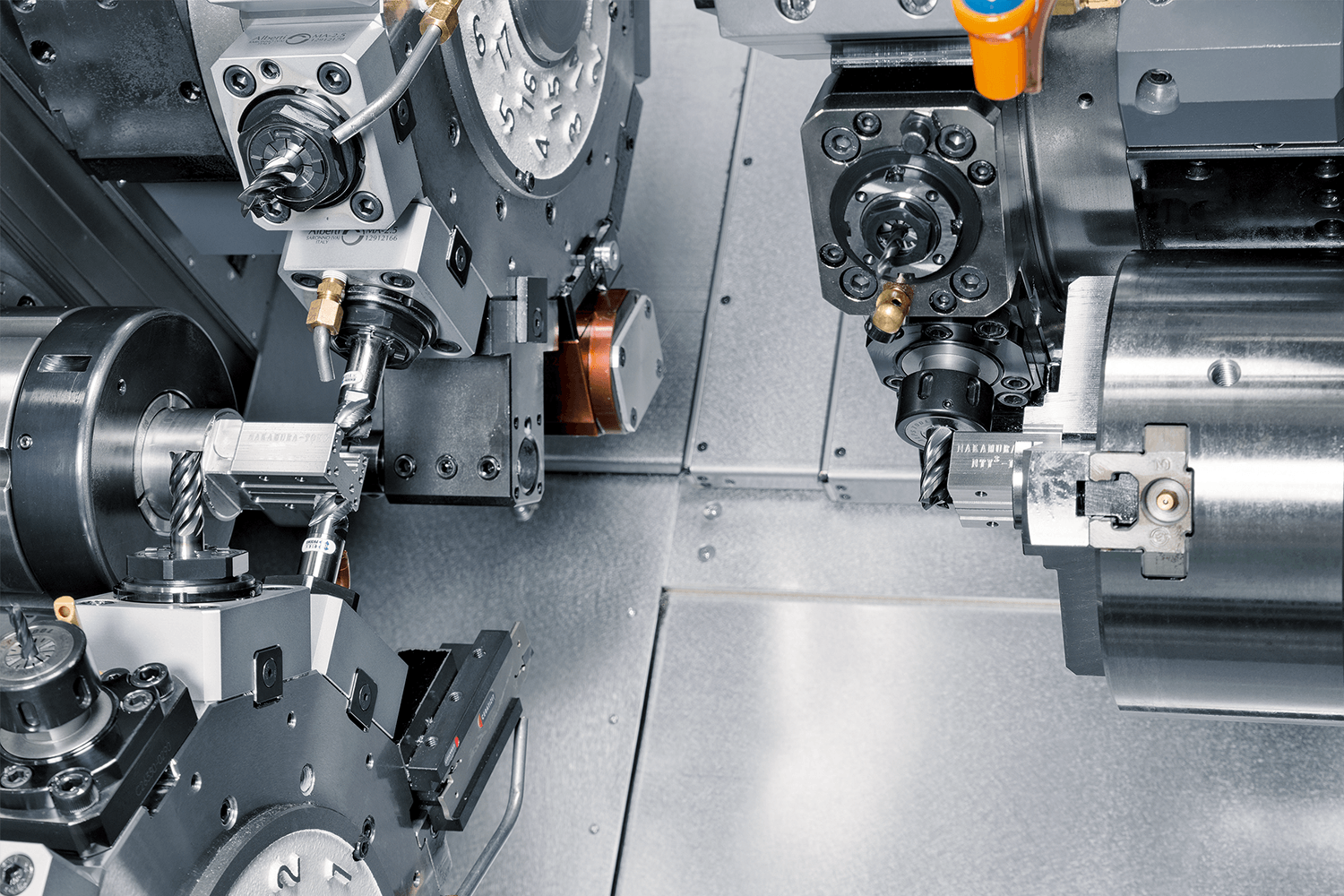

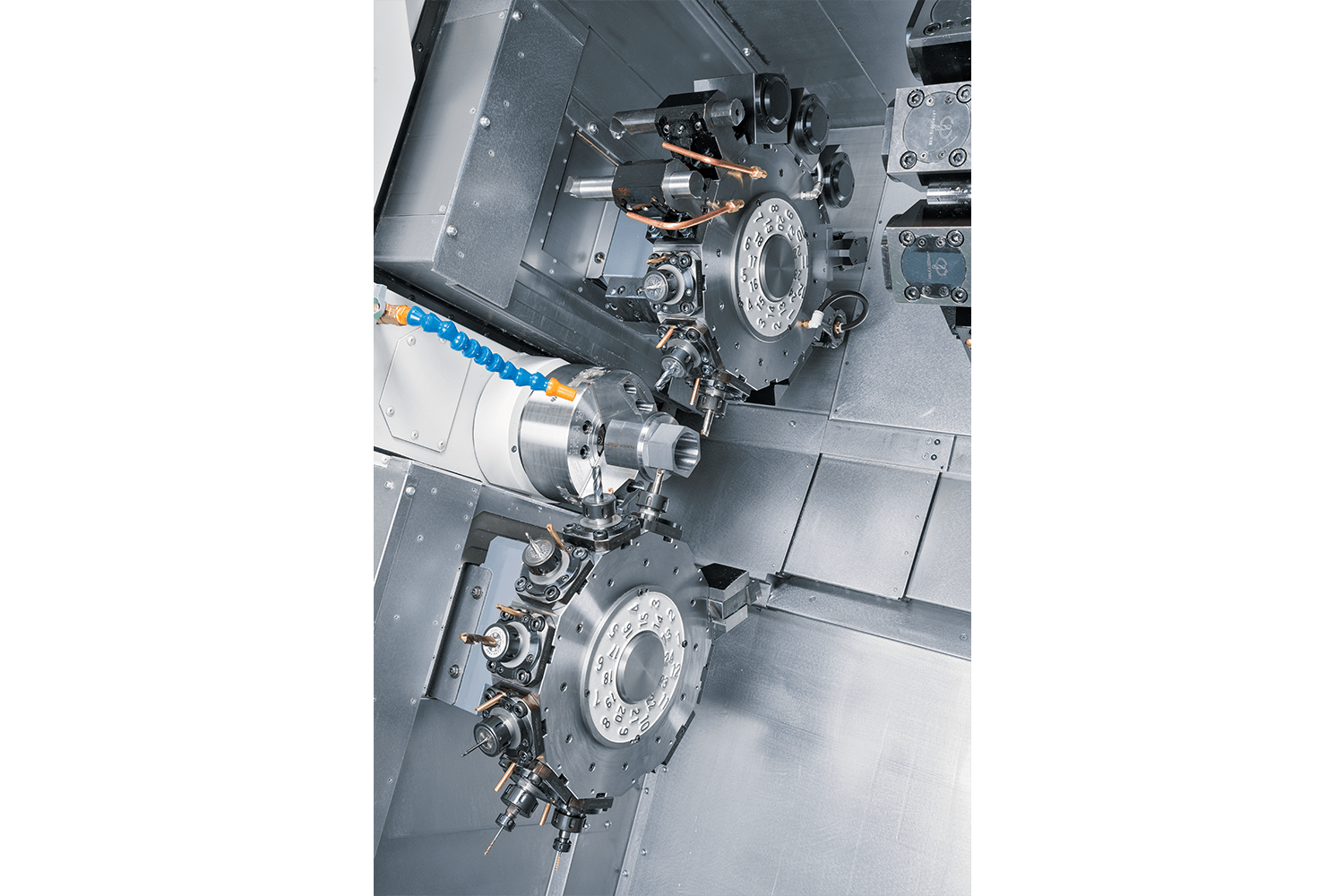

In addition to the advantages of simultaneous machining on the left and right-hand spindles, introducing the Y-axis on all three turrets contributes to increased productivity. By using Y-axis for simultaneous machining with the upper and lower turrets, machining process layout optimization becomes a reality.
The Super NTY3-150 is a high productivity, multitasking turning center that is at the cutting edge of speed. Whether machining with multiple tools simultaneously on one side, or on both the left and right-hand sides, the cycle time is dramatically reduced.
Product Details
Features & Benefits
- Opposing Two-Spindle, 3-Turret Construction
- 72 Tool Stations
- 36 Driven-Tool Stations
- 3.54 in. Y-axis travel on Upper Turrets
- 2.75 in. Y-axis travel on Lower Turret
- 6,000 RPM Driven-Tool Speed (All 3 Turrets )
- 20/15 HP Left and Right Spindle Motor
- 7.5 HP x3 Driven-tool Motor (Upper / Lower)
- 2.5 in. Bar Capacity
Technical Data
CAPACITY
- Max Turning Diameter
- 8.85 (225) in (mm)
- Max Turning Length
- 26.9 (685) in (mm)
BAR CAPACITY
- Bar Capacity L-Spindle
- 2.5 (65) in (mm)
- Bar Capacity R-Spindle
- 2.0 (51) in (mm)
- Chuck size
- 8 (210) in (mm)
AXIS TRAVEL
- Slide Travel (X)
- 6.31 (160.5) in (mm)
- Slide Travel (Y)
- 3.54 (90) in (mm)
- Slide Travel (Z)
- 9.25 (235) in (mm)
- Slide Travel (B)
- 30.31 (770) in (mm)
- Rapid Feed (X1, X2, X3)
- 787 ipm
- Rapid Feed (Y1, Y2, Y3)
- 314 ipm
- Rapid Feed (Z1, Z2, Z3)
- 1574 ipm
LEFT AND RIGHT SPINDLE
- Spindle Speed
- 4500 rpm
- Spindle Speed Range
- Stepless
- Spindle Nose
- A2-6
TURRET
- Number of Tool Stations
- 36
- Number of Indexing Positions
- 72
ROTATING TOOL
- Rotary System
- Individual Rotation
- Spindle Speed
- 6000 rpm
- Spindle Speed Range
- Stepless
- Number of Rotation Tool Station
- 36
DRIVE MOTOR POWER
- Main Spindle
- 20 H/P
- Right Spindle
- 20 H/P
- Driven Tool Spindle
- 7.5 H/P
GENERAL
- Machine Weight
- 24255 (11000) lbs (kg)
