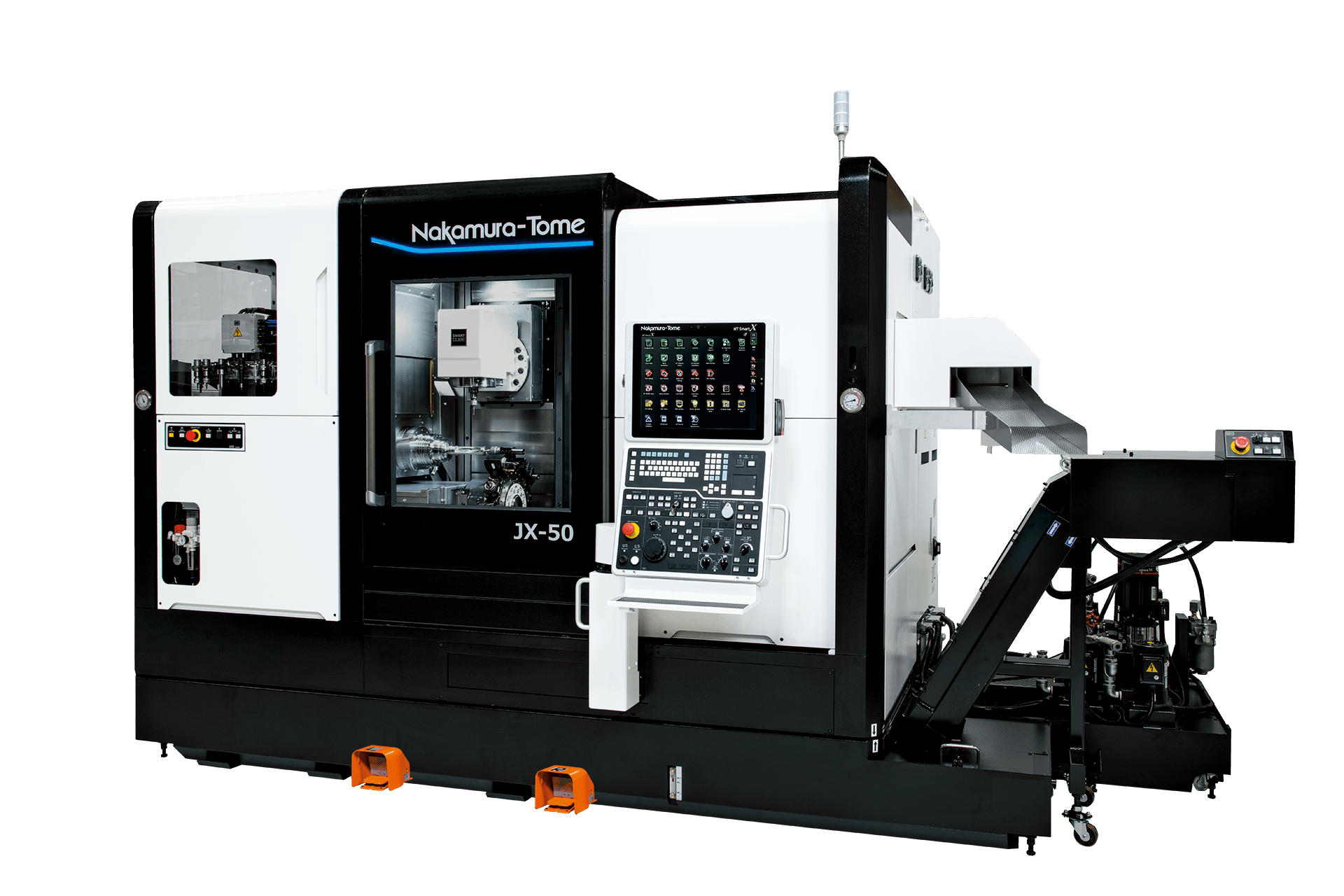

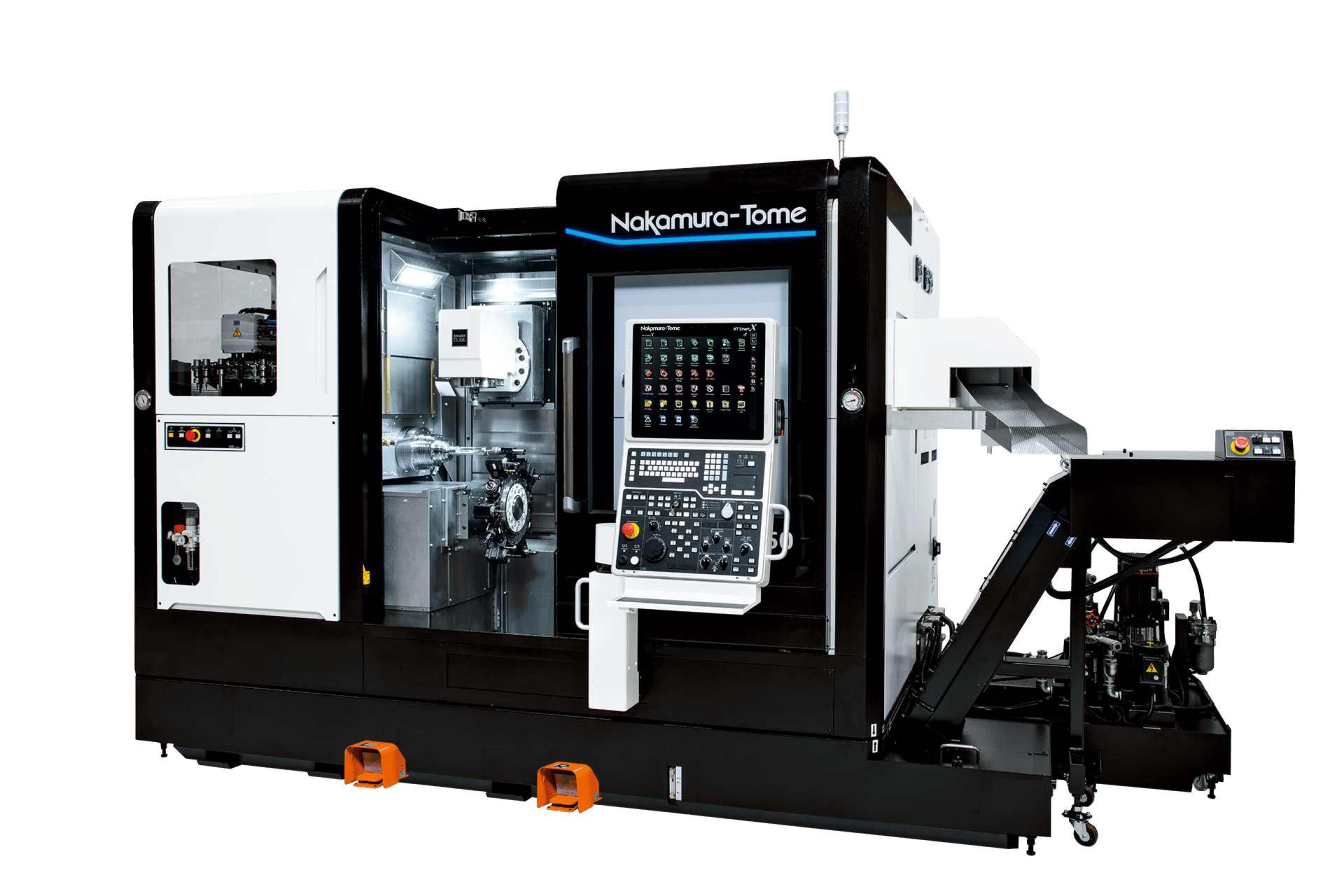

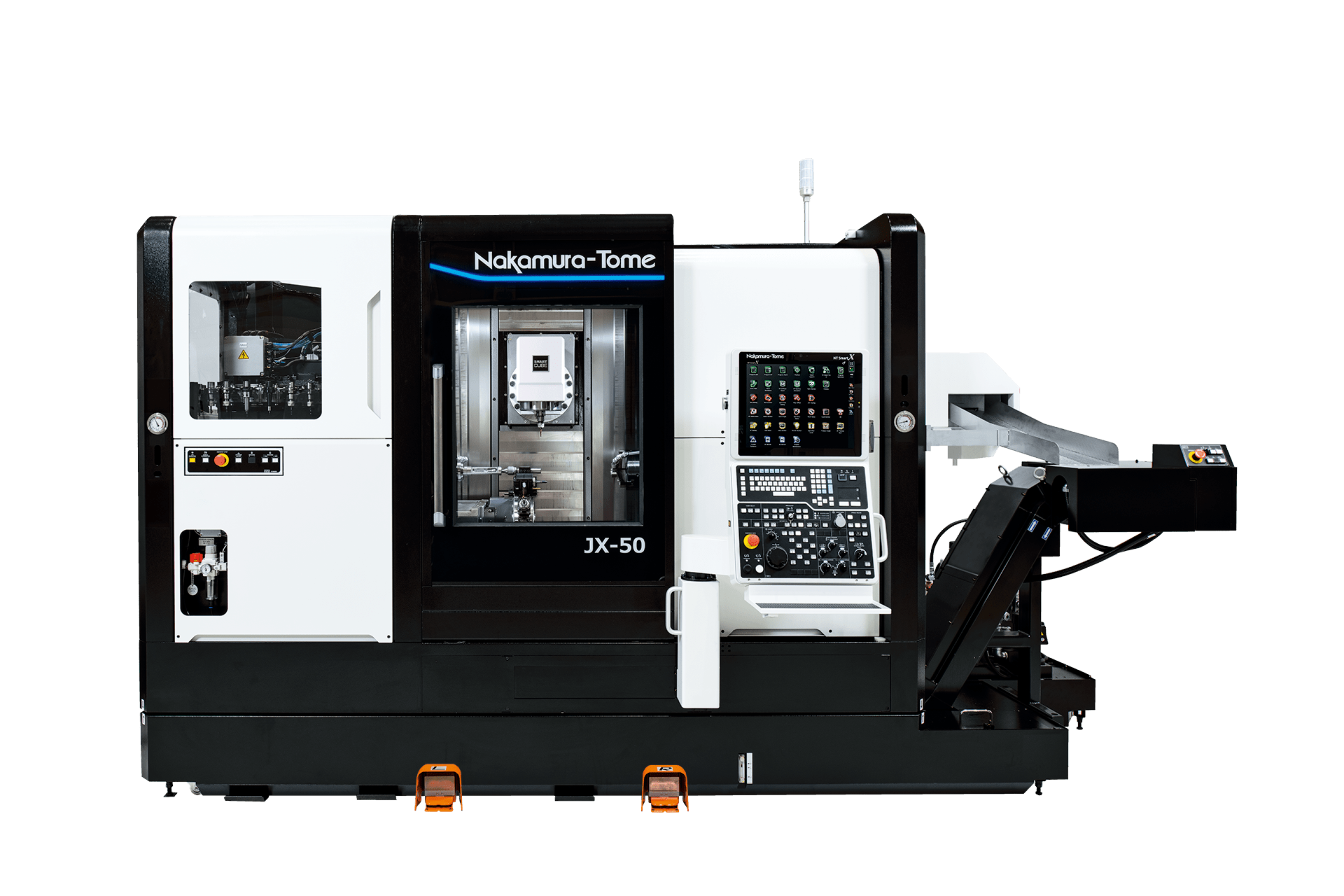

Nakamura-Tome
JX-50
The Nakamura-Tome JX-50 providers answers to today’s small(er)-part manufacturing. As parts get smaller and more complex, and increasingly shift from volume production to high-mix production, the JX-50 delivers space-saving efficiency and world-class precision you’ve come to know from Nakamura-Tome.
The JX-50 combines a small footprint, speed, and flexibility in key markets including medical devices, semiconductor parts, hydraulics, aerospace, and other high precision parts. Further, the high-speed and accurate B1-axis positioning make the JX-50 capable of producing precision products that require 5-axis machining
With the JX-50 checking in at more than 18,000 pounds in a footprint 3-meter (width) x 2-meter (depth) footprint, rigidity is of no concern.
Product Details
Features & Benefits
- Number of milling stations: 12
- Number of indexing positions: 24
- Number of ATC tools: 60 (op. 119)
- 10 HP / 3.75 HIP on 12/24 Lower Turret (9,000 rpm)
- Precision Milling Package
- Floor space 14 ft (L) x 7.8 ft. (D) x 7.28 ft.

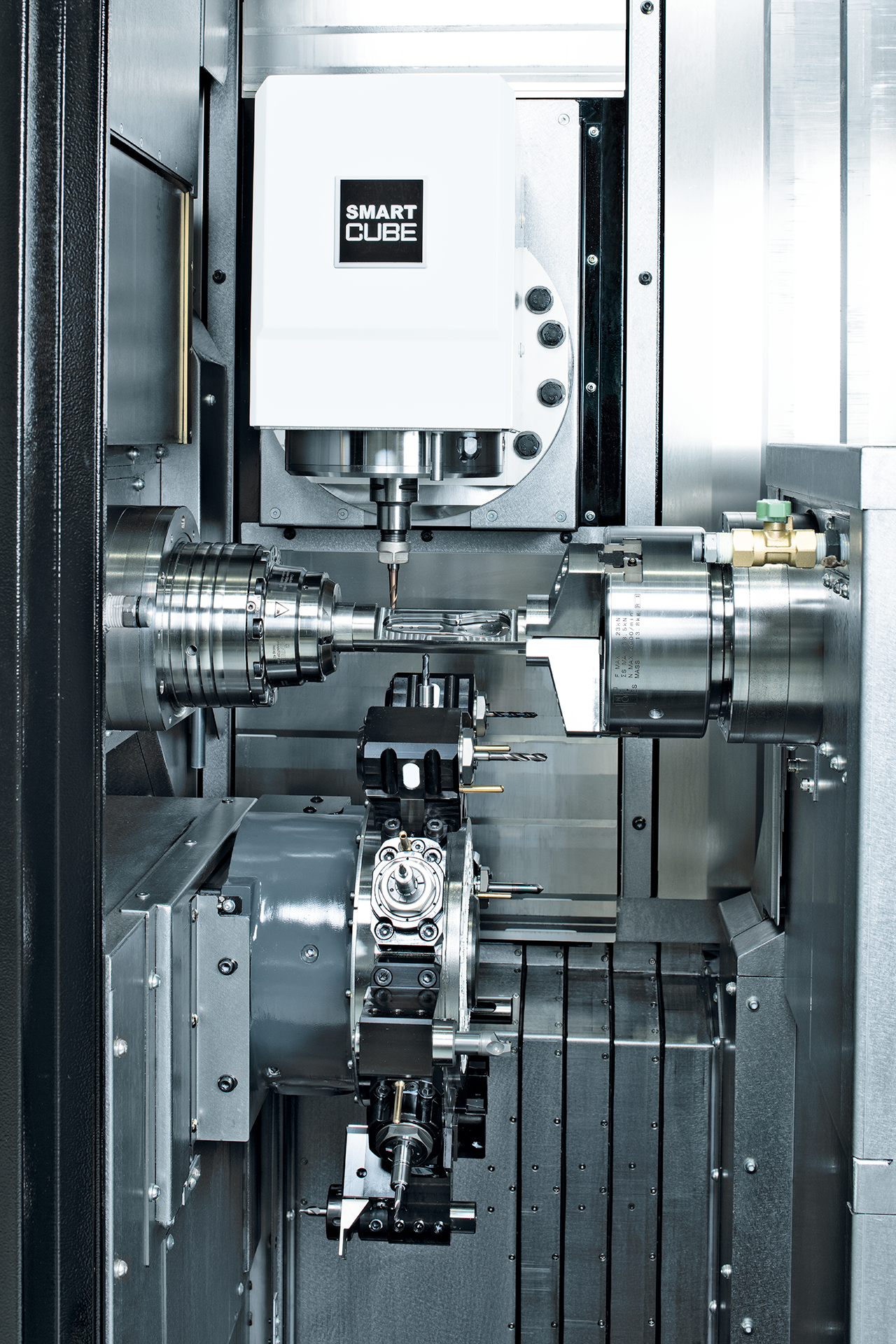

- Flexible machining with left/right spindles
- 30,000 rpm (12 HP / 5 HP ) milling spindle
- Remnant Discharge Unit with storage
- Parts Catcher Type Ø 44 mm x 150 mm (L) x 1.5 kg
Technical Data
CAPACITY
- Max. Turning Diameter
- Tool Spindle: 11 in. (280 mm) | Lower Turret: 8.6 in. (220 mm)
- Distance Between Spindles
- Max: 35.4 in. (900 mm) | Min: 8.6 in. (220 mm)
- Max. Turning Length
- 25.59 in. (650 mm)
- Bar Capacity
- Ø 1.65 in. (42 mm)
- Chuck Size
- 5 in. | 6 in.
AXIS TRAVEL
- Slide Travel: X1
- 18.7 in. (475 mm)
- Slide Travel: X2
- 71. in (180.5 mm)
- Slide Travel: X3
- 6.69 in. (170 mm)
- Slide Travel: Z1
- 25.59 in. (650 mm)
- Slide Travel: Z2
- 27.55 in. (700 mm)
- Slide Travel: Y1
- ± 3.14 in (80 mm)
- Slide Travel: Y2
- ± 1.28 in. (32.5 mm)
- Slide Travel: B2
- 26.77 in. (680 mm)
RAPID FEED RATE
- X1
- 98.4 ft. / min (30 m / min)
- X2 / X3
- 78.7 ft./min (24 m / min)
- Z1/Z2
- 131.2 ft./min (40 m / min)
- Y1
- 52.4 ft./min (16 m / min)
- Y2
- 19.6 ft./min (6 m / min)
- B2
- 131.2 ft./min (40 m / min)

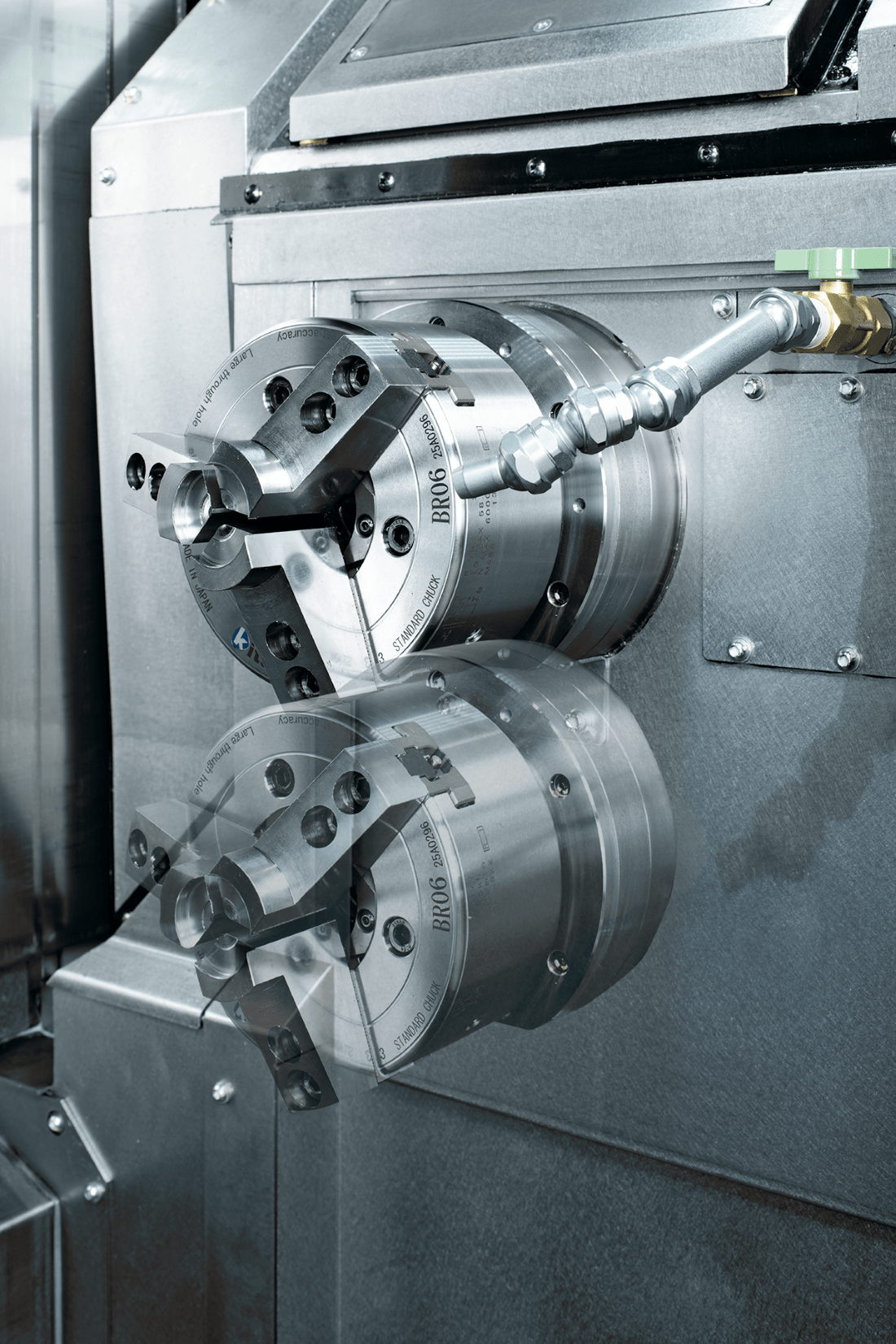

LEFT SPINDLE
- Spindle Speed
- 6,000 rpm
- Spindle Speed Range
- Stepless
- Spindle Nose
- A2-5
- Hole Through Spindle
- 2.20 in. (56 mm)
- I.D. of Front Bearing
- 31.4 in. (80 mm)
- Hole Through Draw Tube
- 1.69 ft./min (43 mm)
RIGHT SPINDLE
- Spindle Speed
- 6,000 rpm
- Spindle Speed Range
- Stepless
- Spindle Nose
- A2-5
- Hole Through Spindle
- 2.20 in. (56 mm)
- I.D. of Front Bearing
- 31.4 in. (80 mm)
- Hole Through Draw Tube
- 1.69 ft./min (43 mm)

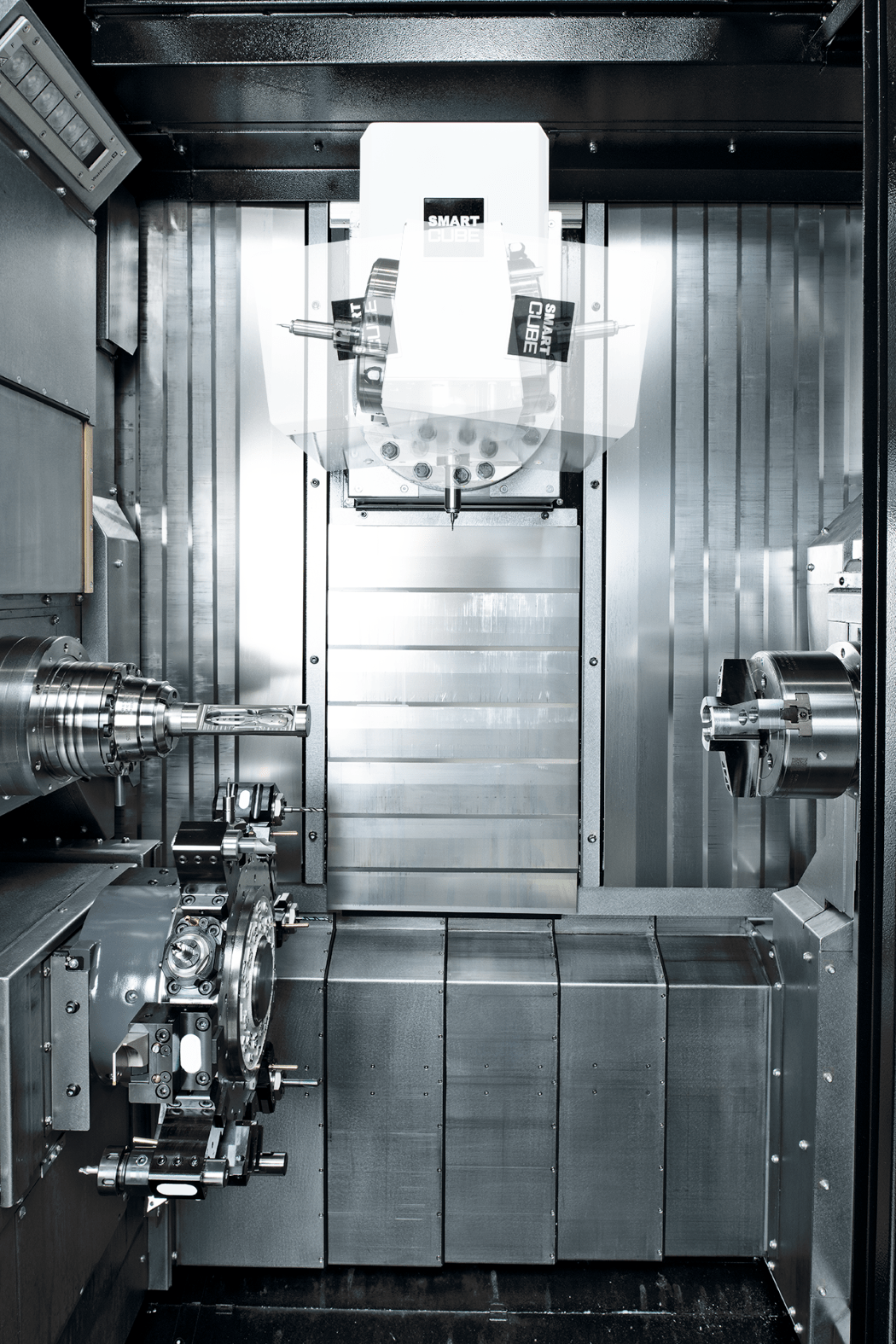

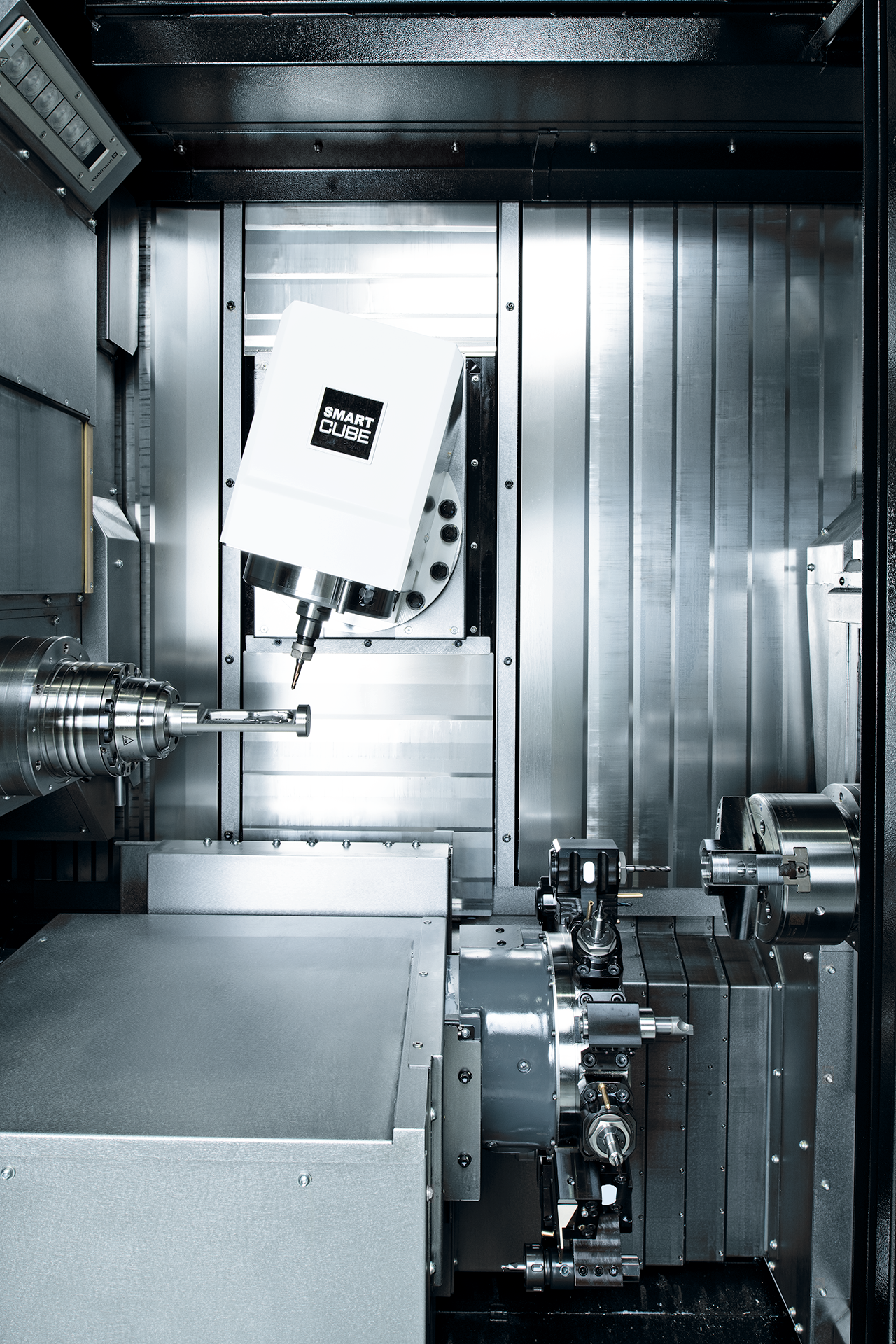

ATC TOOL SPINDLE
- Tool Spindle Speed
- 26,000 rpm (Continuous) | 30,000 rpm (Max.)
- Swiveling Range
- 190° (±95°)
- Tool Coupling Type
- CAPTO C4 / HSK-T40 (op.)
- Number of Tools
- 60 (op. 119)
- Max Tool Diameter | Without Adjacent Tool
- Ø 2.16 in. (55 mm) | Ø 2.36 in. (60 mm)
- Max Tool Length
- 150 mm
LOWER TURRET
- Type of Turret Head
- Dodecagonal drum turret
- Number of Indexing Positions
- 24
- Tool Size (Square Shank)
- Ø 20 mm (Ø 16 mm)
- Tool Size (Round Shank)
- Ø 20 mm
MILLING
- Rotary System
- Individual rotation
- Milling Spindle Speed
- 9,000 rpm
- Spindle Speed Range
- Stepless
- Number of Milling Stations
- 12
- Holder Type | Tool Size
- Straight: Ø 1mm - Ø 13 mm | Cross: Ø 1mm - Ø 13 mm
DRIVE MOTOR
- Left and Right Spindle
- 11/7.5 kW
- Tool Spindle
- 9/3.7 kW
- Milling
- 7.5/2.8kW (16.5N･m)
GENERAL
- Height
- 7.38 ft.
- Max. Height of Movable Part
- 7.82 ft.
- Floor Space (W x D)
- 14 ft. X 7.8 ft.
