Nakamura-Tome
JX-200

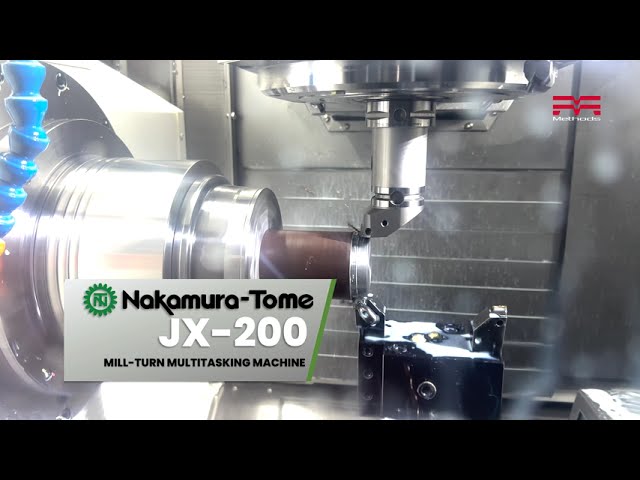

Ultra-modern 6-to-10-inch chuck B-axis, multitasking machine. With tool spindle and a lower turret equipped with a standard Y-axis featuring the “NT Smart Cube”, the shortest tool spindle in its class, providing an even larger machining area.

Distance between spindles 1,250mm thanks to a heavy-duty column structure, the stability is increased. Number of tools for ATC magazine 80 pcs (op. 40, 120) Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles. Milling and Y-axis are standard for the lower turret.



Request Information

Or call 1-877-668-4262

Download Brochure

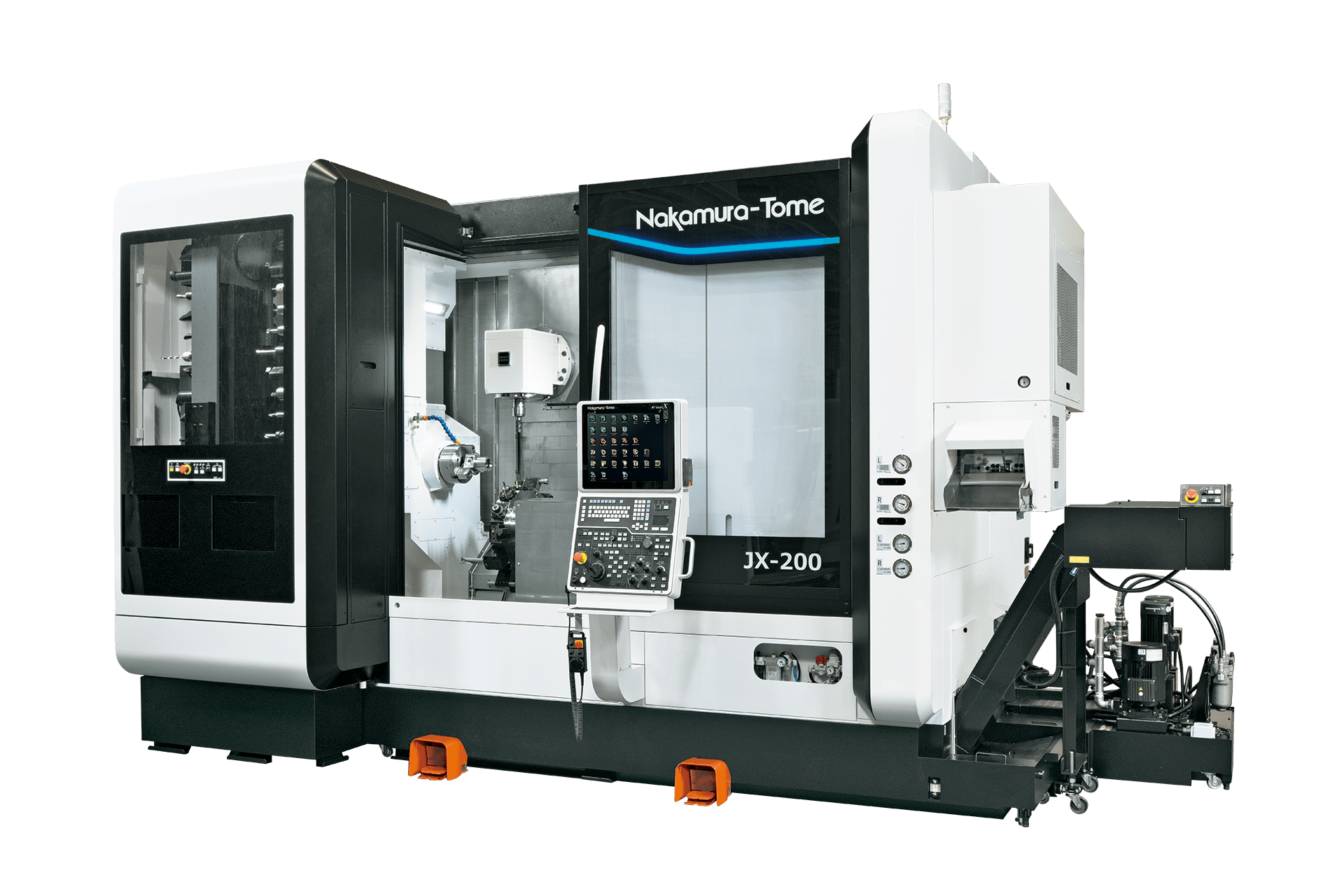

Nakamura-Tome JX-200 From Angle with Machine Open

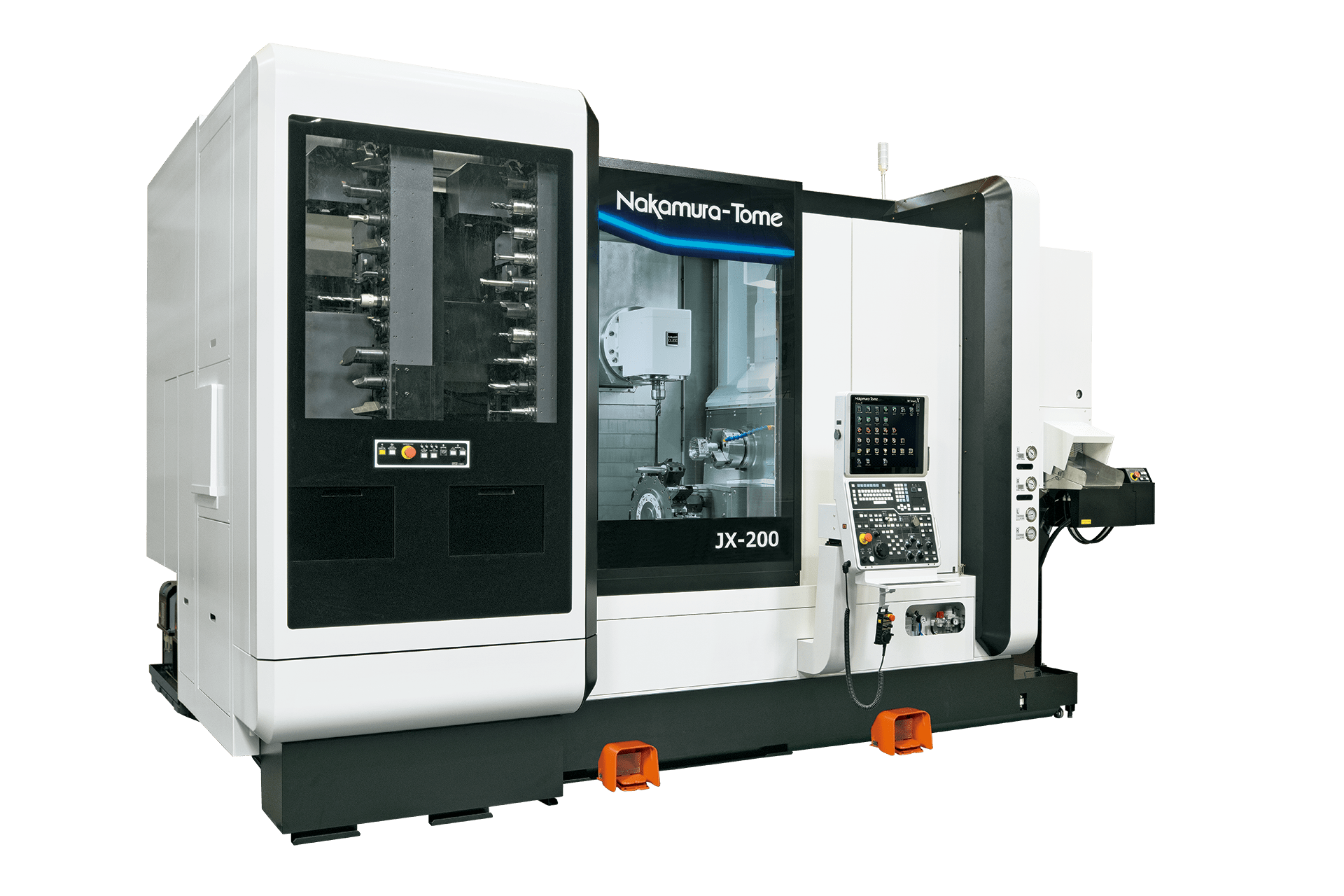

Nakamura-Tome JX-200 From Diagonal Right with Machine Closed

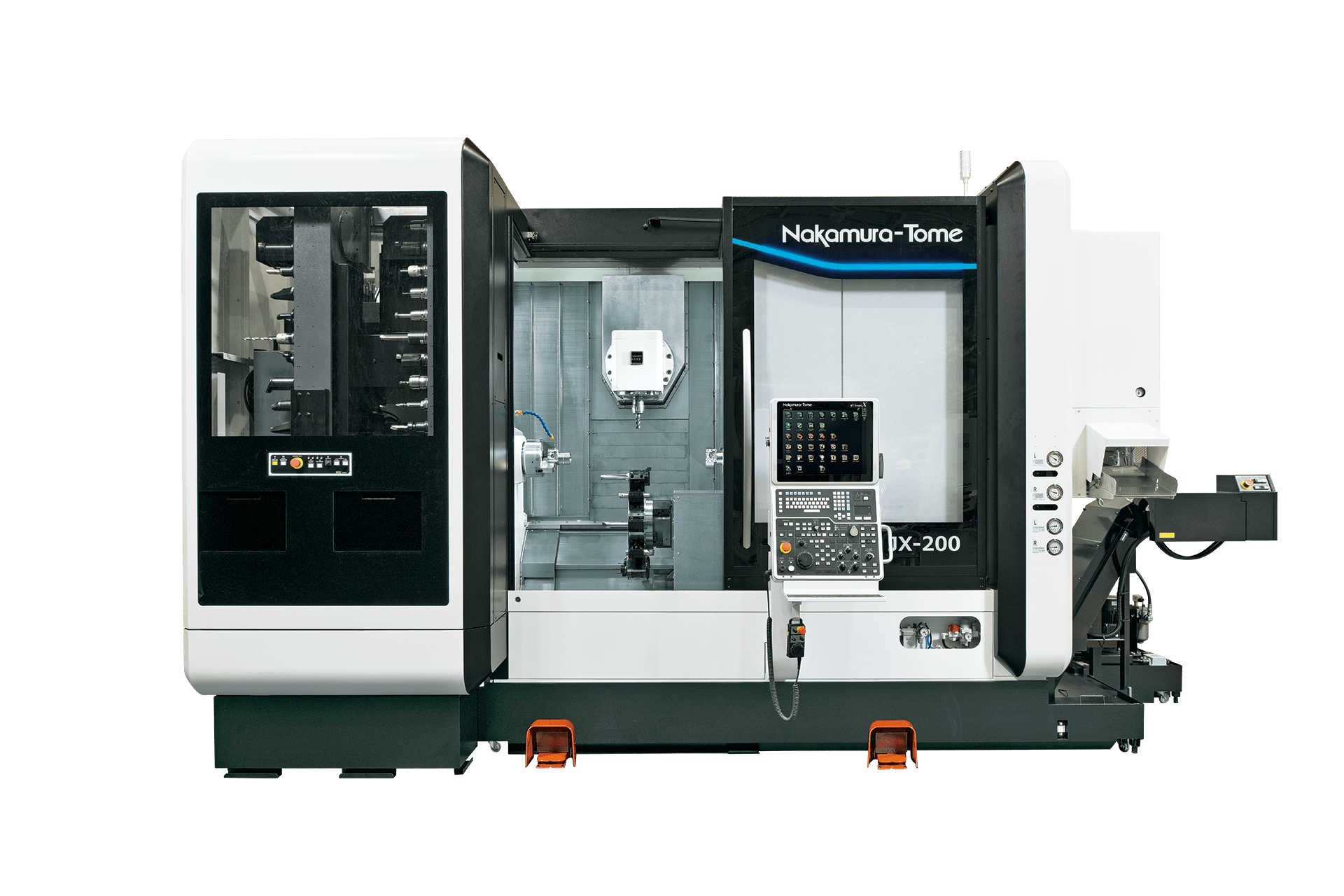

Nakamura-Tome JX-200 Machine Front with Open Door

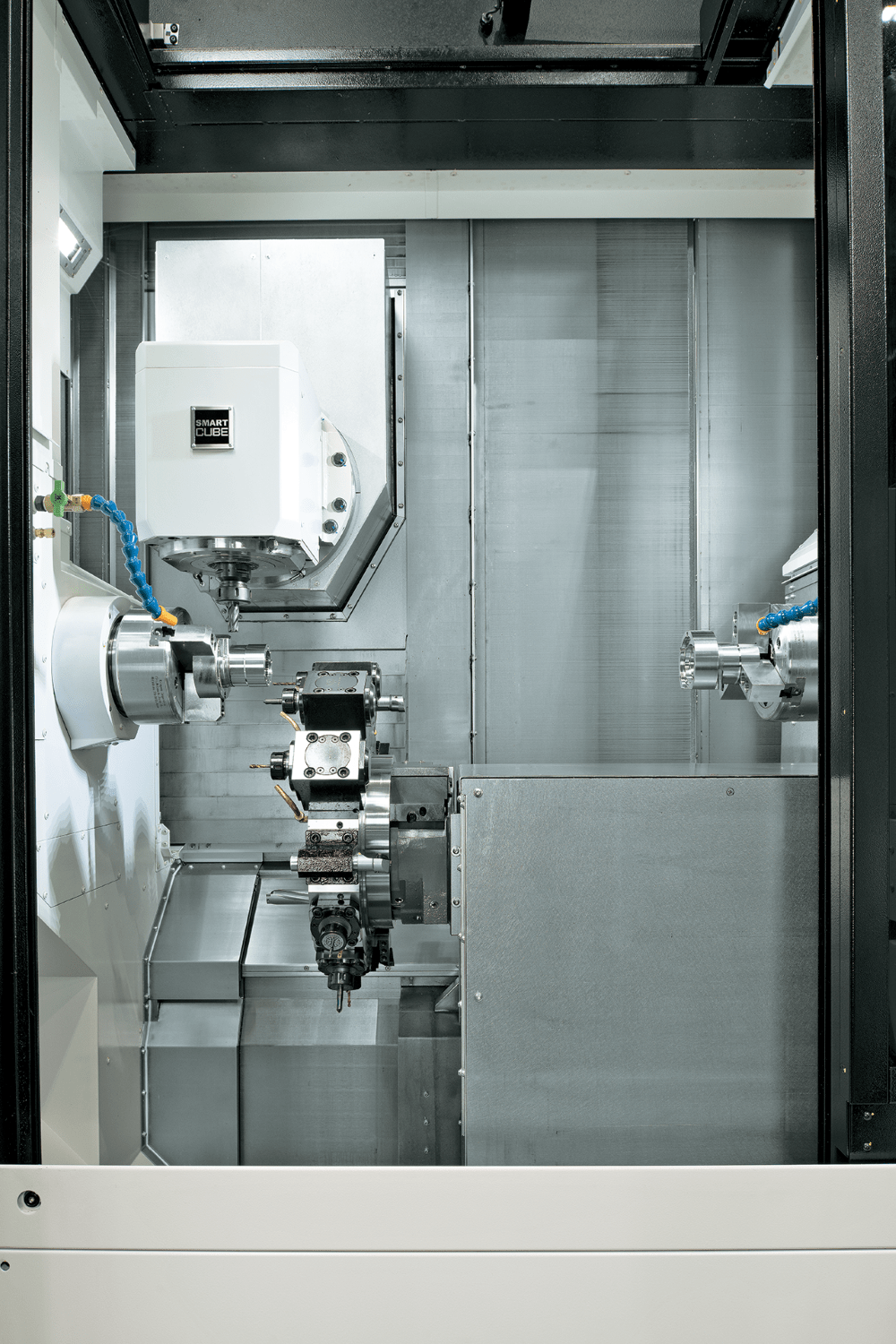

Nakamura-Tome JX-200 B-axis multitasking automation machine

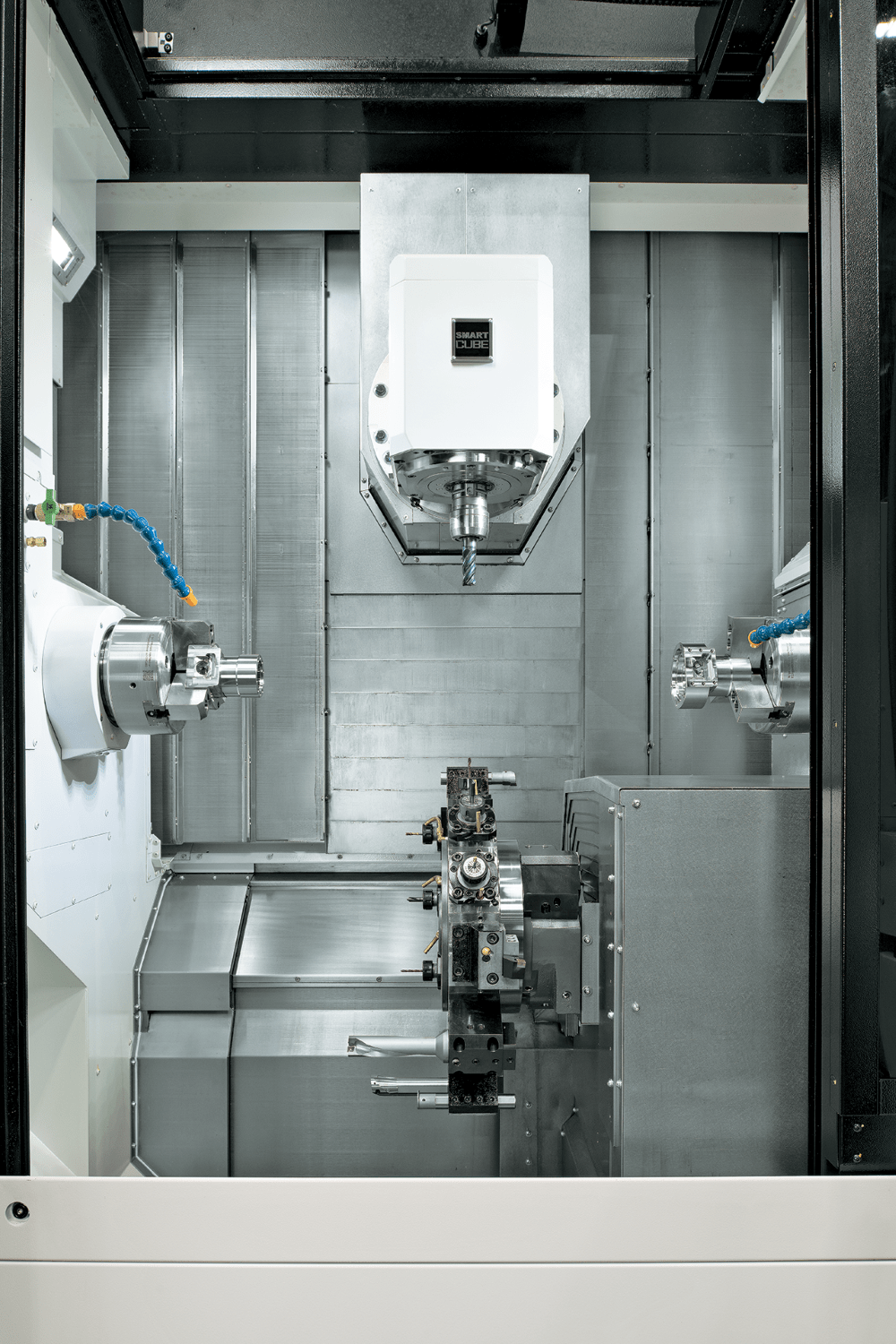

JX-200 Ultra-modern 6-to-10-inch chuck B-axis, multitasking CNC machine

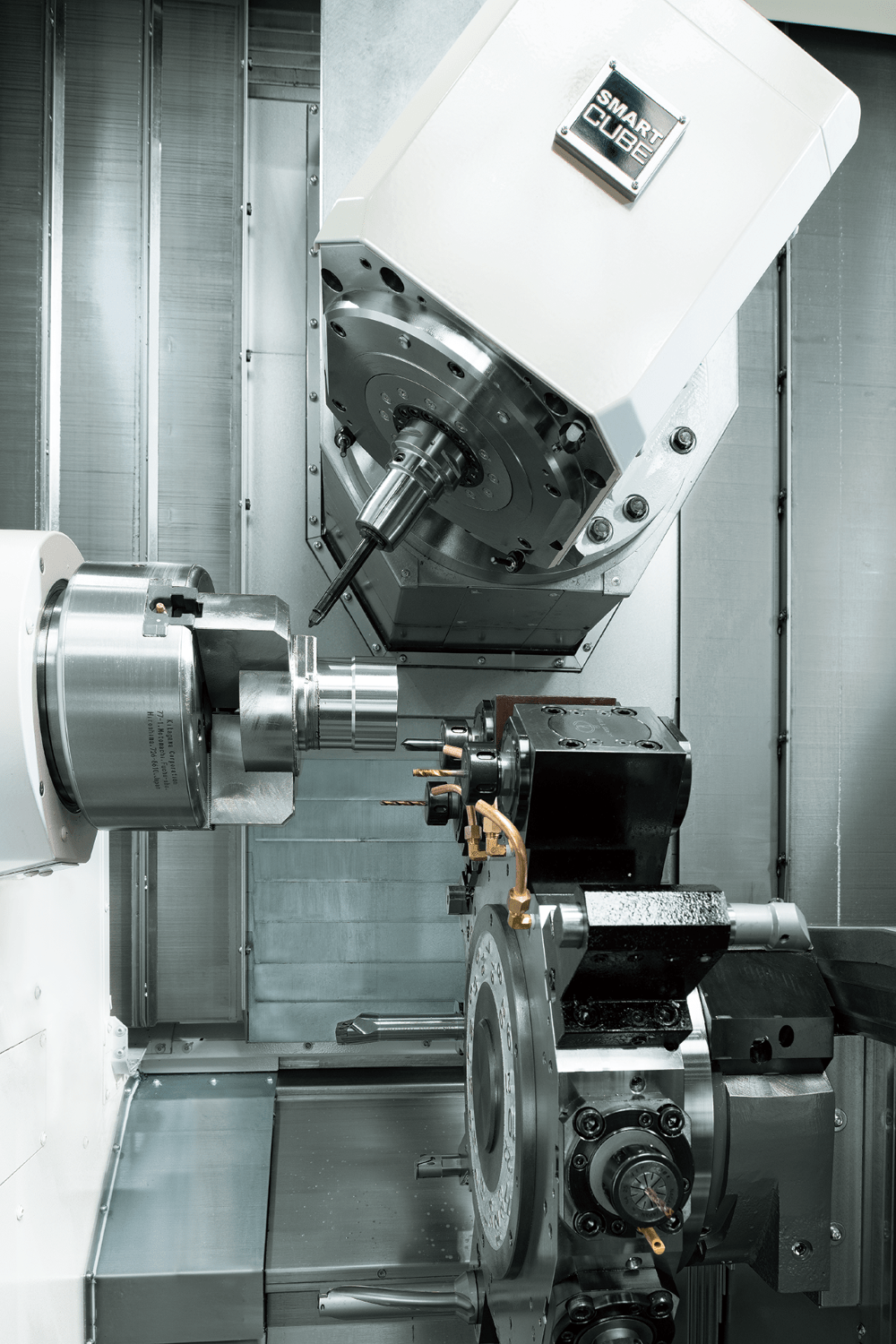

JX-200 Ultra-modern 6-to-10-inch chuck B-axis, multitasking machine closeup

Product Details

Features & Benefits

  • ATC tool spindle motor 15/11kW Tool spindle speed 12,000min-1 (op. 18,000min-1)
  • Number of ATC tools: 80 (op. 40,120)
  • 5.5/3.7kW milling motor on the lower turret rotation speed 6,000min-1 (op. 8,000min-1)
  • Increased stability thanks to a heavy-duty column structure
  • Floor space 2,925mm × 5,250mm (including standard coolant tank)
  • Flexible machining with left/right spindles
  • Simultaneous Y-axis vertical machining
  • Turret center-support
  • Long drill machining
  • Parts Catcher Type G with belt conveyor and chute ejection
  • Semi-automatic loading/unloading of workpieces

Technical Data

Capacity

Max Turning Diameter (Tool spindle / Lower turret)
325 mm / 255 mm
Max Turning Length
1,058 mm (41.65 in.)

Bar Capacity

Bar Capacity L-Spindle
65 mm (op. 80 mm)
Bar Capacity R-Spindle
51 mm (op. 65 mm)
Chuck size
6 in. / 8 in. / 10 in.

Axis Travel

Slide Travel: X1
585 mm (23 in.)
Slide Travel: X2/X3(opt)
162.5 mm (6.39 in.)
Slide Travel: Z1
1,050 mm [at ATC +180mm] (41.33 in.)
Slide Travel: Z2
1,005 mm (39.56 in.)
Slide Travel: Y1
± 105 mm (4.13 in.)
Slide Travel: Y2/Y3(opt)
± 35 mm (1.37 in.)
Slide Travel: B2
1,010 mm (39.76 in.)

Left Spindle

Spindle Speed
4,500 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-6 (A2-8 Op. 80)
Hole Through Draw Tube
66 mm (81 mm Op. 80)

Right Spindle

Spindle Speed
6,000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5 (A2-6 op. 65)
Hole Through Draw Tube
52 mm (66 mm Op. 65)

ATC Tool Spindle

Number of Tool Stations
80 (Op. 40, 120)
Tool Spindle Speed
12,000 rpm (18,000 rpm Op.)
Swivel Range
190° (± 95°)
Tool Coupling Type
CAPTO C6 (Op. HSK T-63)
Max Tool Diameter [Without Adjacent Tool]
90 mm (3.54 in.) [130 mm (5.11 in.]
Max Tool Length
300 mm (11.8 in.)

General

Machine Weight
50,706 lbs (ATC 80)
Machine Height
115.15 in.
Floor space (L x W)
206.69 in. x 114.06 in.
