Fanuc

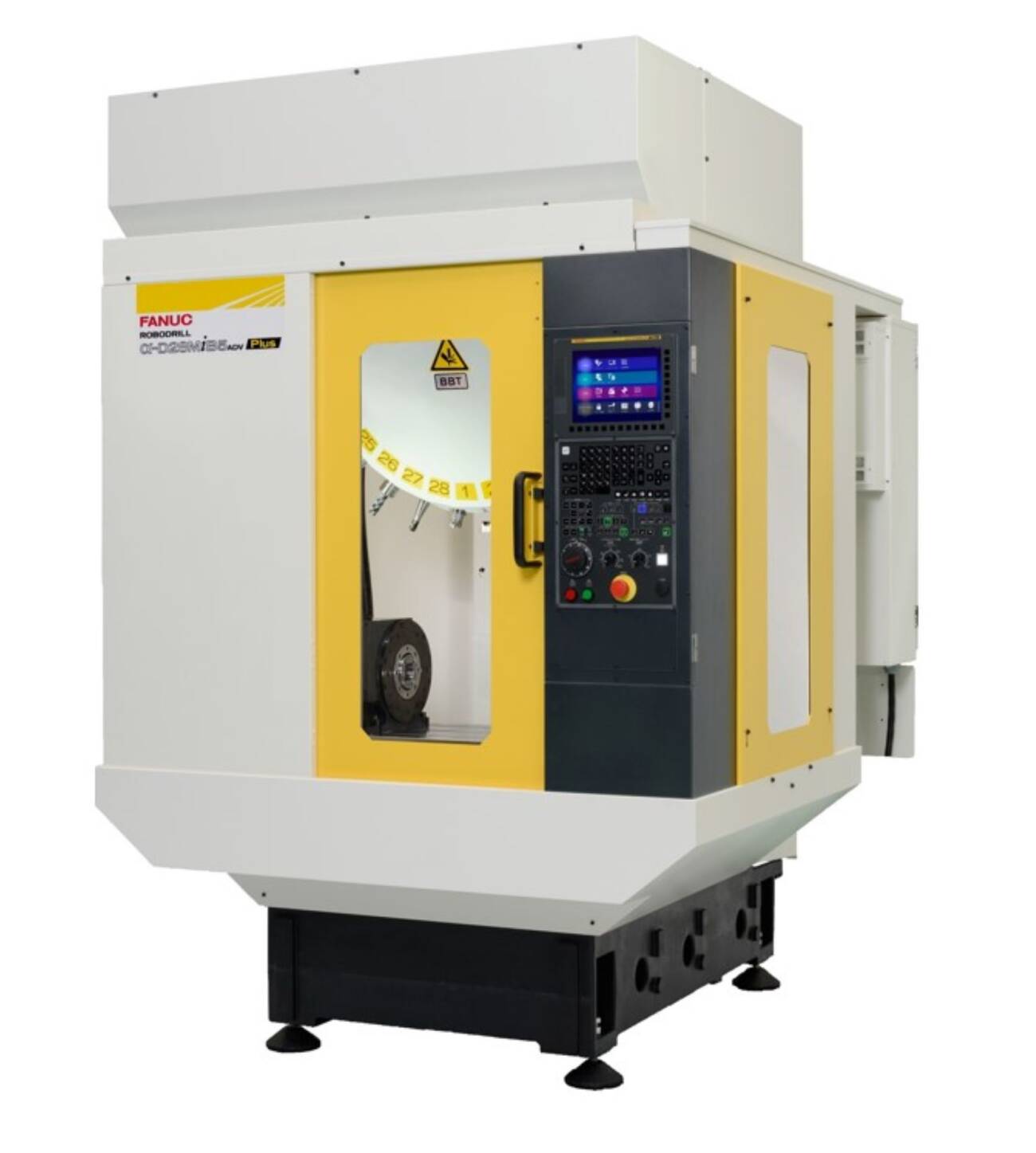

RoboDrill 28-Tool Medium Bed Advanced Series
The FANUC RoboDrill is a high-performance machining center, known worldwide as the most reliable machine manufactured today.
The new RoboDrill D28iMB5 machine builds on the legacy of the industry’s best vertical machining center by expanding to 28 tools (up from 14 or 21).
RoboDrills make quick work out of any milling, drilling or tapping jobs. Reliability has also been addressed in all areas of the machine design. Coupled with the latest FANUC 31i-B5 PLUS control, the RoboDrill is the preferred machine in any manufacturing facility, large or small.
Product Details
Features & Benefits
- Compact Design
- FANUC 31i-B Nano CNC System
- Fine Surface Finish Technology with HRV3+
- Cycle Time Reduction Using Machining Mode 2 Function
- 1.4 sec Chip to Chip
- 2,126 in/min rapids
- 5 Million ATC Duty Life
- High-power Spindle Motors Standard
- Fine Surface Technology with Smooth Tolerance+
- 10.4 in. Color LCD for iHMI
- “Quick” Tap Recovery System
- Simultaneous ATC / Table Positioning
- Easy to Automate with Methods
- 100% Built in Japan
Technical Data
TRAVEL
- X-Axis Travel
- 500 mm
- Y-Axis Travel
- 400 mm
- Z-Axis Travel
- 400 mm
- Spindle to Table (with 100mm Riser)
- 180 - 580 mm
TABLE SIZE
- Table Size
- 650 mm X 400 mm
- Table Capacity
- 400 kg
GENERAL
- Floor Space
- 63.6 in. X 80.7 in. X 92.0 in. Height (with 100mm riser)
- Machine Weight
- 4960 lbs (2250 kg)
- TURRET STYLE ATC SPECIFICATIONS
- Tool-to-Tool Change Time
- 0.7 seconds
- Chip-to-Chip Change Time
- 1.4 seconds
- Max Tool Length
- 250 mm
- Max Tool Diameter
- 80 mm
SPINDLE
- Spindle Taper
- BBT-30
- Spindle Speed
- 10K or 24K RPM
- FEEDRATE
- X-Axis Rapid Traverse
- 54 m/min (2,126 in/min)
- Y-Axis Rapid Traverse
- 54 m/min (2,126 in/min)
- Z-Axis Rapid Traverse
- 54 m / min (2,126 in/min)

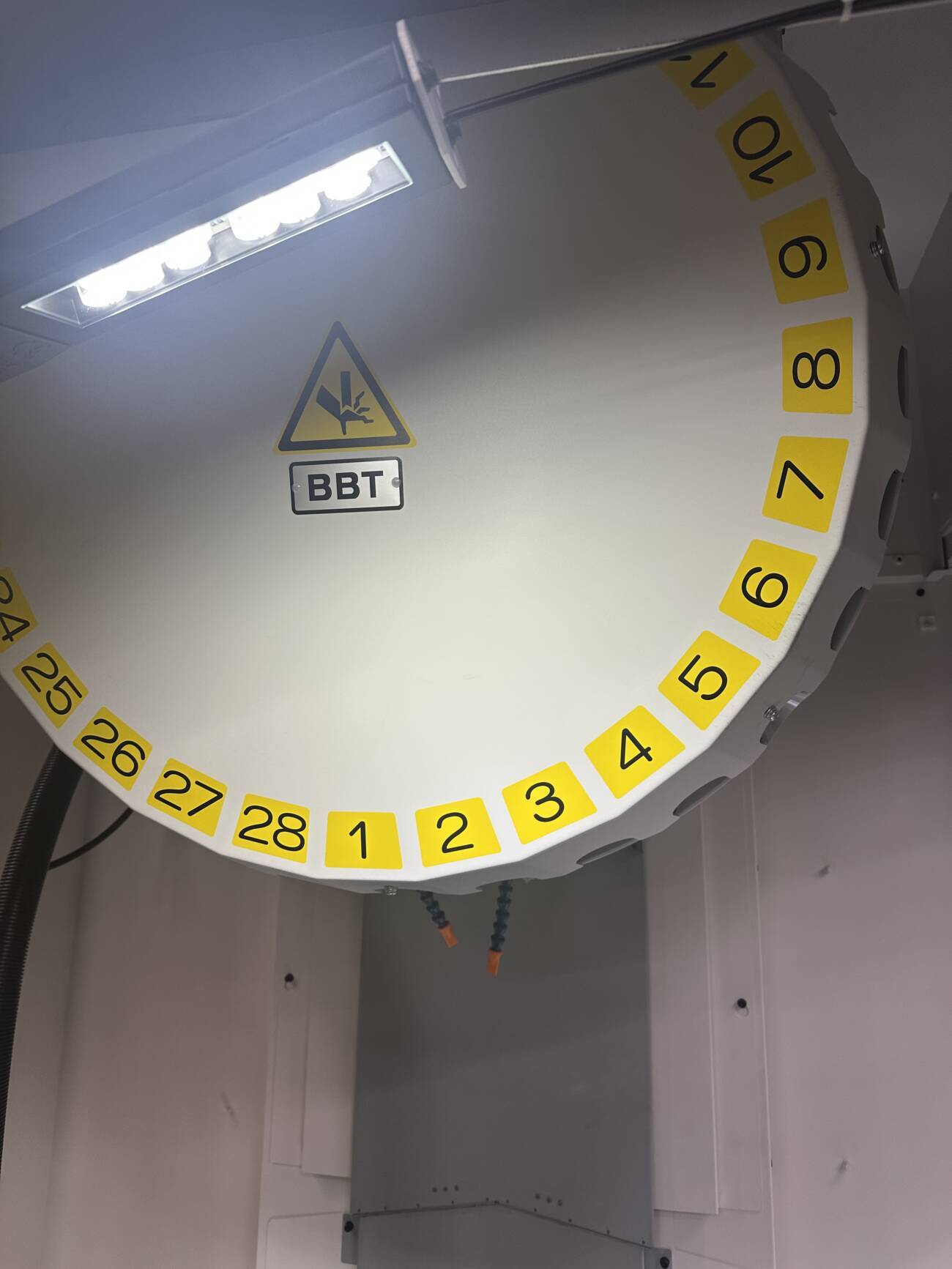

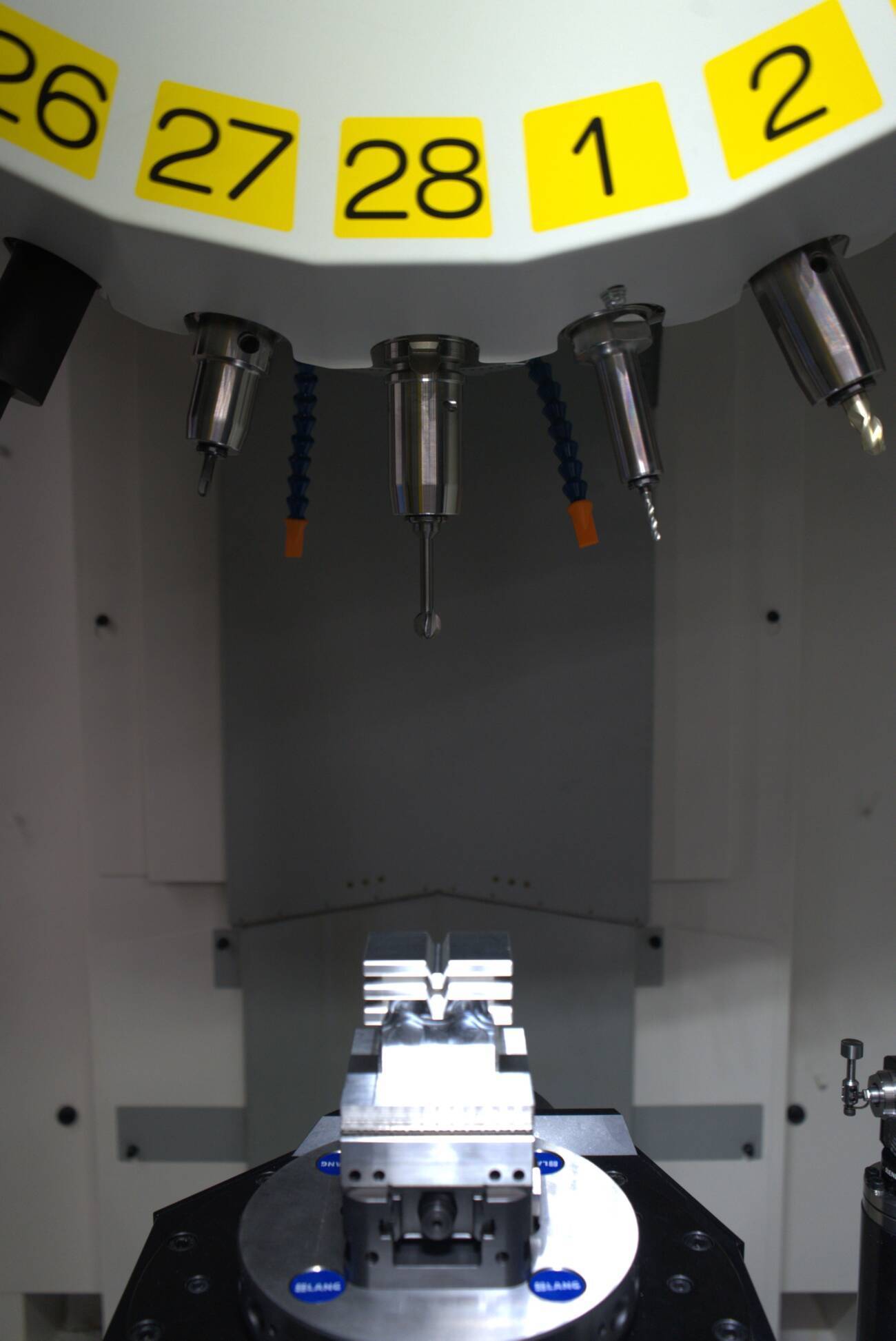

ATC
- ATC Type
- Turret Type
- ATC Turret Capacity
- 28 tools
- Tool-to-Tool Change Time
- 0.7 seconds
CONTROL
- Model
- Fanuc 31i-B5 PLUS
- Maximum Programming Memory
- Up to 2 GB Optional
- Total Simultaneous Axis
- Up to 5-axis
