Nakamura-Tome
NT-Flex

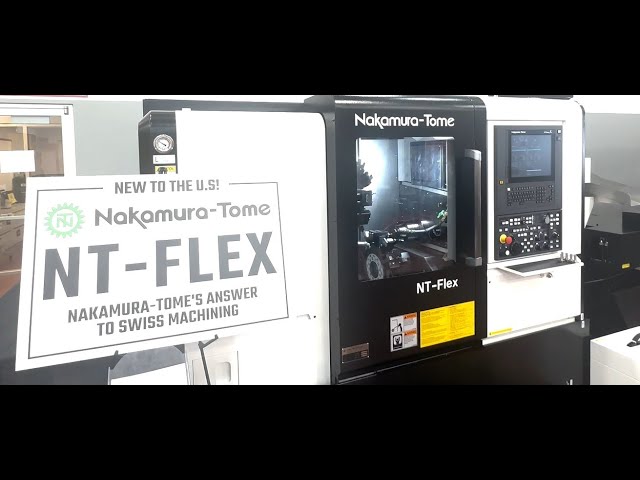

The NT-Flex is a two-spindle, two-turret precision CNC multitasking lathe. Standardly equipped with milling and Y-axis capabilities on the upper turret, this compact machine efficiently processes over 100 distinct types of products.

It is compact yet accommodates 24-station turrets in both the upper and lower areas. By utilizing quadruple tool holders, you can set up a maximum of 96 tools, ensuring the completion of all processes, including turning, milling, and gear machining.

Surprisingly compact with a depth of just 1.38m! It allows you to position the machine neatly in limited space without wasting any area.

Request Information

Or call 1-877-668-4262

Download Brochure

Product Details

Features & Benefits

  • High-speed indexing
  • High-speed spindle synchronization
  • Execution of multiple M-codes within the same block
  • High-speed rigid tapping
  • Reduction of PC-G unloading time
  • ChronoCut software to reduce idle time
  • Up to 96 tools capacity

Technical Data

CAPACITY

Max. Turning Diameter
150 mm
Distance Between Spindles
655 mm (max.) | 200 mm (min.)
Max. Turning Length
250 mm
Bar Capacity
38 mm Ø
Chuck Size
5 in.

AXIS TRAVEL

X1-Axis Slide Travel
110.5 mm
X2-Axis Slide Travel
110.5 mm
Z1-Axis Slide Travel
455 mm
Z2-Axis Slide Travel
455 mm
Y1-Axis Slide Travel
± 25 mm
B2-Axis Slide Travel
455 mm

RAPID FEED

X-Axis
24 m/min
Z-Axis
32 m/min
Y1-Axis
20 m/min
Y2-Axis
6 m/min
B2-Axis
32 m/min

L/R SPINDLE

Spindle Speed
8,000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Spindle
47 mm
I.D. of Front Bearing
70 mm
Hole Through Draw Tube
39 mm

C-Axis

Least Input Increment
0.001°
Least Command Increment
0.001°
Rapid Speed
600 ipm
Cutting Feed Rate
1-4,800°/min
C-Axis Clamp
Disk clamp
C-Axis Connecting Time
1.5 seconds

Upper / Lower Turret

Type
Dodecagonal Drum
Number of Indexing Positions
24
Tool Size (Square Shank)
0.75 in.
Tool Size (Round Shank)
1 in.

Milling

Rotary System
Individual rotation
Milling Spindle Speed
8,000 rpm
Spindle Speed Range
Stepless
# of Milling Stations
12 x 2
Holder Type and Tool Size
Straight Holder (Ø1mm - 13 mm) | Cross Holder (Ø1mm - 13 mm)

Drive Motor

Left Spindle
7.5/5.5 kW
Right Spindle
7.5/5.5 kW

GENERAL

Height
6.4 feet
Floor Space (W x D)
11.4 ft. x 4.52 ft
Weight (incl. control)
14,300 lbs
Power Supply
31.3 kVA
