OKK

HM-X8000

*Availability of machines is based on region. Contact your local Methods office to learn more.

As with all OKKs we paid special attention to the rigidity of the cast body, built solid and features our massive liner roller guides and large-diameter ball screws for the feed system, allowing the HM-X Series to easily cut exotic materials. All OKK horizontals feature Core chilled pre-tensioned and double-anchored ball screws in order to maintain the high accuracy needed throughout long hours of machining.

The HM-X8000 a High Power 50 Taper with Dual Anchored Core Chilled Ball Screws and Linear Cross Roller Guides are used successfully by many of our premier Aerospace Customers who have put them through some of the most extensive tests and achieved more than impressive results in Titanium, a material that demands Box Ways from our competitors.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

  • Twin Driving Ballscrews X & Y axis
  • New innovative trunnion table

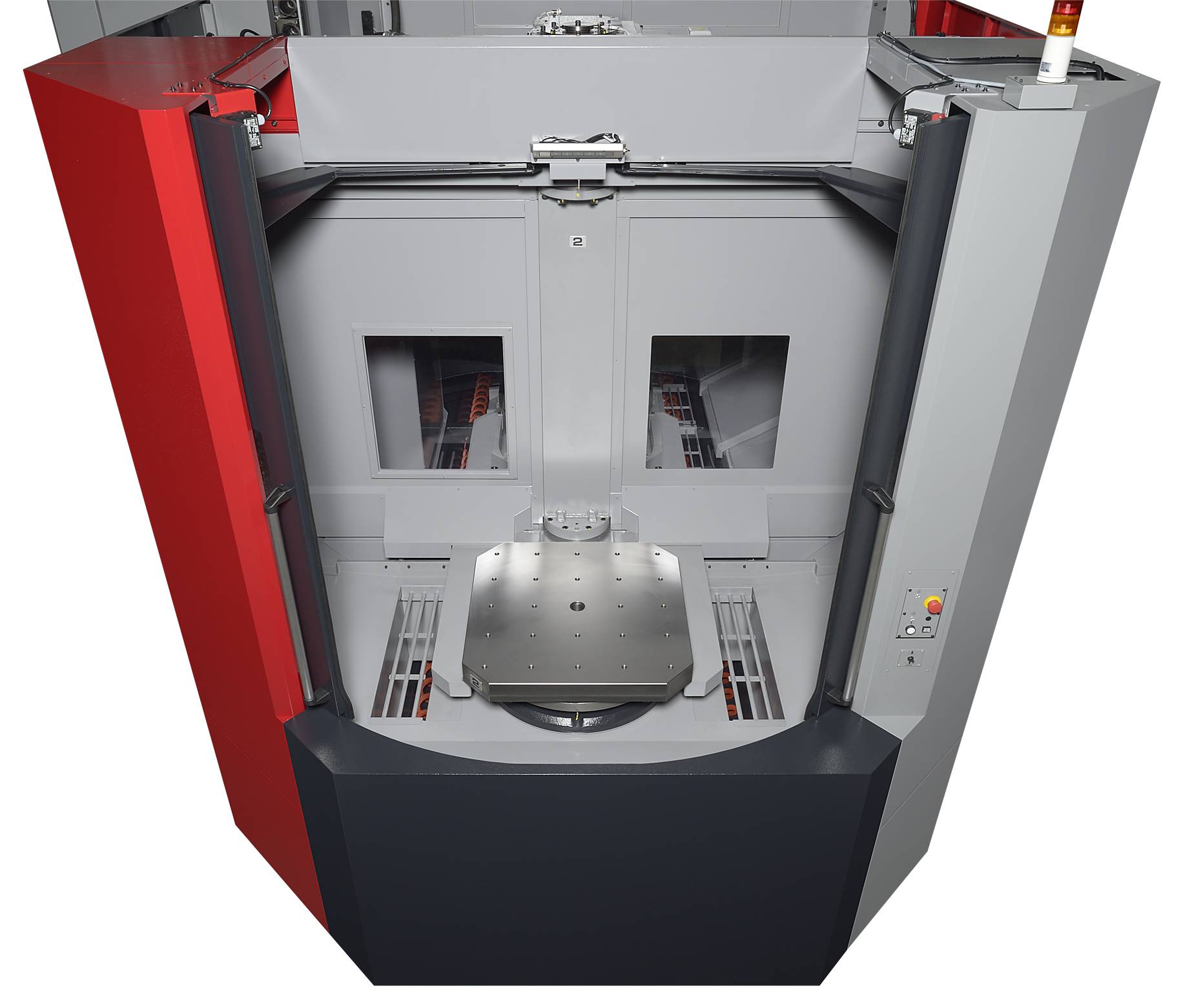

  • Direct-turn APC

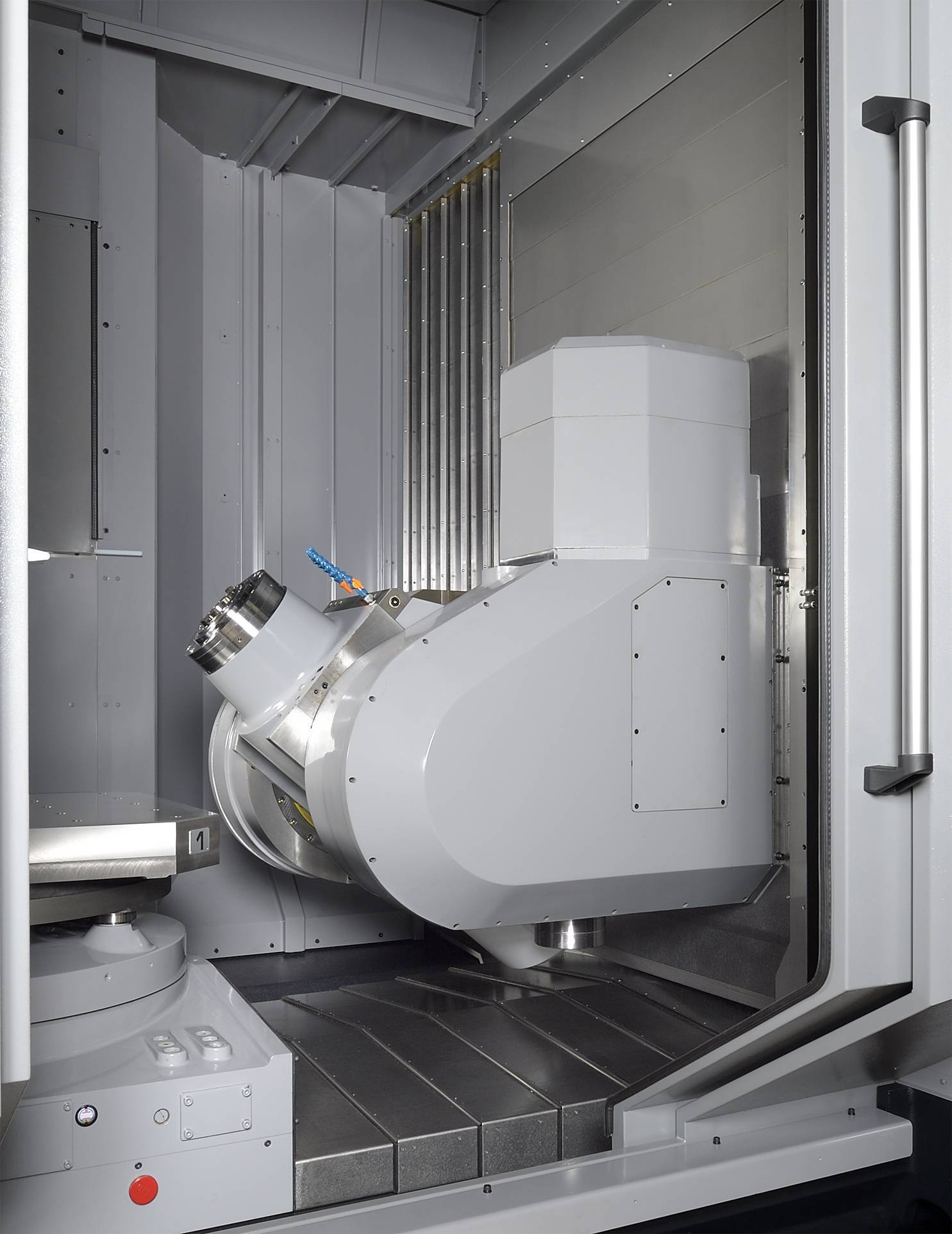

  • Tilt Head A-Axis
  • Heavy load capacity linear roller guides
  • Core chilled pre-tensioned and double-anchored ball screws
  • High load capacity feed motors
  • Space saving design for economical use of floor space

Travel

X-Axis Travel
51.2" (1300mm)
Y-Axis Travel
43.3" (1100mm)
Z-Axis Travel
61.0" (1550mm)
A-Axis Travel
-110° to +40°
B-Axis Travel
360°
Table Top to Spindle Center
2.4" - 45.7" (60mm - 1160mm)

Table

Table Size
ø 31.5" (800mm)
Table Load Capacity
4409 lbs (2000kg)

Feed Rate

Rapid Traverse Rate (X/Y/Z)
1890 in/min (48 m/min)
Cutting Feed (X/Y/Z)
787 in/min (20 m/min)

Spindle

Spindle Power
60/35 HP
Spindle Speed
12,000 rpm
Spindle Taper
CAT50

Tools

Standard Number of Tools
233 (OP: 311/363)
Maximum Tool Weight
55 lbs (25 kg)
Maximum Tool Length
15.8" (400 mm)
Maximum Tool Diameter
ø 4.5" (115 mm) / ø 10.6" (270 mm) without tool in adjacent pots
Tool Changing Time: Cut to Cut
5.7 sec (Speed is changeable for heavy-weight tools)

General

Machine Weight
66,138 lbs (30,000 kg)
Machine Control
F31i-B5
