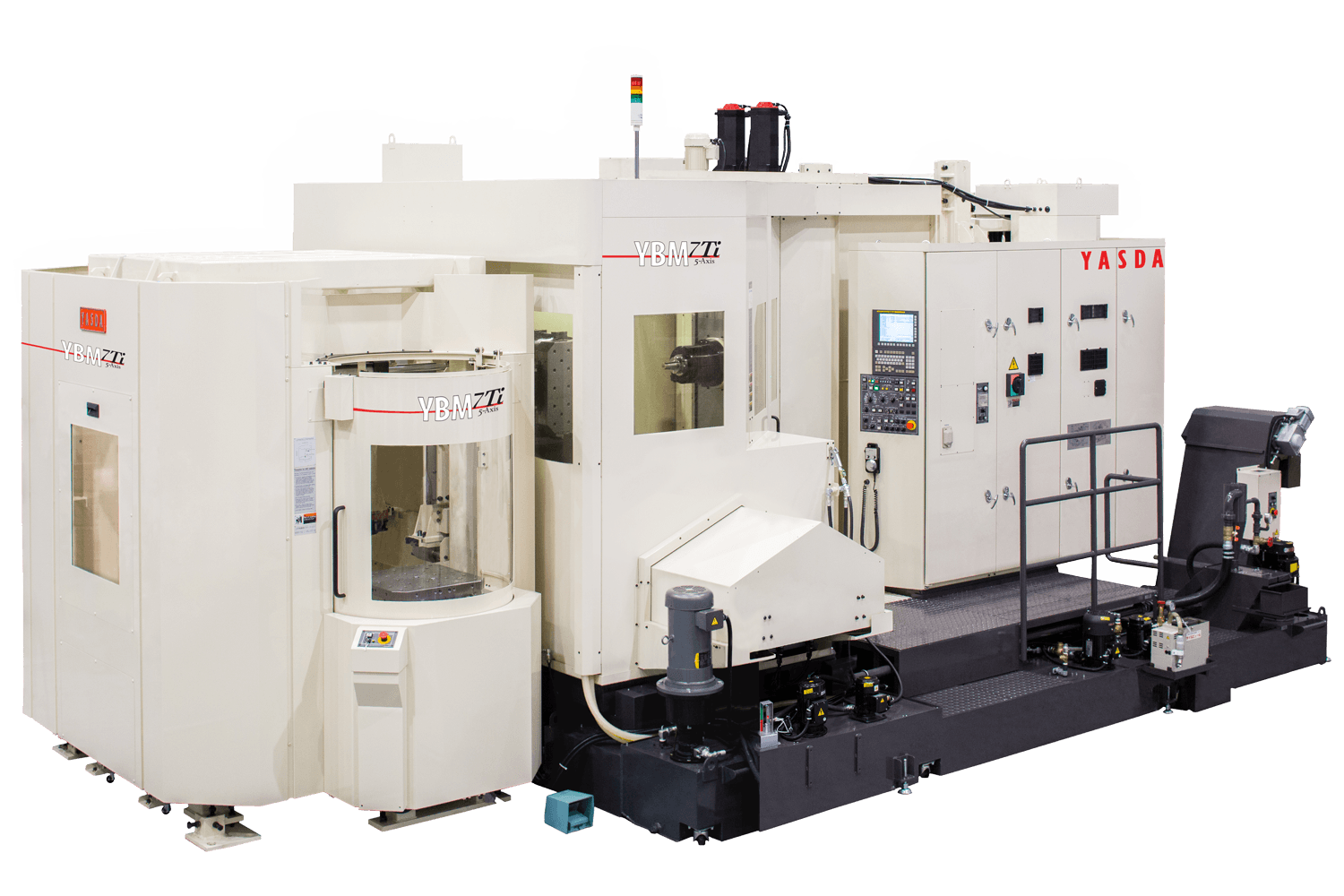

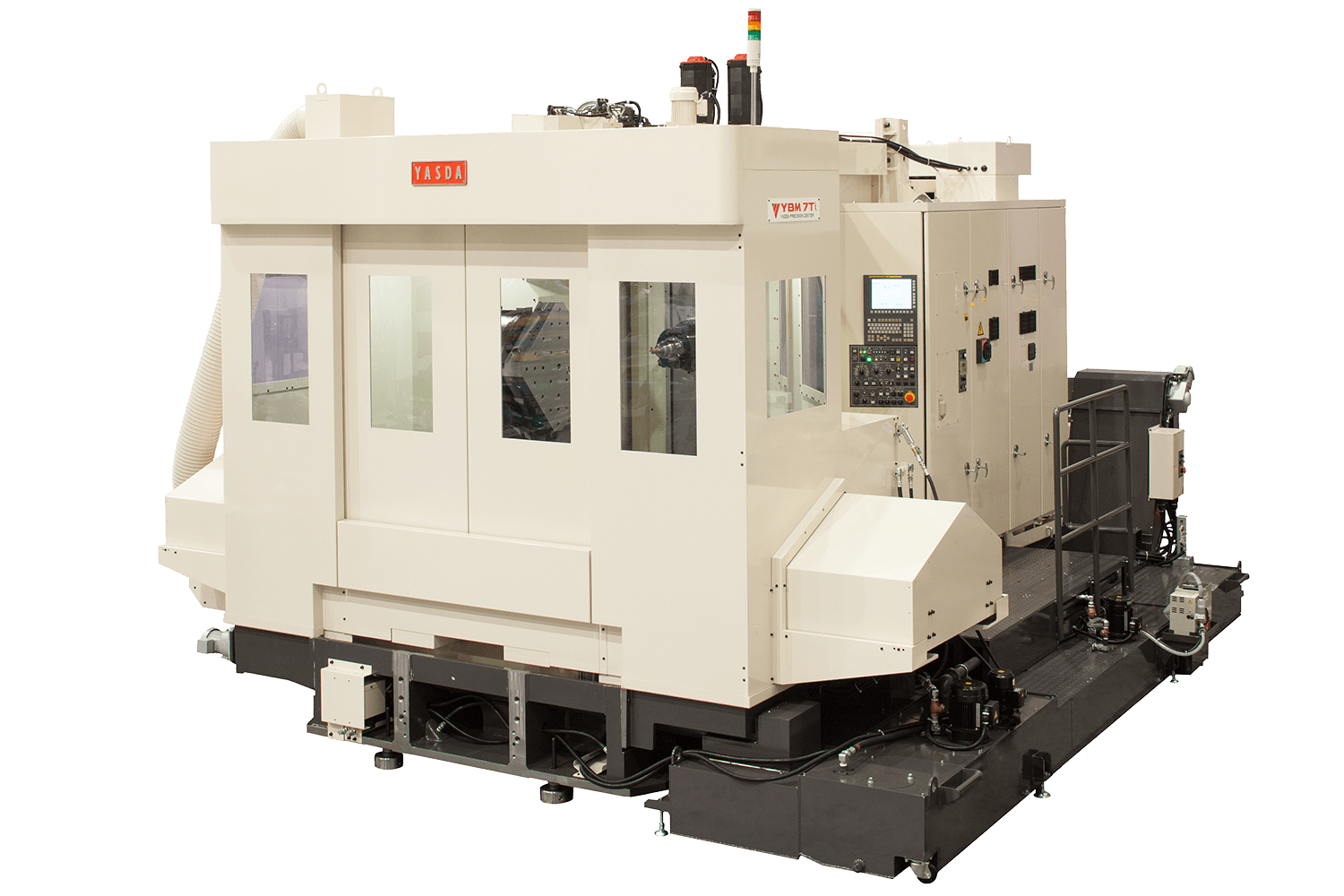

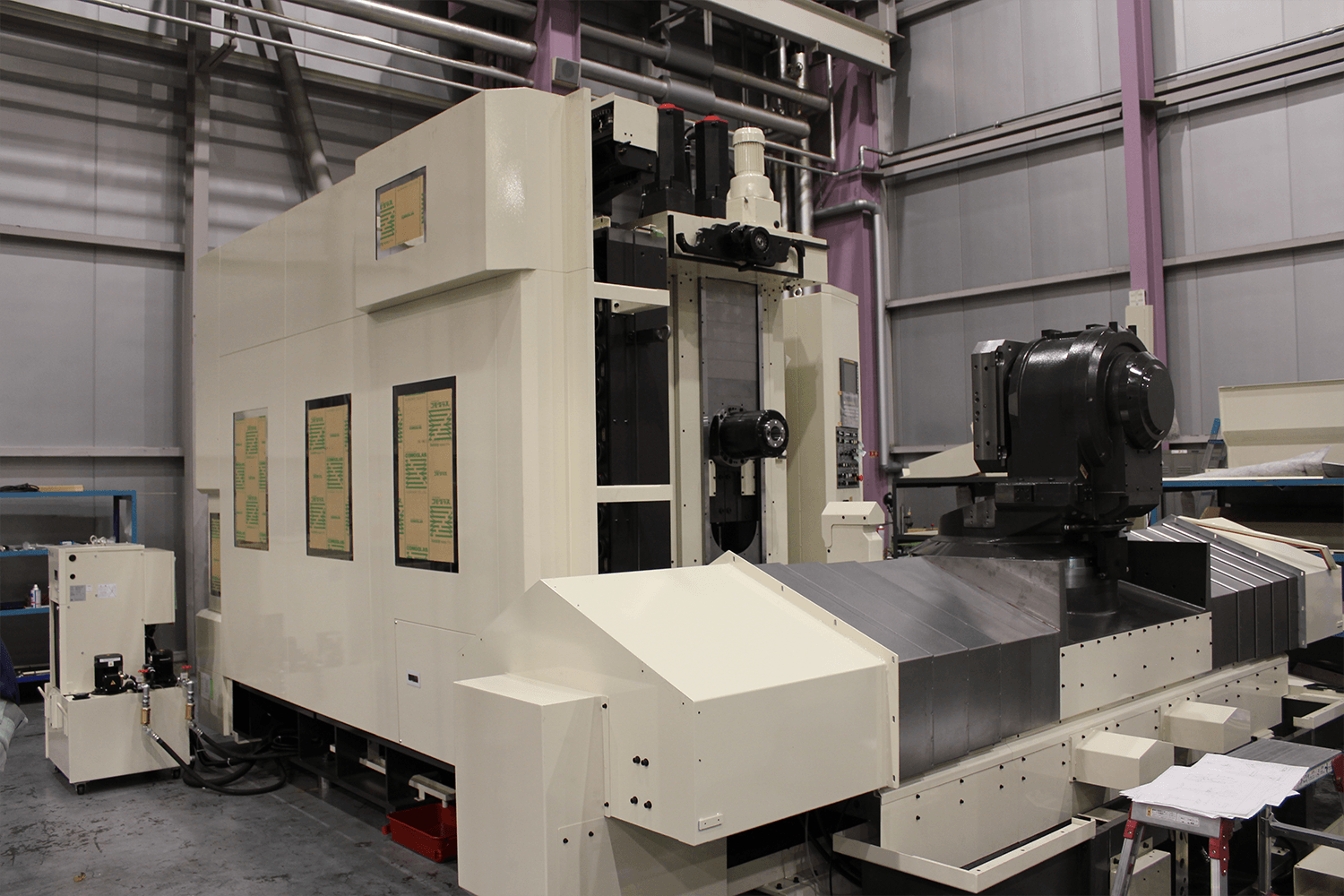

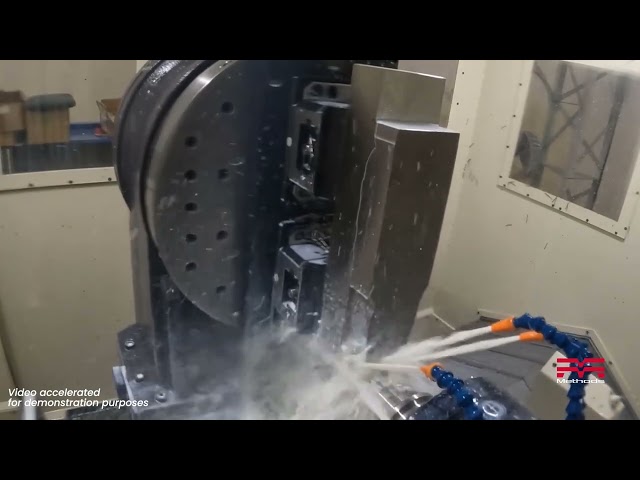

YBM 7Ti
YASDA’s YBM 7Ti precision machining centers are highly acclaimed by manufacturers all over the world for their high-precision turning and boring performance.
-
High Speed and High Precision Positioning with Hybrid Box Guide Ways
-
Thermal Distortion Stabilizing Systems: YASDA’s countermeasures reduce thermal influence and maintain high rigidity and high precision, for continuous high-speed machining
-
High Performance Spindle with Pre-load Self-adjusting System: YASDA’s unsurpassed spindle technology realizes high precision and high quality machining through the entire speed range
-
Highly Rigid Construction
-
Direct Drive Spindle with Preload Self-adjusting System
-
Centrally positioned Spindle Head for Higher Positioning Accuracy
-

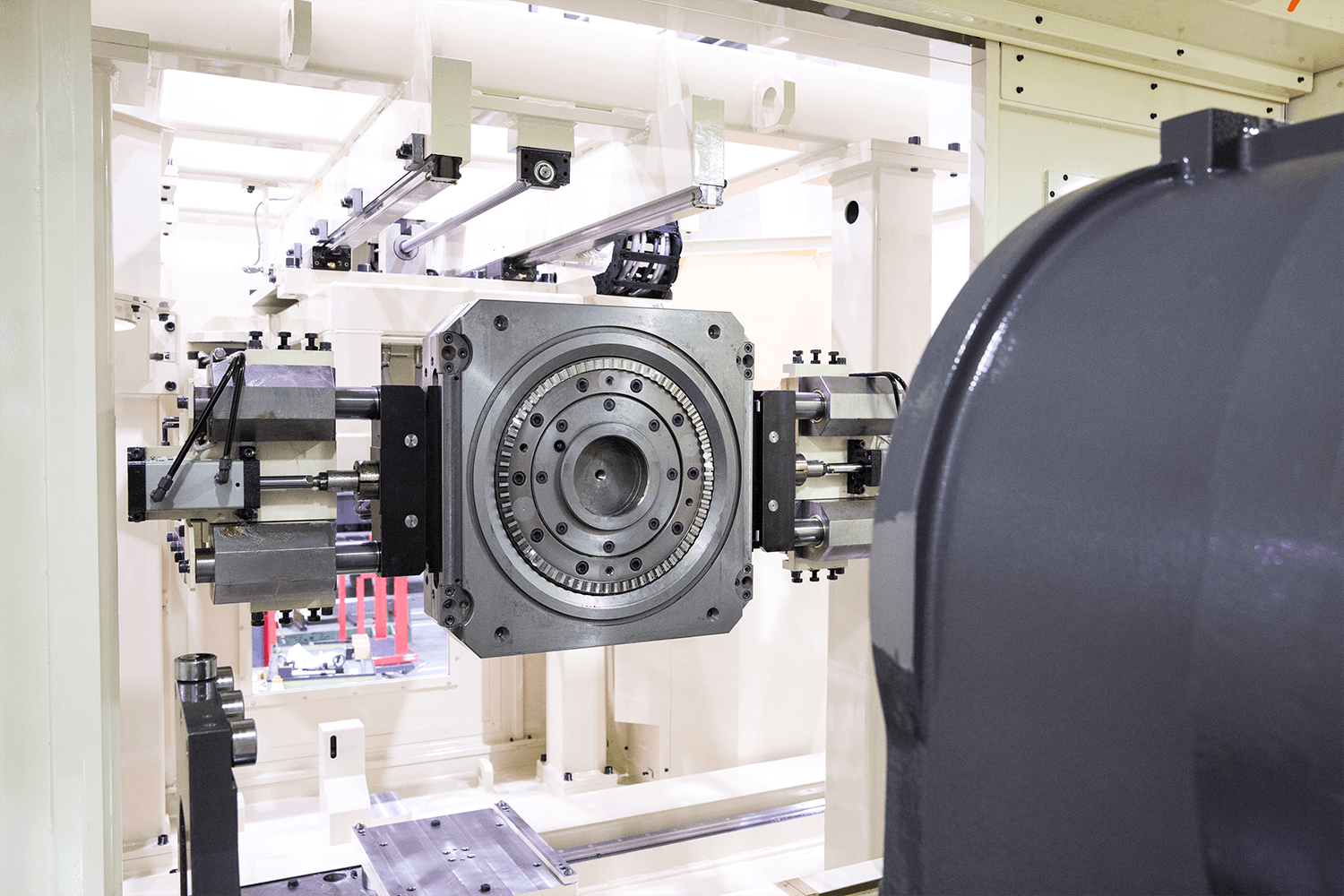

Table Indexing and Paller
-
Pallet Chucking Mechanism for Unsurpassed Repeatability and Rigidity
-
Automatic Tool Changer for Heavy Tools
-
Tool Holder Cleaning Device with Brush and Blower
Travel
| X-Axis Travel | 49.2 (1250) in (mm) |
|---|---|
| Y-Axis Travel | 39.4 (1000) in (mm) |
| Z-Axis Travel | 43.3 (1100) in (mm) |

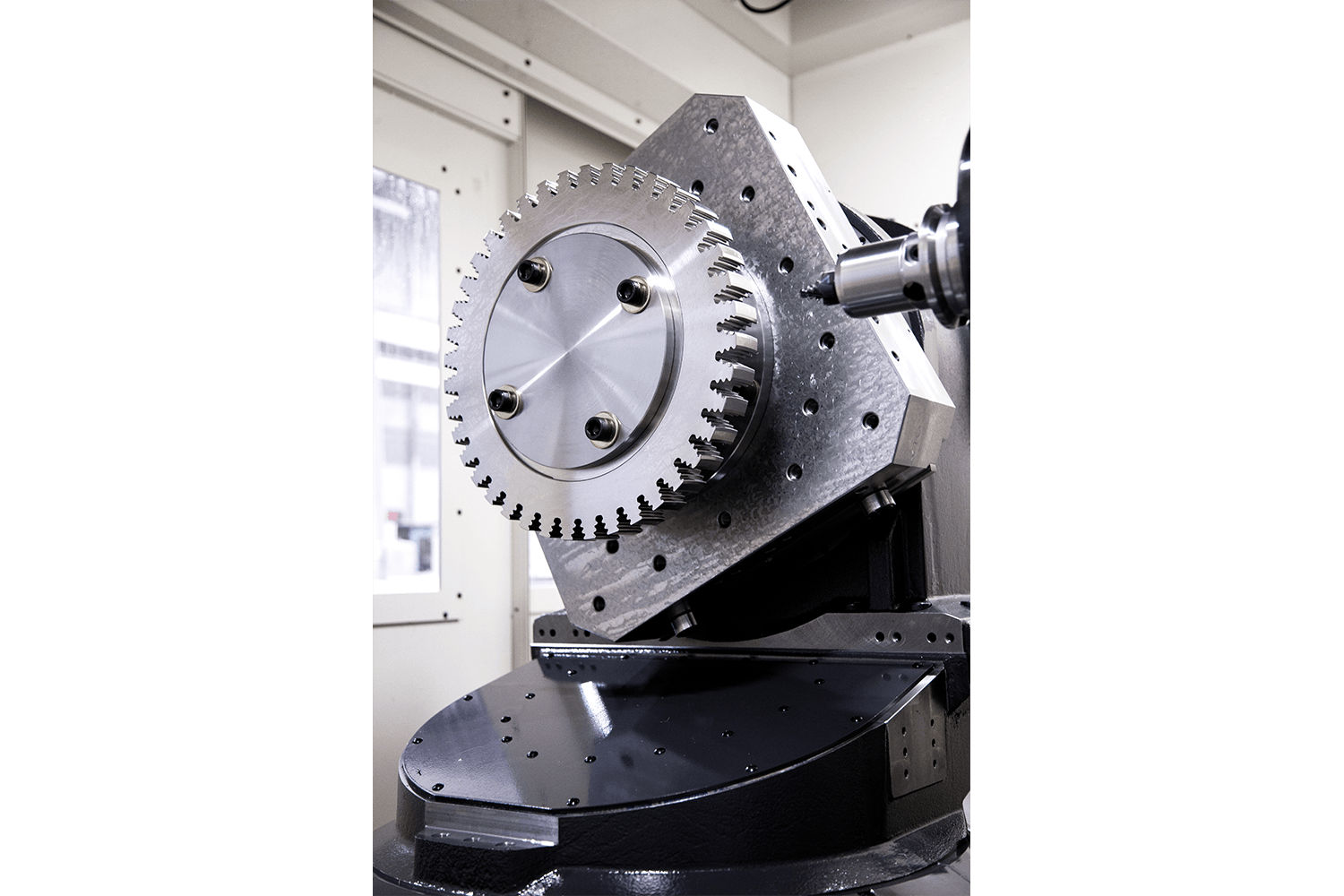

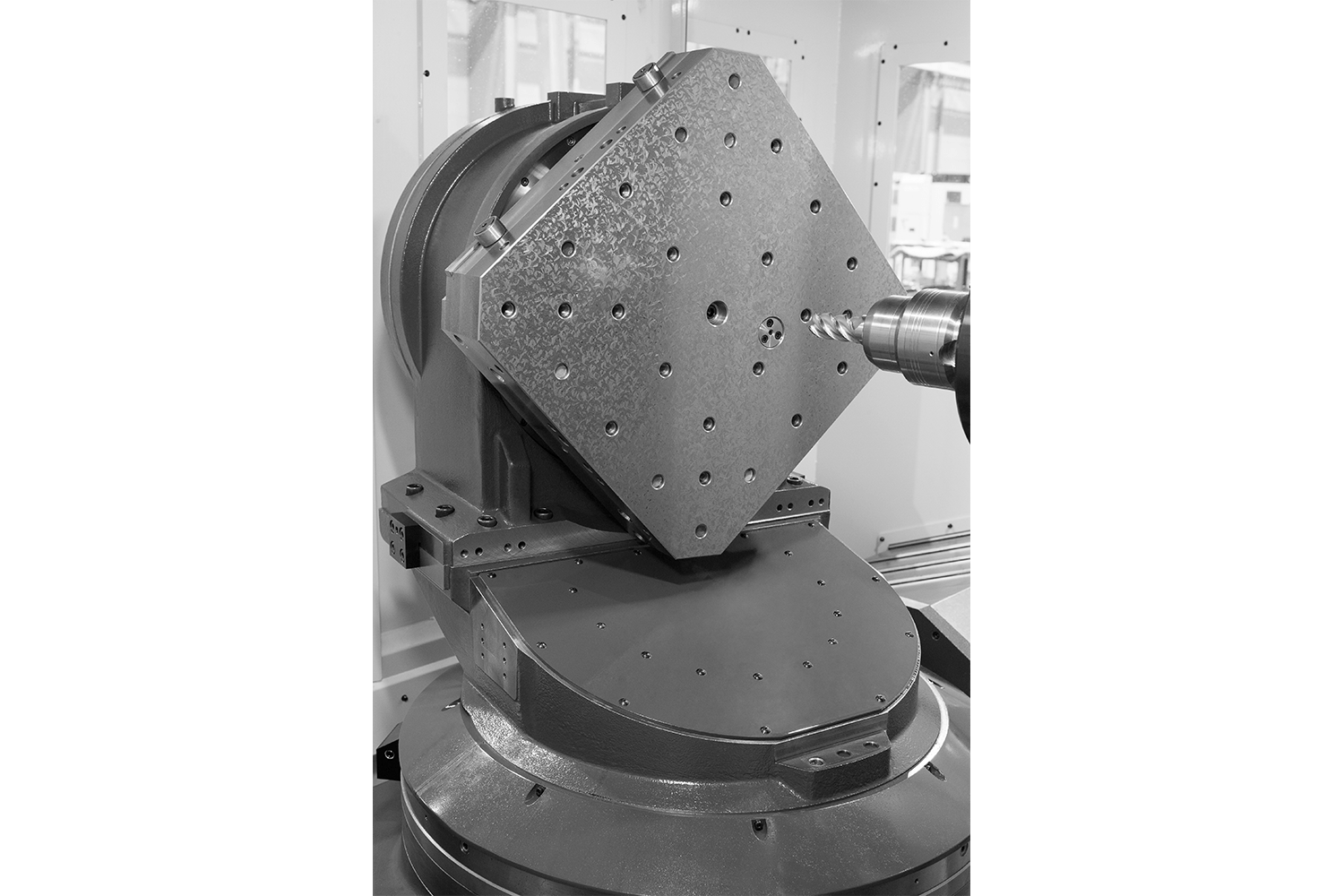

| B-Axis Travel | +110 ~ -110 degrees |
| C-Axis Travel (rotary table) | 360º (0.0001º) |
| Distance from Table Surface to Spindle | 2.8-34.3 (70-870) in (mm) |
| Distance from Table Center to Spindle Nose Face | 5.9-37.4 (150-950) in (mm) |
Feed Rate
| X-Axis Rapid Traverse | 45,000 mm/min ( 1,771 ipm) |
|---|---|
| Y and Z Axes Rapid Traverse | 48,000 mm/min (1,889 ipm) |
| B and C Axes Rapid Traverse | B: 70 / C: 100 rpm with DD motors |
| X, Y and Z Axes Cutting Feed Rate | Max. 15,000 mm/min ( 590ipm) with HAS |
| B and C Axes Cutting Feed Rate | B: 50 / C: 60 rpm with HAS |
Table
| Table Working Surface | 19.6 x 19.6 (500 x 500) in (mm) |
|---|---|
| Table Loading Capacity | 1102.3 (500) lbs (kg) |
Spindle
| Spindle Type | SA50-10000-22 – |
|---|---|
| Spindle Speed Range | 50-10000 rpm (opt) |
| Spindle Taper | 7/24 taper No. 50 (BT50) – |
Tooling
| Number of Tools | 60 (90, 120,180,240,300, 450) std (opt) |
|---|---|
| Maximum Tool Weight | 44 (20) lbs (kg) |
| Maximum Tool Length | 17.4 (440) in (mm) |
| Maximum Tool Diameter | ø 14.2 (360) in (mm) |
General
| Machine Weight | 39684 (18000) lbs (kg) |
|---|---|
| Machine Control | FANUC 31i B5 Plus |
