Nakamura-Tome
WT-150II

Nakamura-Tome WT-Series turning centers are the most diverse range of dual turret multi-tasking turning centers available today. These versatile machines are used in the medical, electronics, and aerospace industries.

With upper and lower 24 station turrets, complete families of parts can be machined with minimal setup times. Nakamura-Tome offers standard conversational programming on all multi-tasking models!

Request Information

Or call 1-877-668-4262

Download Brochure

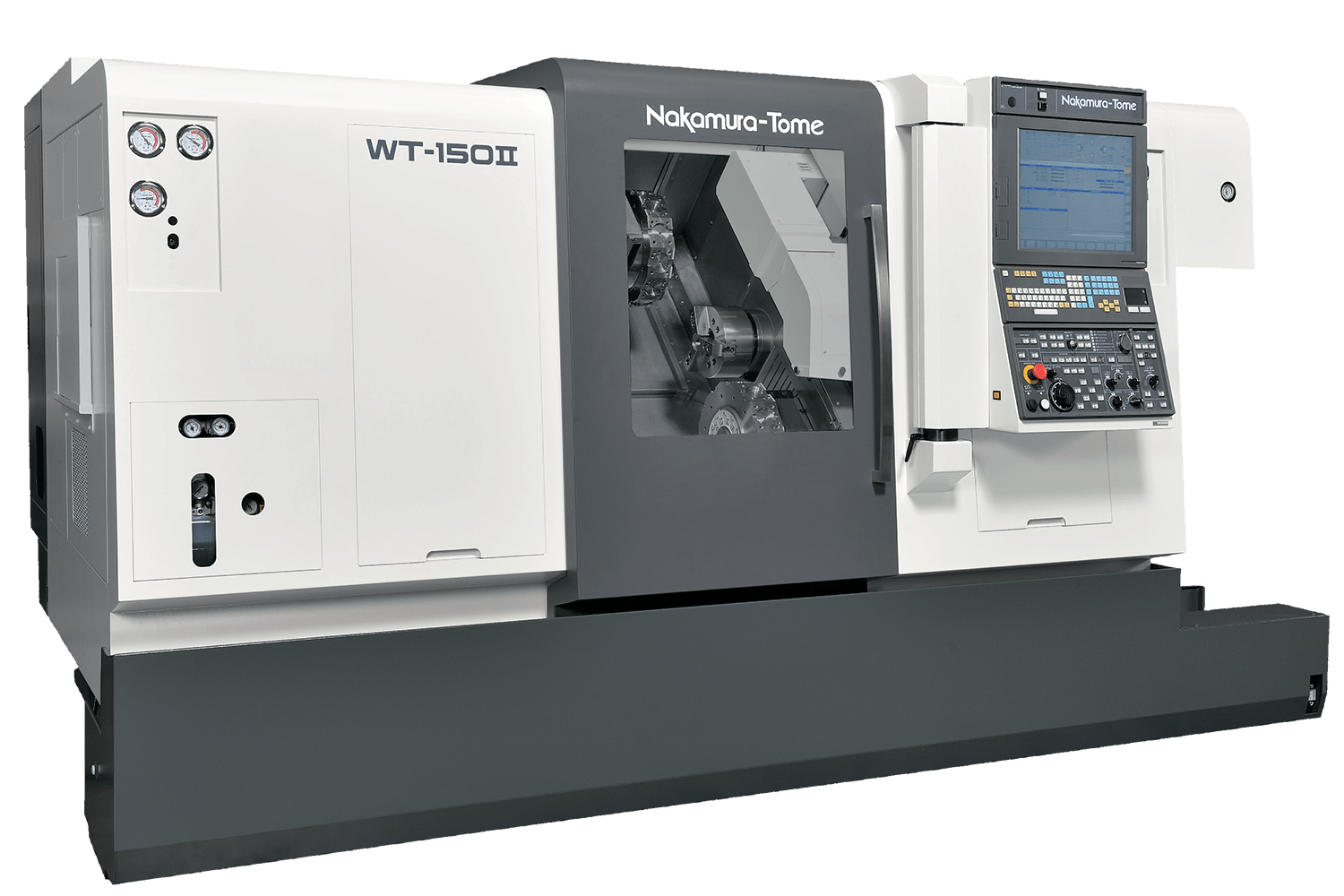

view of the Nakamura-Tome WT-150II turning center

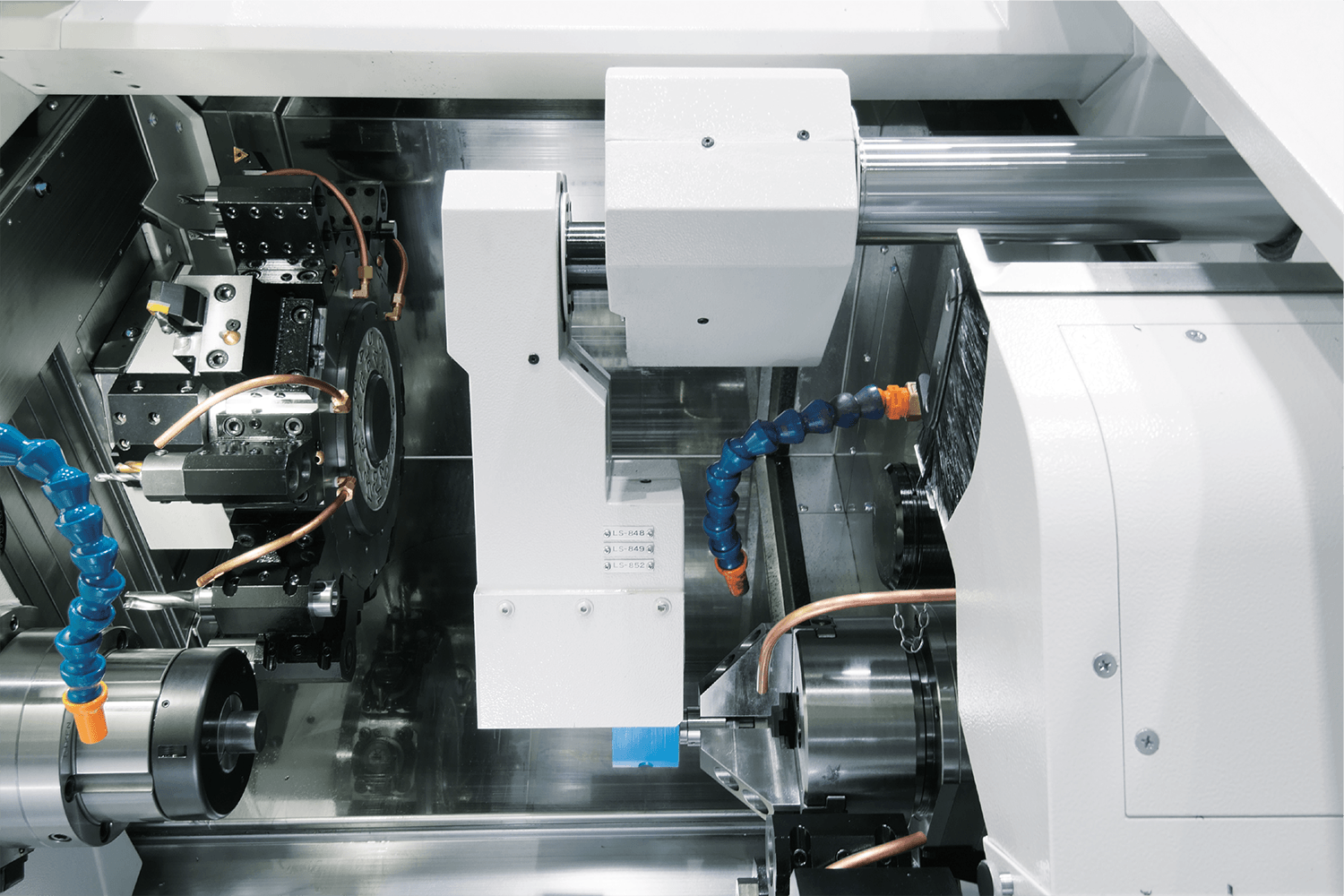

inside view of the Nakamura-Tome WT-150II turning center

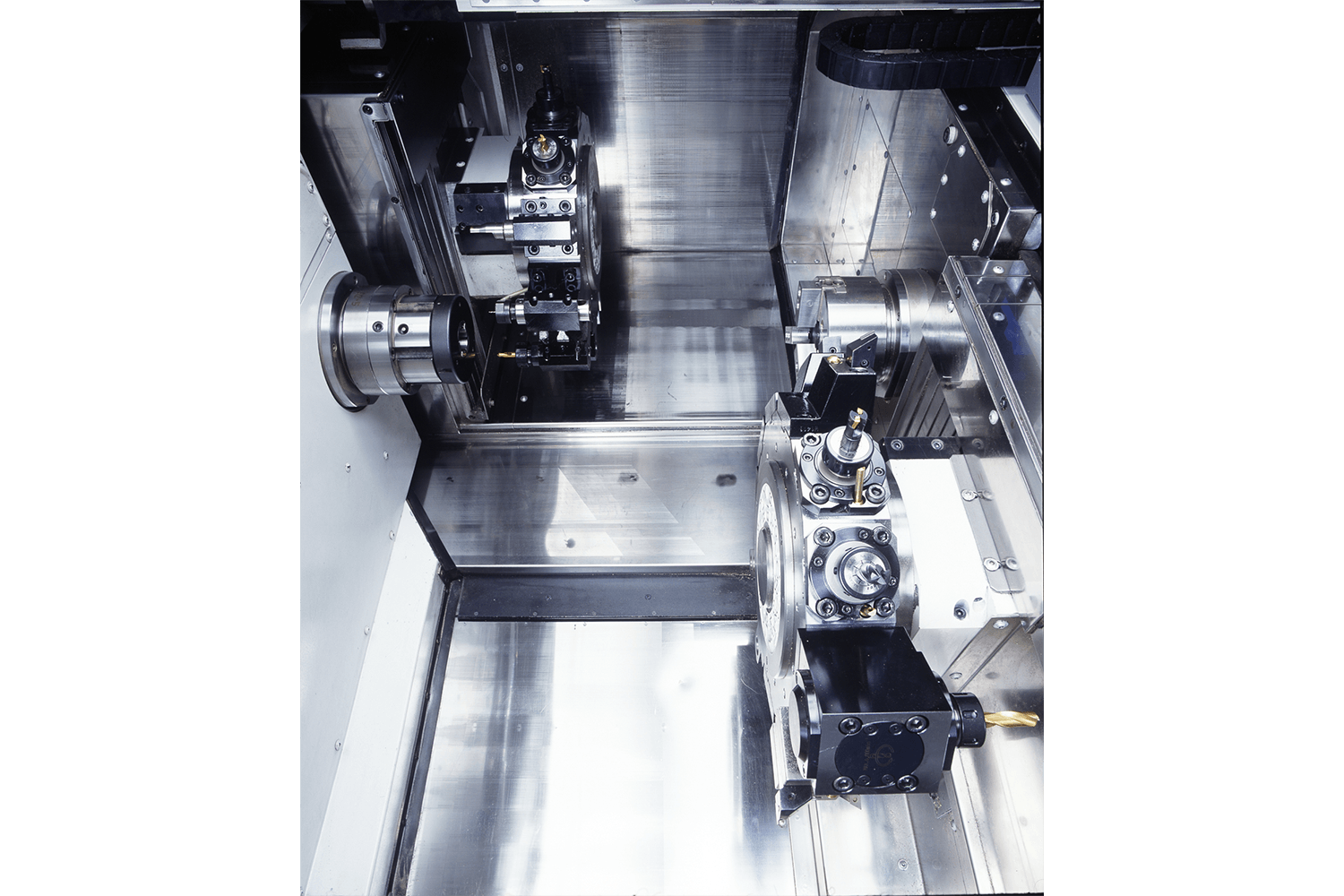

machinery inside the Nakamura-Tome WT-150II turning center

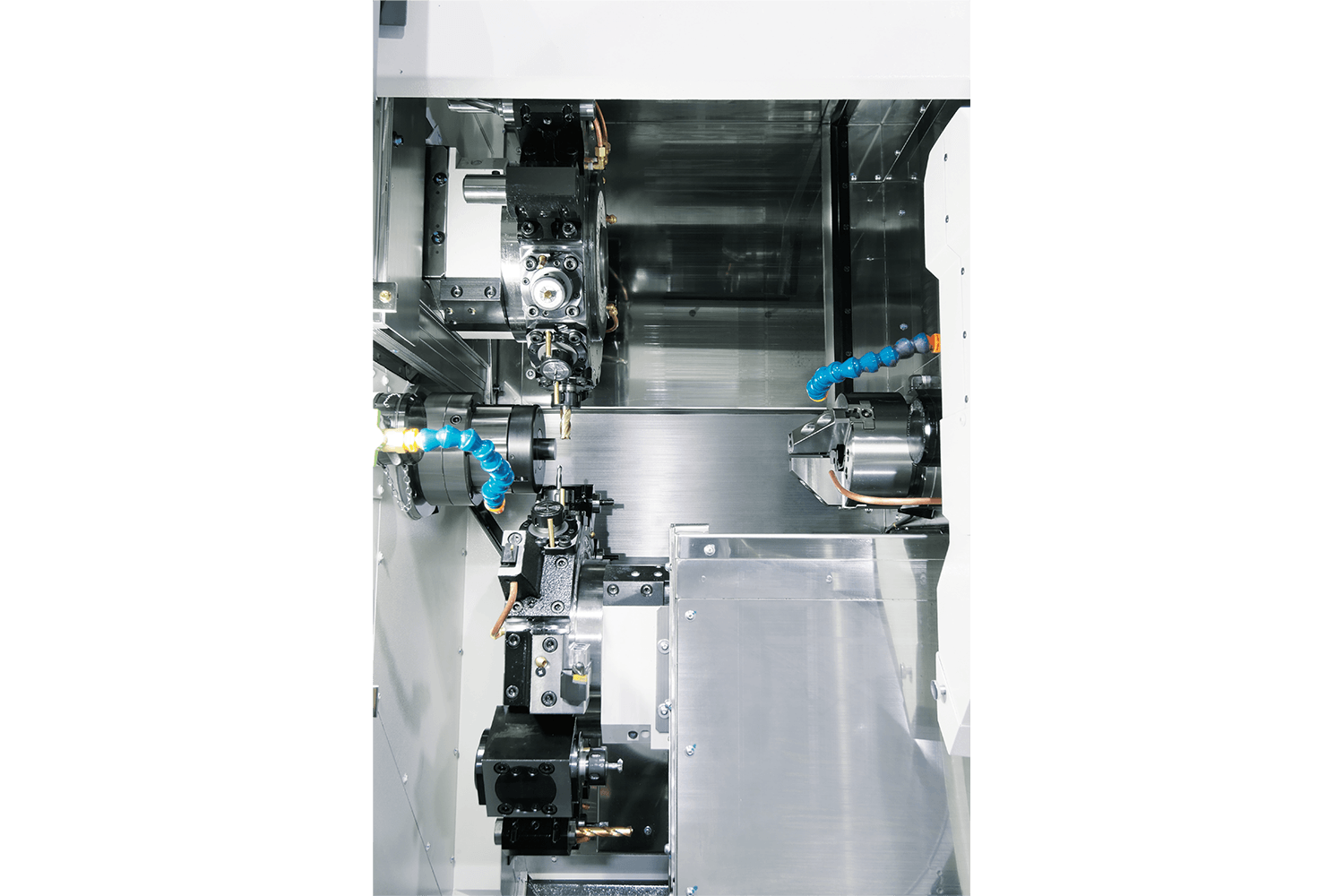

parts and machinery inside the Nakamura-Tome WT-150II turning center

Product Details

Features & Benefits

  • 20/15 HP Left and Right Spindle Motor
  • Driven-Tool Motor Power 7.5/5 HP, for Heavy Cutting with Small Tools
  • With Upper / Lower Turret Construction, 4-axis Machining as well as various other Machining Combinations Possible on Either Spindle
  • With Upper / Lower Turrets and Opposing Two-spindle Construction, Cycle Time Balancing and Reduction is Possible
  • With up to 24-tools per Turret, 48 Tools can be Permanently Available
  • Milling Turrets with Y-axis for Upper Turret

Technical Data

Capacity
51 mm
Max Turning Diameter
7.5 (190) in (mm)
Distance Between Spindle Noses
max 31.5 (800) / min 7.9 (200) in (mm)
Max Turning Length
20.3 (515) in (mm)
Bar Capacity
2 (51) in (mm)
Bar Capacity L-Spindle
2.0 (51) in (mm)
Bar Capacity R-Spindle
2.0 ( 51 ) in (mm)
Chuck size
6 (165) in (mm)

Axis Travel

Slide travel (Y)
±1.4 (35) in (mm)
Slide Travel (B)
23.7 (600) in (mm)
Slide Travel (X1/X2)
6.6 (167.5) in (mm)
Slide Travel (Z1/Z2)
20.3 (515) in (mm)

Left and Right Spindle

Spindle Speed
5000 rpm
Spindle Nose
A2-5

C-Axis

Least Input Increment
1E-3 degree

Turret

Number of Tool Stations
24
Number of Indexing Positions
48

Rotating Tool

Rotary System
Individual Rotation
Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12x2

Drive motor power

Main Spindle
20 HP
Right Spindle
15
Driven Tool Spindle
7.5 HP

General

Machine Weight
19621Lb (8900) lbs (kg)
