VP500 2APC
*Availability of machines is based on region. Contact your local Methods office to learn more.
OKK offers a wide variety of advanced, high-speed, high-accuracy machining centers to meet all your unique needs. New technology and rigid structures offer enhanced machining accuracy and improved productivity. The VP Series Bridge style design maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation, operator accessibility with minimal floor space.
-

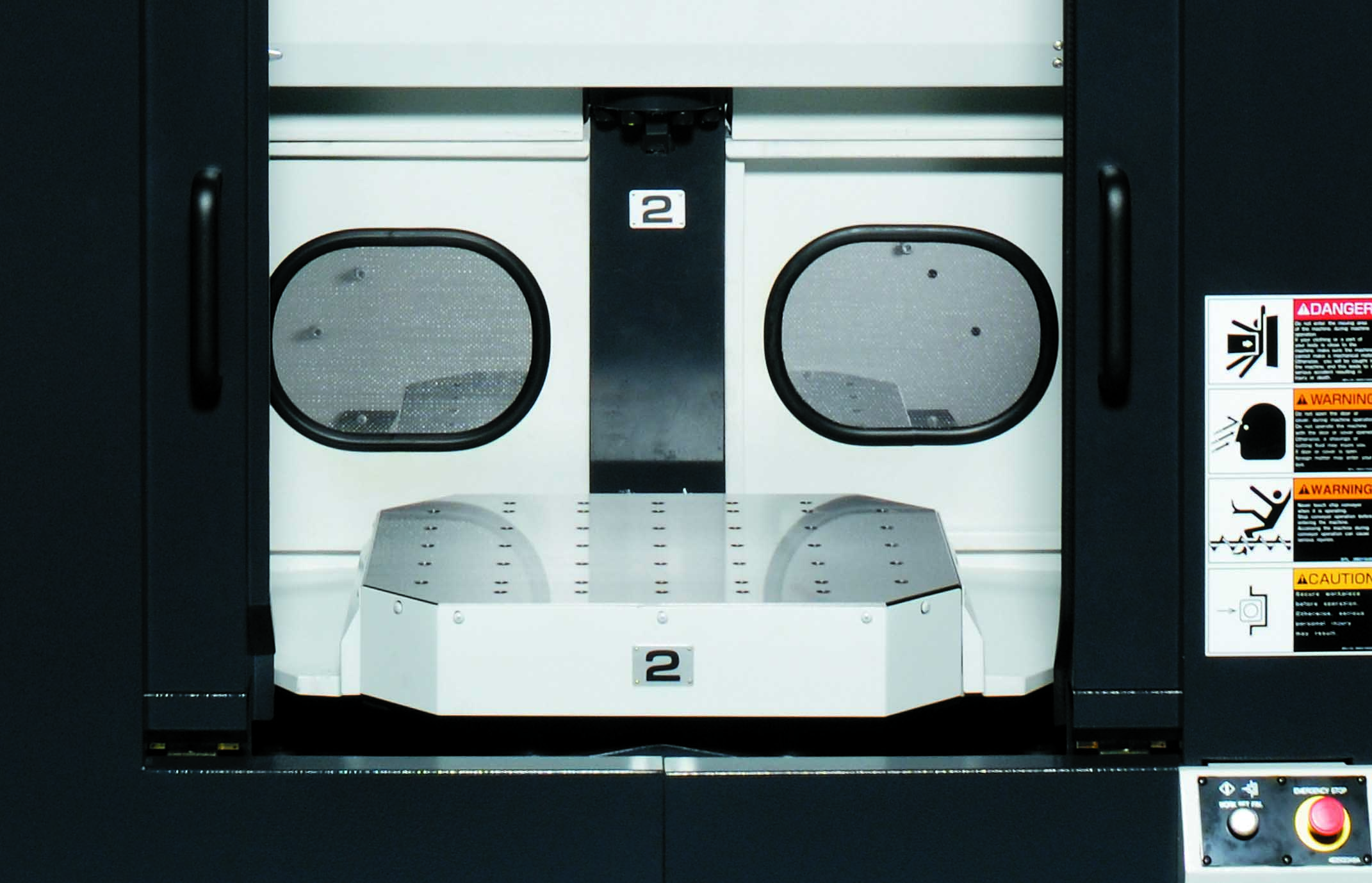

Direct turn 2 APC standard
-
Four port rotary union each pallet
-
Coolant through spindle preparation
-
Highly rigid linear roller guide
-
Double-anchoring type ball screws
-
Coil-type chip conveyor
-
Excellent Chip Disposal, accessibility with compact-sized machine
-
Space saving design for economical use of floor space
Travel
| X-Axis Travel | 23.6" (600mm) |
|---|---|
| Y-Axis Travel | 20.1" (510mm) |
| Z-Axis Travel | 18.1" (460mm) |
| Table Top to Spindle Nose | 5.9" – 24.0" (150mm – 610mm) |
Pallet
| Pallet Surface Area | 23.6" x 19.7" (600mm x 500mm) |
|---|---|
| Pallet Load Capacity | 881 lbs (400 kg) |
Feed Rate
| Rapid Traverse Rate X/Y | 1890 in/min (48 m/min) |
|---|---|
| Rapid Traverse Rate Z | 1417 in/min (36 m/min) |
| Cutting Feed (X/Y/Z) | 1417 in/min (36 m/min) |
Spindle
| Spindle Power | 50/25 HP |
|---|---|
| Spindle Speed | 12,000 rpm |
| Spindle Taper | CAT40 |
Tools
| Standard Number of Tools | 20 (OP: 30, 40, 60, 80, 120) |
|---|---|
| Maximum Tool Weight | 15.4 lbs (7 kg) |
| Maximum Tool Length | 11.8" (300 mm) |
| Maximum Tool Diameter | ø 3.2" (82 mm) / ø 4.9" (125 mm) without adjacent tool |
| Tool Changing Time- Tool to Tool | 1.2 sec |
General
| Machine Weight | 22,046 lbs (10,000 kg) |
|---|---|
| Machine Control | FANUC F31i-B |
