*Availability of machines is based on region. Contact your local Methods office to learn more.

Methods offers a wide variety of advanced, high-speed, high-accuracy OKK machining centers to meet all your unique needs. New technology and rigid structures offer enhanced machining accuracy and improved productivity.

The VP1800‘s Bridge style design maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation and improved operator accessibility with a small footprint requiring minimal floor space.

Request Information

Or call 1-877-668-4262

Download Brochure
the OKK VP series of vertical CNC machines sold by Methods Machine Tools

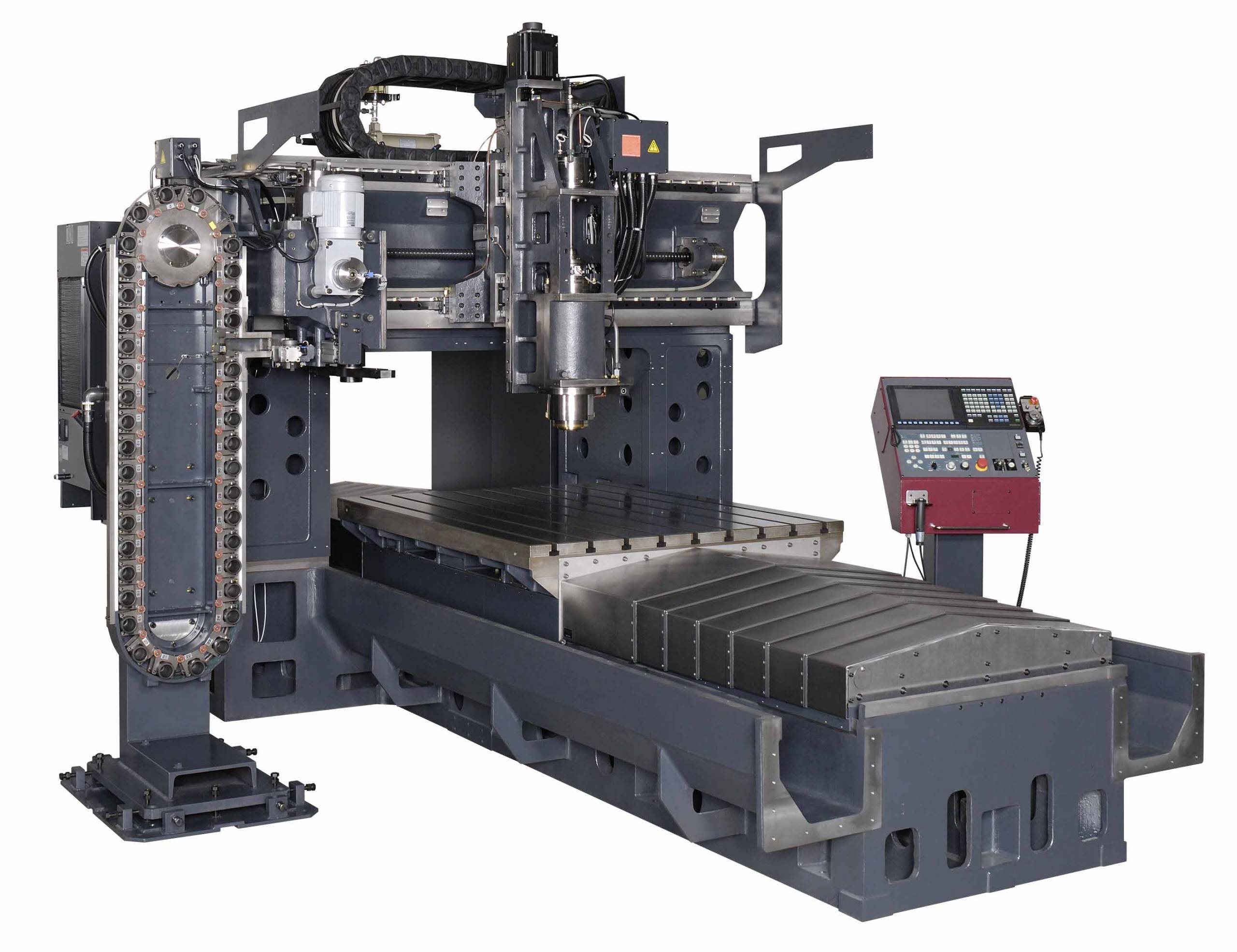

skeleton structure of the OKK VP machine tool sold by Methods Machine Tools

Product Details

Features & Benefits

  • Highly rigid linear roller guide
  • Double-anchoring type ball screws
  • Coolant through spindle preparation
  • Coil-type chip conveyor
  • Excellent Chip Disposal and improved operator accessibility
  • Compact, space-saving design for a smaller footprint and economical use of floor space

Technical Data


X-Axis Travel
86.6" (2200mm)
Y-Axis Travel
70.9" (1800mm)
Z-Axis Travel
18.1" (460mm)
Table Top to Spindle Nose
3.9" - 22.1" (100mm - 560mm)


Table Work Surface Area
86.6" x 70.9" (2200mm x 1800mm)
Table Load Capacity
6600 lbs (3000 kg)

Feed Rate

Rapid Traverse Rate X/Y
945 in/min (24 m/min)
Rapid Traverse Rate Z
1417 in/min (36 m/min)
Cutting Feed (X/Y/Z)
945 in/min (24 m/min)


Spindle Power
50/25 HP
Spindle Speed
12,000 rpm
Spindle Taper


Standard Number of Tools
40 (OP: 60/80/120)
Maximum Tool Weight
15.4 lbs (7 kg)
Maximum Tool Length
11.8" (300 mm)
Maximum Tool Diameter
ø 3.2" (82 mm) / ø 4.9" (125 mm) without adjacent tool
Tool Changing Time- Tool to Tool
1.2 sec


Machine Weight
55,115 lbs (25,000 kg)
Machine Control
