OKK
VP1200

*Availability of machines is based on region. Contact your local Methods office to learn more.

OKK offers a wide variety of advanced, high-speed, high-accuracy machining centers to meet all your unique needs. New technology and rigid structures offer enhanced machining accuracy and improved productivity. The VP Series Bridge style design maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation, operator accessibility with minimal floor space.

Request Information

Or call 1-877-668-4262

Download Brochure

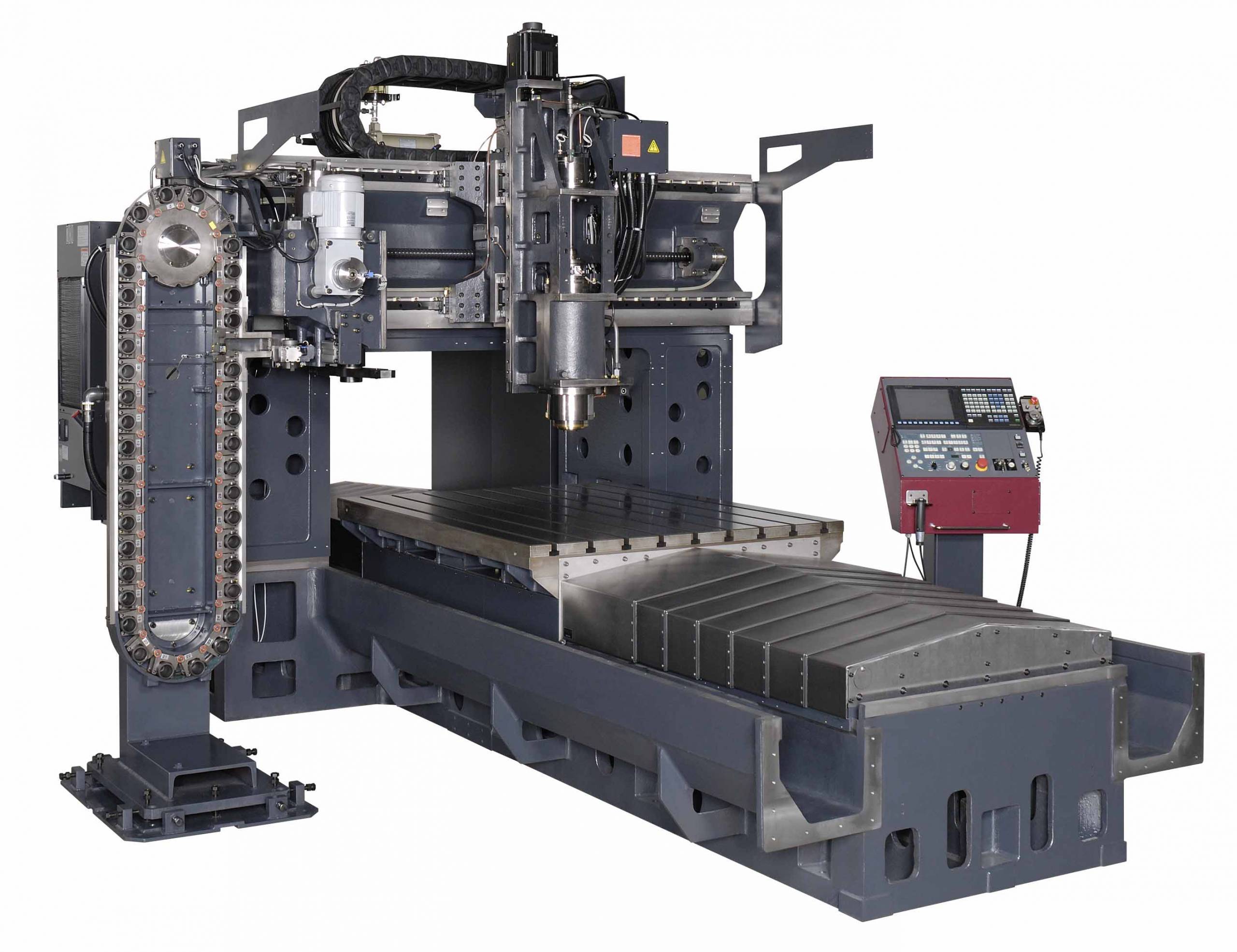

the OKK VP series of vertical CNC machines sold by Methods Machine Tools
VP1200

Product Details

Features & Benefits

  • Highly rigid linear roller guide
  • Double-anchoring type ball screws
  • Coolant through spindle preparation
  • Coil-type chip conveyor
  • Excellent Chip Disposal, accessibility with compact-sized machine
  • Space saving design for economical use of floor space

Technical Data

Travel

X-Axis Travel
63.0" (1600mm)
Y-Axis Travel
51.2" (1300mm)
Z-Axis Travel
18.1" (460mm)
Table Top to Spindle Nose
3.9" - 22.1" (100mm - 560mm)

Table

Table Work Surface Area
63.0" x 51.2" (1600mm x 1300mm)
Table Load Capacity
4400 lbs (2000 kg)

Feed Rate

Rapid Traverse Rate X/Y
1890 in/min (48 m/min)
Rapid Traverse Rate Z
1417 in/min (36 m/min)
Cutting Feed (X/Y/Z)
1417 in/min (36 m/min)

Spindle

Spindle Power
50/25 HP
Spindle Speed
12,000 rpm
Spindle Taper
CAT40

Tools

Standard Number of Tools
40 (OP: 60/80/120)
Maximum Tool Weight
15.4 lbs (7 kg)
Maximum Tool Length
11.8" (300 mm)
Maximum Tool Diameter
ø 3.2" (82 mm) / ø 4.9" (125 mm) without adjacent tool
Tool Changing Time- Tool to Tool
1.2 sec

General

Machine Weight
41,877 lbs (19000 kg)
Machine Control
FANUC F31i-B
