*Availability of machines is based on region. Contact your local Methods office to learn more.

The VM/R series increased rigidity of the main body and the spindle to provide even higher cutting performance. Its feed axes utilize highly rigid and accurate box-ways like conventional machines. This enables machining of not only general parts but also parts made of difficult-to-cut materials such as titanium. The main body design delivers heavy and accurate machining in an ergonomic friendly design.

Request Information

Or call 1-877-668-4262

Download Brochure
the OKK VM940R machine
VM940R up close

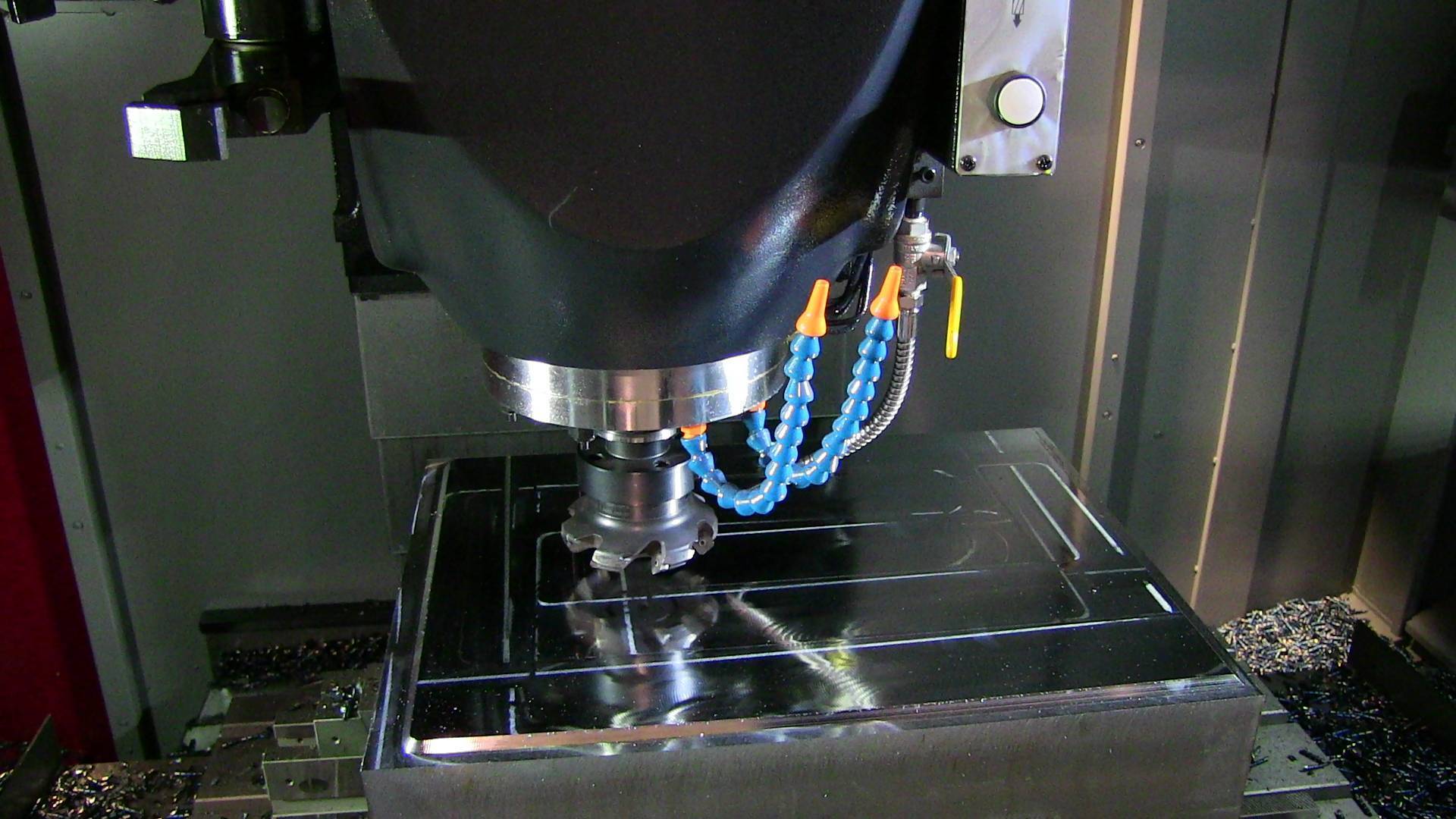

VM940R interior

Product Details

Features & Benefits

  • Expanded working area
  • Improved accessibility
  • Increased main body rigidity
  • Core chilled ball screws
  • Double anchored support system
  • Space saving design for economical use of floor space
  • Coil-type chip conveyor

Technical Data


X-Axis Travel
81.1" (2060mm)
Y-Axis Travel
37.0" (940mm)
Z-Axis Travel
32.3" (820mm)
Table Top to Spindle Nose
7.9" - 40.2" (200mm - 1020mm)


Table Work Surface Area
90.6" x 37.0" (2300mm x 940mm)
Table Load Capacity
6613.9 lbs (3000 kg)

Feed Rate

Rapid Traverse Rate X/Y
787 in/min (20 m/min)
Rapid Traverse Rate Z
630 in/min (16 m/min)
Cutting Feed (X/Y/Z)
787 in/min (20 m/min)


Spindle Power
35/30 HP
Spindle Speed
8,000 rpm
Spindle Taper


Standard Number of Tools
40 (OP: 60)
Maximum Tool Weight
44 lbs (20 kg)
Maximum Tool Length
15.7" (400 mm)
Maximum Tool Diameter
ø 4.1" (103 mm) / ø 7.9" (200mm) no tools in adjacent pots
Tool Changing Time- Tool to Tool
2.9 sec (Speed is changeable for heavy-weight tools)


Machine Weight
50,706 lbs (23,000 kg)
Machine Control


Sorry, there are no videos for this machine.
