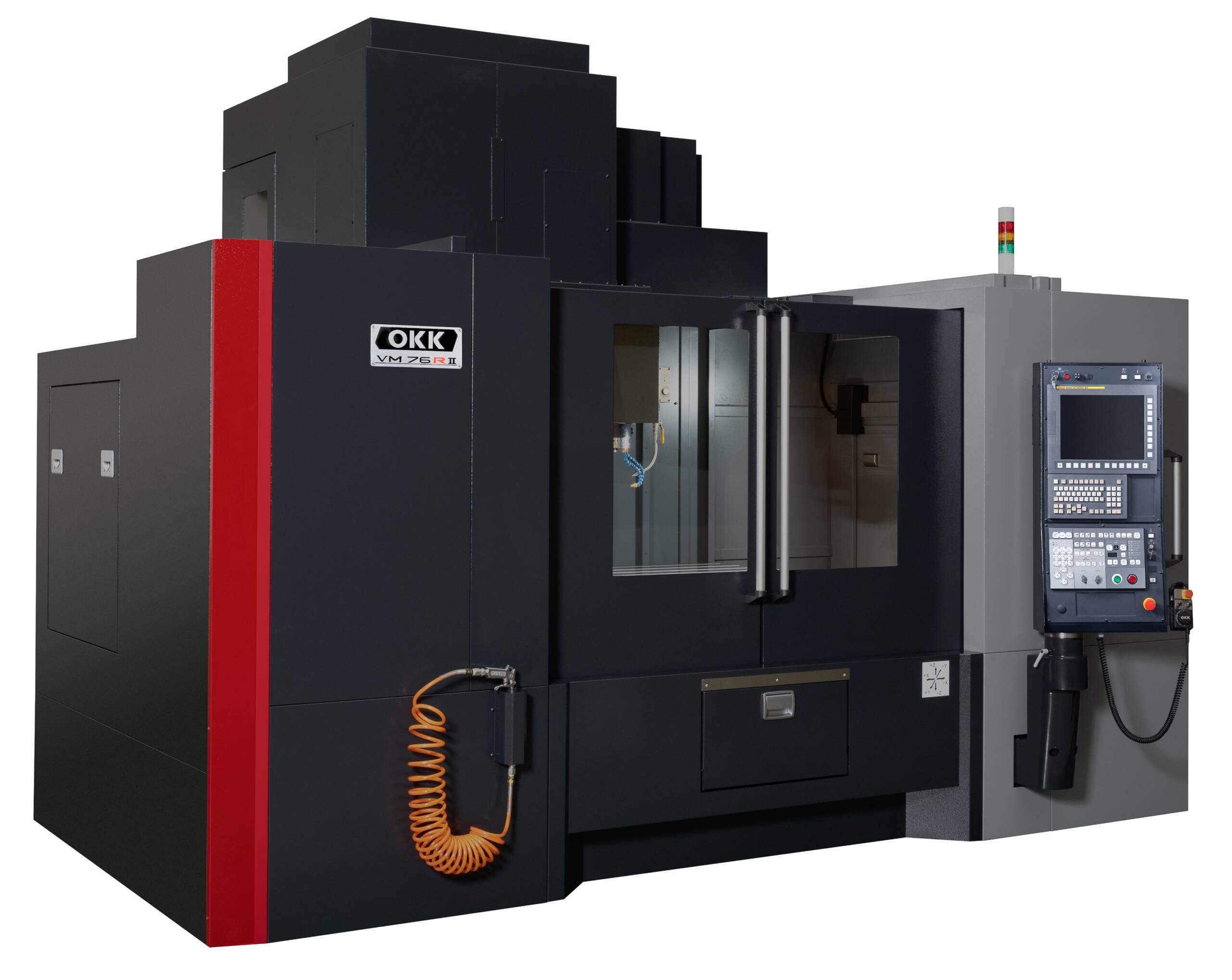

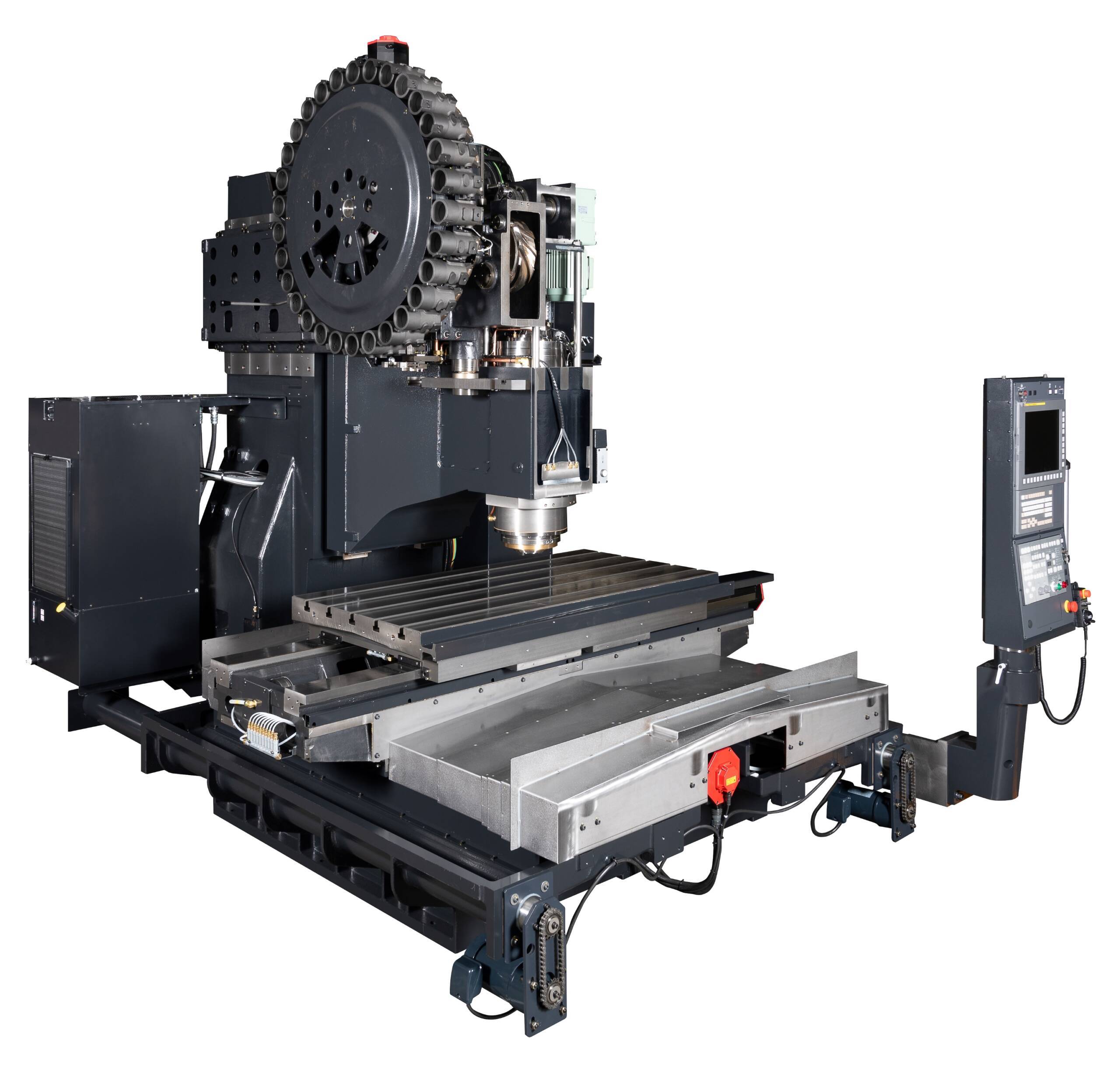

OKK VM76RII Vertical Machining Center
*Availability of machines is based on region. Contact your local Methods office to learn more.
The VM/R series increased rigidity of the main body and the spindle to provide even higher cutting performance. Its feed axes utilize highly rigid and accurate box-ways like conventional machines. This enables machining of not only general parts but also parts made of difficult-to-cut materials such as titanium. The main body design delivers heavy and accurate machining in an ergonomic friendly design.
-
Expanded working area
-
Improved accessibility
-
Increased main body rigidity
-
Core chilled ball screws
-
Double anchored support system
-
Space saving design for economical use of floor space
-
Coil-type chip conveyor
-
box ways construction
Travel
| X-Axis Travel | 60.6" (1540mm) |
|---|---|
| Y-Axis Travel | 29.9" (760mm) |
| Z-Axis Travel | 26.0" (660mm) |
| Table Top to Spindle Nose | 5.9" – 31.9" (150mm – 810mm) |
Table
| Table Work Surface Area | 61.0" x 29.9" ( 1550mm x 760mm) |
|---|---|
| Table Load Capacity | 3307 lbs (1500 kg) |
Feed Rate
| Rapid Traverse Rate X/Y | 945 in/min (24 m/min) |
|---|---|
| Rapid Traverse Rate Z | 787 in/min (20 m/min) |
| Cutting Feed (X/Y/Z) | 787 in/min (20 m/min) |
Spindle
| Spindle Power | 25/20 HP (Option 40HP) |
|---|---|
| Spindle Speed | 8,000 rpm (Option 12,000 rpm) |
| Spindle Taper | CAT50 (Option CAT40) |
Tools
| Standard Number of Tools | 30 (Option 40) |
|---|---|
| Maximum Tool Weight | 44 lbs (20 kg) |
| Maximum Tool Length | 15.0" (380 mm) |
| Maximum Tool Diameter | ø 4.06" (103 mm) / ø 7.87" (200 mm) without tool in adjacent pots |
| Tool Changing Time- Tool to Tool | 2.0 sec (Speed is changeable for heavy-weight tools) |
General
| Machine Weight | 28,700 lbs (13,000 kg) |
|---|---|
| Machine Control | FANUC F31i-B Plus |
