OKK
VM53R

*Availability of machines is based on region. Contact your local Methods office to learn more.

The VM/R series of OKK machines offers increased rigidity of the main body and the spindle to provide even higher cutting performance.

The OKK VM53R’s feed axes utilize highly rigid and accurate box-ways like conventional machines, enabling better machining of not only general parts, but also machining parts made of difficult-to-cut materials such as titanium. The main body design delivers heavy and accurate CNC machining in an ergonomic and user-friendly design.

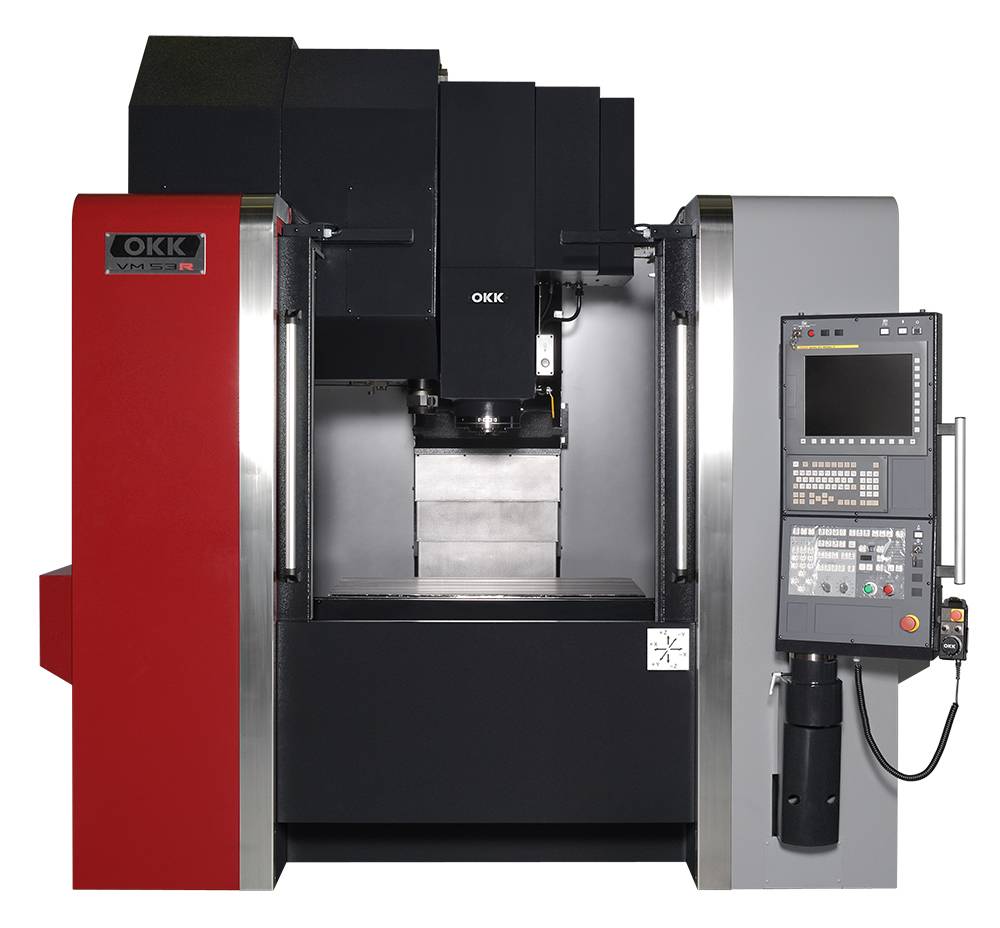

the front of the OKK VM53R Vertical Machining Center sold by Methods Machine Tools
skeleton structure of the OKK VM53R vertical CNC machining center sold by Methods Machine Tools
OKK VM53R Vertical Machining Center front open | Methods Machine Tools IMG_0149 OKK VM53R skeleton | Methods Machine Tools

Product Details

Features & Benefits

  • Expanded working area
  • Improved accessibility
  • Increased main body rigidity
  • Box way construction
  • Space saving design for economical use of floor space
  • Coil-type chip conveyor

Technical Data

Travel

X-Axis Travel
41.3" (1050mm)
Y-Axis Travel
20.8" (530mm)
Z-Axis Travel
20.1" (510mm)
Table Top to Spindle Nose
5.9" - 26.0" (150mm - 660mm)

Table

Table Work Surface Area
41.3" x 22.1" ( 1050mm x 560mm)
Table Load Capacity
1764 lbs (800 kg)

Feed Rate

Rapid Traverse Rate X/Y
1181 in/min (30 m/min)
Rapid Traverse Rate Z
787 in/min (20 m/min)
Cutting Feed (X/Y/Z)
787 in/min (20 m/min)

Spindle

Spindle Power
25/20 HP
Spindle Speed
8,000 rpm
Spindle Taper
CAT40 or CAT50

Tools

Standard Number of Tools
30
Maximum Tool Weight
44 lbs (20 kg)
Maximum Tool Length
13.8" (350 mm)
Maximum Tool Diameter
ø 4.06" (103 mm) / ø 7.87" (200 mm) without tool in adjacent pots
Tool Changing Time- Tool to Tool
2.0 sec (Speed is changeable for heavy-weight tools)

General

Machine Weight
17,600 lbs (8,000 kg)
Machine Control
FANUC F31i-B
