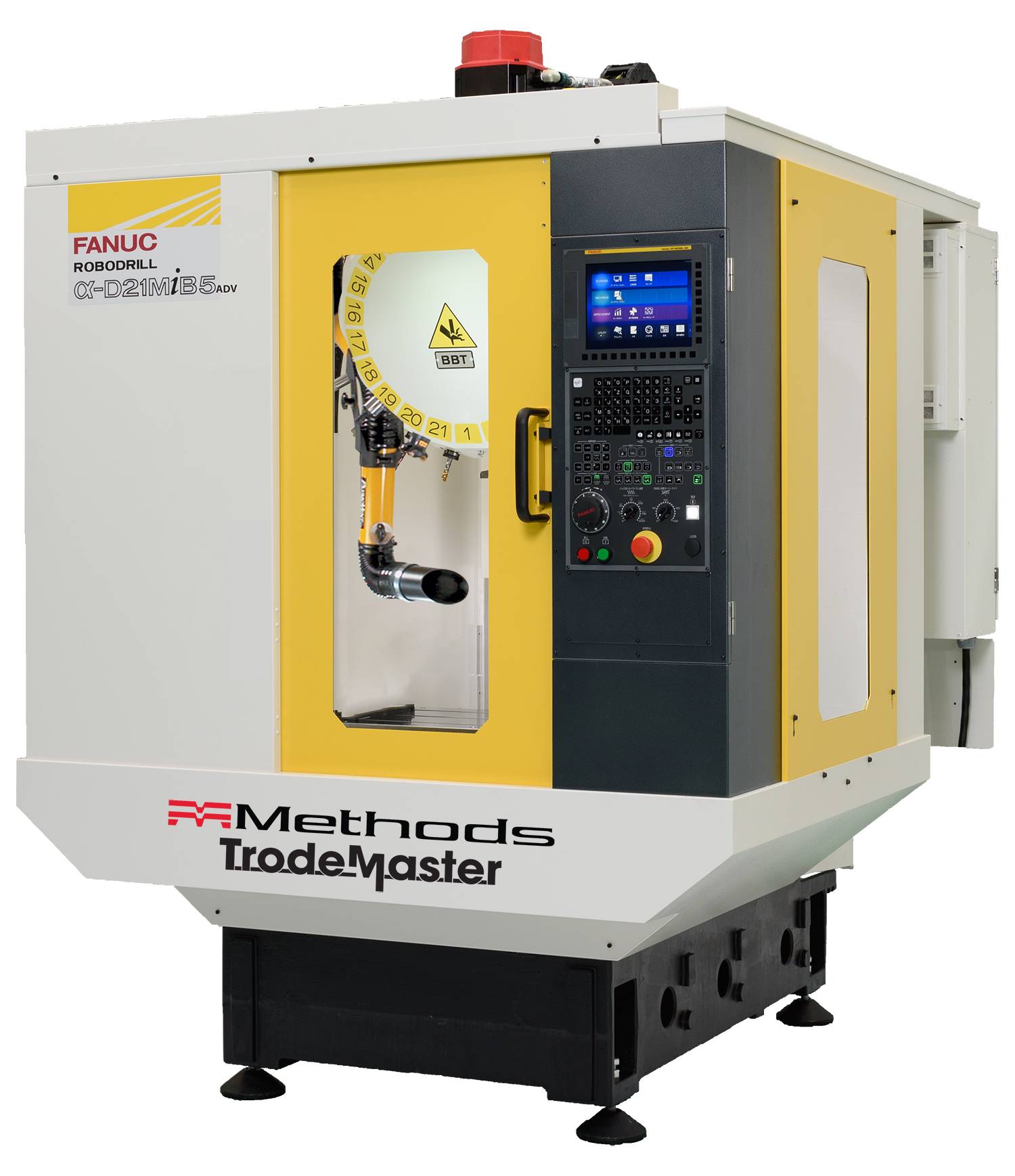

The Trodemaster high speed VMC offers a compact, low cost footprint capable of machining graphite or copper electrodes. With 24,000 RPM spindle and loaded with FANUC high speed software, dust collector, laser tool touch setter and the FANUC 31i-B5 control, this machining center can make fast work of complex electrodes for EDM operations. These machines make the perfect companion to any Die Sinker EDM machine.
-
Laser Tool Probe
-

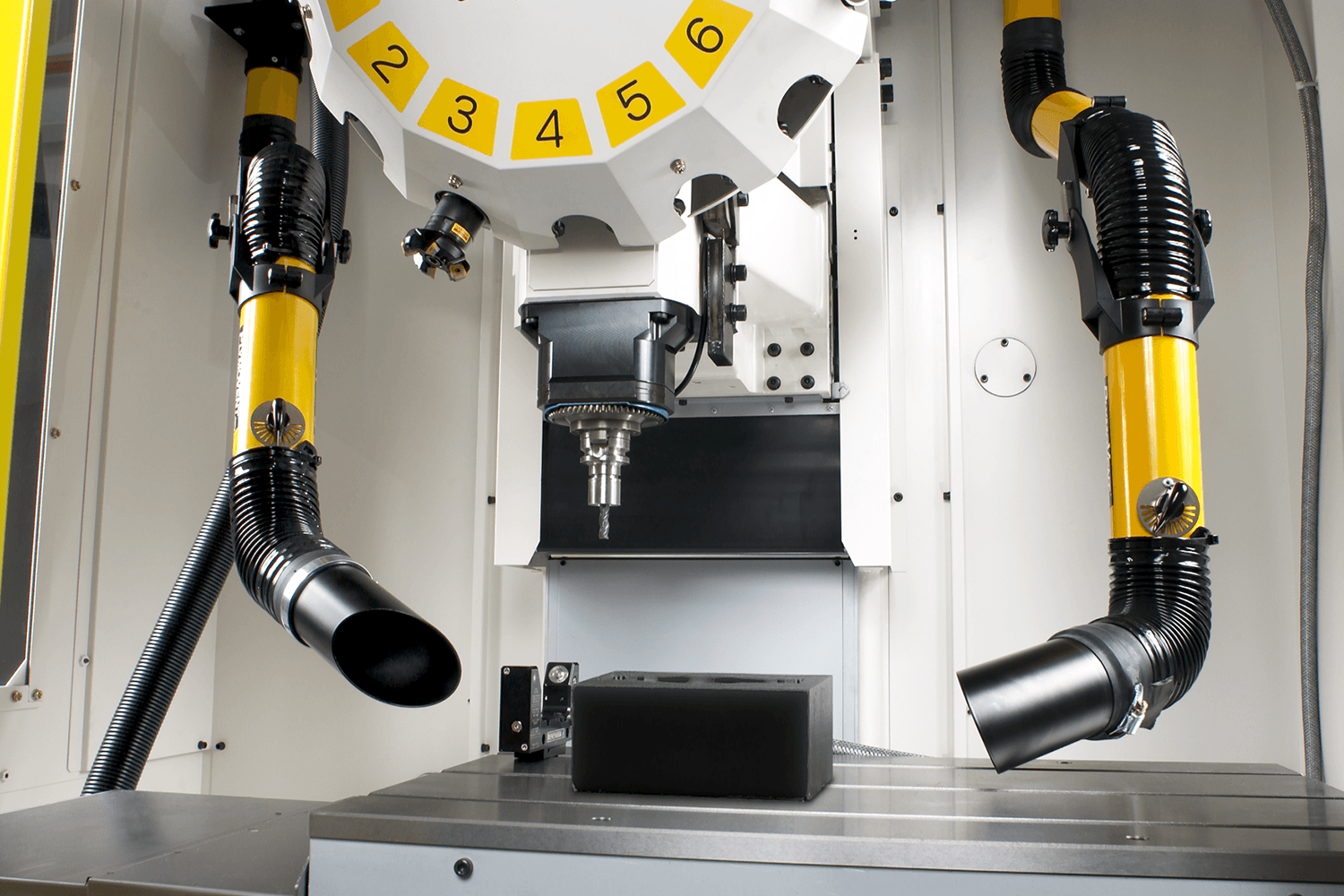

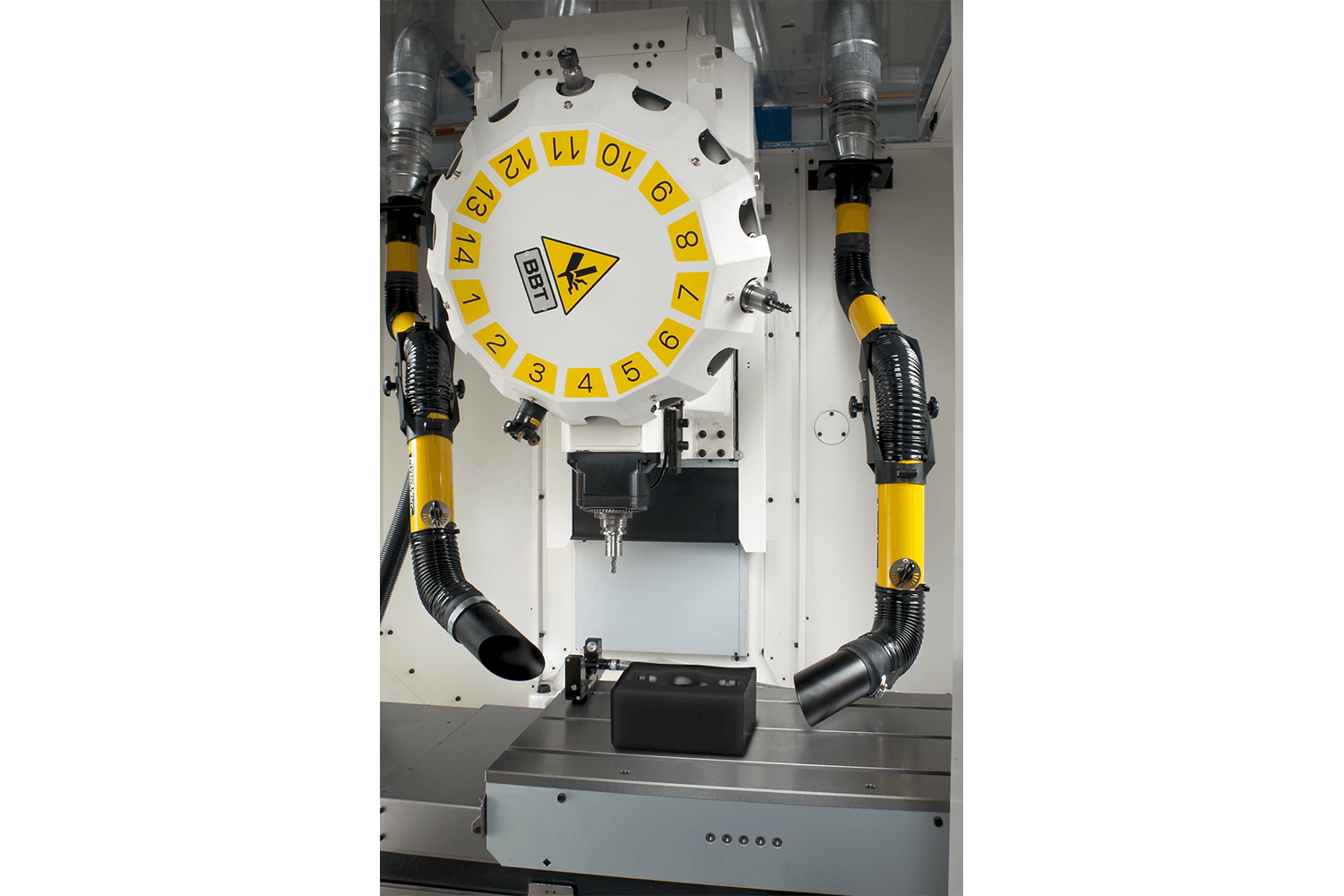

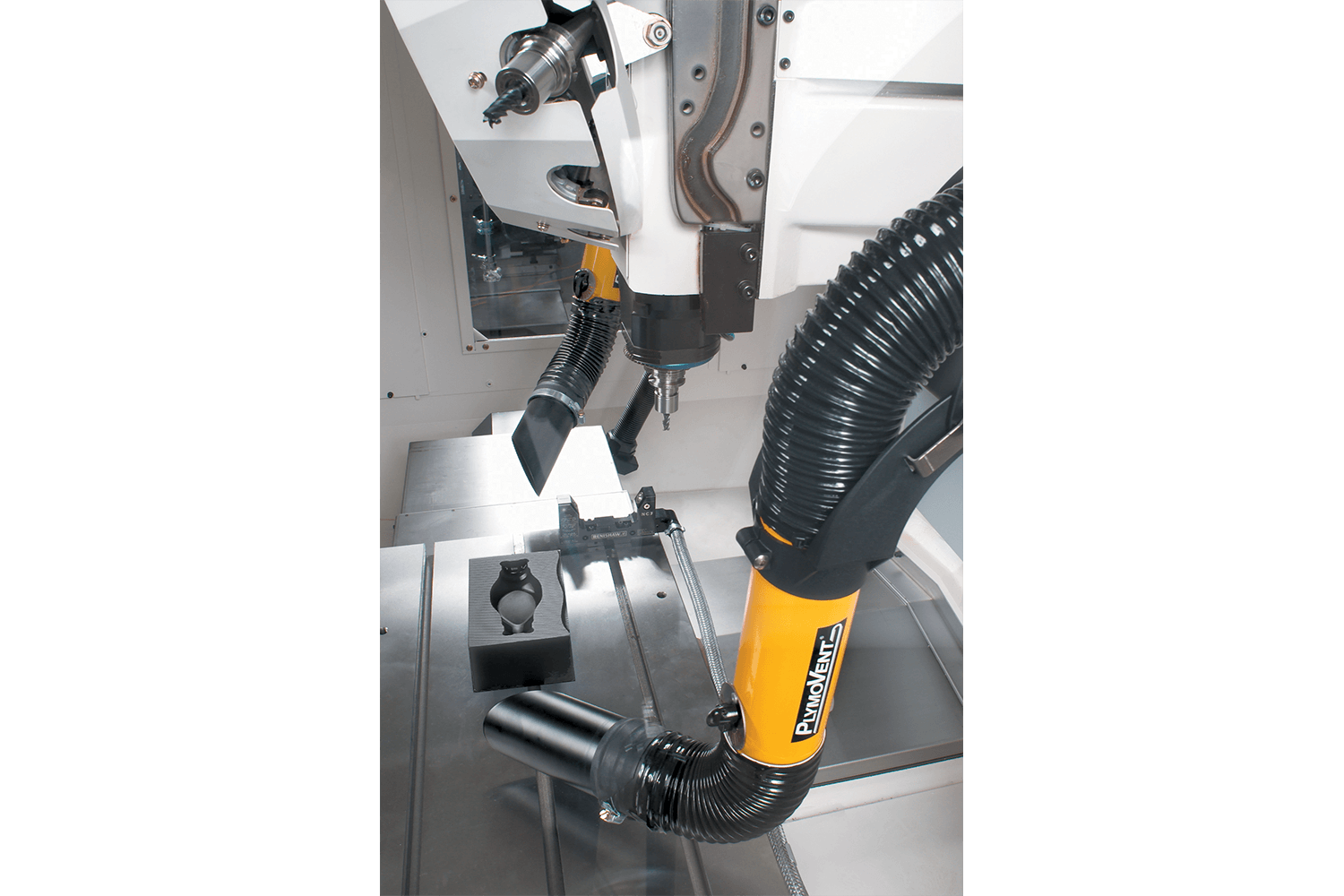

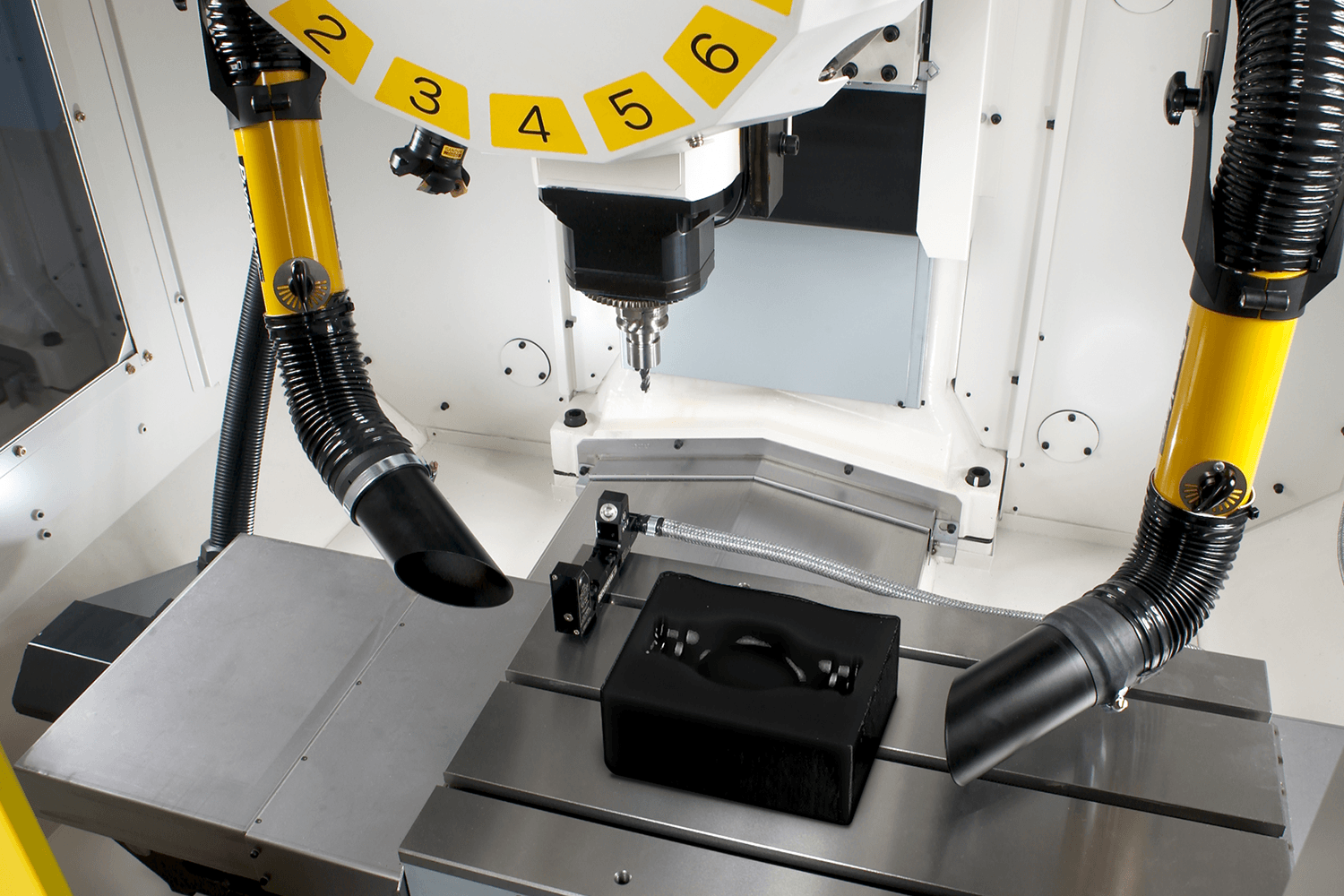

Dust Collector
-
Up to 5 Axis Simultaneous Machining
-
FANUC 31i-B5 Nano CNC System
-
Ultra Precise 16,000,000 Pulse/Rev Encoders
-
Ai Contour Control II
-
Thermal Growth Compensation
-
1.6 Sec Chip to Chip
-
1.5G Accel/Decel
-
Helical Interpolation
-
Program Storage
-
Rigid Tapping 5,000/8,000 RPM
-
Thread Milling
-
High Speed Reverse Tapping
-
“Quick” Tap Recovery System
-
Simultaneous ATC / Table Positioning
-
Easy to Automate
-
Built 100% in Japan
Travel
| X-Axis Travel | 19.7 (500) in (mm) |
|---|---|
| Y-Axis Travel | 15.7 (400) in (mm) |
| Z-Axis Travel | 13 (330) in (mm) |
| Spindle to Table | 5.9-18.9 (150-480) in (mm) |
Table Size
| Table Size | 25.6×15.7 (650×400) in (mm) |
|---|---|
| Table Capacity | 660 (300) lbs (kg) |
Weight
| Machine Weight | 4400 (1996) lbs (kg) |
|---|
Turret Style ATC Specifications
| Tool to Tool Change Time | 0.9 sec |
|---|---|
| Chip to Chip Change Time | 1.6 sec |
| Max Tool Length | 9.8 (249) in (mm) |
| Max Tool Diameter | 3.14 (80) in (mm) |
Spindles
| Spindle Taper | BIG-PLUS BBT-30 |
|---|---|
| Spindle Speed | 24000 rpm |
| 10000rpm | N/A HP |
| 240000rpm | 34.8* HP |
| Total Simultaneous Axis | 3 Standard (4/5 Optional) |
