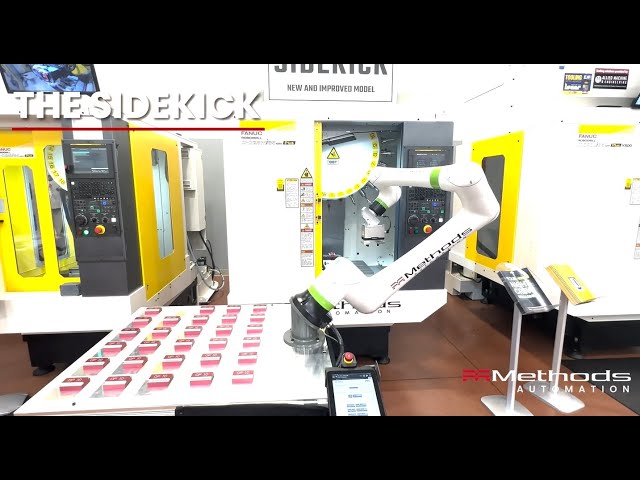

The Sidekick Automation system is an automation platform that offers a FANUC CRX-10iA/L Collaborative Robot mounted to a standardized table designed specifically to load and unload a FANUC RoboDrill machining center, providing crucial support for shops looking for an extra hand.
Users have the option to either setup end of arm tooling, part grid plates, and programming on their own OR purchase a ‘Ready-to-Run’ package from Methods that comes pre-programmed with a standardized infeed/outfeed grid plate and end of arm tooling on the robot.
The Sidekick BASE package includes:
- The FANUC CRX-10iA/L robot
- The table
- A pre-setup Ethernet/IP Interface between the robot and machine tool.
From there the end user is responsible for all ancillary equipment for making the system run as well as the robot programming.
The Sidekick Ready-to-Run package includes:
- The FANUC CRX-10iA/L robot
- Pre-programming from Methods for single piece flow of one-operation parts with an easy-to-use Guided User Interface
- Within minutes an operator is able to setup a part to run through the system.
-

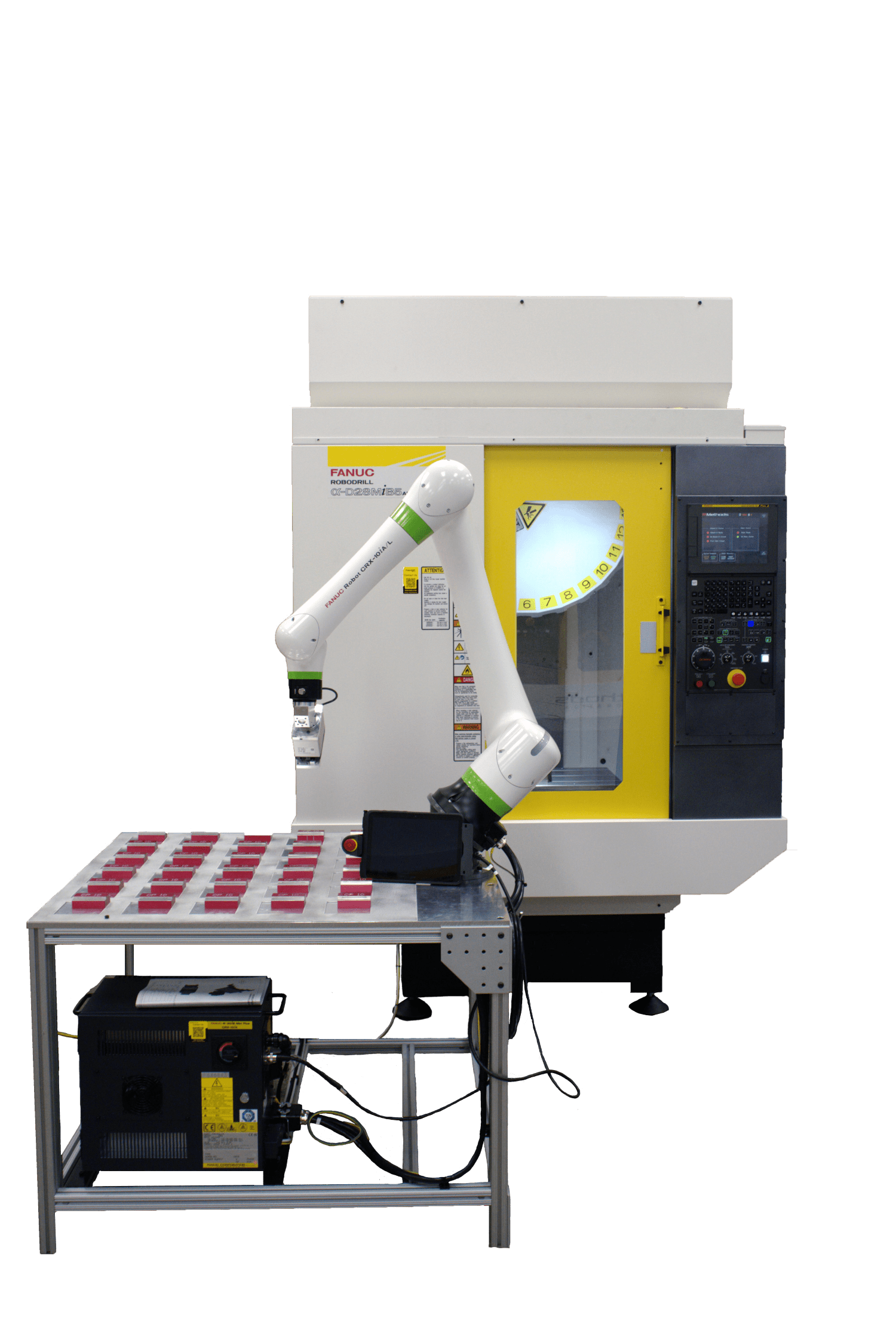

Aluminum extrusion framed table with base feet for stabilization and setting in front of the RoboDrill
-
Infeed/Outfeed pallet storage system in the front of the cart allows for a completely configurable part setup
-
Ethernet/IP, DCS Position & Speed Check, Karel, and Math Function software options
-
Single gripper end of arm tool with either a 2-Jaw or 3-Jaw OnRobot gripper setup
-
Methods User Interface: Standard machine load/unload programming to pair with the FANUC RoboDrill utilizing FANUC FOCAS based protocol, making the easy-to-use collaborative robot even easier!
Pallet
| Max Pallet Size (Diameter x Height) | 19.25” X 29.25” |
|---|
Work Piece
| Max Weight of Part | 15 lbs (7kg) |
|---|
Robot
| FANUC | CRX-10iA/L |
|---|---|
| Controller | FANUC R-30iB Mini Plus |
| Max Speed | ~39.4 in/sec. (1000mm/sec.) |
| Controlled Axes | 6 |
| Max Payload | ~22 lbs (10 kg) |
| Robot Reach | 55.8” (1418mm) |
| Repeatability | +/- 0.04mm (=/- 0.0016") [Based on ISO9283] |
General
| Table Size (L x W) | 36" x 42" |
|---|---|
| Table Height | 30" |
| System Weight | 300 lbs (136 kg) |
| Air Requirements | None |
| Power Requirements | 110 VAC, Single Phase, 1.5 KVA |
| Foundation Requirements | 6 in., single pad, poured concrete |
-
