Fanuc
RoboDrill α-DiB5 ADV Series Short Bed

The FANUC RoboDrill Short Bed is a compact vertical machining center capable of high speed, high precision, and high-efficiency operation.

The FANUC RoboDrill α-DiB5 ADV Series Short Bed offers a machine width of only 40″. This FANUC RoboDrill is known as the “space saver” model, but still offers the same speed, proficiency, and precision found in the FANUC RoboDrill medium and long-bed models.

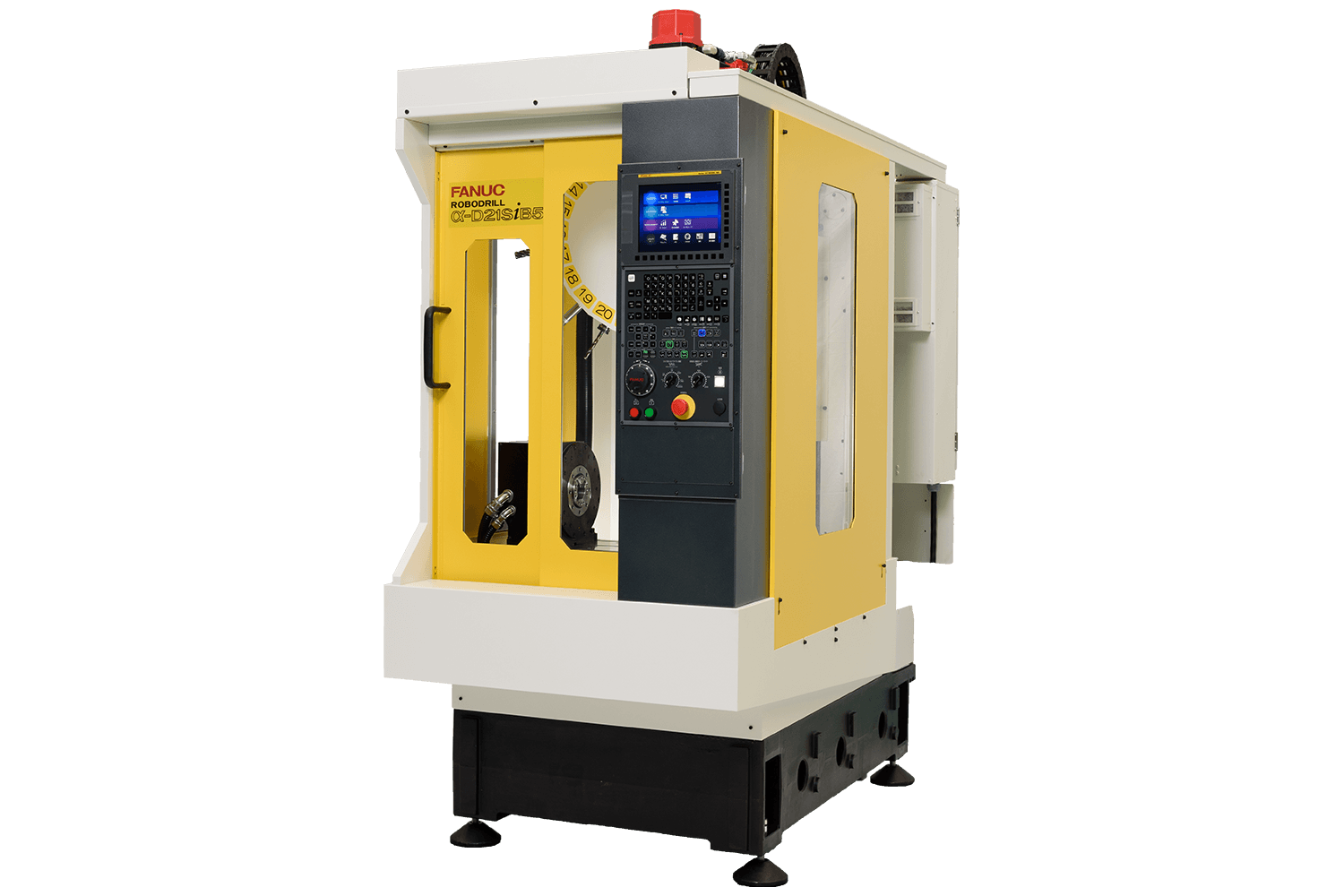

the RoboDrill Short-bed Vertical Machining Center built by FANUC

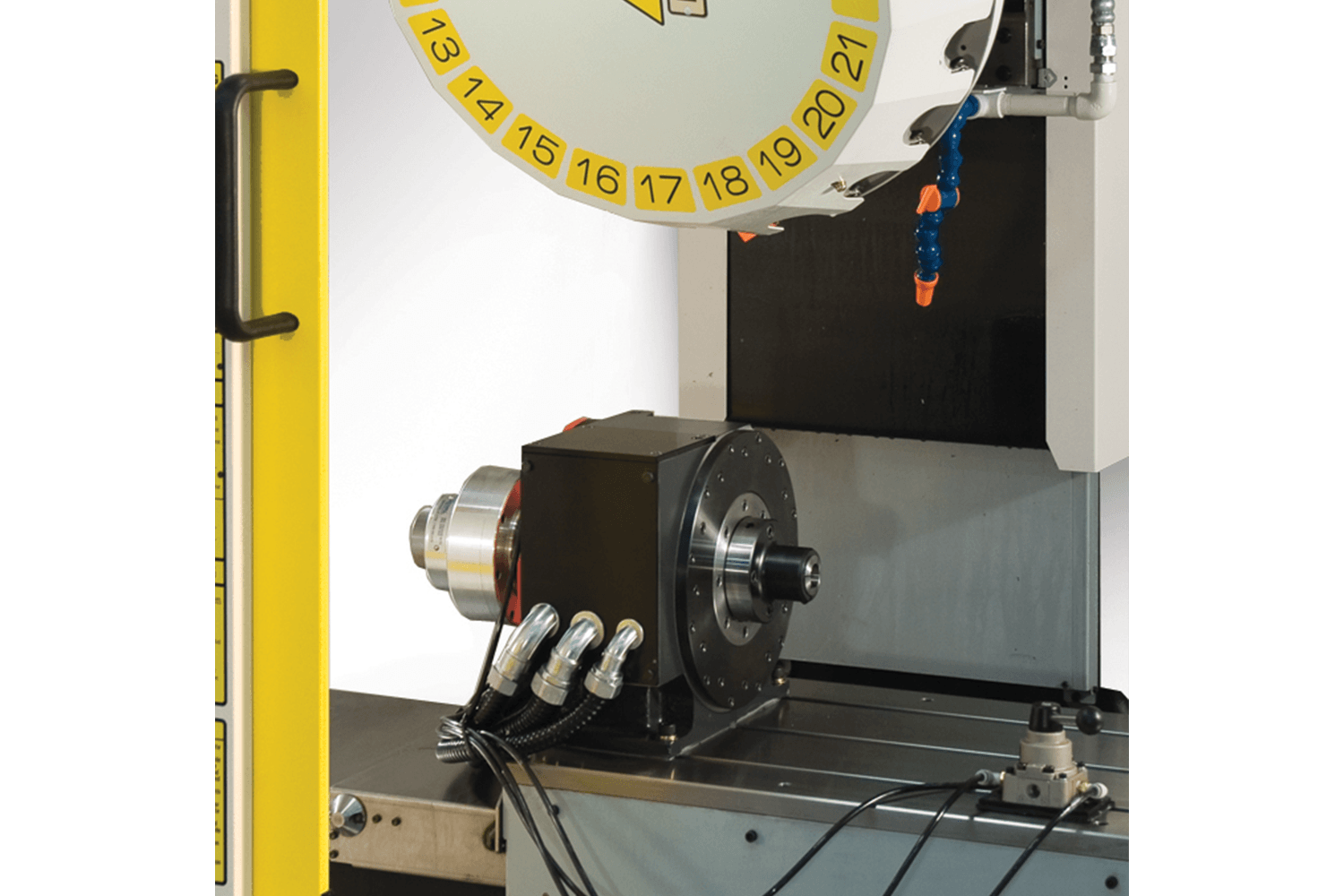

a FANUC RoboDrill MiB5 machining center manufacturing a part for a job shop

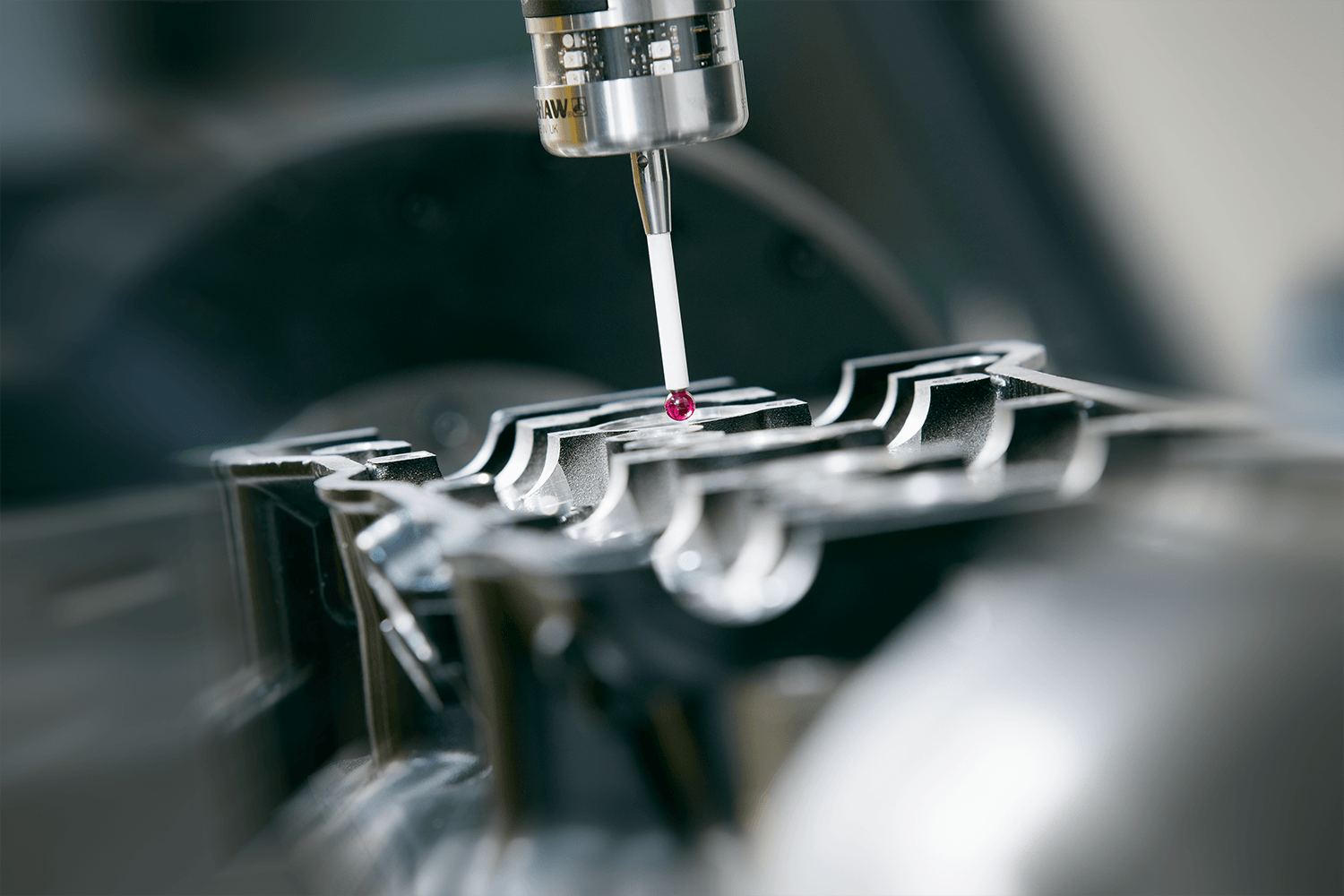

a FANUC Robodrill machining a part

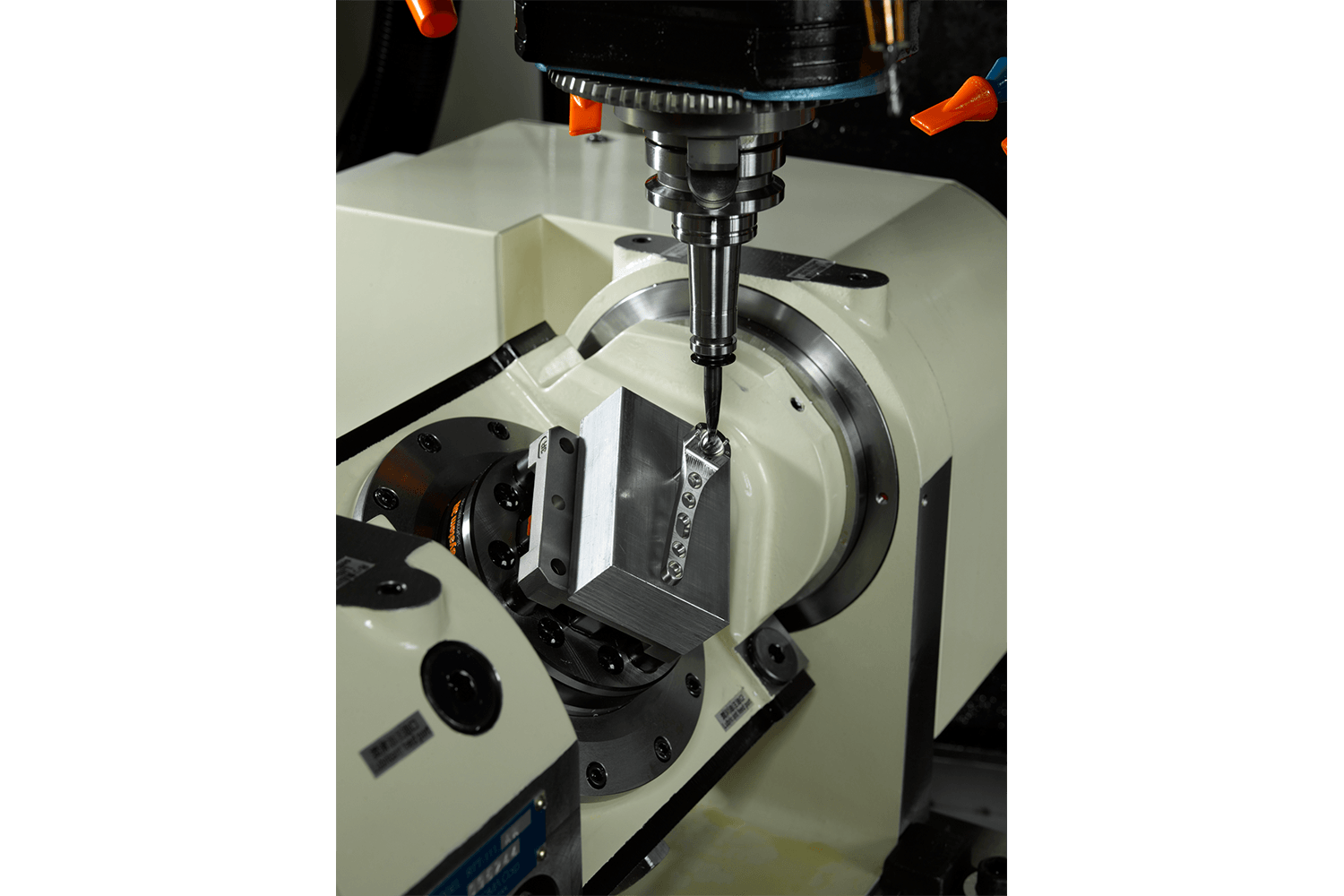

closeup of a FANUC RoboDrill DiB machining center tooling a part

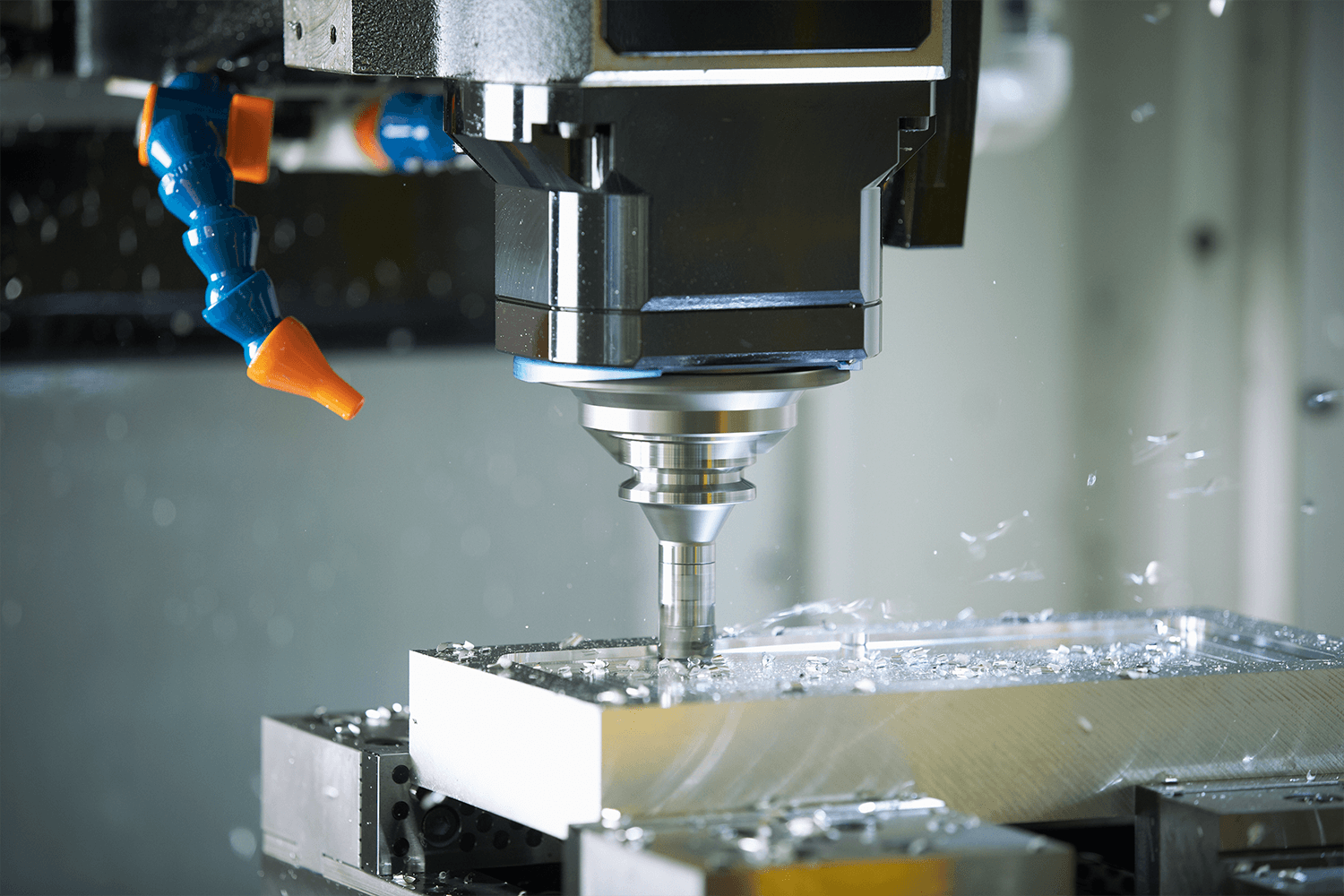

closeup of a FANUC RoboDrill tool machining a part for a manufacturer
FANUC RoboDrill α-DiB5 ADV Series Short Bed | Methods Machine Tools FANUC RoboDrill Short Bed - Internal | Methods Machine Tools FANUC RoboDrill - Internal view | Methods Machine Tools FANUC RoboDrill DiB Close up | Methods Machine Tools FANUC RoboDrill - Internal photo of working Robodrill | Methods Machine Tools

Product Details

Features & Benefits

  • Compact Design
  • Big Plus Spindle
  • Up to 5 Axis Simultaneous Machining
  • FANUC 31i-B5 Nano CNC System
  • Ultra Precise 32,000,000 Pulse/Rev Encoders
  • Ai Contour Control I
  • Thermal Growth Compensation
  • 1.3 sec Chip to Chip
  • 1.5G Accel/Decel
  • Helical Interpolation Program Storage
  • Rigid Tapping 5,000/8,000 RPM
  • Thread Milling
  • High Speed Reverse Tapping
  • “Quick” Tap Recovery System
  • Simultaneous ATC / Table Positioning
  • Easy to Automate with Methods
  • Built 100% in Japan

Technical Data

Travel

X-Axis Travel
11.8 (300) in (mm)
Y-Axis Travel
11.8 (300) in (mm)
Z-Axis Travel
15.7 (400) in (mm)
Spindle to Table
5.9-18.9 (150-480) in (mm)

Table Size

Table Size
24.8x13 (630x330) in (mm)
Table Capacity
440 lbs (200 kg)

Weight

Machine Weight
4740 (2150) lbs (kg)

ATC

ATC Type
Turret Type
ATC Turret Capacity
21 tools
Tool to Tool Change Time
0.7 sec
Chip to Chip Change Time
1.3 sec
Max Tool Length
7.4 (190) in (mm)
Max Tool Diameter
3.14 (80) in (mm)

Spindles

Spindle Taper
BBT-30 Big Plus
Spindle Speed
10000/24000 rpm
10000rpm
18.7* / 7.5** HP
24000rpm
34.8* / 7.3** HP

Feedrate

X-Axis Rapid Traverse
2125 (54) in/min (m/min)
Y-Axis Rapid Traverse
2125 (54) in/min (m/min)
Z-Axis Rapid Traverse
2125 (54) in/min (m/min)

Controls

Control
Fanuc 31i-B5
Maximum Programming Memory
2mb standard (4gb optional w/flash memory)
Total Simultaneous Axis
Up to full 5-axis

* 1 min rating

** Continuous

General

Floor Space
39.1" x 87.4" (995mm x 2,236mm)
Machine Weight
4,740lb (2,150kg)

Videos

Click to watch video
Click to watch video

Demos

Sorry, there are no demos for this machine.
