RoboDrill 28-Tool Long Bed Y500 Advanced Series
The FANUC RoboDrill is a high-performance machining center, known worldwide as the most reliable machine manufactured today.
The new RoboDrill D28iLB5 machine builds on the legacy of the industry’s best vertical machining center by expanding to 28 tools (up from 14 or 21) and an additional 100 millimeters of Y-axis travel.
RoboDrills make quick work out of any milling, drilling or tapping jobs. Reliability has also been addressed in all areas of the machine design. Coupled with the latest FANUC 31i-B5 PLUS control, the RoboDrill is the preferred machine in any manufacturing facility, large or small.
-
Compact Design
-
FANUC 31i-B Nano CNC System
-
Fine Surface Technology with HRV3+
-
Cycle-time Reduction Using Machining Mode 2 Function
-
1.3 sec Chip to Chip
-
2.2G Accel/Decel on Z-axis
-
5 Million ATC Duty Life
-
High-power Spindle Motors Standard
-
Fine Surface Technology with Smooth Tolerance+
-
10.4 in. Color LCD for iHMI
-
“Quick” Tap Recovery System
-
Simultaneous ATC / Table Positioning
-
Easy to Automate with Methods
-
100% Built in Japan
TRAVEL
| X-Axis Travel | 700 mm |
|---|---|

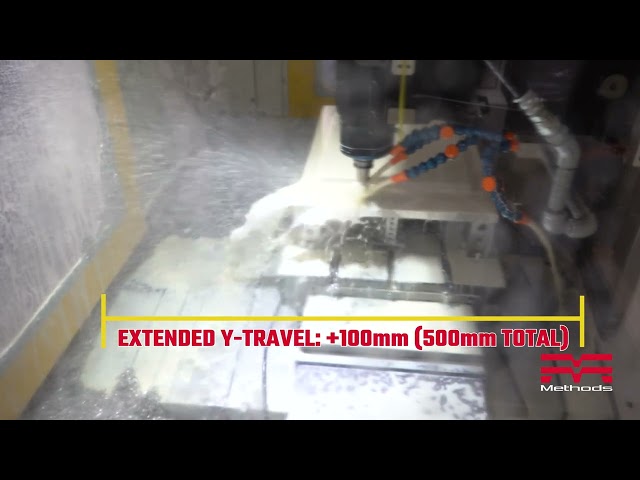

| Y-Axis Travel | 500 mm |
| Z-Axis Travel | 400 mm |
| Spindle to Table (with 100mm Riser) | 180 – 580 mm |
TABLE SIZE
| Table Size | 850 mm x 500 mm |
|---|---|
| Table Capacity | 400 kg |
WEIGHT
| Machine Weight | 5401 lbs (2450 kg) |
|---|---|
| TURRET STYLE ATC SPECIFICATIONS | . |
| Tool-to-Tool Change Time | 0.7 seconds |
| Chip-to-Chip Change Time | 1.3 seconds |
| Max Tool Length | 250 mm |
| Max Tool Diameter | 80 mm |
SPINDLE
| Spindle Taper | BBT-30 |
|---|---|
| Spindle Speed | 10K or 24K RPM |
| FEEDRATE | . |
| X-Axis Rapid Traverse | 54 m/min (2,126 in/min) |
| Y-Axis Rapid Traverse | 54 m/min (2,126 in/min) |
| Z-Axis Rapid Traverse | 60 m / min (2,362 in/min) |
ATC
| ATC Type | Turret Type |
|---|---|
| ATC Turret Capacity | 28 tools |
| Tool-to-Tool Change Time | 0.7 seconds |
CONTROL
| Model | Fanuc 31i-B5 PLUS |
|---|---|
| Maximum Programming Memory | Up to 2 GB Optional |
| Total Simultaneous Axis | Up to 5-axis |
-
Royal Mist Collector FX-900
-
Hennig Chip Conveyor
-
Fanuc CRX-10iA Collaborative Robot
