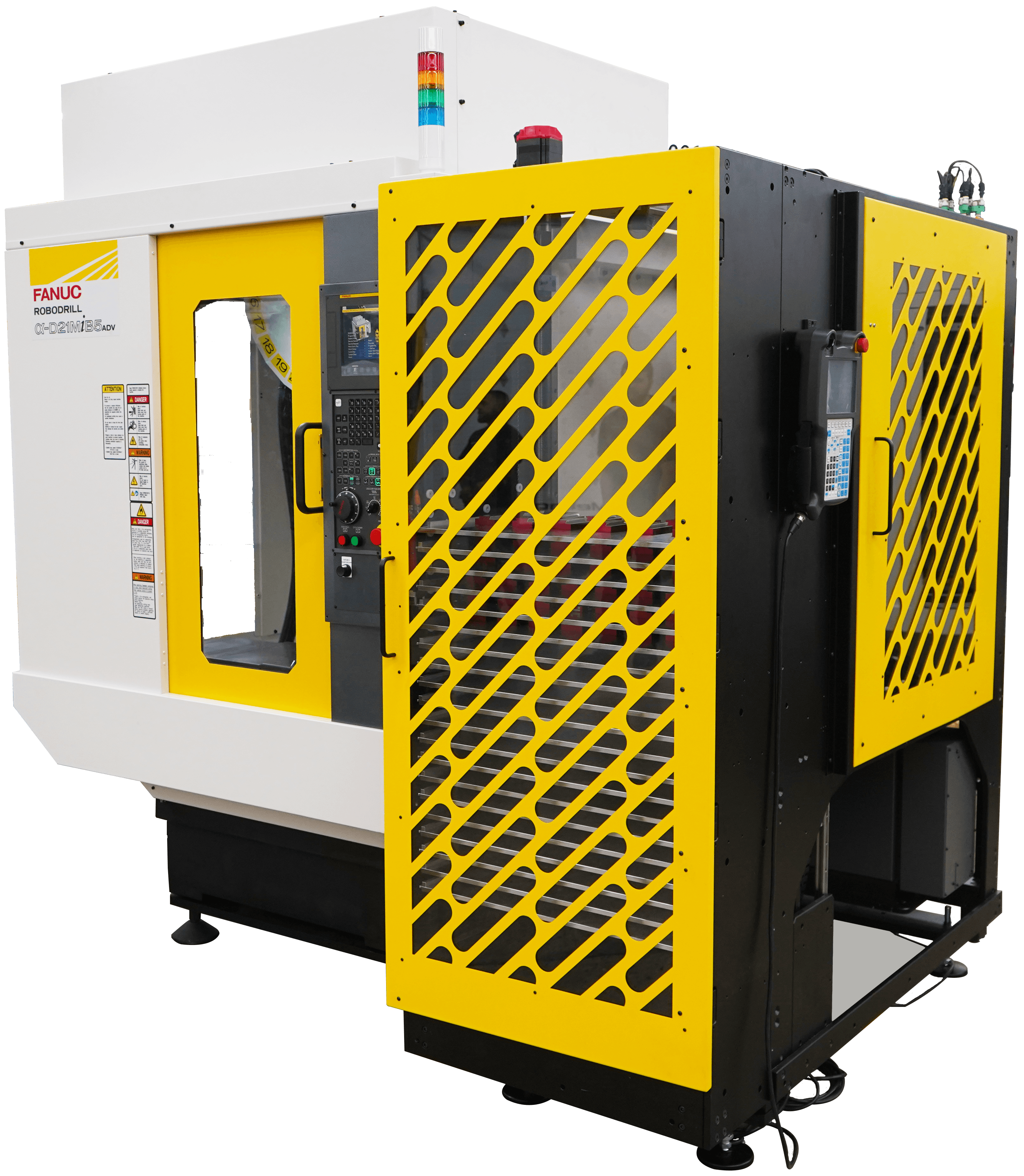

The FANUC Plus E Automation System offered by Methods Machine Tools

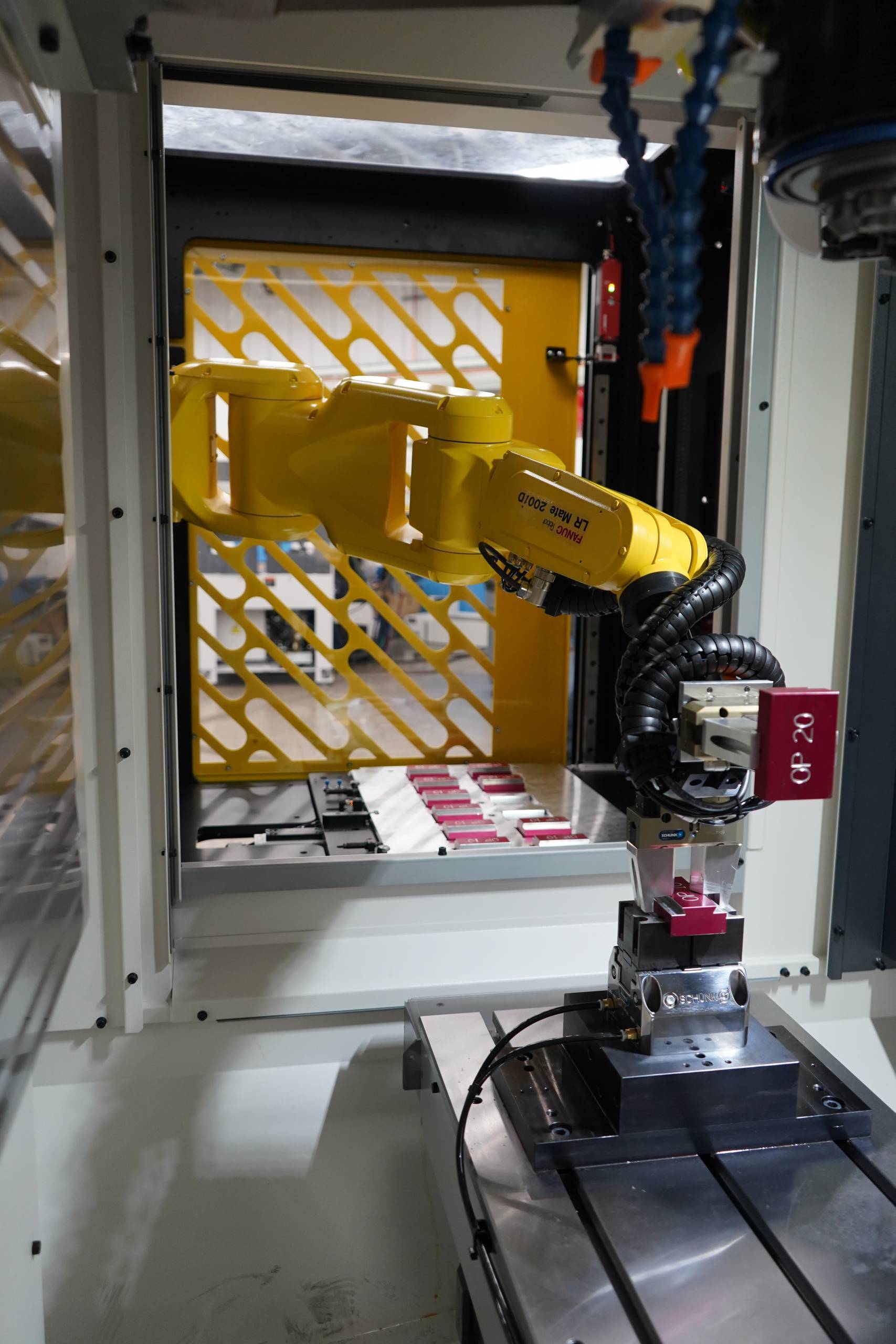

inside photo of the FANUC Plus E Automation System

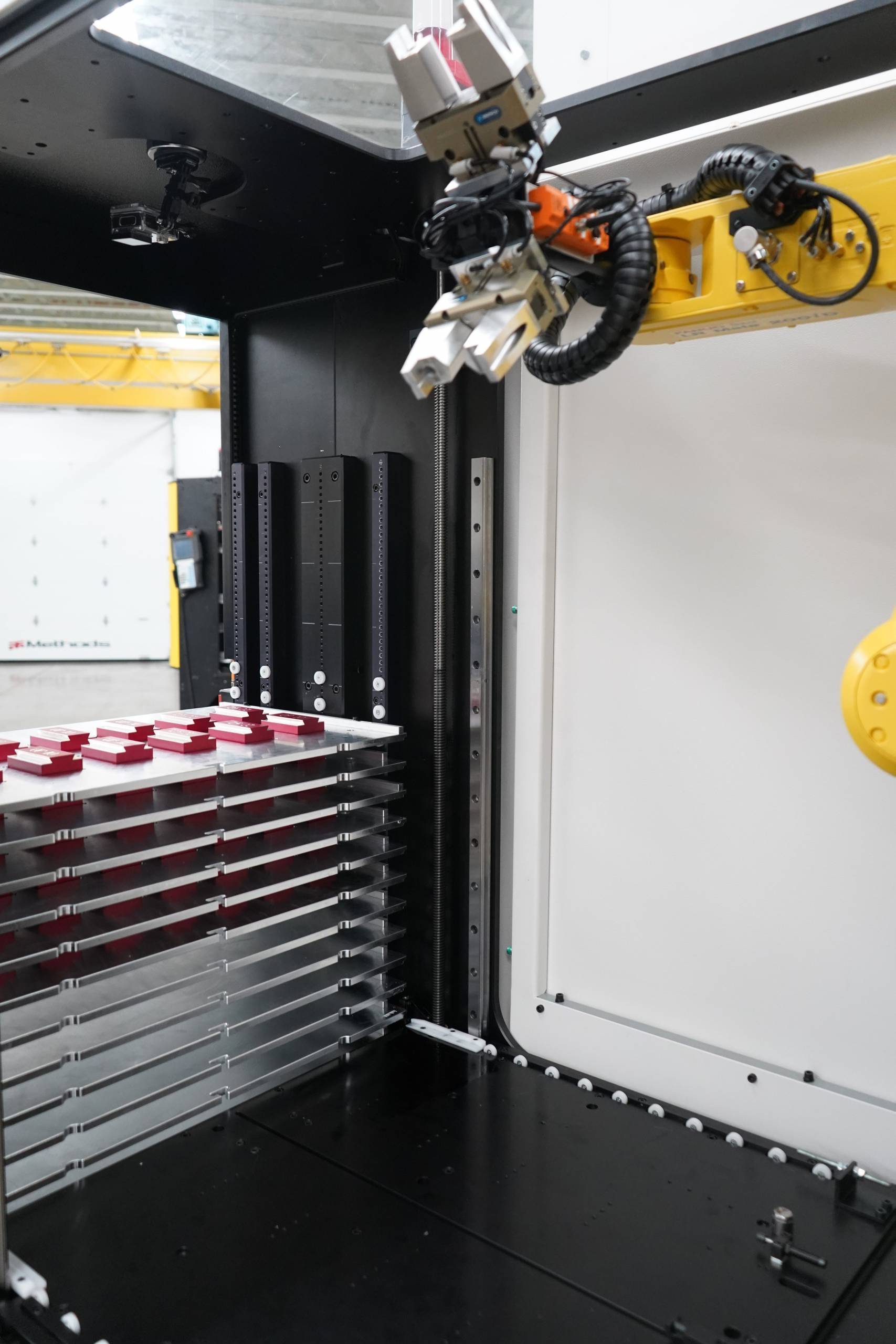

interior photo of the robotic arm within the FANUC Plus E Automation System sold by Methods Machine Tools

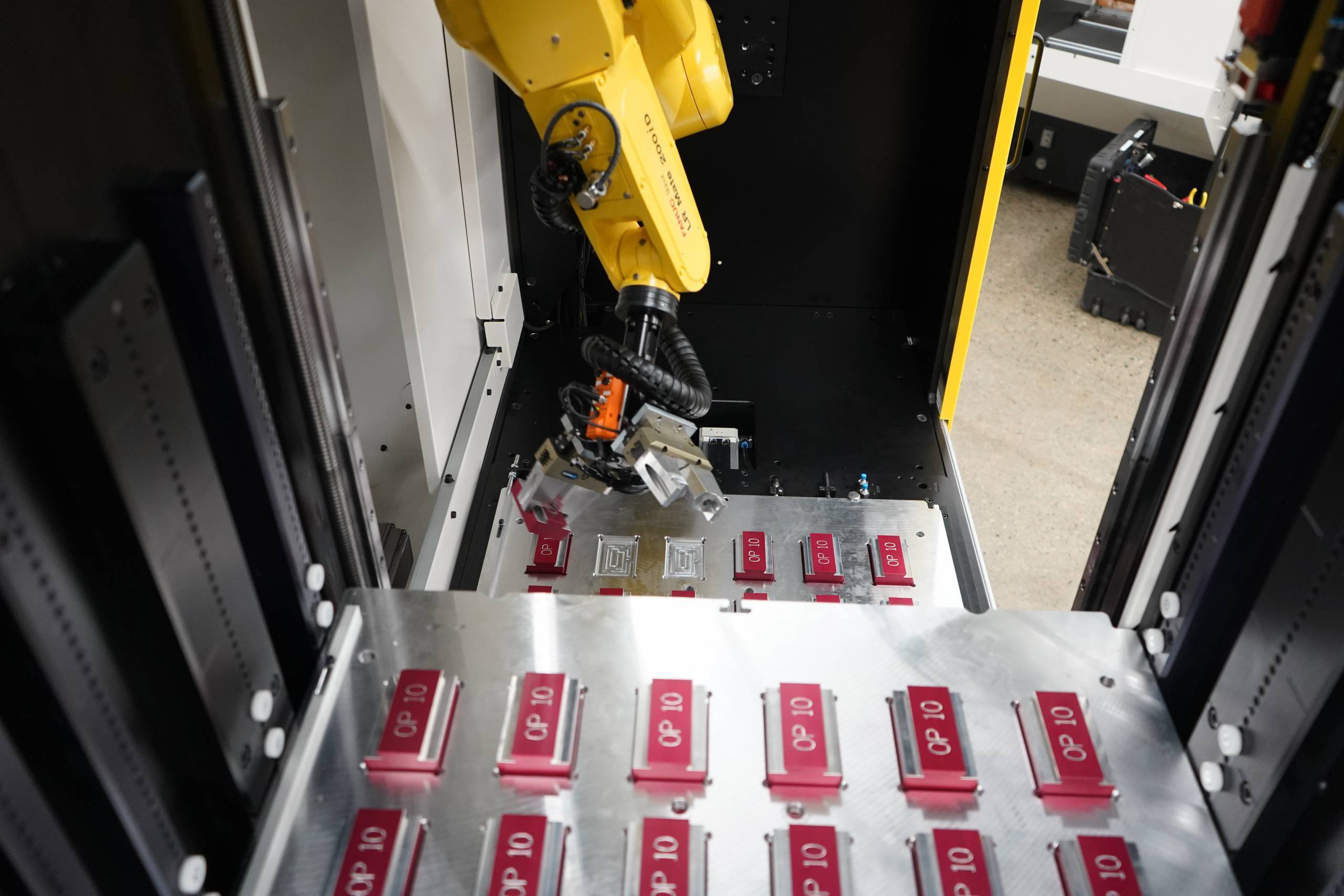

inside look at the FANUC Plus E Automation System
FANUC Plus E Automation System | Methods Machine Tools FANUC Plus E Automation System - Interior photo | Methods Machine Tools FANUC Plus E Automation System - Interior photo 2 | Methods Machine Tools FANUC Plus E Automation System - Interior photo 3 | Methods Machine Tools

Fanuc
Methods Automation Plus-E

Methods’ Plus-E Automation System for the Fanuc RoboDrill is based around a space saving elevator system manipulating a stack of pallets.

The Plus-E system will pull out one pallet–allowing access for the robot to take the raw parts to load/unload into the RoboDrill–then place the finished machined parts back onto the pallet.

When the pallet has been exhausted, the finished pallet is pushed back into the stack. The elevator will raise up and pull out a new pallet for access by the robot. The stack of pallets is easily accessible through the convenient front door.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

Methods Plus-E Multi Pallet Elevator Type Automation System

  • Steel base, stand and sheet metal enclosure, (2) Bottom support brackets with leveling feet to secure enclosure to the machine
  • Reconfigurable pallet storage system with approximately 36.6” (930mm) of pallet storage height
  • Pallet spacing adjustable in 10mm increments, for example:
  • ¾” (20mm) between pallets, 32 pallets
  • 1 ½” (40mm) between pallets, 19 pallets
  • 4 ¼” (110 mm) between pallets, 8 pallets
  • Operator access doors for part loading and maintenance
  • Servo controlled elevator system to pull pallets for access by robot
  • (5) blank elevator base pallets

FANUC LR Mate 200iD 6-axis Articulating Arm Industrial Grade Robot w/ R-30iB Mate Controller

  • Motion Package, RoboDrill Connection Interface software option, elevator motor and control
  • (2) pneumatic, parallel close, two jaw grippers with close position sensor, 1 set of blank gripper fingers

Elevator System Base Programming in Robot

  • Programming supplied to operate Elevator system.
  • End user to set initial pick up point as well as row and column details

Technical Data

Pallet

Pallet Storage
¾” (20) mm between pallets for 32 pallets
1 ½” (40mm) between pallets for 19 pallets
4 ¼” (110mm) between pallets for 8 pallets
Pallet Size
15.7” x 23.6” (400 mm x 600mm)

Work Piece

Max Weight of Part
3 lbs. (1.36kg) on two gripper configuration

Robot

FANUC
LR Mate 200iD/7L
Robot Reach
35" (911mm)

General

Floor Space (L x W)
67” x 30" (1700mm x 760mm)
Unit Weight
1200lbs (550kg)
