MV 800H RTS

The  MV 800H is a part of the MV-H Series which are 3-Axis Vertical Machining Center engineered & built to strict Methods specifications and quality standards. This new product line is packed with standard features and benefits that will exceed the expectations of our customers looking for quality, reliability, accuracy and longevity at a competitive price.

This RTS machine will be ready to ship to you within 5 days. Guaranteed.

Request Information

Or call 1-877-668-4262

Download Brochure

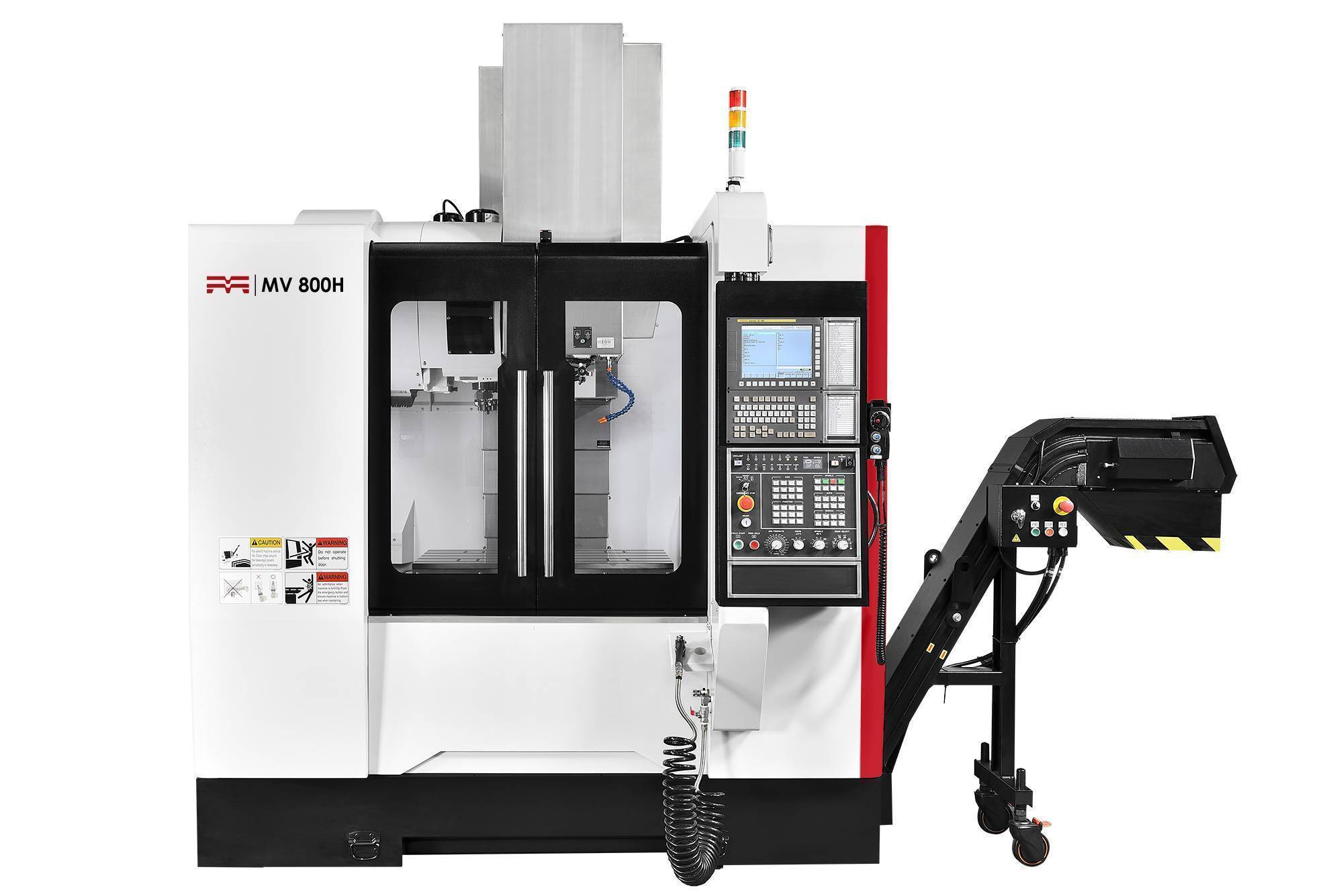

MV800H Front closed

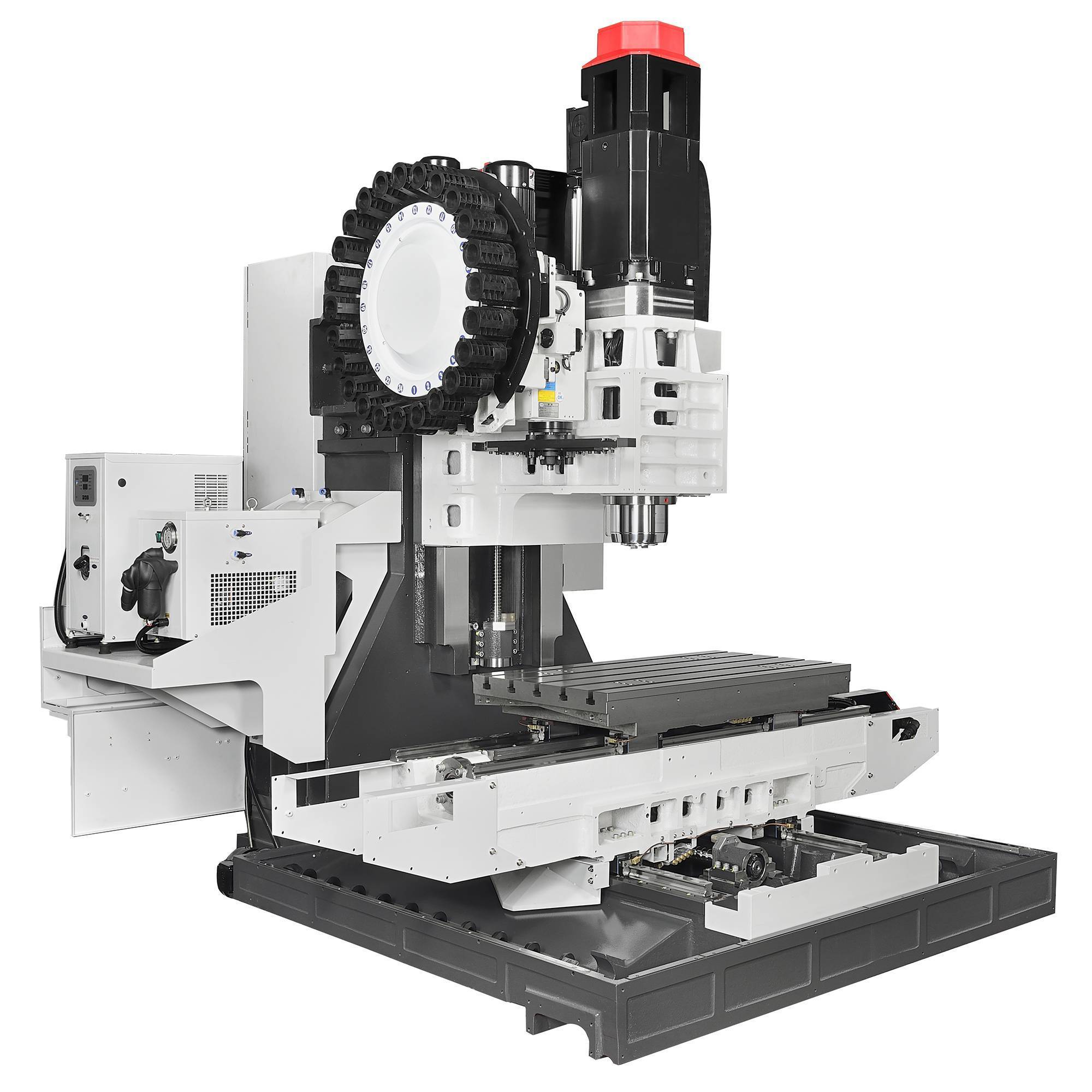

_DSC8144-去背

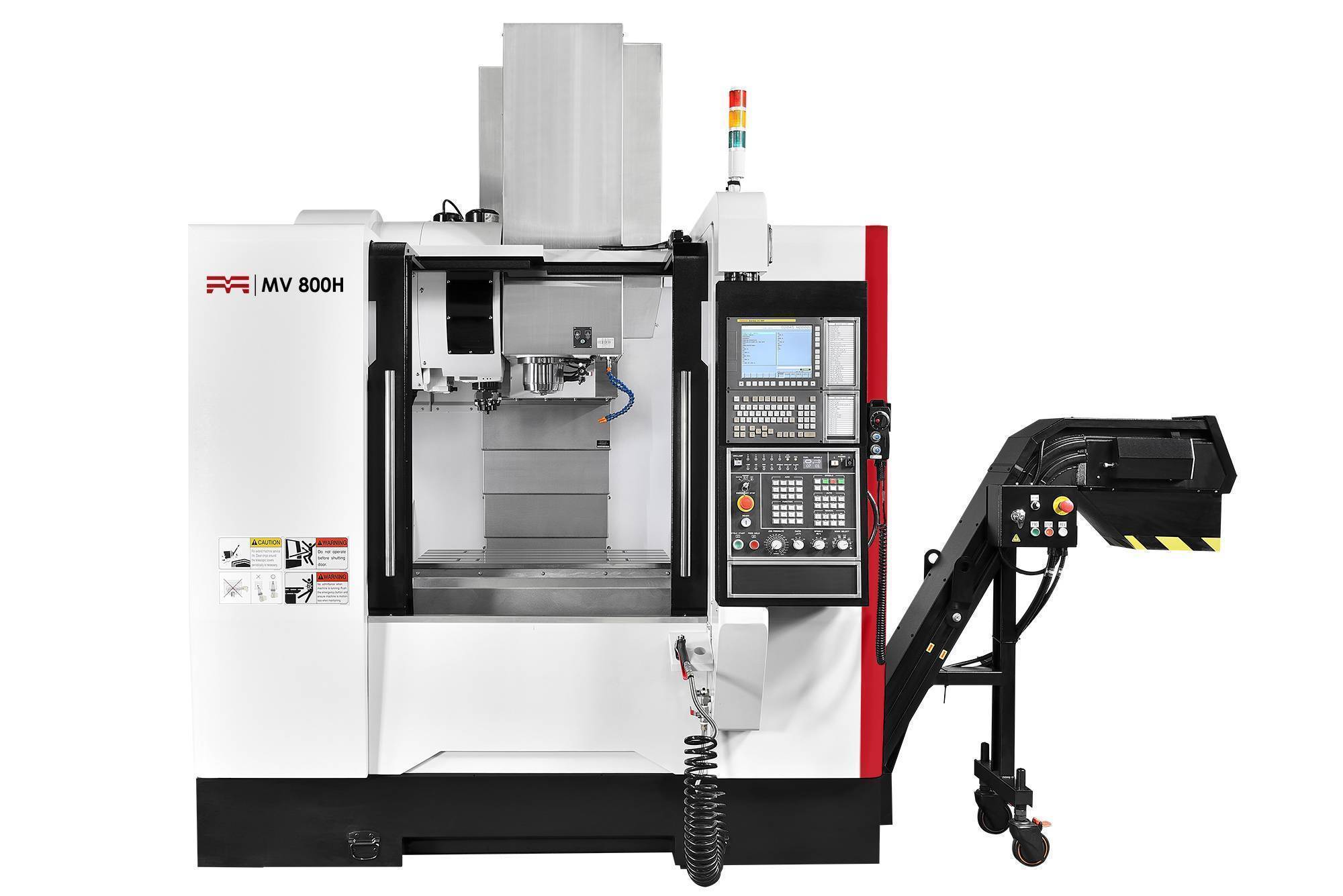

The Methods MV800H machining center with front doors open

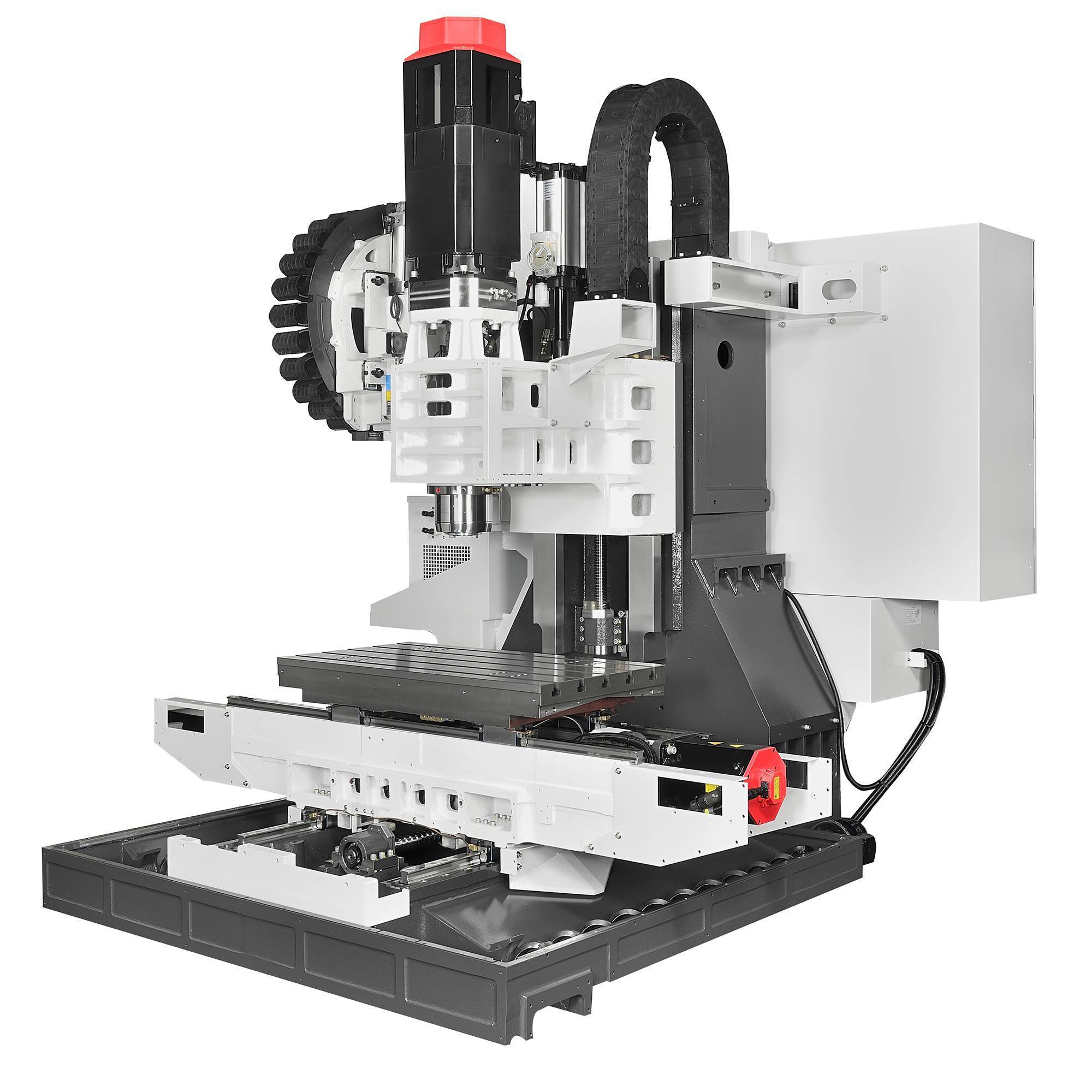

_DSC8159-去背

Product Details

Features & Benefits

  • Reliable FANUC 0i-MF Control with 10.4” LCD Screen
  • Includes Manual Guide I, AICC II, 2ms BPT, and 200 Block Look Ahead
  • 15,000 RPM Big Plus, 40 Taper Spindle with Air-Oil Lubrication, Spindle Chiller
  • Powerful 30 HP (15 min.) Direct Drive Hollow Shaft Spindle Motor w/1000 psi CTS Prep
  • Rigid Box-Way Construction in the Z-Axis
  • Robust Roller Guideways in the X and Y-Axis Feature 2362 IPM Rapid Rate
  • 24 Tool ATC
  • Thermal Compensation

Technical Data

Travel

X axis Travel
31.5" (800 mm)
Y axis Travel
20.5" (520 mm)
Z axis Travel
20.7" (525 mm)

Table

Table Dimensions
37.4" x 20.5" (950 x 520 mm)
Maximum Load
1102 lbs (500 kg)
Spindle Nose to Table Surface
3.94” ~ 23.8” (100 ~ 605 mm)

Spindle

Spindle Speed
15,000 rpm
Spindle Taper
Big Plus/CAT40
Spindle Power
30 HP
Spindle Torque
111ft/lb (150 Nm)
Spindle Lube
Oil / Air

Feedrate

X-Axis Rapid Traverse
2362 in/min (60 m/min)
Y-Axis Rapid Traverse
2362 in/min (60 m/min)
Z-Axis Rapid Traverse
1181 in/min (30 m/min)

ATC

Maximum Number of Tools
24
Tool-to-Tool Change Time
1.5 sec
Max Diameter
3.1” (80 mm)
Max Weight
15.4 lbs (7 kg)
Max Length
11.8" (300 mm)

Dimensions/ Weight/ Capacities

Weight
15,101 lbs (6850 kg)
Coolant Tank Capacity
94 gal (355 l)
Control
FANUC 0i-MF
