MV 600H
As part of our MV-H Series of 3-Axis Vertical Machining Centers, the MV 600H is engineered and built to strict Methods specifications and quality standards.
This new product line is packed with standard features and benefits that will exceed the expectations of precision manufacturers looking for quality, reliability, accuracy and longevity at a competitive price.
-
Reliable FANUC 0i-MF Plus Control with 10.4” LCD Screen
-
Includes Manual Guide I, AICC II, 2ms BPT, and 200 Block Look Ahead
-

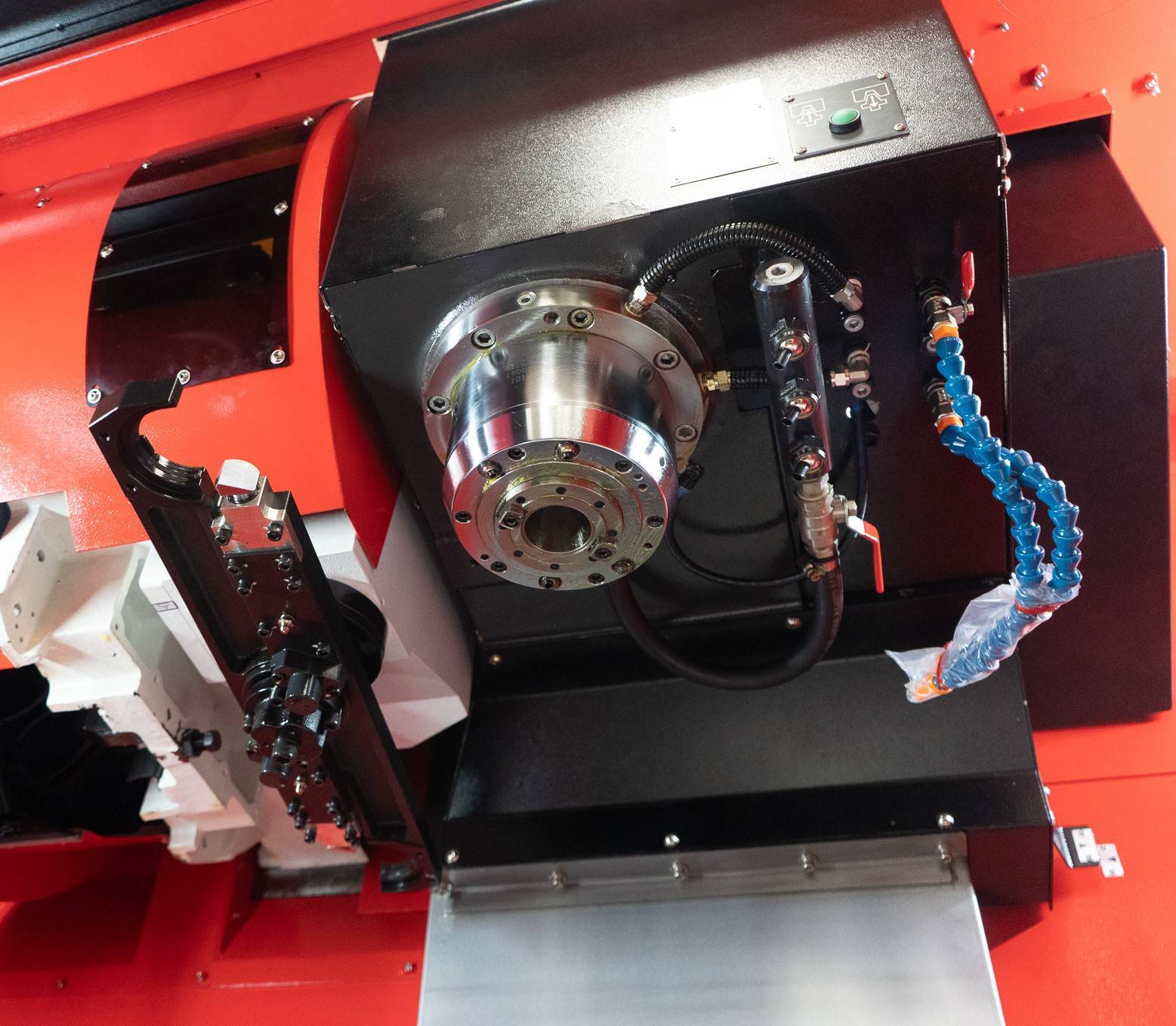

12,000 RPM Big Plus, 40-Taper Spindle with Air-Oil Lubrication, Spindle Chiller
-
Powerful 30 HP (15 min.) Direct Drive Hollow Shaft Spindle Motor w/1000 psi CTS Prep
-
Rigid Box-Way Construction in the Z-Axis
-
Robust Roller Guideways in the X and Y-Axis Feature 2362 IPM Rapid Rate
-

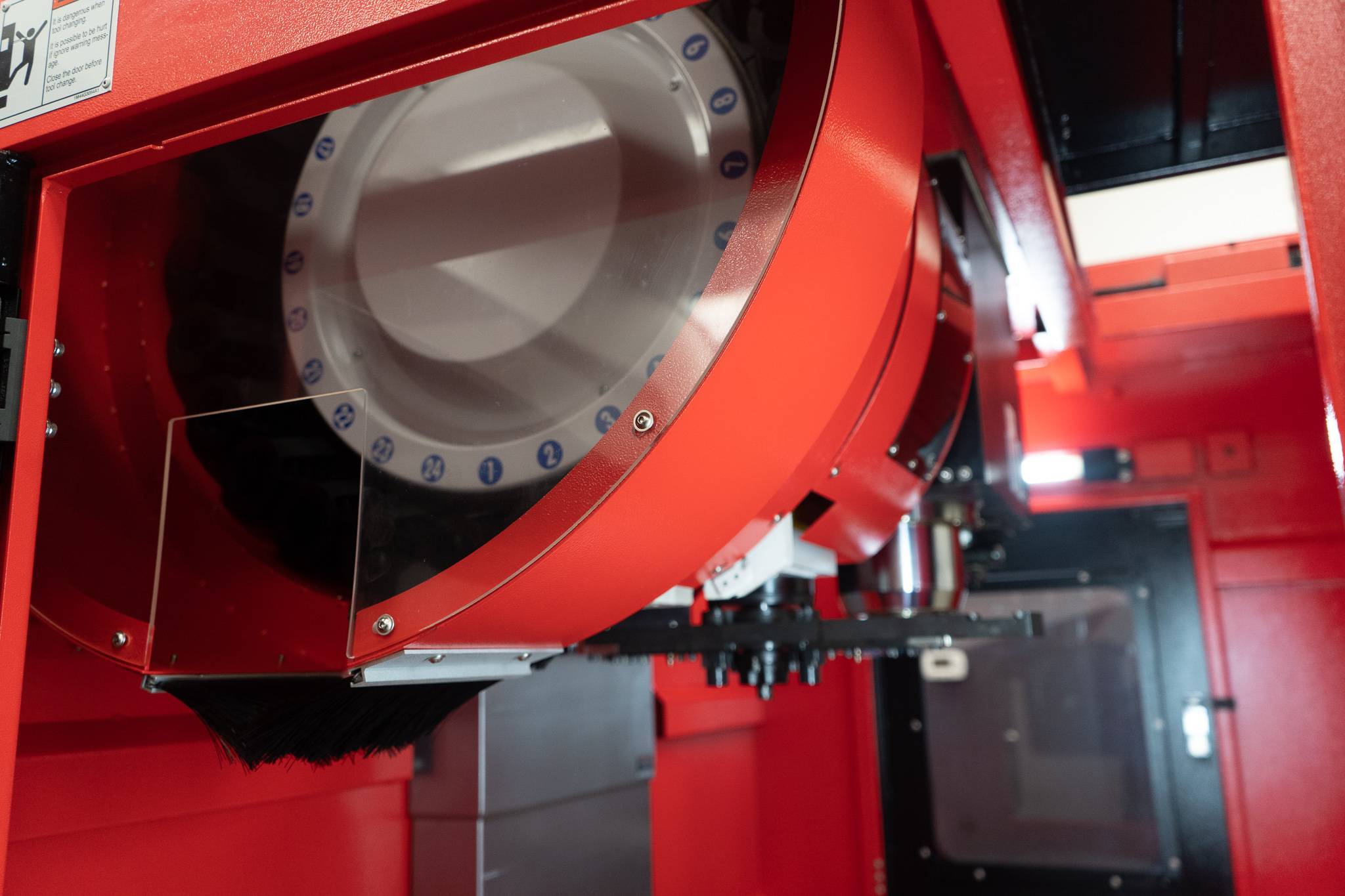

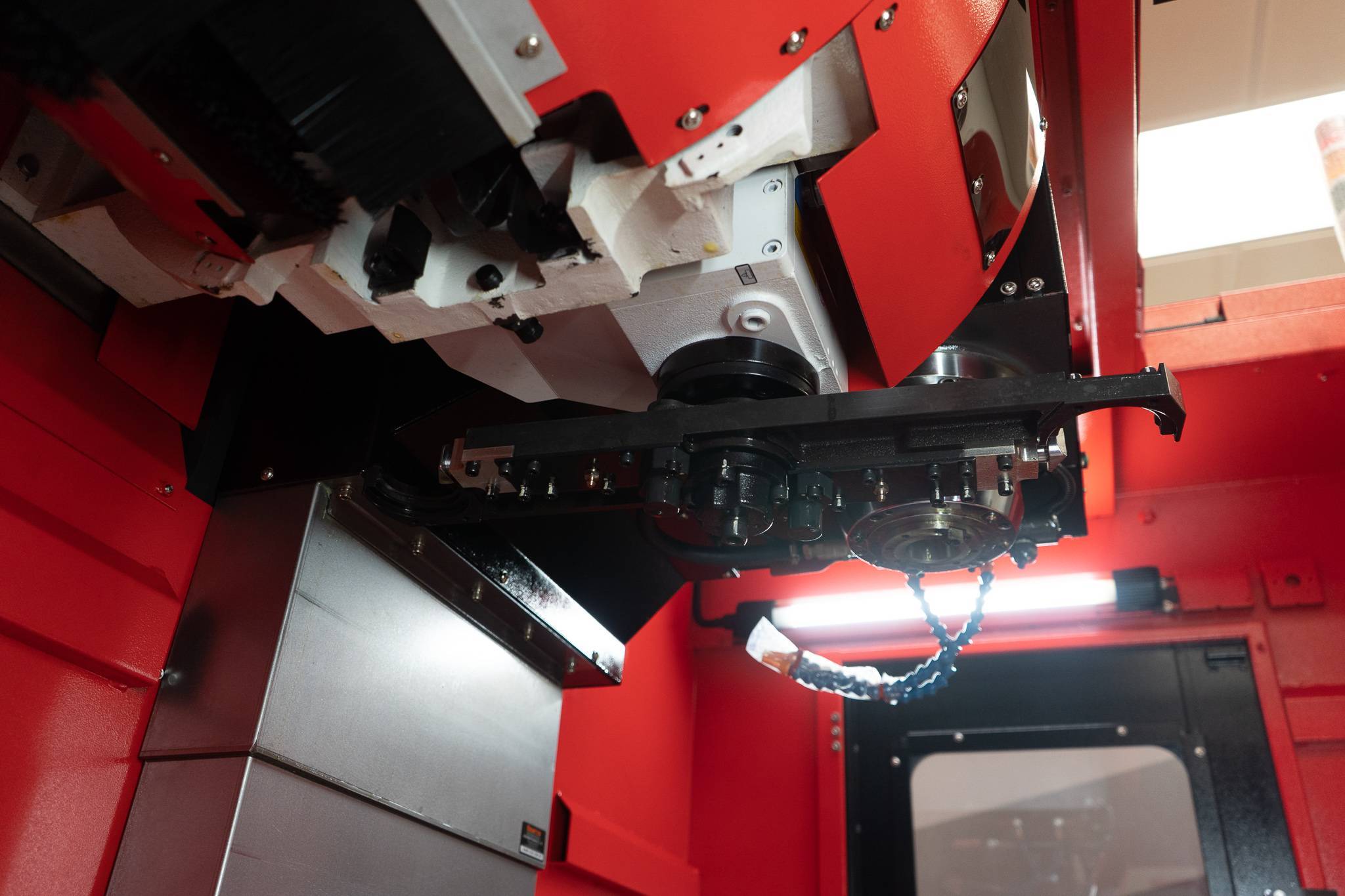

24 Tool ATC
-
Thermal Compensation
Travel
| X axis Travel | 24" (610 mm) |
|---|---|
| Y axis Travel | 17.7" (450 mm) |
| Z axis Travel | 20.1" (510 mm) |

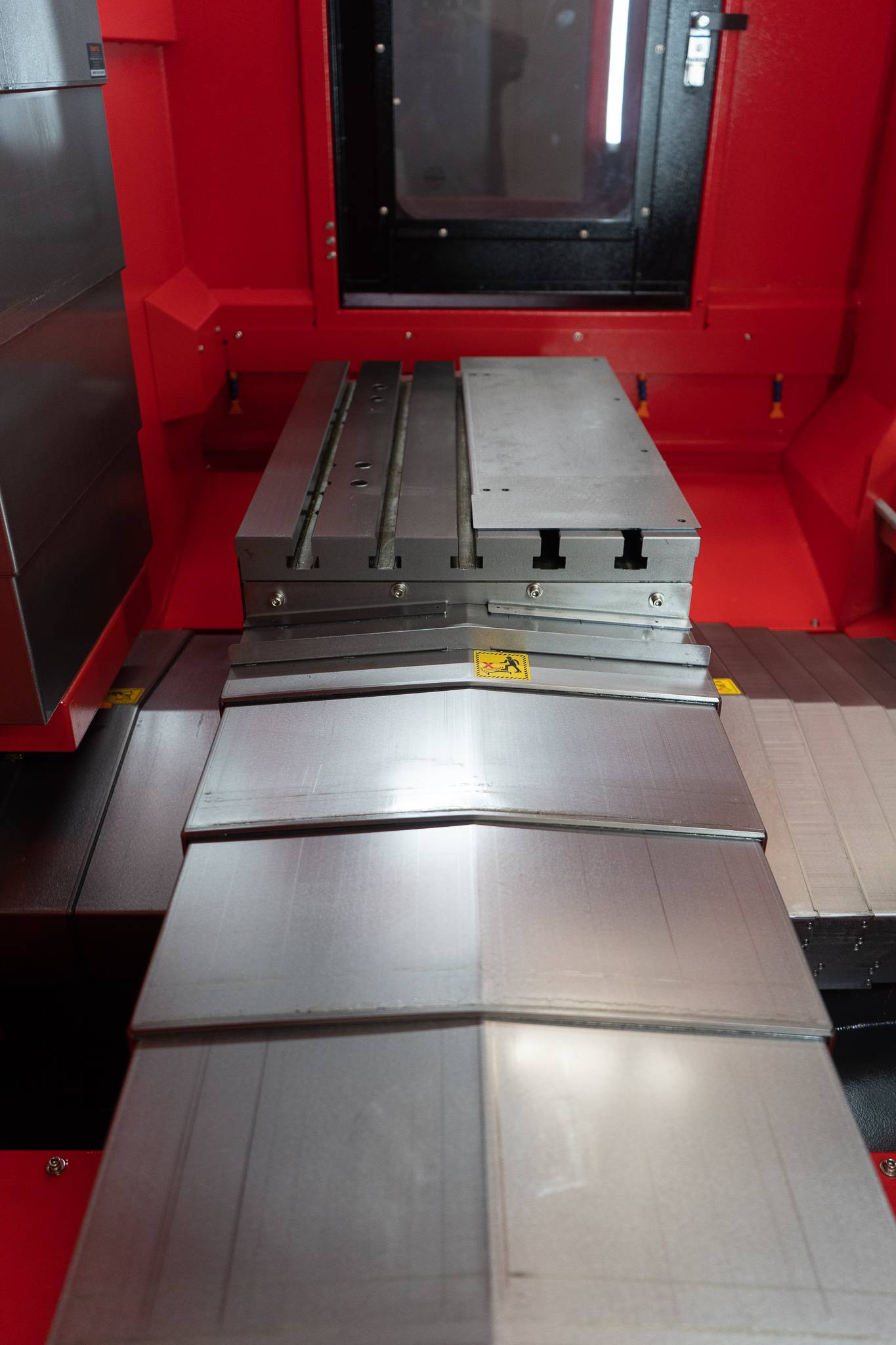

Table
| Table Dimensions | 27.6" x 17.7" (700 x 450 mm) |
|---|---|
| Maximum Load | 771 lbs (350 kg) |
| Spindle Nose to Table Surface | 3.94” ~ 23.8” (100 ~ 605 mm) |
Spindle
| Spindle Speed | 12,000 rpm |
|---|---|
| Spindle Taper | Big Plus/CAT40 |
| Spindle Power | 30 HP |
| Spindle Torque | 111ft/lb (150 Nm) |
| Spindle Lube | Oil / Air |
Feedrate
| X-Axis Rapid Traverse | 2362 in/min (60 m/min) |
|---|---|
| Y-Axis Rapid Traverse | 2362 in/min (60 m/min) |
| Z-Axis Rapid Traverse | 1181 in/min (30 m/min) |
ATC
| Maximum Number of Tools | 24 |
|---|---|
| Tool-to-Tool Change Time | 1.5 sec |
| Max Diameter (Magazine Full) | 3.1 in. (80 mm) |
| Max Diameter (Adjacent Pots Empty) | 5.9 in. (150 mm) |
| Max Weight | 15.4 lbs (7 kg) |
| Max Length | 7.87 in. (200 mm) |
Dimensions/ Weight/ Capacities
| Floor Space (LxWxH) | 86.6" x 116.1" x 114.6" (2,200 mm x 2,950 mm x 4,700 mm) |
|---|---|
| Weight | 10,361 lbs (4,700 kg) |
| Coolant Tank Capacity | 94 gal (355 l) |
| Control | FANUC 0i-MF Plus |
