Methods Automation MB650U-AMP

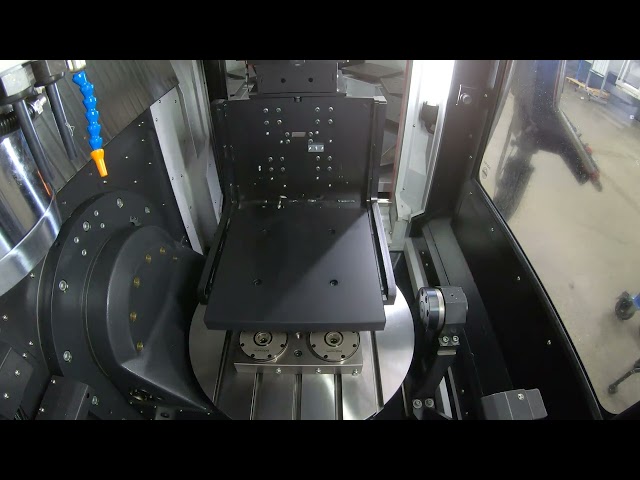

The MB 650U-AMP blends the precision and speed of Methods’ five-axis MB 650U and the convenience of the six-pallet Indunorm automatic pallet changer (APC). The result is a versatile, high-precision machine capable of unattended, lights-out operation.
Methods created MB 650U-AMP to provide a simple solution for anyone looking to add automation into their shop, the integrated package provides the perfect mixture of accuracy, speed, and automation on day one.
-
Automation for 5-axis Machining
-
Compact APC available in 6 & 8 Pallet
-
Large Standard Pallets
-
Ergonomic Pallet Loading & Unloading Station
-
User Friendly Pallet Scheduling System
-
FAST Package III
Pallet
| Pallet Configuration | 6 or 8 |
|---|---|
| Pallet Size (6APC) | 500mm (19.7") square x 19.7" |
| Pallet Size (8APC) | 400mm (15.7") square x 147" |
Work Piece
| Max Weight of Part (6APC) | 425 lbs (193kg) |
|---|
General
| Floor Space | 213" (5400mm) x 135” (3440mm) |
|---|---|
| Unit Weight | 1200lbs (550kg) |
-
