MB450U

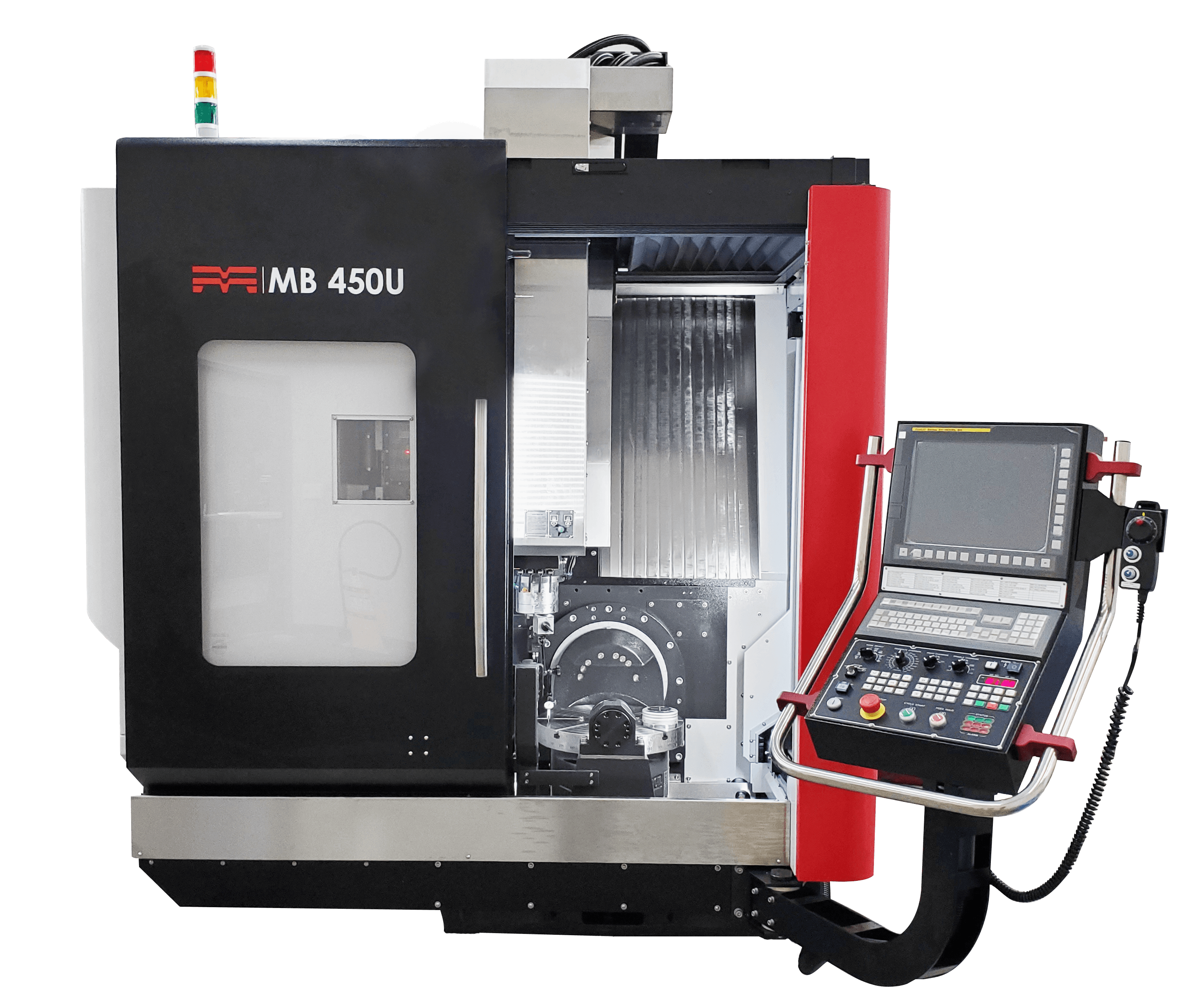

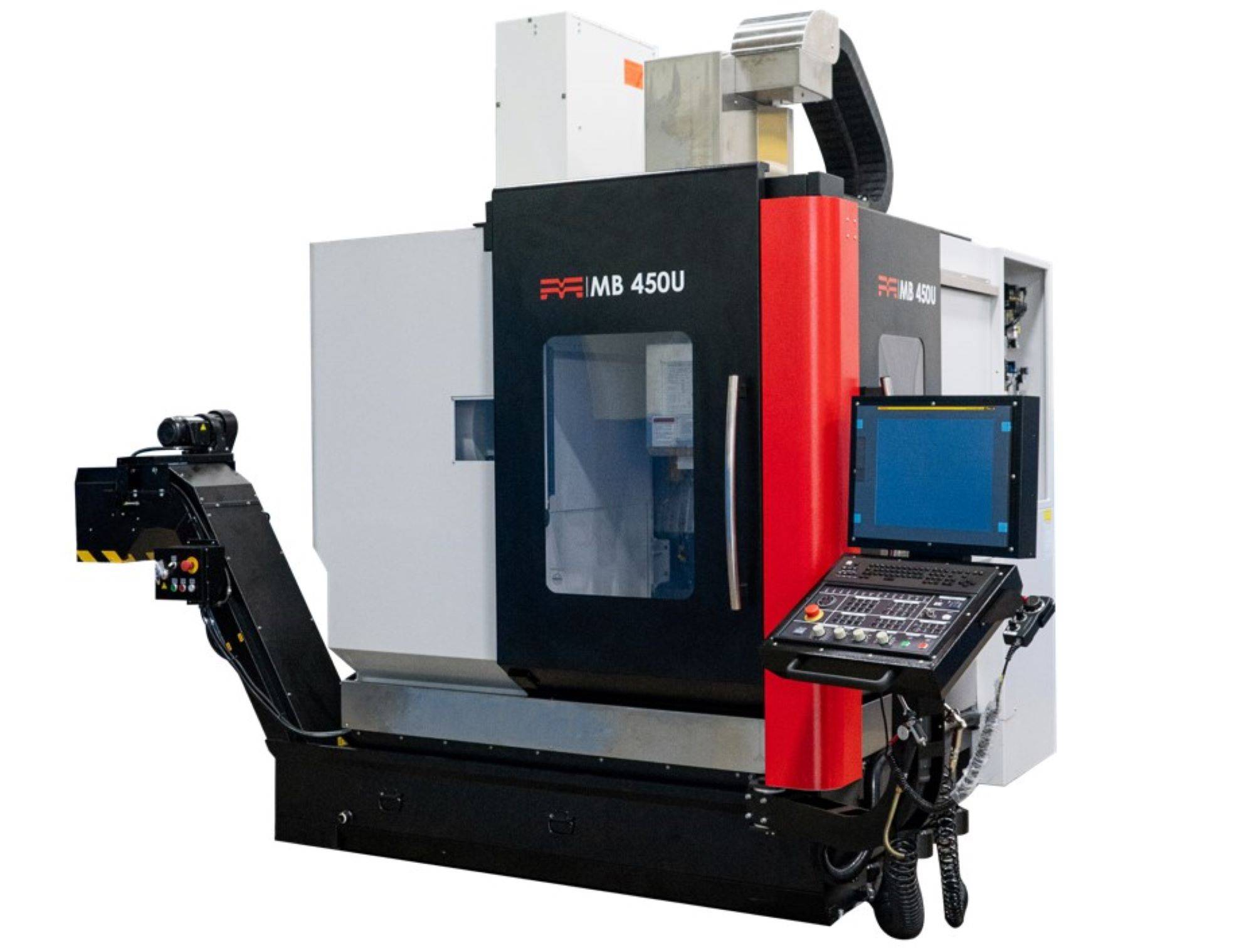

The Methods MB450U Simultaneous 5-Axis Bridge Type Machining Center is engineered & built to strict Methods specifications and quality standards. This product line is packed with standard features and benefits that will exceed the expectations of our customers looking for quality, reliability, accuracy and longevity at a competitive price.
-
15,000 RPM Big Plus, 40 Taper Spindle with Air-Oil Lubrication, Spindle Chiller
-
Direct Drive Hollow Shaft Spindle Motor with 1,000 psi CTS Prep
-
Robust Bridge Type Construction with Thermal Compensation
-
High Performance FANUC 31iM-B5+ Control with 19” TFT Screen
-
Includes Tool Center Point Control, Collision Detection, 40GB Program Storage, Manual Guide I, AICC II, 600 Block Look Ahead and Ethernet
-
Includes Tool Center Point Control, Collision Detection, 2 GB Data Server, Manual Guide I, AICC II, 600 Block Look Ahead and Ethernet
-
Large Capacity 48 Tool ATC
-
Includes Heidenhain Scales in All Axes & Kinematic Calibration Hardware/Software
Travel
| X axis Travel | 15.7" (400 mm) |
|---|---|
| Y axis Travel | 13.8" (350 mm) |
| Z axis Travel | 13.8" (350 mm) |
| B axis – Tilting | -50° ~ +110° |
| C axis – Rotary | 360° |
Table
| Table Dimensions | Ø17.72 in (Ø450 mm) |
|---|---|
| Maximum Load | 441 lbs (200 kg) |
| Spindle Nose to Table Surface | 5.9” ~ 24” (150 ~ 610 mm) |
Spindle
| Spindle Speed | 15,000 rpm |
|---|---|
| Spindle Taper | Big Plus/CAT40 |
| Spindle Power | 10 HP (7.5kW) – Optional 25 HP (18.5 kW) |
| Spindle Torque | 35ft-lb (47.7Nm) – Optional 106 ft-lb (143.7Nm) |
| Spindle Lube | Oil / Air |
Feedrate
| X-Axis Rapid Traverse | 1889in/min (48m/min) |
|---|---|
| Y-Axis Rapid Traverse | 1889in/min (48m/min) |
| Z-Axis Rapid Traverse | 1889in/min (48m/min) |
| B/C Axes Rotation Speed | 25 rpm |
ATC
| Maximum Number of Tools | 48 |
|---|---|
| Tool-to-Tool Change Time | 1.9 sec |
| Maximum Tool Length | 9.85" (250mm) |
| Max Diameter | 3.0" (75 mm) |
| Max Weight | 15.4 lbs (7 kg) |
Dimensions/ Weight/ Capacities
| Floor Space (L x W x H) | 139.3" x 130.4" x 118.2" (3538mm x 3312mm x 3002mm) |
|---|---|
| Weight | 13,250 lbs (6000 kg) |
| Coolant Tank Capacity | 68.7 gal (260 L) |
| Control | FANUC 31i-MB5 – Optional FANUC 31iMB5 Plus |
-
