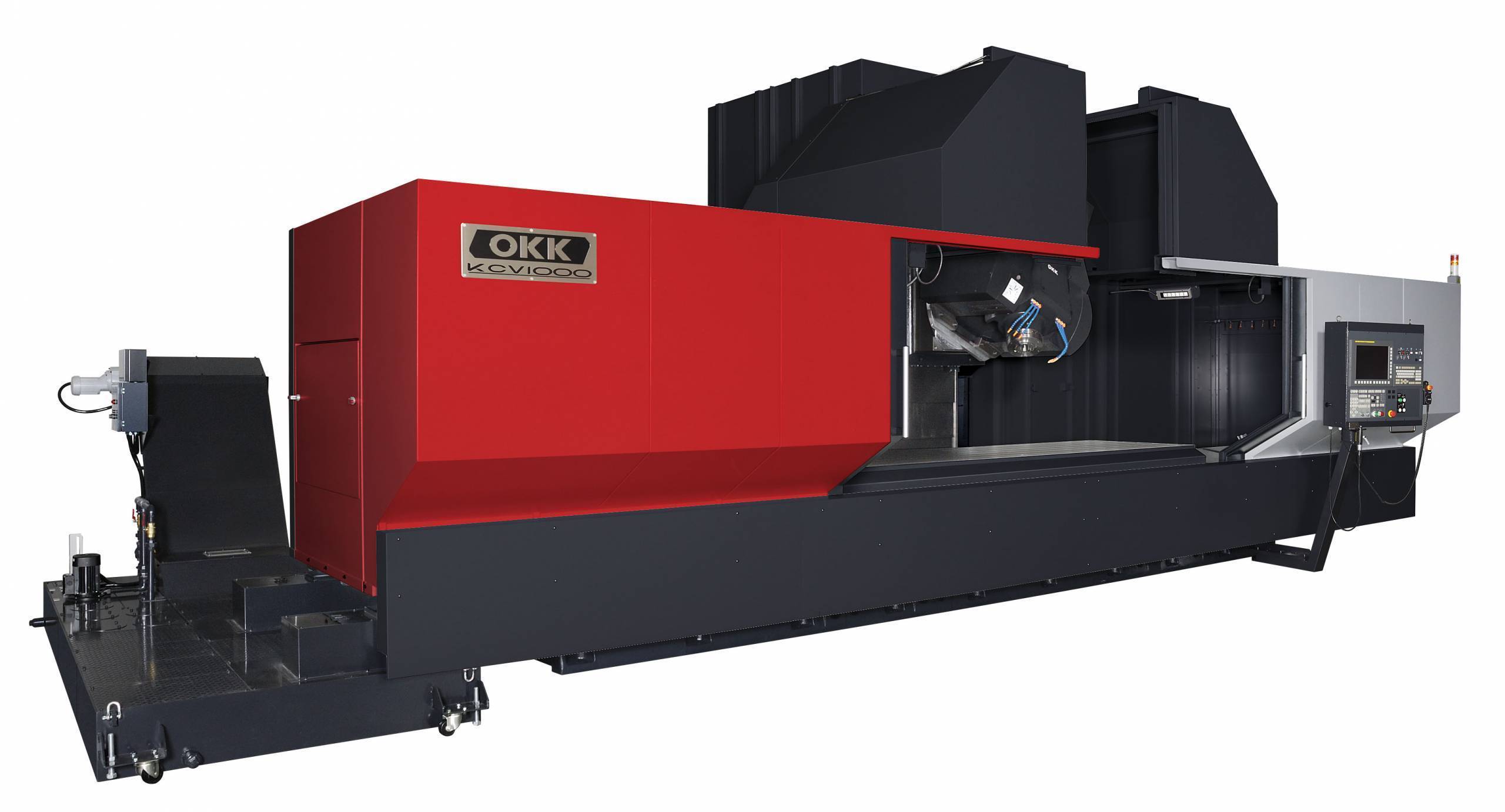

KCV1000-5AX
*Availability of machines is based on region. Contact your local Methods office to learn more.
The flexible design of the KCV 5AX Series meets your changing needs from short-term projects to production manufacturing of Large work pieces. Extreme stability and speed provide both high accuracy and productivity, without sacrificing easy accessibility and rigidity. From Aircraft parts to Large LCD components, its flexible design meets the users needs.
-
High efficiency 5-axis operation with spindle tilt/swivel system
-
Space saving design for economical use of floor space
-
Highly rigid machine structure produces highly accurate processing
-
Thorough measures to control thermal displacement
-
Operator friendly traversing column
-
Highly rigid high-speed feed systems
-
Core chilled ball screws
-
Double anchored support system
-
Excellent chip evacuation with standard 4 chip auger and lift-up conveyer
Travel
| X-Axis Travel | 137.8" (3500mm) |
|---|---|
| Y-Axis Travel | 40.2" (1020mm) |
| Z-Axis Travel | 28.4" (720mm) |
| A/B Axis Travel | ‐40° to +40° |
| Table Top to Spindle Nose | 7.9" – 36.2" (200mm – 920mm) |
Table
| Table Work Surface Area | 149.6" x 40.2" (3800mm x 1020mm) |
|---|---|
| Table Load Capacity | 8800 lbs (4000 kg) |
Feed Rate
| Rapid Traverse Rate (X/Y/Z) | 787 in/min (20 m/min) |
|---|---|
| Cutting Feed (X/Y/Z) | 393 in/min (10 m/min) |
Spindle
| Spindle Power | 60/50 HP |
|---|---|
| Spindle Speed | 12,000 rpm |
| Spindle Taper | CAT50 |
Tools
| Standard Number of Tools | 40 (30) std (opt) |
|---|---|
| Maximum Tool Weight | 44 lbs (20 kg) |
| Maximum Tool Length | 13.8" (350 mm) |
| Maximum Tool Diameter | ø 3.9" (100 mm) / ø 7.9" (200 mm) without adjacent tool |
| Tool Changing Time- Tool to Tool | 2.5 sec (Speed is changable for heavy-weight tools) |
General
| Coolant Tank Capacity | 264 gal (1000L) |
|---|---|
| Machine Weight | 70,547 lbs (32,000 kg) |
| Machine Control | FANUC 30i‐A |
