YBM 10T

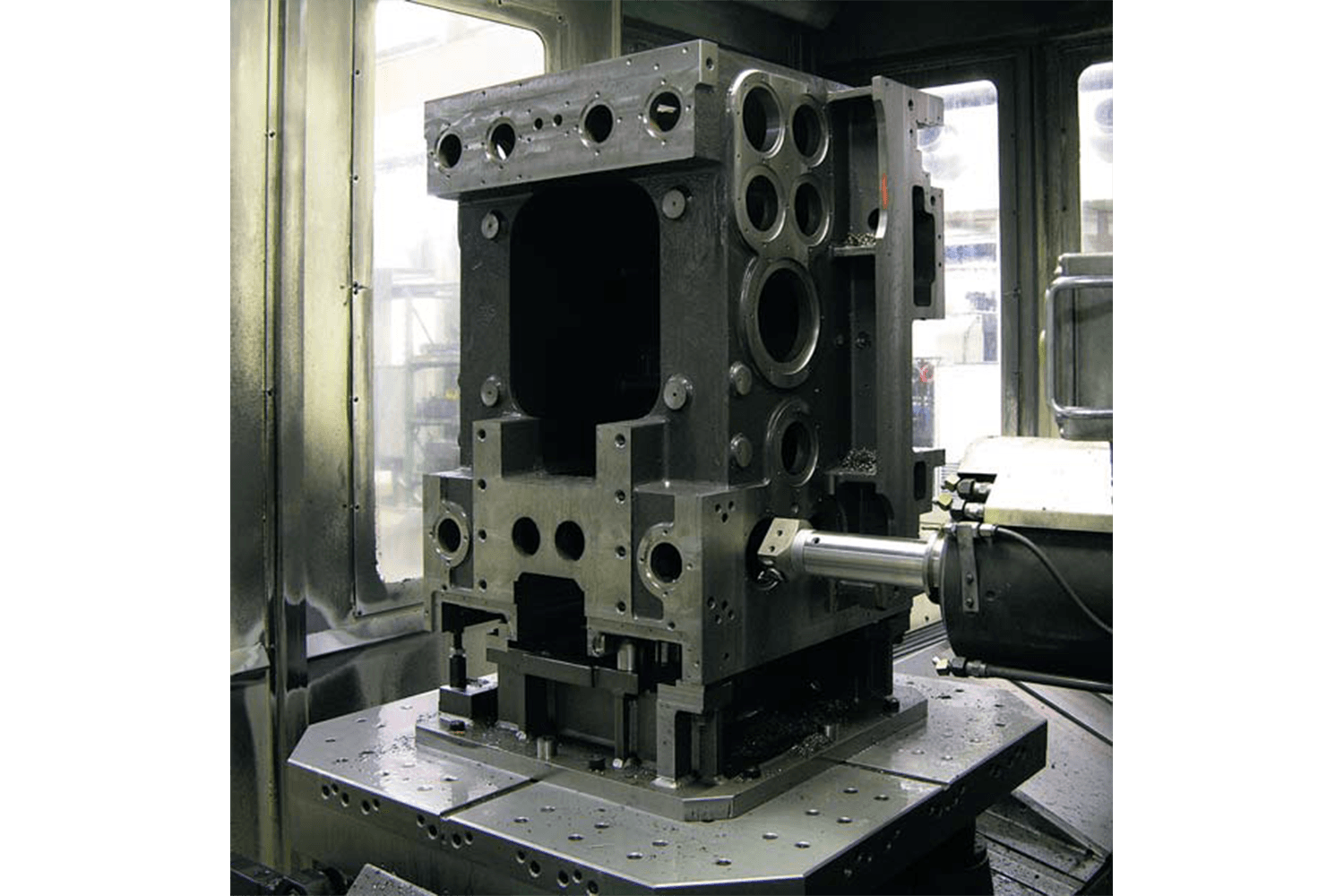

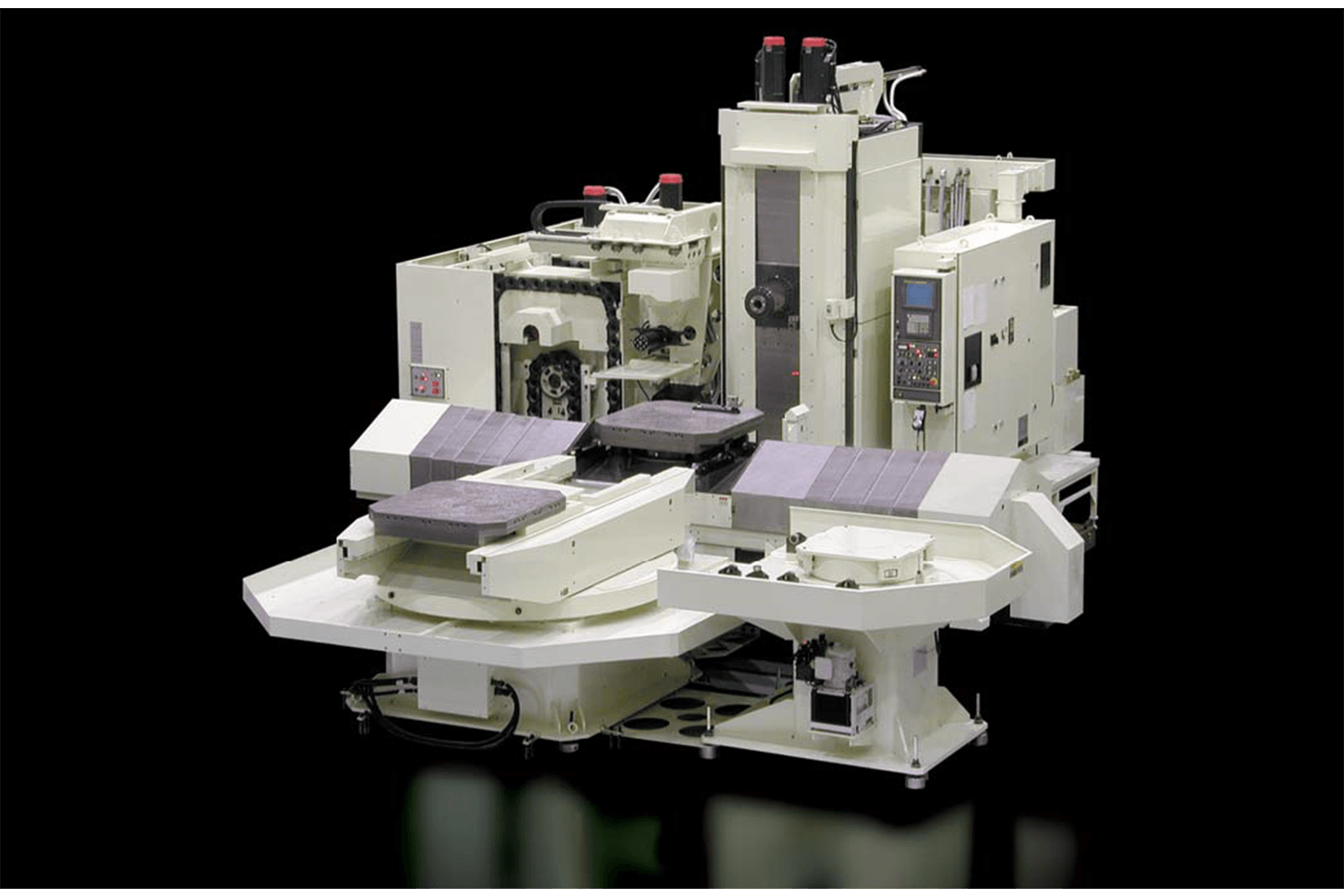

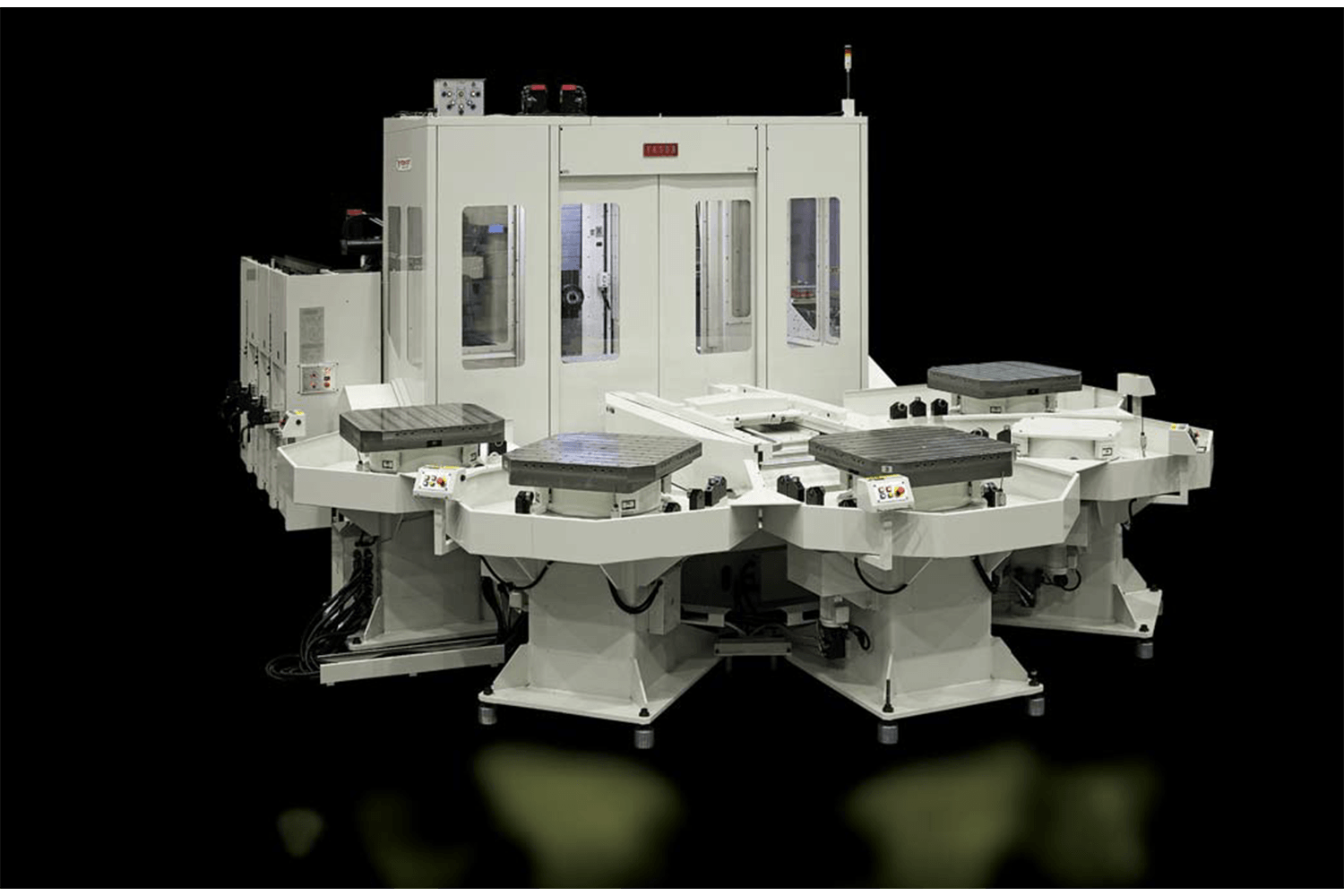

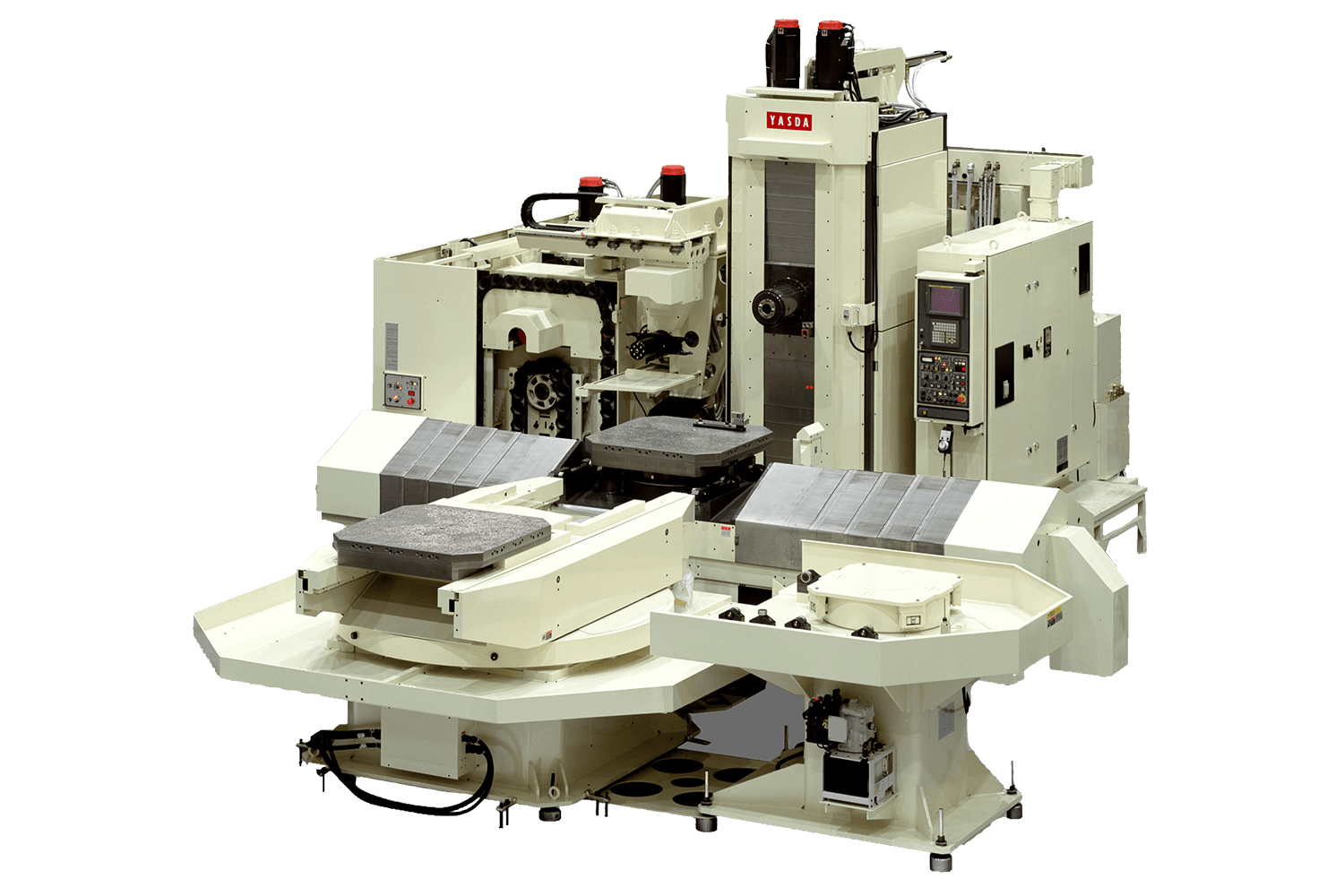

YASDA Precision Center YBM 10T is a large size horizontal machining center, developing a new area for high speed and high precision machining of a large and heavy components. The high speed positioning of 45m/min is achieved employing twin ball screws for each linear axis remaining YASDA’s traditional high positioning accuracy and the machine further increased its rigidity.

Excellent capability is achieved for high precision machining of box shape components and large size die and molds.

Request Information

Or call 1-877-668-4262

Product Details

Product Details

Features & Benefits

  • Trunnion Style 5 Axis Horizontal Machining Center
  • Through Hardened Box Guide Ways
  • Optical Scale Feedback on X/Y/Z axis
  • Twin Ball Screws
  • YBM 8T-63TT on X/Y Axis
  • YBM 10T-100TT on X Axis
  • Self-adjusting Spindle Preload System
  • Curvic Coupled Pallet Clamping with Air Blast
  • Thermal Distortion Stabilization
  • H-frame Z-axis Steel Bed for Heat Distribution for Long Term Accuracy
  • Double Walled and Ribbed Y-axis Column with Minimal Axial Yaw
  • 72 Tooth Curvic Coupling Pallet Clamping with Air Blast
  • Rigid Machine Structure for Machining Various Material Types
  • Optical Scale Feedback for Precise Positioning
  • Probing Systems

Technical Data

Travel

X-Axis Travel
59 (1500) in (mm)
Y-Axis Travel
47.3 (1200) in (mm)
Z-Axis Travel
43.3 (1100) in (mm)
Distance from Table Surface to Spindle
0-47.3 (0-1200) in (mm)
Distance from Table Center to Spindle Nose Face
7.8-51.2 (200-1300) in (mm)

Feed Rate

Rapid Traverse
1772 (45) in/min (m/min)
Feed Rate
0.04-394 (1-10000) in/min (mm/min)

Table

Table Working Surface
39.4x39.4 (1000x1000) in (mm)
Table Loading Capacity
11024 (5000) lbs (kg)
Max Diameter of Workpiece
ø 53.2 (1350) in (mm)
Min. Table Indexing Angle
1E-4 degree

Spindle

Spindle Type
SA50-10000-22 -
Spindle Speed Range
50-10000 rpm (opt)
Spindle Taper
7/24 NT No.50 (Big Plus) -

Tooling

Number of Tools
60
Maximum Tool Weight
44 (20) lbs (kg)
Maximum Tool Length
17.4 (440) in (mm)
Maximum Tool Diameter
ø 11.8 (300) in (mm)

General

Machine Weight
66139 (30000) lbs (kg)
Machine Control
FANUC 31i B5 Plus
